Introduction

Congratulations on your purchase of the Extech SDL150 Dissolved Oxygen Meter, an SD Logger

Series meter. This meter displays and stores Dissolved Oxygen readings in the 0 to 20.0mg/L

range, Oxygen in air from 0 to 100%, and Temperature from 0 to 50

C (32 to 122

F). The SDL150

uses a polarographic oxygen probe that also measures temperature. %Salt and Altitude

compensation can be fine tuned by the user in the Setup mode. Logged data readings are stored on

an SD card for transfer to a PC. In addition, an RS232 port allows data streaming to a PC. This

meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable

service.

Safety

International Safety Symbols

This symbol, adjacent to another symbol or terminal, indicates the user must refer to the

manual for further information.

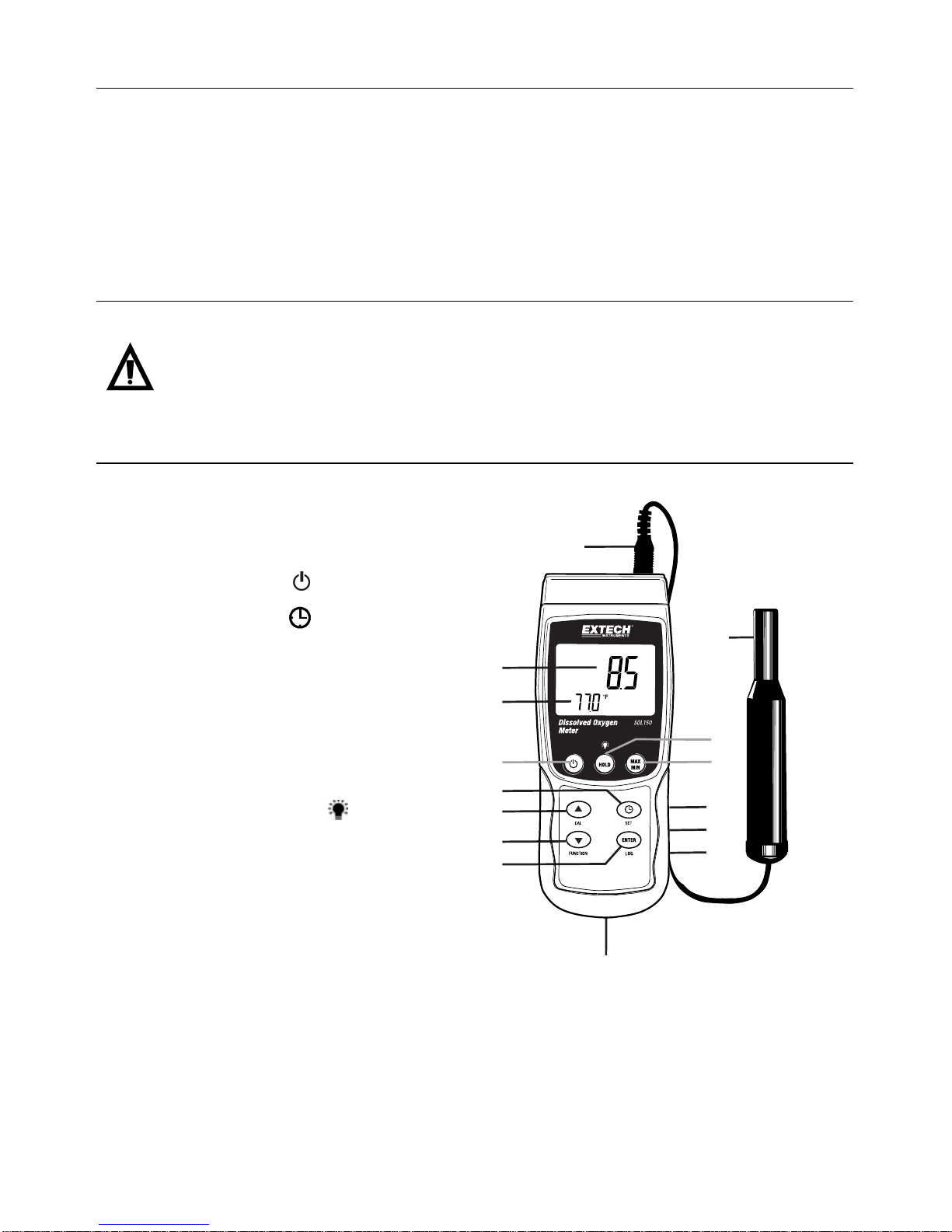

Meter Description

1. Oxygen Probe Input Plug

2. Dissolved Oxygen or Oxygen in Air reading

3. Temperature reading

4. Power ON-OFF key

5. SET and Clock key

6. Up arrow ▲/ CAL key

7. Down arrow ▼/ Function key

8. ENTER and LOG key

9. SD card slot

10. Dissolved Oxygen/Temperature Probe

11. HOLD and Backlight key

12. MAX-MIN key

13. PC interface jack

14. Reset button

15. Power Adaptor jack

Notes:

Items 13, 14, and 15 are located behind the snap-off compartment cover on meter’s right side.

Battery compartment, tilt stand, and tripod mount are located on the rearof the instrument

SDL150-EU-EN-V2.1-11/11

Probe Description

1. Probe to meter input plug

2. Probe body handle

3. Temperature Sensor

4. Probe head

5. Protective cap

Getting Started

Accessories

•The SDL150 includes batteries, SD card, probe (with spare probe head and diaphragm),

electrolyte, and carry case. If items are missing please contact the distributor through which this

product was purchased

•Optional AC adaptor and universal AC adaptors (UK, EU, US), as well as replacement probes,

membranes, and electrolyte are available through Extech distributors

Power ON-OFF

•Press and hold the power button for at least 1.5 seconds to power ON the meter.

•Press and hold the power button for 1.5 seconds to power OFF the meter.

•This meter is powered by six (6) 1.5VDC ‘AA’ batteries or by optional AC adaptor. If the meter

will not switch ON please check that fresh batteries are installed in the rear battery compartment

or, in the case of the AC adaptor, check that the adaptor is connected correctly to the meter and

to an AC source.

Measurements

Connect the Oxygen Probe

The supplied probe connects to the keyed input jack (DIN style) at the top of the meter.

Measurement Ranges

Dissolved Oxygen measurements are displayed in the range of 0 to 20mg/L in the upper, larger digit

display area of the meter’s LCD. Measurements outside of this range will yield dashes (- - -) on the

meter’s LCD. Oxygen in Air measurements (O2) are displayed in the range of 0 to 100%.

Temperature measurements are displayed in the range of 0 to 50

C (32 to 122

F) on the lower LCD

line in smaller sized digits.

Calibration Considerations

For best accuracy, calibrate the meter with the probe before each use. The calibration should at be

performed before first use and after long periods of non-use. The calibration procedure is provided

in a later section of this user guide.

SDL150-EU-EN-V2.1-11/11

Taking Dissolved Oxygen Measurements

1. Immerse the DO probe into the solution under test to a depth of at least 10cm. The depth

specification is important since the temperature measurement of the solution and the automatic

temperature compensation circuitry rely on the probe depth to operate correctly.

2. Allow the test to stabilize for several minutes to achieve thermal equilibrium between the probe

and measurement sample.

3. To successfully measure DO the velocity of the solution striking the probe must be at least 0.2-

0.3m/s (meters per second); if not, simply agitate the solution with the probe while waiting for

thermal equilibrium to be achieved.

4. In laboratory environments use of a magnetic agitator to ensure proper velocity is

recommended. In this way, errors due to the diffusion of the oxygen present in the surrounding

air are minimized.

5. The Dissolved Oxygen measurements are displayed on the upper, larger digit display area of

the meter’s LCD. Measurements outside of the specified range will yield dashes (- - -).

Temperature measurements are displayed in the range of 0 to 50

C (32 to 122

F) on the lower

LCD line in smaller sized digits.

6. %SALT, Altitude (height) compensation, temperature units of measure, and other parameters,

can be modified in the SETUP mode (refer to the SETUP mode section later in this guide).

Taking Oxygen in Air Measurements

1. The probe measures Oxygen in the air surrounding the probe (in percent).

2. The meter defaults to the DO measurement mode. Therefore, press and hold the FUNCTION

button for 1.5 seconds to switch to the %O2 mode (oxygen in air). The displayed unit of

measure will switch from mg/L to 02. To return to the DO measurement mode simply press and

hold the FUNCTION button again for 1.5 seconds.

3. The Oxygen in Air measurements are displayed on the upper, larger digit display area of the

meter’s LCD. Measurements outside of the specified range will yield dashes (- - -). Temperature

measurements are displayed in the range of 0 to 50

C (32 to 122

F) on the lower LCD line in

smaller sized digits.

SDL150-EU-EN-V2.1-11/11

Calibration

20.9% Oxygen in Air Calibration

1. Connect the DO probe to the input jack at the top of the meter

2. Power the meter by pressing and holding the power button for 1.5 seconds

3. Press and hold the FUNCTION button for 1.5 seconds to switch from mg/L mode to O2 mode

4. Allow the probe to stabilize for at least 5 minutes in a large well ventilated environment.

5. Press and hold the CAL button for 1.5 seconds. The CAL icon will appear

6. Momentarily press the ENTER button while the CAL icon is displayed. The display will indicate a

countdown from 30 to zero. Note that if the ENTER button is not pressed while the CAL icon is

being displayed, the calibration procedure must be attempted again

7. When the countdown finishes the calibration is complete

8. If the calibration is unstable, check the electrolyte level and/or replace the probe head (includes

diaphragm)

Zero Calibration

The 0% calibration is available for high accuracy measurements at low O

levels. The calibration

requires a Zero Oxygen Solution which can be purchased from most laboratory supply distributors.

This calibration is not required for typical O

measurements.

1. Power the meter on and set it to DO mode (you should see mg/L in the top right of display).

2. Immerse the probe in 4” of zero oxygen solution; agitate or slowly stir the probe in the solution

to remove any air bubbles and allow the reading to stabilize.

3. Once the reading has stabilized, press and hold the UP and DOWN arrow buttons until CAL 0

appears in the lower portion of the display.

4. Release the UP and DOWN arrow buttons; calibration is complete.

SDL150-EU-EN-V2.1-11/11

Probe Maintenance

First time use

Before first use, ensure that the probe is filled with the supplied electrolyte solution (refer to the

electrolyte filling instructions later in this guide)

Subsequent uses

1. Ensure proper electrolyte level in probe

2. Calibrate the probe with the meter before each use

3. Replace the probe head and diaphragm if the diaphragm appears soiled (re-calibrate after

replacing diaphragm)

Diaphragm considerations

The main oxygen probe component is the thin Teflon diaphragm housed in the tip of the supplied

probe. The diaphragm is made permeable by the oxygen molecules but not by the considerably

larger molecules contained in the electrolyte. Due to this characteristic, the oxygen may diffuse

throughout the electrolyte solution contained in the probe and its concentration is quantified by the

meter’s measurement circuitry.

Refilling the Probe’s Electrolyte

Refer to the illustrated instructions below.

1. Unscrew the probe head

2. Pour out the old electrolyte from the probe head container

3. Fill the probe head container with the fresh electrolyte

4. Replace the probe head onto the probe body

5. When not in use the probe head should be kept in the protective cover

SDL150-EU-EN-V2.1-11/11

Display Backlight

To turn the display backlight ON or OFF, press and hold the backlight button for at least 1.5

seconds.

Data Hold

To freeze a displayed reading on the LCD, momentarily press the HOLD button (the HOLD display

icon will appear). To release the held reading, press the HOLD button again.

Max-Min Reading Record and Recall

For a given measurement session, this meter can record the highest (MAX) and the lowest (MIN)

readings for later recall.

1. Press the MAX-MIN button momentarily to access this mode of operation (REC icon appears)

the meter is now recording the MAX and MIN readings.

2. Press the MAX-MIN button again to view the current MAX readings (MAX icon appears). The

readings on the display are now the highest readings encountered since the REC icon was

switched on (when the MAX-MIN button was first pressed).

3. Press the MAX-MIN button again to view the current MIN readings (MIN icon appears). The

readings on the display are now the lowest readings encountered since the REC icon was

switched on (when the MAX-MIN button was first pressed).

4. To exit the MAX-MIN mode, press and hold the MAX-MIN button for at least 1.5 seconds The

meter will beep, the REC-MAX-MIN icons will switch off, the MAX-MIN memory will clear, and

the meter will return to the normal operating mode.

SDL150-EU-EN-V2.1-11/11

Setup Mode

Basic settings at a glance

To view the current configuration of the meter with regard to time, date, and datalogging sampling

rate press the SET button momentarily. The meter will now display the configuration in quick

succession. Repeat as necessary to observe all the information.

Accessing the Setup mode

1. Press and hold the SET button for at least 1.5 seconds to access the Setup menu.

2. Press the SET button momentarily to step through the available parameters. The parameter

type is shown on the bottom of the LCD and the current selection for that type is shown above it.

3. When a parameter is displayed that is to be changed, use the arrow keys to change the setting.

Press the ENTER button to confirm a change.

4. Press and hold the SET button for at least 1.5 seconds to exit the Setup mode. Note that the

meter automatically switches out of the Setup mode if no key is pressed within 7 seconds.

The available Setup parameters are listed below. Additional detailed information is provided

below this list:

dAtE Set the clock (Year/Month/Date; Hours/Minutes/Seconds)

SP-t Set the datalogger sampling rate (Hours/Minutes/Seconds)

PoFF Automatic power-off (Enable/disable the auto-power off function)

bEEP Set the beeper sound ON/OFF

dEC Set the numerical format; USA (decimal: 20.00) or European (comma: 20,00)

Sd F Format the SD memory card

t-CF Select the desired unit of measure for temperature C or F

SALT %Salt compensation (0 to 50%)

HEIGHT Altitude compensation (in meters) up to 8900 meters

HEIGHT-F Altitude compensation (in feet) up to 29300 feet

Setting the Clock Time

1. Access the dAtE parameter.

2. Use the arrow keys to change a value

3. Use the ENTER button to step through the selections

4. Press and hold the SET button for at least 1.5 seconds to exit to the normal operation mode (or

simply wait 7 seconds for the meter to automatically switch to the normal operating mode).

5. The clock will keep accurate time even when the meter is switched off. However, if the battery

expires the clock will have to be reset after fresh batteries are installed.

Setting the Datalogger Sampling Time (Rate)

1. Access the SP-t parameter.

2. The sampling rate can be set from ‘0’ seconds (manual log mode) up to 8 hours, 59 minutes,

and 59 seconds.

3. Use the ENTER button to move through the Hours, Minutes, and Seconds digit groups and use

the arrow keys to change the digit values.

PresstheENTERbuttontoconfirm theentry.

5. Press and hold the SET button for at least 1.5 seconds to exit to the normal operation mode (or

simply wait 7 seconds for the meter to automatically switch to the normal operating mode).

SDL150-EU-EN-V2.1-11/11

Enabling/Disabling the Auto Power OFF Feature

1. Access the PoFF parameter.

2. Use the arrow buttons to select ON (enable) or OFF (disable). With the Auto Power OFF

feature enabled, the meter will automatically switch OFF after 5 minutes of inactivity.

3. Press ENTER to confirm setting.

4. Press and hold the SET button for at least 1.5 seconds to exit to the normal operation mode (or

simply wait 7 seconds for the meter to automatically switch to the normal operating mode).

Set the Beeper Sound ON or OFF

1. Access the bEEP parameter.

2. Use the arrow buttons to select ON (enable) or OFF (disable).

3. Press ENTER to confirm setting.

4. Press and hold the SET button for at least 1.5 seconds to exit to the normal operation mode (or

simply wait 7 seconds for the meter to automatically switch to the normal operating mode).

Numerical Format (comma or decimal)

European and USA numerical formats differ. The meter defaults to USA mode where a decimal

point is used to separate units from tenths, i.e. 20.00; The European format uses a comma, i.e.

20,00 to separate units from tenths. To change this setting:

1. Access the dEC parameter.

2. Use the arrow buttons to select USA or EUro.

3. Press ENTER to confirm setting.

4. Press and hold the SET button for at least 1.5 seconds to exit to the normal operation mode (or

simply wait 7 seconds for the meter to automatically switch to the normal operating mode).

SD Card FORMATTING

1. Access the Sd F parameter.

2. Use the arrow buttons to select YES to format the card (select NO to abort). Note that all data

on the card will be lost if formatting is attempted.

3. Press ENTER to confirm selection.

4. Press ENTER again to re-confirm.

5. The meter will automatically return to the normal operating mode when formatting is complete.

If not, press and hold the SET button for at least 1.5 seconds to exit to the normal operation

mode.

Set the Temperature Units of Measure (°C or °F)

1. Access the t-CF parameter.

2. Use the arrow keys to select °C or °F.

3. Press ENTER to confirm setting.

4. Press and hold the SET key for at least 1.5 seconds to exit to the normal operation mode (or

simply wait 7 seconds for the meter to automatically switch to the normal operating mode).

Set the %SALT Compensation

1. Access the SALT parameter.

2. Use the arrow keys to select the %SALT compensation (0 to 50%)

3. Press ENTER to confirm setting.

4. Press and hold the SET key for at least 1.5 seconds to exit to the normal operation mode (or

simply wait 7 seconds for the meter to automatically switch to the normal operating mode).

SDL150-EU-EN-V2.1-11/11

Set the Altitude Compensation (in meters) for DO measurements only

1. Access the Height parameter.

2. Use the arrow keys to select the altitude compensation (0 to 8900 meters in 100 meter steps)

3. Press ENTER to confirm setting.

4. Press and hold the SET key for at least 1.5 seconds to exit to the normal operation mode (or

simply wait 7 seconds for the meter to automatically switch to the normal operating mode).

Set the Altitude (F) Compensation (in feet) for DO measurements only

1. Access the Height-F parameter.

2. Use the arrow keys to select the altitude compensation (0 to 29,300 feet in 100 feet steps)

3. Press ENTER to confirm setting.

4. Press and hold the SET key for at least 1.5 seconds to exit to the normal operation mode (or

simply wait 7 seconds for the meter to automatically switch to the normal operating mode).

System Reset

If the meter’s keys become inoperable or if the display freezes the Reset button can be used to

reset the instrument.

1. Use a paper clip or similar item to momentarily press the reset button located on the lower right

side of the instrument under the snap-off compartment cover.

2. After pressing the Reset button, switch the instrument ON by pressing and holding the

POWER key for at least 1.5 seconds. If using the power adaptor unplug the adaptor and then

plug it back in again to power the meter.

Datalogging

Types of Data Recording

•Manual Datalogging: Manually log up to 99 readings onto an SD card via push-button press.

•Automatic Datalogging: Automatically log data onto an SD memory card where the number of

data points is virtually limited only by the card size. Readings are logged at a rate specified by

the user.

SD Card Information

•Insert an SD card (from 1G size up to 16G) into the SD card slot at the bottom of the meter. The

card must be inserted with the front of the card (label side) facing toward the rear of the meter.

•If the SD card is being used for the first time it is recommended that the card be formatted and

the logger’s clock set to allow for accurate date/time stamping during datalogging sessions.

Refer to the Setup Mode section for SD card formatting and time/date setting instructions.

•European and USA numerical formats differ. The data on the SD card can be formatted for

either format. The meter defaults to USA mode where a decimal point is used to separate units

from tenths, i.e. 20.00. The European format uses a comma, i.e. 20,00. To change this setting,

refer to the Setup Mode section.

Indice

Altri manuali Extech Instruments Strumento di misura

Extech Instruments

Extech Instruments 480823 Manuale utente

Extech Instruments

Extech Instruments AN100-NIST Manuale utente

Extech Instruments

Extech Instruments LT45 Manuale utente

Extech Instruments

Extech Instruments ExStik RE300 Manuale utente

Extech Instruments

Extech Instruments 407123 Manuale utente

Extech Instruments

Extech Instruments VB500 Manuale utente

Extech Instruments

Extech Instruments 407227 Manuale utente

Extech Instruments

Extech Instruments MO210 Manuale utente

Extech Instruments

Extech Instruments AN100 Manuale utente

Extech Instruments

Extech Instruments AN250W Manuale utente

Extech Instruments

Extech Instruments 407735 Manuale utente

Extech Instruments

Extech Instruments ExStik SX800 Series Manuale utente

Extech Instruments

Extech Instruments RPM40 Manuale utente

Extech Instruments

Extech Instruments HD450 Manuale utente

Extech Instruments

Extech Instruments MA1500 Manuale utente

Extech Instruments

Extech Instruments AUT10 Manuale utente

Extech Instruments

Extech Instruments 480823 Manuale utente

Extech Instruments

Extech Instruments Oyster Series Manuale utente

Extech Instruments

Extech Instruments EMF450 Manuale utente

Extech Instruments

Extech Instruments MA260 Manuale utente

Extech Instruments

Extech Instruments ExStik II EC400 Manuale utente

Extech Instruments

Extech Instruments ET38 Manuale utente

Extech Instruments

Extech Instruments 461750 Manuale utente

Extech Instruments

Extech Instruments 407495 Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
