AP3610 Indoor Access Point – Data Sheet 1

Product Overview

The AP3600 series was the ﬁrst 802.11abgn indoor access point in the industry to

support 3x3 MIMO 11n performance using existing 802.3af power investments. This

access point is designed to operate in enterprise environments that require always-

on connectivity. The AP3600 Series is equally adept at serving high-bandwidth

video applications as well as low-latency voice applications. The AP3610 comes

with an integrated six antenna array for ease of installation.

The AP3600 platform supports dynamic radio management, spectrum analysis,

self-forming and self-healing meshing, security, role-based authentication,

authorization, and access control. The 3x3:2 platform is capable of delivering

600Mbps over-the-air-performance and up to 50,000 packets per second on the

wire port.

DATA SHEET

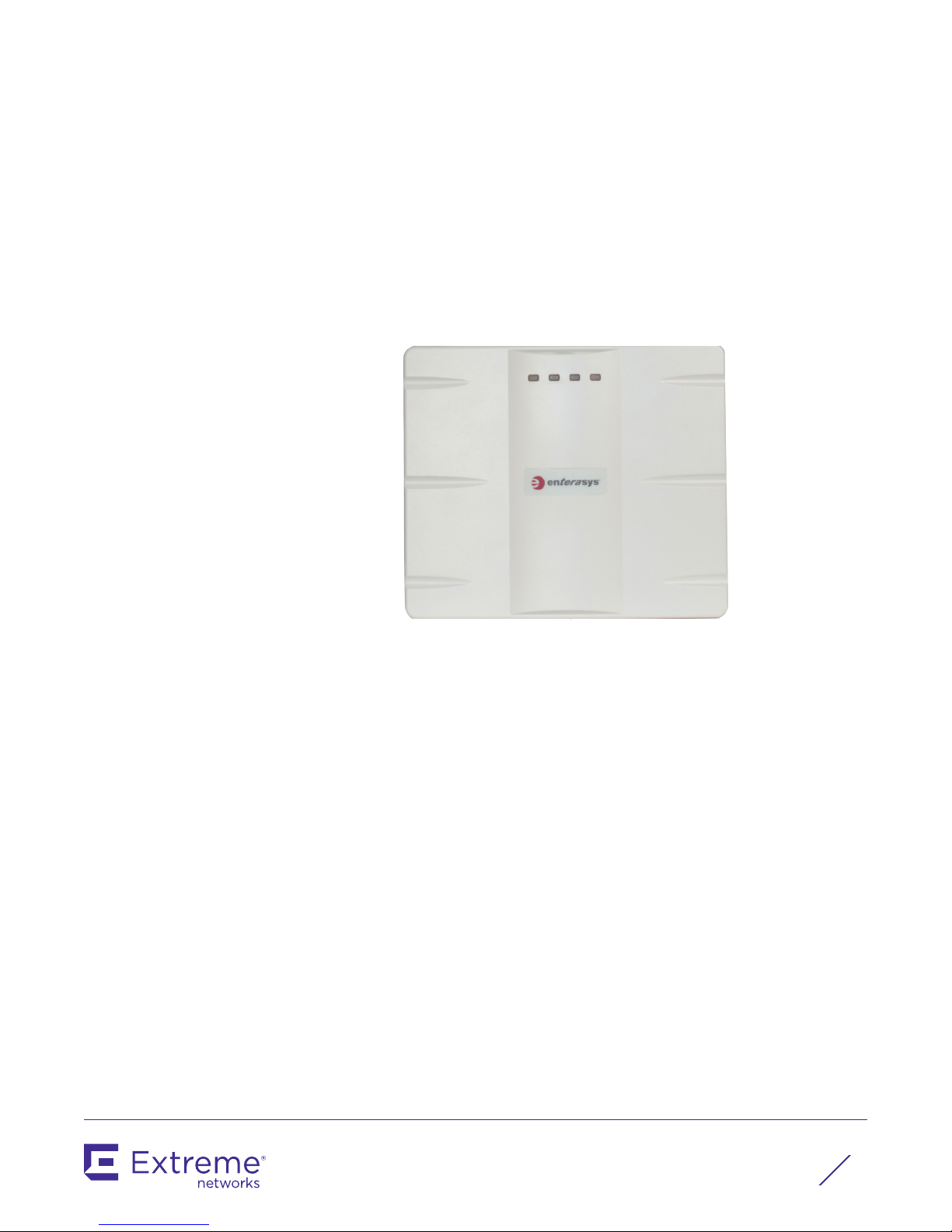

IdentiFi 3600 Indoor

Access Point

Fully Featured, Enterprise-Grade Wi-Fi

AP3610 Indoor Access Point – Data Sheet 2

PRODUCT FEATURES AP3610

GENERAL

High performance enterprise class AP √

Number of radios 2

MIMO implementation for high performance 11n throughputs 3x3

Number of spatial streams 2

Maximum Throughput Per Radio / Total 300Mbps/600Mbps

Wired performance in packets per second (pps) 50,000 pps

Number of SSIDs supported per radio / total 8/16

Simultaneous users per radio / total 127/254

Simultaneous Voice calls (802.11b, G711, R>80) 12

Mode of operation Semi-autonomous

Plug and play operation/Zero touch deployment √

Security and Standards WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS

#12

MULTIPLE OPERATING MODES

Clients serving access points √

Intelligent thin AP Encryption, Security, QoS and RF management done on AP

Bridging data trac at AP and/or at controller simultaneously √

Simultaneous RF monitoring and client services √

Multi-channel WIDS Sensor-mode

Multi-channel WIPS Sensor-mode

Remote access point √

RF spectrum analysis Sensor-mode

Self-forming and self-healing meshing √

RADIO CHARACTERISTICS

Max transmit power (Note: maximum transmit power is deﬁned by local regulatory requirement

combined with antenna type)

Radio 1 (5GHz) 22 dBm

Radio 2 (2.4GHz) 23 dBm

Max antenna gain (integrated antenna)

Radio 1 (5GHz) 6 dBi

Radio 2 (2.4GHz) 3 dBi

ADAPTIVE RADIO MANAGEMENT

Dynamic Channel Control 802.11h: DFS & TPC support (ETSI)

Ecient use of the spectrum with a multi-channel architecture √

Automatic transmit power and channel control √

Self-healing with coverage gap detection √

Band steering with multiple steering modes √

Spectrum load balancing of clients √

Airtime fairness √

Performance protection in congested RF environments √

Mitigates co-channel interference with coordinated access √

QOS FOR APPLICATIONS

Quality of Service (WMM, 802.11e) √

Call Admission Control (TSPEC) √

Power Save (U-APSD) √

Fast secure roaming and handover between APs √

Pre-Authentication (Pre-Auth) √

Opportunistic Key Caching (OKC) √

Support voice, video and data using the same SSID √

AP3610 Indoor Access Point – Data Sheet 3

PRODUCT FEATURES AP3610

Prioritize voice over data for both tagged and untagged trac √

Rate limiting (rule and user-based) √

Rule and role based QoS processing √

MULTICAST RATE CONTROL

Multicast to Unicast Conversion √

Adaptable rate multicast √

Power save mode optimization for multicast √

WIRELESS SERVICES

Media Access Protocol CSMA/CA with ACK

Data Rates

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps

802.11n: See 802.11n Performance table below

Frequency Bands

802.11a/n:

• 5.15 to 5.25 GHz (FCC / IC / ETSI) – Indoor

• 5.25 to 5.35 GHz (FCC / IC / ETSI) - Indoor / Outdoor

• 5.47 to 5.725 GHz (FCC / IC / ETSI) – Indoor

• 5.725 to 5.850 GHz (FCC / IC) - Indoor / Outdoor

802.11b/g/n:

• 2.400 to 2.4835 GHz (FCC / IC / ETSI) - Indoor / Outdoor

Wireless Modulation

802.11a: OFDM

802.11b: DSSS

802.11g: DSSS and OFDM

802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM

802.11n High-throughput (HT) support: HT 20/40

802.11n Packet aggregation: A-MPDU, A-MSDU

Receive Sensitivity (typical)

802.11a: 6 Mbps/-93 dBm, 54 Mbps/-80 dBm

802.11n 5 GHz HT20 Mode: 6.5 Mbps(MCS0)/-94 dBm, 130 Mbps(MCS15)/-72

dBm

802.11n 5 GHz HT40 Mode: 15 Mbps(MCS0)/-89 dBm, 300 Mbps(MCS15)/-68

dBm

802.11b: 1 Mbps/-93 dBm, 11 Mbps/-90 dBm

802.11g: 6 Mbps/-92 dBm, 54 Mbps/-81 dBm

802.11n 2.4 GHz HT20 Mode: 6.5 Mbps(MCS0)/-94 dBm, 130 Mbps(MCS15)/-74

dBm

802.11n 2.4 GHz HT40 Mode: 15 Mbps(MCS0)/-88 dBm, 300 Mbps(MCS15)/-69

dBm

INTERFACES

# 10/100/1000 Base T Ethernet autosensing link 1

Console port for the ease of installation and management √

MOUNTING

Wall mounting bracket √

Drop-ceiling mounting bracket Optional

Environmental

Operating:

Temperature 0° C to +50° C (+32° F to +122° F)

Humidity 0%-95% (noncondensing)

Storage:

Temperature -5° C to +50° C (+23° F to +122° F)

Transportation:

Temperature -40° C to +70° C (-40° F to +158° F)

2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive),Ministry of

Information Order #39 (China RoHS)

AP3610 Indoor Access Point – Data Sheet 4

PRODUCT FEATURES AP3610

Safety

UL / IEC / EN 60950-1; CAN/CSA 22.2 # 60950-1-03 UL 2043 Plenum Rating

(Indoor Access Points)

European 2006/95/EC

Low Voltage Directive

Compliance

• FCC CFR 47 Part 15.107 and 15.109 Class B (FCC 47 CFR, Part 15.205, 15.207,

15.209, FCC 47 CFR, Part 2.109, 2.1093, FCC OET No. 65)

• ICES-003 Class B

• RSS-210, RSS-102 (RF Exposure)

• R&TTE Directive 1999/5/EC

• EN 301 893

• EN 300 328

• 2004/108/EC EMC Directive

• EN 301 489 -1 & 17

• EN55011/CISPR 11 Class B, Group 1 ISM

• EN55022/CISPR 22 Class B

• EN55024/CISPR 24

• EN / UL 60601-1-2

• EN 50385

MECHANICAL

Dimensions (W x H x L) (8.4” x 2.2” x 7.1”)

Weight 628.4g

Max power consumption 12.8W (Typical 11W)

Warranty Lifetime

Ordering Information

PART NUMBER DESCRIPTION

ACCESS POINTS

WS-AP3610 Dual Radio 802.11a/b/g/n, 3x3:2, indoor access point with six internal antenna

array

ACCESSORIES (OPTIONAL)

WS-MB361020-01 Secure mounting Kit with Kensington lock slot and integrated cable routing for

AP36xx

WS-MB361020-12 Drop ceiling mounting bracket for indoor AP36xx (9/16 or 15/16 rail)

WS-MB361020-21 Drop ceiling rail adjustable bracket for 1/2”, 15/16” and 1 1/2” rails (requires WS-

MB361020-01 to be ordered separately)

WS-MBUNIVERSAL-01 Universal mounting bracket adapter for existing installs (Cisco, Aruba, Trapeze,

RoamAbout) - Refer to manual for speciﬁc access point model support

WS-PS361020-MR AP36xx AC Power Supply - Multi-Region (not available in the EU)

WS-PS3X48-MR AP3610 Series AC Power Supply - Multi-Region

MID-SPAN POE DEVICES (OPTIONAL)

PD-3501G-ENT Single port, 1 Gigabit 802.3af PoE Midspan

AP3610 Indoor Access Point – Data Sheet 5

802.11n Performance

DATA RATES (MBPS)

2.4GHZ / 5GHZ

SPATIAL STREAMS HT20 NORMAL GI HT40 NORMAL GI HT40 SHORT GI

MCS0 1 6.5 13.5 15

MCS1 1 13 27 30

MCS2 1 19.5 40.5 45

MCS3 1 26 54 60

MCS4 1 39 81 90

MCS5 1 52 108 120

MCS6 1 58.5 121.5 135

MCS7 1 65 135 150

MCS8 2 13 27 30

MCS9 2 26 54 60

MCS10 2 39 81 120

MCS11 2 52 108 150

MCS12 2 78 162 180

MCS13 2 104 216 240

MCS14 2 117 243 270

MCS15 2 130 270 300

WWW.EXTREMENETWORKS.COM

http://www.ExtremeNetworks.com/contact Phone +1 408 579 2800

in the United States and/or other countries. All other names are the property of their respective owners. For additional information on Extreme Networks Trademarks

please see http://www.extremenetworks.com/about-extreme/trademarks.aspx. Speciﬁcations and product availability are subject to change without notice. 3132-0314

AP3610 Indoor Access Point – Data Sheet 6

Warranty

As a customer-centric company, Extreme Networks is committed

to providing quality products and solutions. In the event that

one of our products fails due to a defect, we have developed a

comprehensive warranty that protects you and provides a simple

way to get your products repaired or media replaced as soon

as possible. For full warranty terms and conditions please go to:

http://www.extremenetworks.com/support/enterasys-support/

how-to/warranty/.

Service & Support

Extreme Networks provides comprehensive service oerings

that range from Professional Services to design, deploy and

optimization of customer networks, customized technical

training, to service and support tailored to individual customer

needs. Please contact your Extreme account executive for more

information about Extreme Service and Support.
