Extron electronics SM 28 Manuale utente

Number of Wires

per Connection Point Maximum

Wire Gauge

1 12 AWG

2 16 AWG

4 18 AWG

Wire Gauge Table

5.1"

(13.0 cm)

6.0"

5.2 cm)

2.6"

(6.6 cm)

3.5"

(8.9 cm)

R = 0.28"

(0.71 cm)

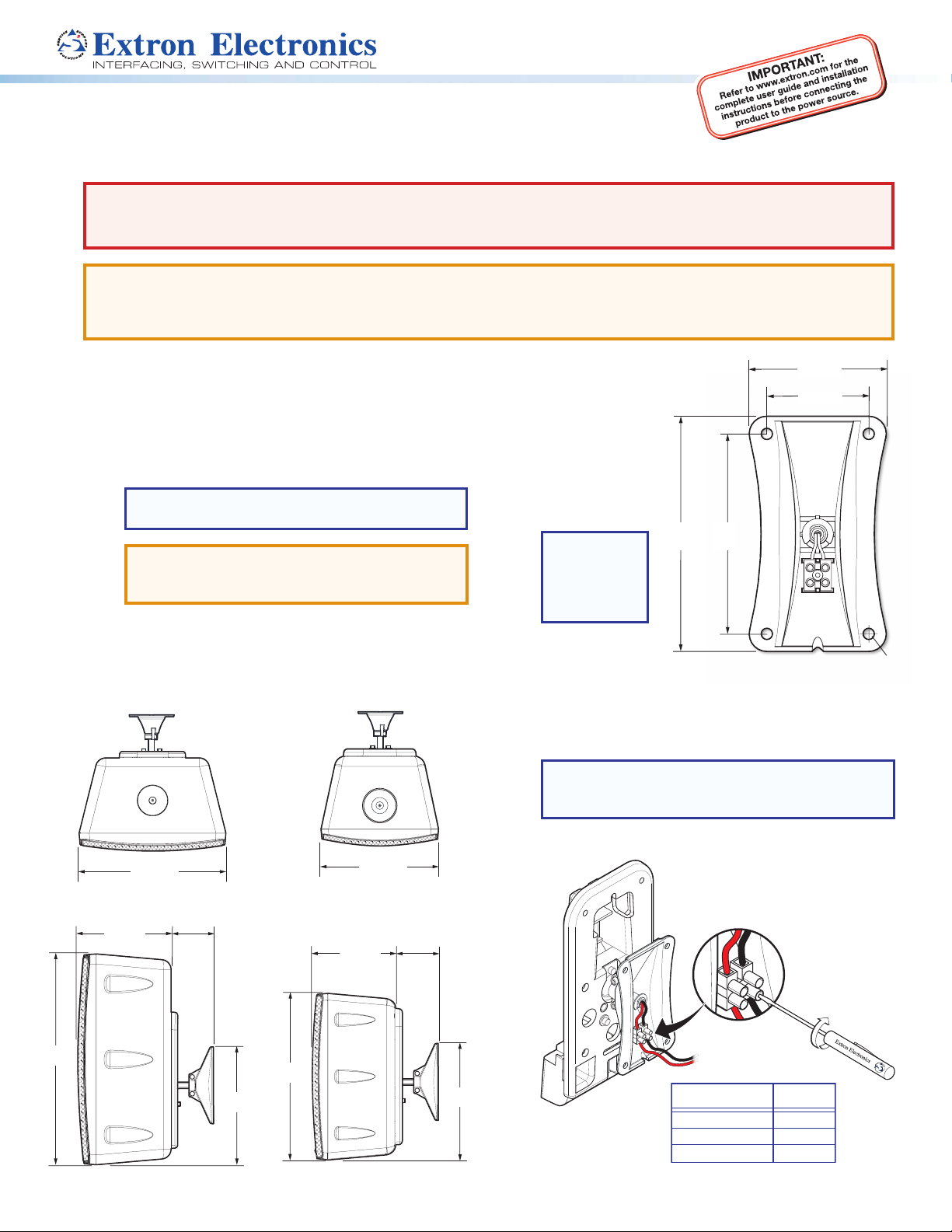

SMK P SM 26/28 Pivot Mount Kit • Setup Guide

This setup guide contains installation information about the Extron SMK P SM 26/28 Pivot Mount Kit.

WARNING: Potential risk of severe injury.Installation and service must be performed by authorized personnel only.

AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. L’installation et l’entretien doivent être effectués par

le personnel autorisé uniquement.

ATTENTION: The final installation should be able to continuously support the speaker weight. The final installation should

also be able to support any short term overloading. Since applications can vary considerably, it is assumed that the

installer will exercise good judgment when selecting the mounting location, method, and hardware. Installation and service

must be performed by authorized personnel only.

Installing the Pivot Mount Kit

The pivot mount enables the speaker to be positioned

and locked at various angles due to the adjustable ball

joint feature.

NOTE: Observe all applicable building codes and

local ordinances when installing the speaker.

ATTENTION: Attaching a secondary support

cable to the SM 26/28 speaker is required when

using the pivot mount kit.

1. Locate a suitable mounting location where the

pivot mount will be installed. Allow for the

dimensions of the SM 26 and SM 28, as shown

below.

SM 28: SM 26:

2. All four mounting plate

screw holes must be secured

with at least two

screws attached to

a wall stud. Mark

the four holes on

the wall as indicated

by the wall plate

holes.

NOTE:

Mounting

hardware

is not

provided.

3. Drill the four holes

for the wall plate.

4. Drill a hole for the speaker wire.

5. Route the speaker wire through the speaker wire hole

while leaving enough slack for connection to the wall

plate.

NOTE: If the speaker wire is not being routed

through the wall, a notch on the wall plate allows

the wire to enter the wall plate from a raceway.

6. Attach speaker wires to the Euroblock on the wall plate.

Quick Connect Contacts

SM 28 SM 26

11.50"

(29.21 cm)

8.45"

(21.46 cm)

2.44 - 3.35"

(6.20 cm - 8.51)

7. 28"

(18.50 cm)

2.44 - 3.35"

(6.20 cm - 8.51)

6.45"

(16.38 cm)

16.50"

1.91 cm)

12.98"

(32.97 cm)

9.2"

(23.37 cm)

9.16"

(23.27 cm)

SM 28 SM 26

11.50"

(29.21 cm)

8.45"

(21.46 cm)

2.44 - 3.35"

(6.20 cm - 8.51)

7. 28"

(18.50 cm)

2.44 - 3.35"

(6.20 cm - 8.51)

6.45"

(16.38 cm)

16.50"

(41.91 cm)

12.98"

(32.97 cm)

9.2"

(23.37 cm)

9.16"

(23.27 cm)

SMK P SM 26/28 Pivot Mount Kit • Setup Guide (Continued)

7. Unlock the mounting plate from the pivot ball by moving

the ball lever to the Up (horizontal) position.

Pivot ball locked Pivot ball unlocked

8. Mount the wall plate to the wall using appropriate

fasteners and washers in the four holes.

9. Loosen, but do not remove, the two locking screws that

secure the pivot ball shaft to the wall plate, then extend

the mounting plate to the desired position.

5/32” (4 mm) Hex Wrench

10. To aid in determining where the speaker tweeter is

located before the speaker is actually mounted on the

pivot mount, place the included tweeter alignment guide

on the mounting plate of the pivot mount to determine

the actual position of the tweeter after the speaker is

installed.

TWEETERLOCATION

BENDANDPLACEONFLATMOUNT

SM 26 SM 26

SM 28 SM 28

TWEETER LOCATION

BEND AND PLACE ON FLAT MOUNT

11. Adjust the mounting plate to the desired position.

Articulation: a maximum angular movement of

• SM 26: 30° up, 30° down, 30° left, 30° right

• SM 28: 20° up, 30° down, 30° left, 30° right

30°

Turn

the unit to the right or the left.

ATTENTION: By default,

the SM 26/28 speaker is

shipped unlocked. When

attaching the speaker

to the mounting plate

be sure that the speaker

is unlocked. Failure to

place the speaker in the

unlocked position will

result in damage to the

speaker lock mechanism

should an attempt be

made to attach speaker

to the mounting plate.

See the SM 26 Setup

Guide or SM 28 Setup

Guide for further details.

SMK P SM 26/28 Pivot Mount Kit • Setup Guide (Continued)

SM 28 = 20°

SM 26 = 30°

Down position Up position

30°

Rotation: a maximum angular rotation of

360°

Unit

Rotation

12. Lock the ball joint lever (vertical down position) so that

the mounting plate is securely locked in place.

13. Tighten the two screws to secure the pivot ball shaft to

the wall plate.

5/32” (4 mm) Hex Wrench

14. Install the speaker on the mounting plate so that the

speaker is securely attached to the mounting plate.

Catch Tab

Vertical Mounting

ATTENTION: By default, the SM 26/28 speaker is

shipped unlocked. When attaching the speaker

to the mounting plate be sure that the speaker

is unlocked. Failure to place the speaker in the

unlocked position will result in damage to the

speaker lock mechanism should an attempt be

made to attach the speaker to the mounting

plate. See the SM 26 Setup Guide or

SM 28 Setup Guide for further details.

SMK P SM 26/28 Pivot Mount Kit • Setup Guide (Continued)

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

01 16

15. Attach a secondary support cable to the speaker.

ATTENTION: Do not allow any slack in the

secondary support line.

SM 28:

Secondary

Attachment

Cable

Anchor this end to a

suitable secur

e point.

ttach cable here

and secur

SM 26:

Secondary

Attachment Cable

Anchor this end to a

suitable secure point.

Attach cable here

and secure.

16. Insert the security key into the keyhole of the speaker

grille and rotate the key to lock the speaker. There are

three small raised “dimples” on the center of the grille

surface that surrounds the keyhole.

Twist to

Lock/Unlock

Unlocked Locked

17. Check the position of the speaker. If the speaker needs

to be repositioned, unlock the speaker if it had been

previously locked using the included security key. Apply

pressure to the grille with your nger over the “dimpled”

keyhole to unlatch the speaker from the mounting plate

while lifting up on the speaker. The ball joint lever can

now be released (horizontal up position) and the speaker

position readjusted.

NOTE: After repositioning the speaker, be sure to

lock the ball joint lever (vertical down position)

before installing the speaker.

18. If installing the SM 26T or SM 28T, use a small

screwdriver to set the tap switch as needed (see the

SM 26 Setup Guide or SM 28 Setup Guide for further

details).

8Ω

100

8Ω

Tap Indicator

for 70 volt

Tap Indicator

for 100 volt
