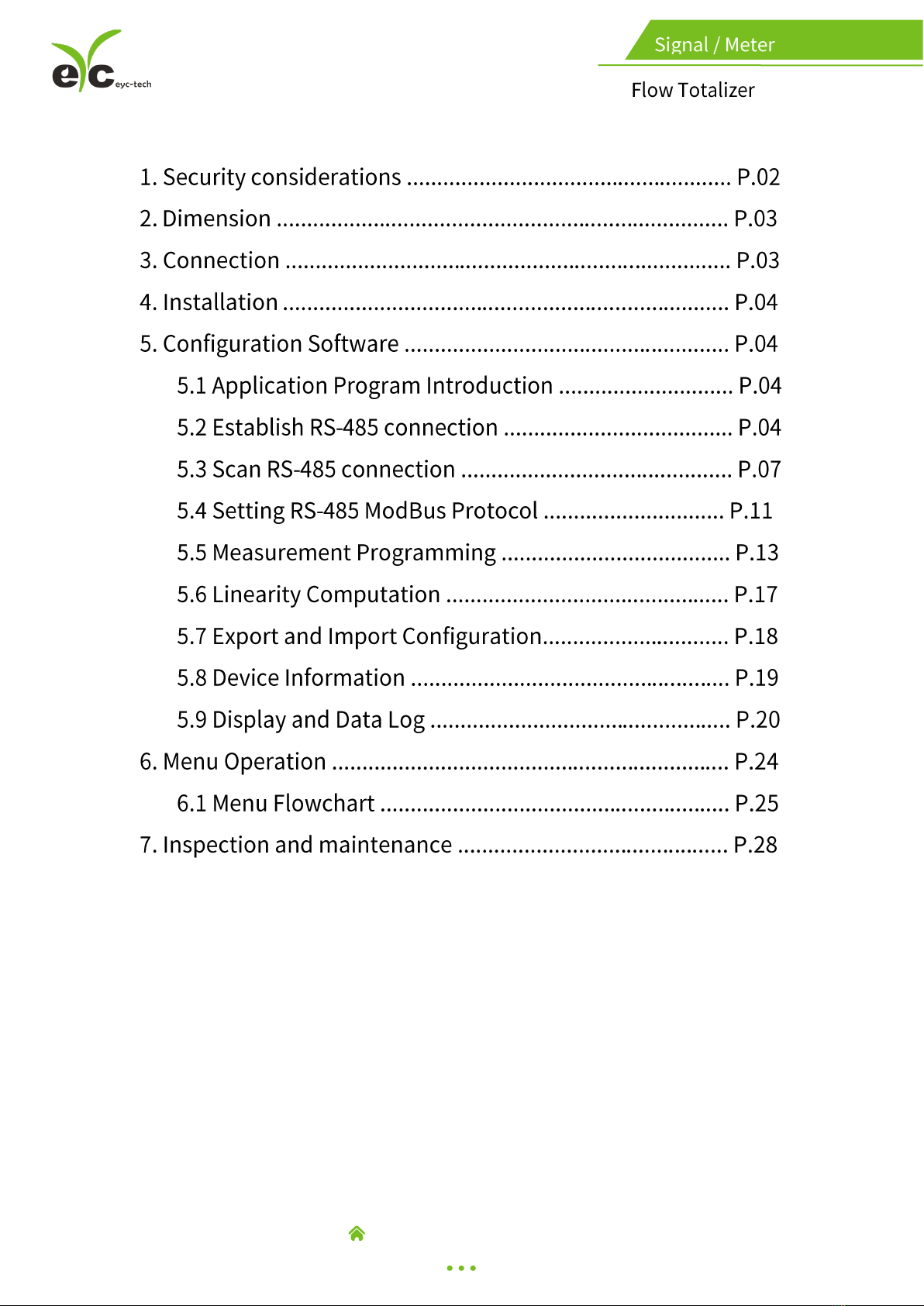

Contents
www.eyc-tech.com
2
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
www.eyc-tech.com
3
■Dimension
■Installation Dimension
*Please make sure the product and the device which connect with RS-485 are on
common ground, avoid damaged product.
www.eyc-tech.com
4
5.1 Application Program Introduction
User may download the configuration software on eyc-tech web site. Please
decompress the application prior to execute it. Operating System requirements:
above Windows 7 SP1. Other application program requirements: above Microsoft
Office 2003. Hardware requirements: USB to RS-485 converter.
5.2 Establish RS-485 connection
1. Connect product to PC via RS-485 converter
2. Execute configuration software
3. Click "Interface > Config"
www.eyc-tech.com
5
4. Select the corresponding values of com port as following :
a. Port: Please confirm the connection com port first
b. Baud Rate (DPM04 default 9600)
c. Data Frame (device default None Parity Check, 8 data bits, 1 stop bit)
d. Response Timeout (default 300ms)
e. Retry, trial cycles if communication error (default 2 times)
f. Station ID (default 1)
5. Click "Apply"
a.
b.
c.
d.
e.
f.
www.eyc-tech.com
6

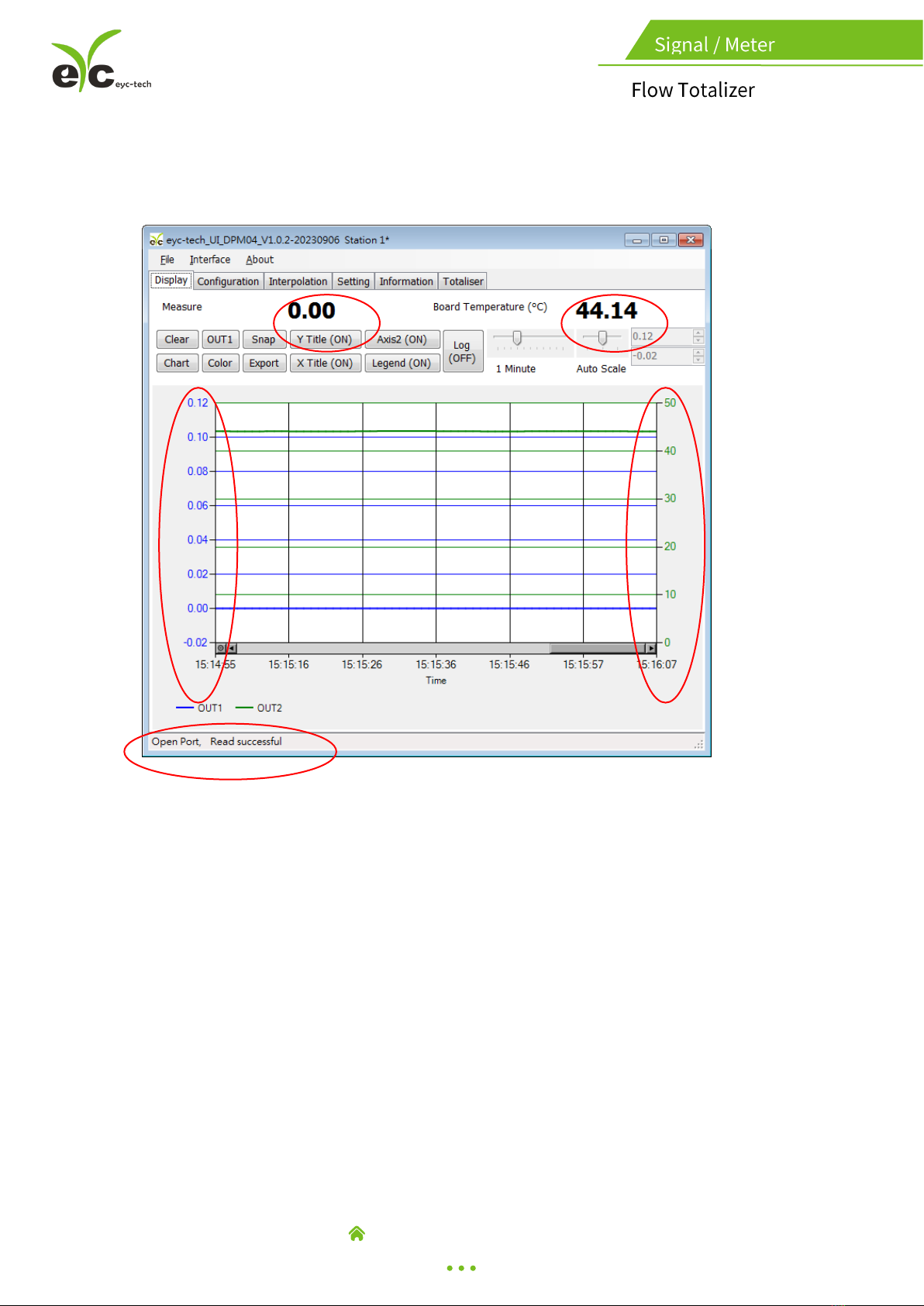

6. Connect successfully
a. Show value and trend chart of the measurement
b. Show value and tread chart of device mcu temperature
c. Show "Open Port, Read successful"
a.
c.
a.
b.
b.
www.eyc-tech.com
7
5.3 Scan RS-485 connection
※Use scan function to connect when forgetting the connection information or
having more facilities.
1. Connect the product to PC via RS-485 converter
2. Execute configuration software
3. Click "Interface > Config"
www.eyc-tech.com
8
4. Select the corresponding values of com port as fallowing
5. Click "Scan" to execute connection facilities
6. Scan connection facilities and set up
a. Select Station ID
b. Click "CLOSE AND EXPORT"
7. Click "Apply"
a.
www.eyc-tech.com
9
8. Connect successfully
a. Show value and trend chart of the measurement
b. Show value and tread chart of device mcu temperature
c. Show "Open Port, Read successful"
5.4 Setting RS-485 ModBus Protocol
1. Setting RS-485 connection as step 5.1
2. Click "Setting" tab
a.
c.
a.
b.
b.
