FANTEC MR-SA1042 SAS Quartet Mobile Rack
User’s Manual
Features of product ---
zAluminum Frame
zInterface: Support SAS, SATA-I, SATA-II
zForm Factor: 1 x 5.25” Bay for 4 x 2.5” SAS & SATA Hard Disk Driver
zHigh performance transfer rate up to SAS 3Gb/s、SATA 1.5Gb/s、SATA 3Gb/s
zSupport RAID 0,1,5 Functions (Need an optional SAS or SATA Raid Control Card)
zPlug & play, hot swappable
zPoint to point, free from master/slave setting
zWith 4Pin Power and 7PIN Signal connectors
zCooling fan: Built-in 2 X 4cm(4020) FAN
z2 LED for Power & HDD access
zColor for choice: black or beige
zDim: 185(L) X 146(W) X 42(H) mm
zWeight : 0.7KG
Model : MR-SA1042
--Inner tray with heat dissipation holes--
Picture A
There are four screw holes at the bottom of each tray, use the screws(provided) to hold the HDD on the tray. (See
Picture A)

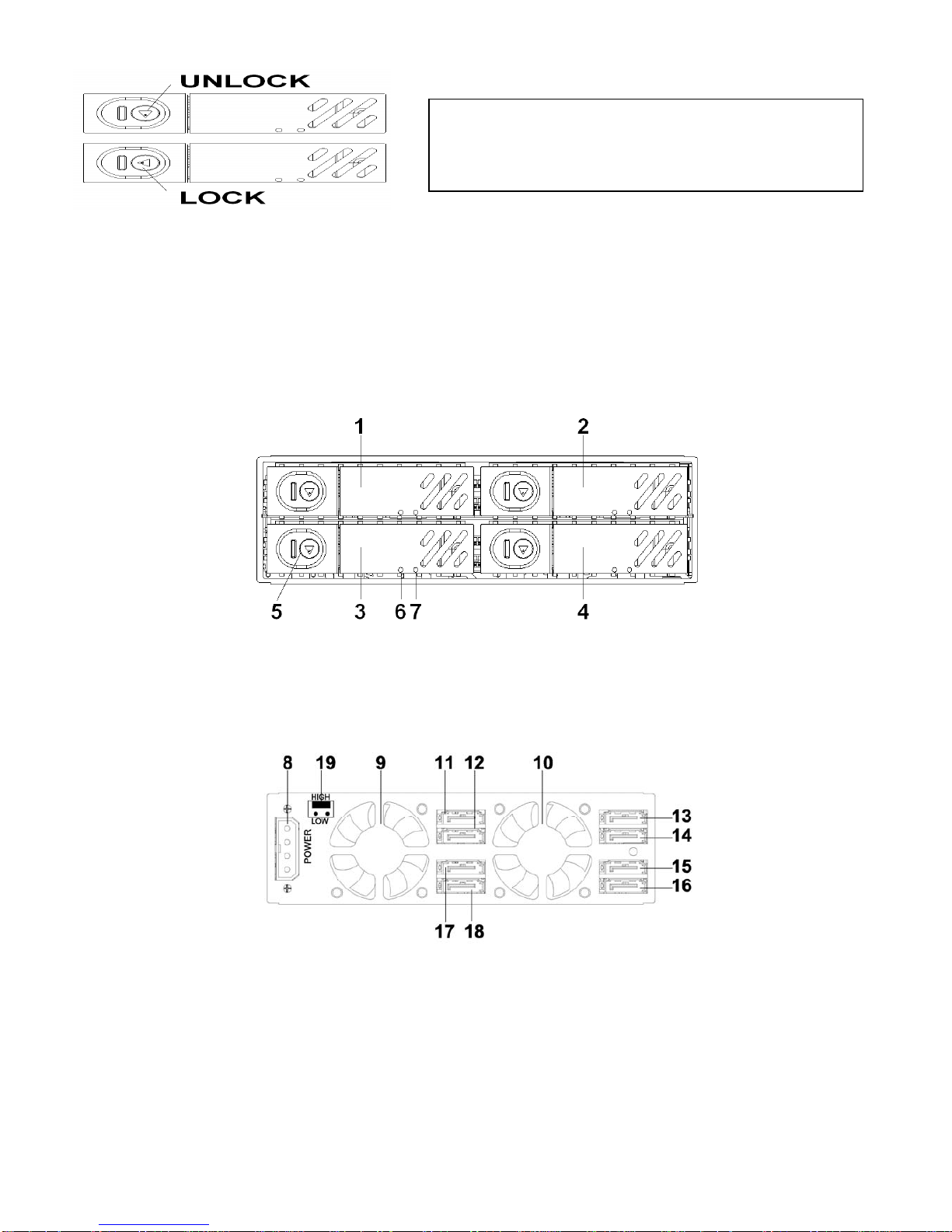

---Safety Lock---
The safety lock safeguards the hard disk in
the correct position and prevent it bouncing out
while HDD is working. (See Picture B)
Picture B
a) LOCK
Turn the key clockwise to horizontal way --- It is locked and do NOT try to press the push-button to take out the HDD.
b) UNLOCK
Turn the key Counter-clockwise vertically --- It is open and you are permitted to press the push - button to take out
the HDD.
---Front Panel & Real View--- (See Picture C & D)
Picture C
C1--C4: HDD Tray
C5: Safety key lock
C6: Power LED (Green when power ON)
C7: HDD Access LED :(Amber while in activity)
Picture D
D8: 4pin Power connector
D9—D10: Cooling FAN
2nd (D11,D13,D15,D17): For SAS data port connections & advanced users.
PRI (D12,D14,D16,D18): For SATA data port connections
D19: FAN Switch : HIGH & LOW RPM Optional
Note: 1) For SATA HDDs, they are supported by PRI ports( D12,D14,D16,D18) only.
2) For SAS HDDs, they are supported both by PRI and 2nd.
3) Dual Channel SAS control card or Two System(PC) are requested --- If you want to use both Primary and
secondary ports.
