3-Axis Gimbal for Mirrorless CameraGuilin Feiyu Technology Incorporated CompanyV 2.2ENUser Manual

1. Product Overview1[2] Tilting lock screw[21] USB interface[4] Thumb screw[12] Shutter cable socket[3] Sliding arm[20] Trigger button[13] Cross arm[15] Rolling axis[14] Rolling lock screw[19] Vertical arm[23] Charging indicator[11] Socket connector[9] Function buttonStatus indicator Joystick[22] Retaining ring[24] Handle[5] [16] Quick-release clamp[17] [18] Clamp block thumb screwAdapter(Clamping plate)[6] [7] [8] Panning axisPanning lock screw[1] Tilting axis[10] Shutter button[1] [4] [6] [20] [23] [8] [9] [2] [17] [18] [15] [19] [5] [3] [21] [24] [13] [12] [14] [7] [10] [22] [16] [11]

Included AccessoriesAfter installation, please tighten the retaining ring!USB cable 4 Batteries(Type: 18650) Shutter releasecable for Sony cameras(3.5 mm to multi port) Shutter release cable for Panasonic cameras(3.5 mm to multi port) Shutter release cable for Canon camerasSmart chargerCold shoe mountDouble-hand foldable set (Optional)Retaining ringRetaining ring1/4-20 inch screwSingle HandleInstall the handle Tripod2 Thumb screwDouble-hand Accessories󽘘RS-80N3󽘙

Attach camera or smartphonePlace the camera correctly on the quick-release clamp and tighten the camera with the thum bscrew,󽗉nally, place quick-release clamp into the clamping plate, tighten the clamp block thumb screw.

18650

212. User GuideAttention: please read the following instructions before powering on the gimbal.Insert the batteriesRemove the handle, insert 2 pcs 18650 batteries and tighten the handle.Prior to use, please be sure to fully charge the batteries.Take the Panasonic DMC-GH4 camera for example3

First use the smartphone adapter (optional) to install the phone, and place them correctly on the clamping plate, use the thumb screw to secure the phone through the middle chute at the bottom of clamping plate. Place the camera correctly on the clamping plate anduse the thumb screw to secure the camera through the middle chute at the bottom of clamping plate. 3Take the Sony camera for exampleTake the smartphone for exampleBalance Adjustment!Turn on the gimbal after adjusting the center of gravity balance of the three axis.(refer to chapter "9. Balance Adjustment"for more details)Note: center of gravity imbalance can lead to poor performance or even failure of the gimbal to operate at all.4

Power on/Power o󽗈Power on󾗜long press the function button and release it when the green light is on and you hear a tone.Power o󽗈󾗜long press the function button and release it when the red light changes from quick 󽗊ashing to constant and you hear a tone.43. Functions ModesFunction button

Single tap

FunctionExplanationInstructions of ButtonTrigger button

LockDouble tapDouble tapTriple tapResetLong pressReturn to panning mode, tilting and rolling to return to initial level

FunctionExplanation

Panning and Tilting modeUnder panning and tilting mode, control the rolling axis by moving the joystick to the left or right, and the control angle is - 30 °~+ 30°Rotate 180°in horizontalMake the camera lens rotate 180 ° In the panning mode or panning and tilting mode, press and hold the button to enter the lock mode, release it to return previous modeQuadruple tapEnter autorotation modeAutorotation ModeFive tap InitializationEnter initialization

Panning Mode / Lock ModeSingle tap to switch between panning mode and lock mode

In case of low power, the indicator will light red and 󽗊ash 3 times every 5 seconds. Please charge gimbal or replace the battery.The current mode of the gimbal can be identi󽗉ed by the indicator status.Explanation of indicator status

Indicator statusMode / Status

Blue light 󽗊ashes onceBlue light 󽗊ashes twicePanning modePanning and Tilting modeLock mode / Initialize the gimbalBlue light constant onBlue light keeps 󽗊ashingInitialization failure / MalfunctionLow powerRed light 󽗊ashes three timesRed light keeps 󽗊ashingEntering power o󽗈

Explanation of joystick controlFunction ButtonShutter button

Status indicator

LeftRightDownPanning Mode (Default mode )Panning and Tilting ModeLock ModeResetThe orientation of the camera is 󽗉xed.Return to panning mode, tilting and rolling to return to initial level.Tilting and rolling direction are 󽗉xed, and the camera lens moves according to the hand movement of the user.ModesThe rolling direction is 󽗉xed, and the camera lens moves according to the hand movement of the user.6

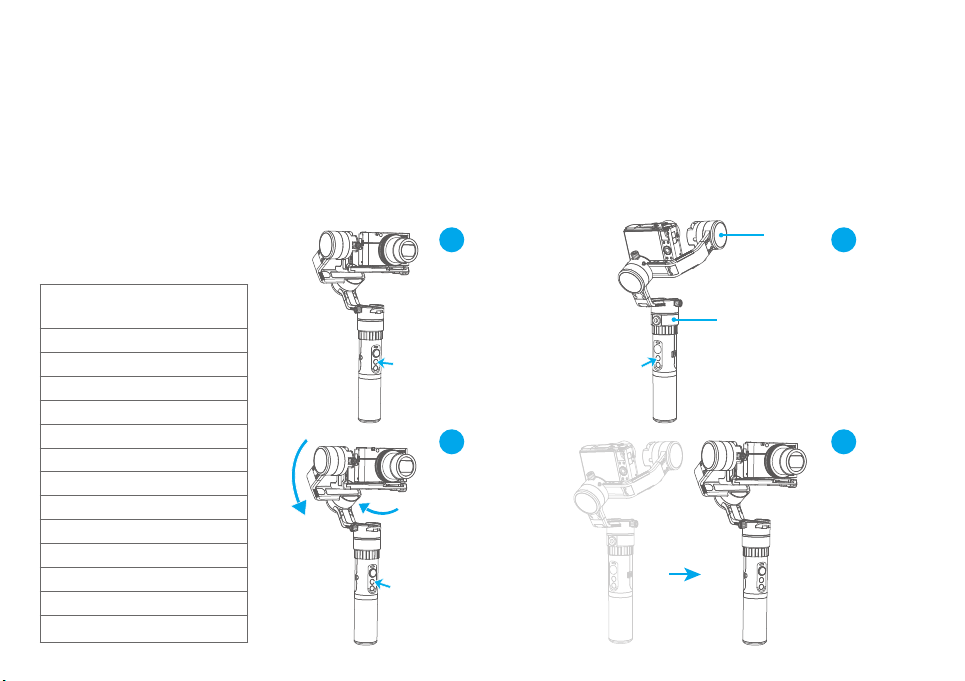

1342Autorotation ModeGimbal speed setting reference tableAnnexed parameter table󾗜8 hours / turn4 hours / turn1 hour / turn (default)30 minutes / turn15 minutes / turn2 minutes / turn4 minutes / turn8 minutes / turn30 seconds / turn24 seconds / turn18 seconds / turn12 seconds / turn1 minute / turna1000 Rotate SpeedOther operations󾗜click the function button to exit the autorotation mode during automatic rotation. The speed setting is made by Feiyu ON App.Note: both the panning and tilting directions can be rotated.1.Quadruple tap on function button, gimbal will access the autorotation mode setting.TiltingTiltingPanningPanning2. Turn the panning axis or tilting axis to the start position and hold for half a second.Click on function button, record the start position . 3 .Turn the panning axis or tilting axis to the end position and hold for half a second.Click on the function button again,record the end position .4.Gimbal will recover to start position automatically. Tilting axis and panning axis turn to end position at constant speed.The gimbal is automatically reset after the end.1.Quadruple tap on function button, gimbal will access the autorotation mode . 2. Set the gimbal start rotation position: pull the tilting axis or panning axis to the start position by hand,click the function button to record. 3. Pull the gimbal (which can be rotated more than one turn) according to the rotation path you want to set, and then click the function button to record the end position .The gimbal will go to the start position and start the automatic rotation.Using the gimbal autorotation function with a camera, timelapse photography functioning can be used to achieve special movement timelapse photograpy.7

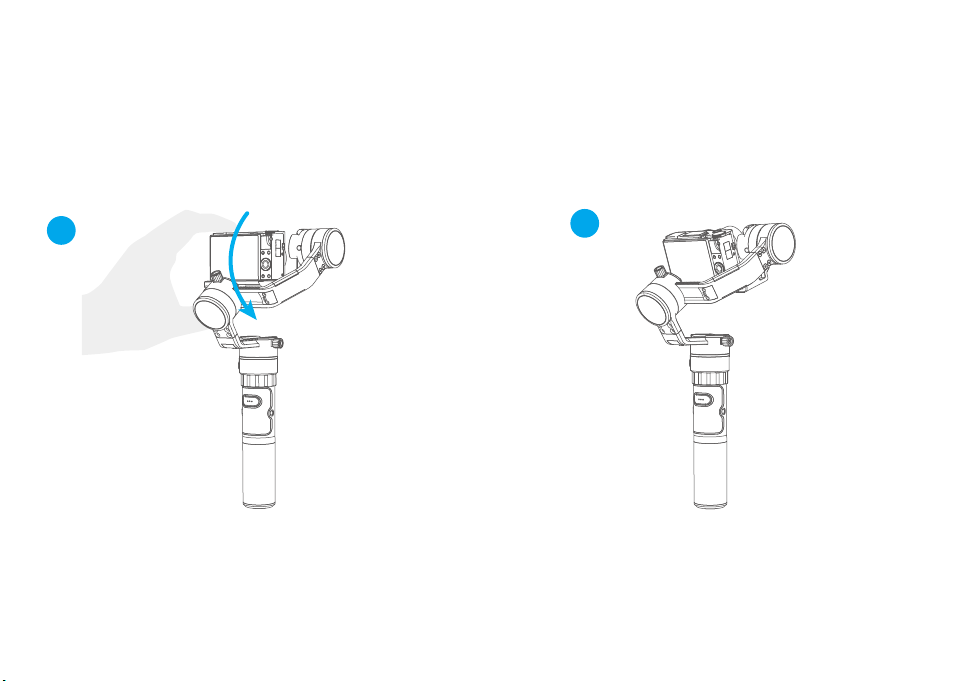

21Manual LockHold the camera and change its angle in tilting axis direction.Keep this position for half a second, the current angle will be locked manually.Adjust the camera by hand to the desired angle and hold in place for half a second to lock in that angle.(The tilting axis and panning axis in the lock mode can be manual lock and the tilting axis can be manual lock in the panning mode.)Take the tilting axis as an example :8

4. ChargingPhotograph

The shutter button can take pictures via the shutter release cable. Automatic continuous shooting: Shutter button long press 3s or more, gimbal "drop"sound and enter the automatic continuous shooting mode, the default 5s shot once.One tap the shutter button to exit the automatic continuous shooting mode.(you can enter the Feiyu On App to setting the photographic interval time)Manual photograph: click the shutter button to focus, click again within 3s to take pictures.If there is no operation within 3s, the focus state is cleared.

Status indicator Charging indicatorMicro USBInput󾗜5V/1A󽘘Equipped by user󽘙Explanation of Charging indicator status

Indicator statusMode / Status

Blue light󽘜red light is o󽗈The blue and red light are 󽗊ashingStop chargingThe voltage of two batteries balance ajustment The blue and red light Charging󽘘If the two batteries voltage di󽗈erence between the larger, the process takes a long time󽘙
