FIC AN19E Manuale utente
Quick Reference
The mainboard has several user-adjustable jumpers and/or switches on the board that
allow you to configure your system to suit your requirements. This quick reference
contains information on the various hardware settings on your mainboard.
To set up your computer, you must complete the following steps:
■ Step 1 - Set system switches/Jumpers
■ Step 2 - Install system memory modules
■ Step 3 - Install the Central Processing Unit (CPU)
■ Step 4 - Install expansion cards
■ Step 5 - Connect ribbon cables, cabinet wires, and power supply
■ Step 6 - Set up BIOS software
■ Step 7 - Set up supporting software tools
WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.
Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
sensitive components, you should follow the following precau-
tions whenever working on the computer:
1. Unplug the computer when working on the inside.
2. Hold components by the edges and try not to touch the IC
||||chips, leads, or circuitry.
3. Wear an anti-static wrist strap which fits around the wrist.
4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.
4 - 2
AN19E/AN19CMainboardManual

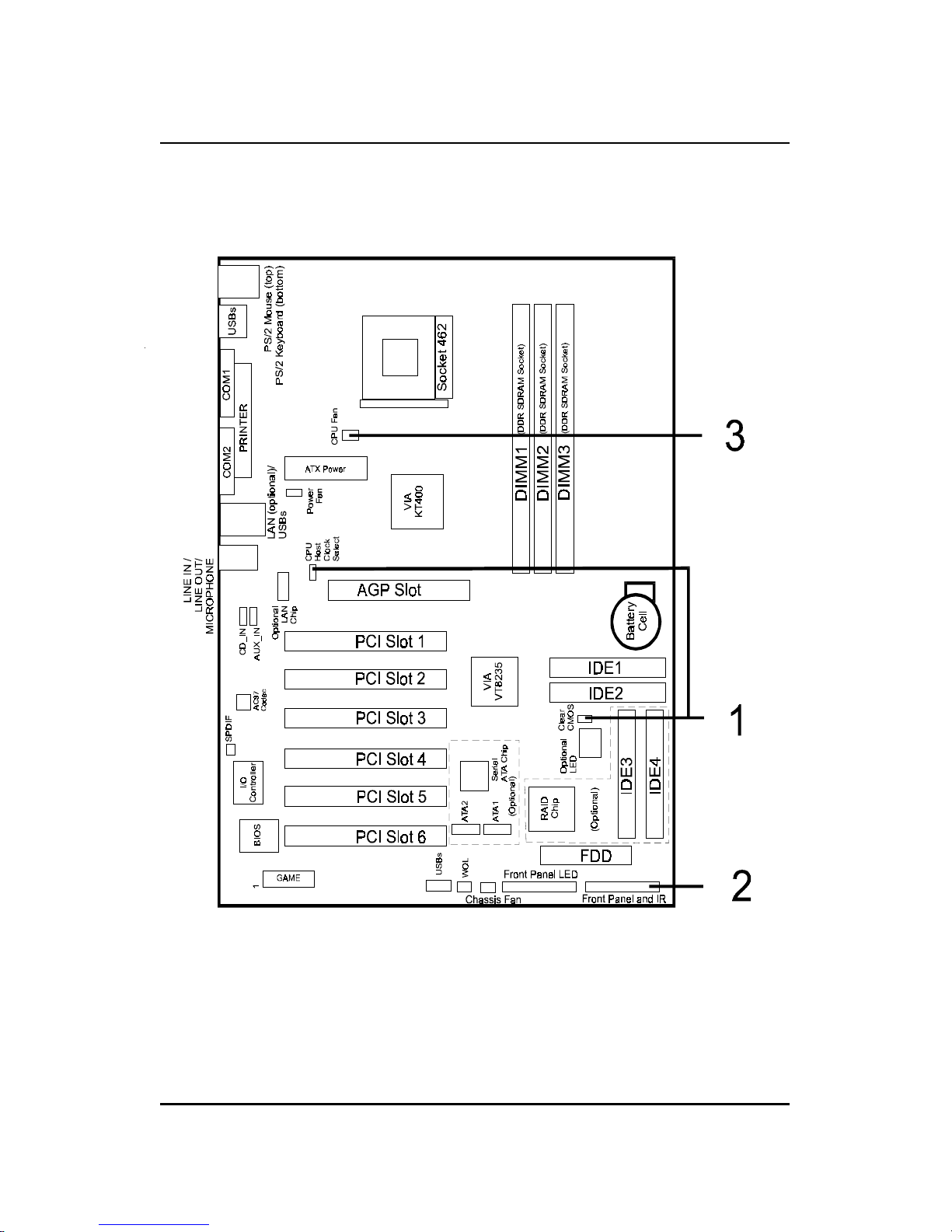

Mainboard Layout
* When link to Line_Out jack, please use a speaker that with amplifier.
4 - 3
QuickReference
1). Clear CMOS, CPU Host Clock Select
2). Front Panel Block Cable Connection
CPU Host Clock Select
1-2: BIOS Setting (Default)
2-3: 133MHz
JCK1
JBAT
CMOS Clear
1-2: Normal (Default)
2-3: Clear CMOS
1
1
J3
J2
wPower On/Off
This is connected to the power button on the
case. Using Soft-Off by Pwr-BTTN feature,
you can choose either Instant Off (turns
system off immediately), or 4 sec delay (push
the button for 4 seconds before the system
turns off). When the system is in 4 sec delay
mode, suspend mode is enabled by pushing
the button momentarily.
wTurbo LED indicator
wIDE LED indicator
LED on when onboard PCI IDE Hard disks are
being accessed.
wIR Connector
1. VCC 4. GND
2. CIRRX 5. IRTX
3. IRRX
4 - 4
AN19E/AN19CMainboardManual
3). CPU Fan Installation
This connector is linked to the CPU fan. When the system is in some power saving
mode, the CPU fan will turn off; when it reverts back to full on mode, the fan will turn
back on. Without sufficient air circulation, the CPU may overheat resulting in
damage to both the CPU and the mainboard.
Damage may occur to the mainboard and/or the CPU fan if these pins are
used incorrectly. These are not jumpers, do not place jumper caps over these
pins.
wPower LED
Power LED connector
1. Power LED(+) 4.NC
2. N/C 5.GND
3. GND
wSpeaker
Connect to the systems speaker for beeping
1. Speaker 3.GND
2. N/C 4.VCC
wReset
Closed to restart system.
