Fixturlaser NXA pro
Quick tips
P-0261 Quick tips Fixturlaser NXA Pro rev A
Fixturlaser NXA Pro
1. Rough Alignment

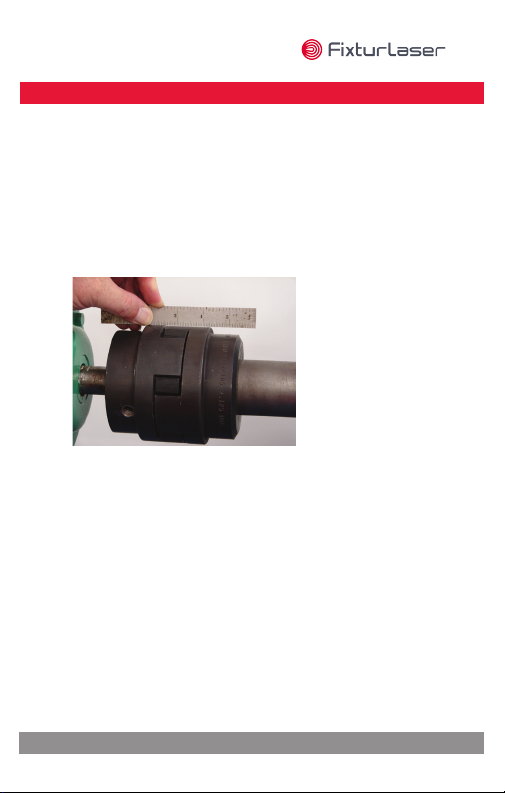

• Vertical: Place scale or straightedge on highest hub and
raise or lower the movable shaft to within 0,5 mm of the
stationary hub.
• Horizontal: Place scale or straightedge on hub nearest to
you and adjust the movable shaft to within 0,5 mm
of the stationary hub.
2. Correct Obvious Soft Foot
Loosen all the bolts and nd any obviously loose shim packs.
Add shims as needed to make a snug t.
3. Follow Tightening Sequence
Follow the same sequence throughout the alignment
process, and tighten in 3 passes: snug rst, 50% on second
pass, completely tight on the third pass. (View sequence on
next page)
PRE-ALIGNMENT
Fixturlaser NXA Pro
Bolt Tightening Sequence
4. Make a Final Soft Foot Correction
Loosen one bolt at a time and check for soft foot with a
0,05 mm shim or feeler gauge. Correct any foot with 0,05
mm or more of soft foot, then tighten the bolt before
proceeding to the next foot.
PRE-ALIGNMENT
Fixturlaser NXA Pro
Set Up
1. Turn on the Fixturlaser NXA Display Unit.
2. Mount the ‘S’ sensor on the stationary shaft or cou-
pling hub and hand tighten the nut. Turn the sensor on
by pressing the power button.
3. Mount the ‘M’ sensor on the movable shaft or coupling
hub and hand tighten the nut. Turn the sensor on by
pressing the power button.
Start the Horizontal Alignment Program
1. From the main menu on the display
unit touch the horizontal alignment icon.
2. The lasers will turn on and the screen graphic will
show the orientation of the sensors.
Aim the Lasers
1. Loosen the green clips and slide the sensors up or
down until the line laser beams hit the middle of the op-
posite sensor. Note that the sensors will be at different
elevations.
2. The display unit screen will show green lights next
to each sensor to conrm that the lasers have been
acquired by the sensors.
3. Using the wrench, tighten the nuts another half turn.
SET UP
Fixturlaser NXA Pro
MEASURE
Enter Dimensions
1. Touch the tape measure icon on the
moveable machine image
2. Measure the indicated dimension to the nearest 1 mm
for coupling dimensions or 2 mm for foot dimensions
enter using the keypad. Then press the check mark to
move to the next dimension. Continue and enter all
dimensions.
3. Select the RPM of the equipment to set the alignment
tolerances, then press the check mark.
Measure Misalignment
The two preferred measurement methods:
1. Select a measurement method by touching
to go to the toolbox.
2. Touch the measurement icon on the stationary machine.
The measurement mode screen will open. Select the
Tripoint method and touch the check mark.
3. Touch the check mark again to return to the alignment
measurement screen.
Tripoint (used in this example)Express
Fixturlaser NXA Pro
MEASURE
4. Rotate the sensors to the 9:00 position and press the
ashing measurement button.
5. Rotate the sensors to the 12:00 position, being sure they
move outside the red portion of the circle on the screen.
Press the measurement button again to take the second
measurement.
6. Rotate the sensors out of the red portion of the circle
towards 3:00.
Fixturlaser NXA Pro
Press the measurement button again to take the nal
reading.
The results will be displayed on screen.
Evaluating the Results
1. Vertical results are displayed at the top of the screen,
horizontal results at the bottom.
2. Green coupling icons indicate values which are in
tolerance.
3. Orange values are within 2x tolerance.
4.Red values are more the 2x the tolerance level.
MEASURE
Fixturlaser NXA Pro
CORRECTION
Using the Verti-Zontal™Process
First Correct theVertical Misalignment
1. Press the shim icon in the bottom right
corner of the screen.Then press it again on
the conrmation pop-up screen.
2. Loosen all the bolts on the movable machine.
3. Follow screen instructions for removing or inserting
shims.
Do not re-tighten the bolts.
Next Correct the Horizontal Misalignment
1. First press the ‘live reading’ icon in
the bottom right corner of the screen.
2. To ensure the live readings are for the horizontal di-
rection make sure the sensors are at either 3:00 or 9:00.
Add Shims
Remove Shims
Fixturlaser NXA Pro
3. If the sensors are not in proper position, a pop-up
will appear showing their position and with narrow
green slivers indicating where the sensors must be in
order to take live readings.
4. Make the largest adjustment rst.The arrows
indicate the direction of adjustment.
5. Continue to adjust the movable machine, watching
the live readings, until both the angle and offset are
within tolerance.
6. Tighten the bolts using the tightening sequence
established in Pre-Alignment.
7. Some machines move laterally when tightening the
bolts. Make sure that the displayed values remain in
tolerance as you tighten the bolts.
CORRECTION
Fixturlaser NXA Pro
RE-MEASURE & DOCUMENT
Re-Measure
1. Press the re-measure button, then press
it again on the conrmation pop-up screen.
2. Re-measure to verify the results are within
tolerance. If they are not, repeat the
Verti-ZontalTM Correction Process (top of page 7).
Document the Results
1. Press the le save icon.
2. Press the white le name box to open the keypad.
Enter a lename and then press the check mark.
3. Press ‘OK’ again to save the le in
Measurements folder.You will see the saved image on
screen for a few seconds, then return to the results
screen.
