Dear customer,

Thank you for purchasing our product. Please read the following instructions carefully

before first use and keep this user manual for future reference. Pay particular attention

to the safety instructions. If you have any questions or comments about the device,

please contact the customer line.

󹘯󹘰󹘱󹘲󹘳www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Safety Notice

Please carefully read and strictly follow all the safety warnings and notices below all the

time.

Note: Each 3D printer undergoes printing tests before leaving the factory. Filament

residue on the nozzle or slight scratches on the build plate are normal and do not affect

usage.

Work Environment Safety

•Please keep the workspace clean and tidy.

•Please ensure the equipment operates away from combustible gases, liquids,

and dust. High temperatures generated during operation may react with

combustible gases, liquids, or airborne dust, potentially causing fires.

•Children and untrained individuals should not operate the equipment alone.

Electrical Safety

•Please properly ground the equipment. Do not modify the plug. Ungrounded

equipment/improperly grounded equipment/modified plug will inevitably

increase the risk of electric leakage.

•Avoid exposing the equipment to damp or direct sunlight environments.

Humidity will increase the risk of electric leakage. Exposure to sunlight will

accelerate the aging of plastic parts.

•Make sure to only use the power cord provided by Flashforge.

•Do not use the equipment during thunderstorms.

•Please turn off the equipment and unplug it if it is not in use for a long time.

Personal Safety

•Do not touch the extruder, build plate, etc., during printing.

•Do not touch the extruder and build plate after finishing printing to avoid high

temperature burns or mechanical damage.

•Do not wear scarves, masks, gloves, jewelry, or other objects that can easily get

tangled into the equipment while operating it.

•Do not operate the equipment while you are tired or under the influence of

drugs, alcohol, or medication.

Cautions

•Keep the inside of the equipment clean. Do not drop metal objects into the

grooves at the bottom of the build plate.

•Please clean up filament debris in time. It is recommended to operate this

outside the equipment.

•Any modification of the equipment by yourself will void the warranty.

•Please keep the distance between the extruder and build plate for at least 50mm

during filament loading. Too-close distance may cause nozzle clogs.

•Please operate the equipment in a well-ventilated environment.

•Do not use the equipment for illegal activities.

•Do not use the equipment to make food storage containers.

•Do not place printed models into your mouth.

Equipment Environment Requirements

Room temperature: 15-30℃; Humidity: 20-70RH%

Equipment Placement Requirements

The equipment must be placed in a dry and well-ventilated environment. A distance of

at least 20cm must be reserved around the front, back, left, and right sides of the

equipment. Recommended storage temperature: 0-40°C.

Compatible Filament Requirements

When using this equipment, it's recommended to use Flashforge's filaments. If non-

Flashforge filaments are used, there will be certain differences in material properties,

and print parameters may need adjustments.

Filament Storage Requirements

Please store filaments in a dry and dust-free environment after unpacking. It is

recommended to use the matching filament dry box for storage.

Equipment Introduction

1. Extruder

2. Touch screen

3. Build plate

4. USB port

5. Screw holes for spool holder

6. Filament detection sensor

7. Ethernet port

8. Power switch

9. Power socket

Printer Parameters

Device name

Adventurer 5M

Extruder quantity

Printing precision

±0.2mm (testing based on 100mm cubes)

Positioning accuracy

X/Y-axis: 0.0125mm

Z-axis: 0.0025mm

Layer thickness

0.1-0.4mm

Build volume

220×220×220mm

Nozzle diameter

0.4mm default (0.25/0.6/0.8mm optional)

Printing speed

10-300mm/s

Max acceleration

20000mm/s2

Max travel speed

600mm/s

Max extruder temperature

280°C

Supported filament

*PLA/*PETG (0.4mm nozzle)

*TPU/PLA-CF/PETG-CF (0.6/0.8mm nozzle)

Note: Materials marked with * are

recommended for printing.

Power supply

AC 100~120V / 200~240V, 50/60Hz, 350W

Device size

353×376×413mm (excluding the display

and spool holder)

262×402×448mm (including the display,

excluding the spool holder)

Net weight

10.8kg

Connectivity

USB/Wi-Fi/Ethernet

Operating temperature

15~30°C

Compatible operating system

Windows 7/8/10/11; Linux (Ubuntu 20.04

or later); MacOS (10.9 or later)

Slicing software

FlashPrint 5

Maximum platform temperature

110°C

Levelling method

One-click auto levelling

Filament run-out reminder

Yes

Power loss recovery

Yes

Smart touch screen

4.3”

Build plate

PEI flexible steel plate

Initial Setup

Unboxing

Safety notice: Do not power on the printer until the installation is completed.

First, open the box. Remove the upper foam packaging, Quick Start Guide and After-

sales Service Card. Take out the machine, place it on a level workspace and remove the

packaging bags and tapes. Remove the filament, power cable, screen, and accessory box

from the chamber protective foam. Remove the inner protective foam from the

extruder. Move the chamber foam according to the arrow direction and remove the

foam.

Packing List

•3D printer

•Filament

•Power cable

•After-sales service card

•Quick start guide

•Touch screen

•Spool holder (with 2 screws)

•Grease

•Glue

•Diagonal pliers

•Unclogging pin tool

•Screwdriver

•Allen wrench (2.0, 2.5, 3.0)

Installing the Spool Holder and Filament Guide Tube

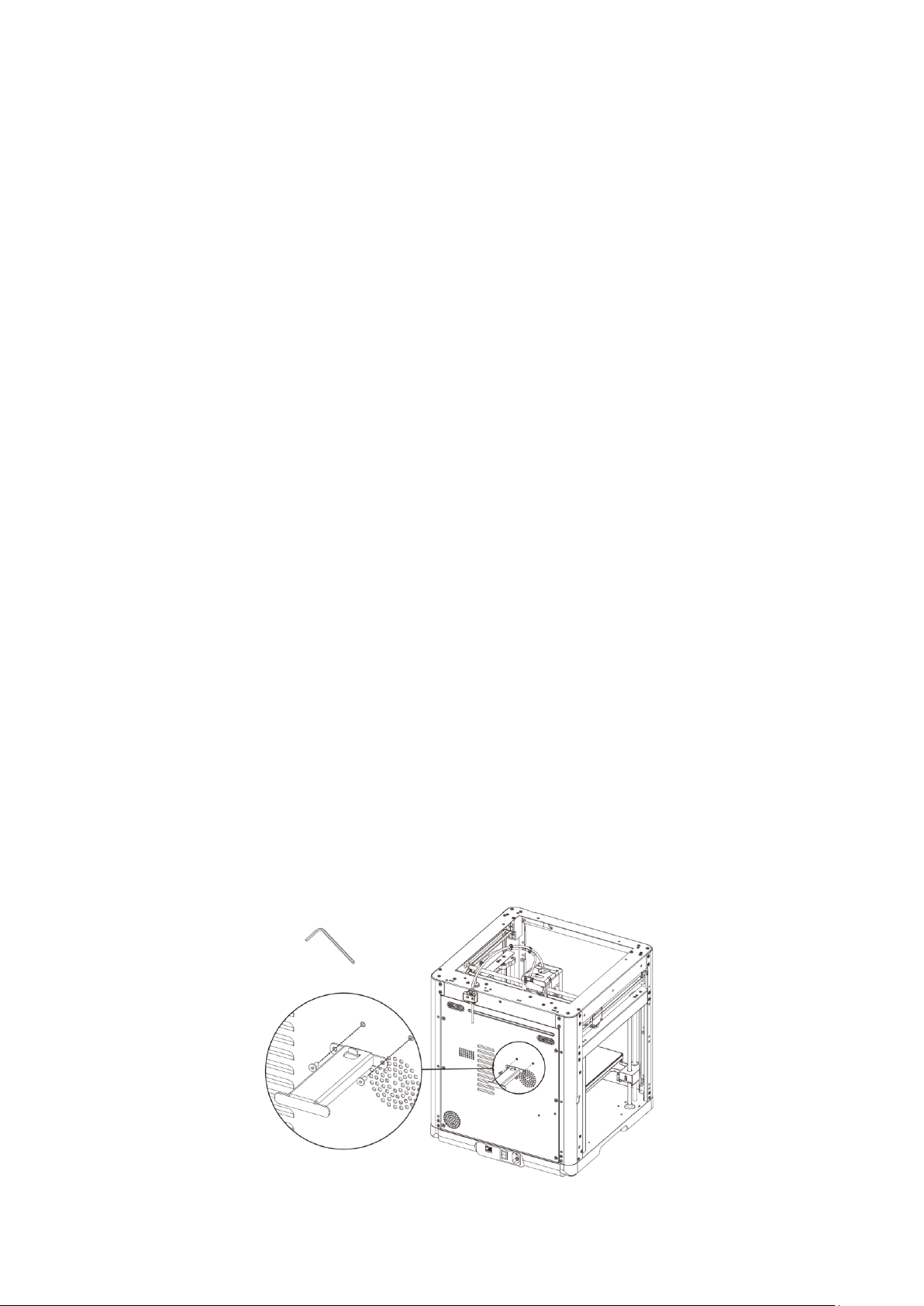

Take out the two screws and spool holder from the accessory box. Install the spool

holder at the position shown in the figure with the two screws. (Note: Please tighten

them using a 2.0mm Allen wrench.)

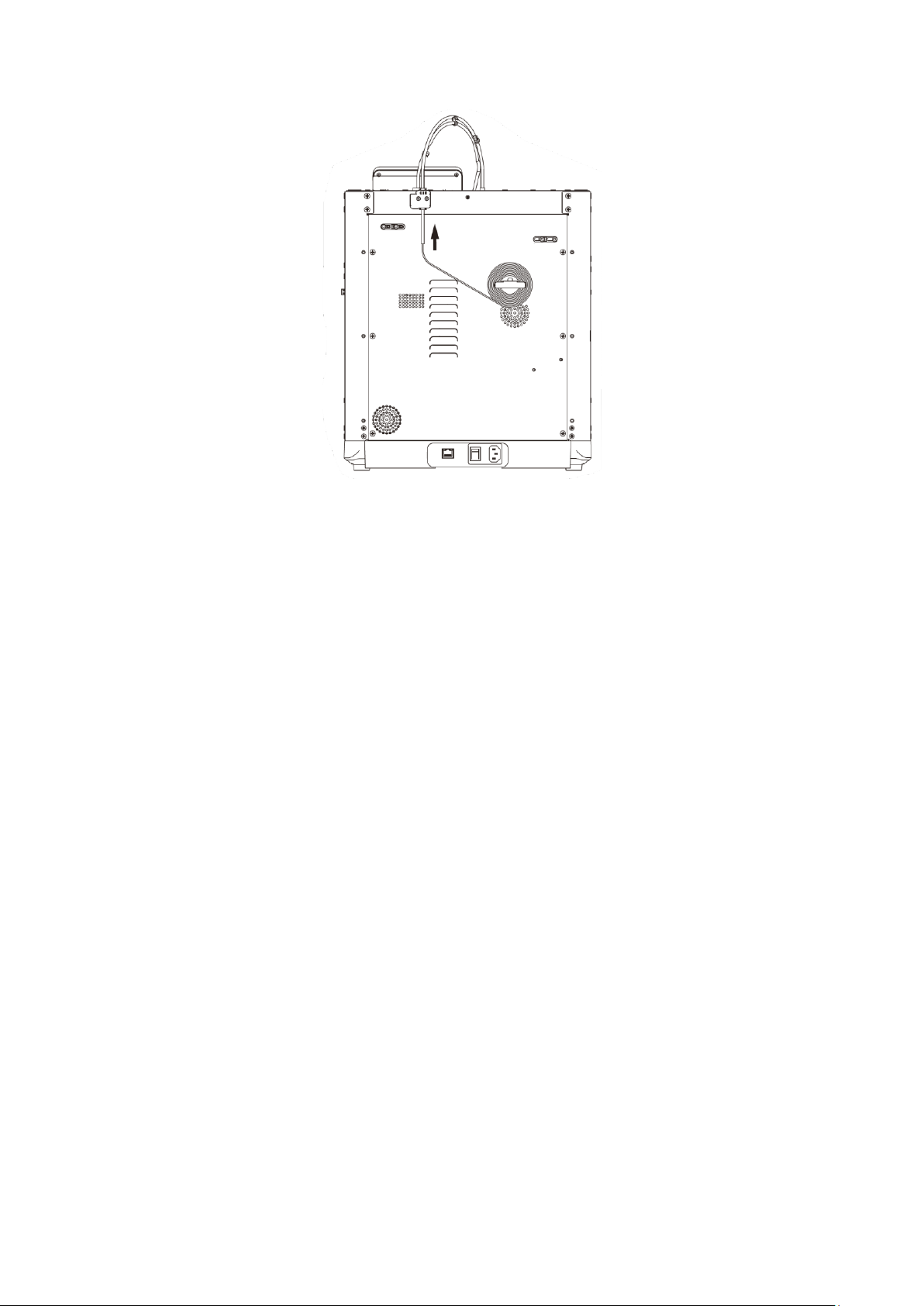

Insert the filament guide tube to the extruder and insert the other end of the filament

guide tube into the filament detection sensor.

Installing the Screen

Note: Before the installation, please remove the tape of the screen cable. Tear it off

gently to avoid damaging the cable.

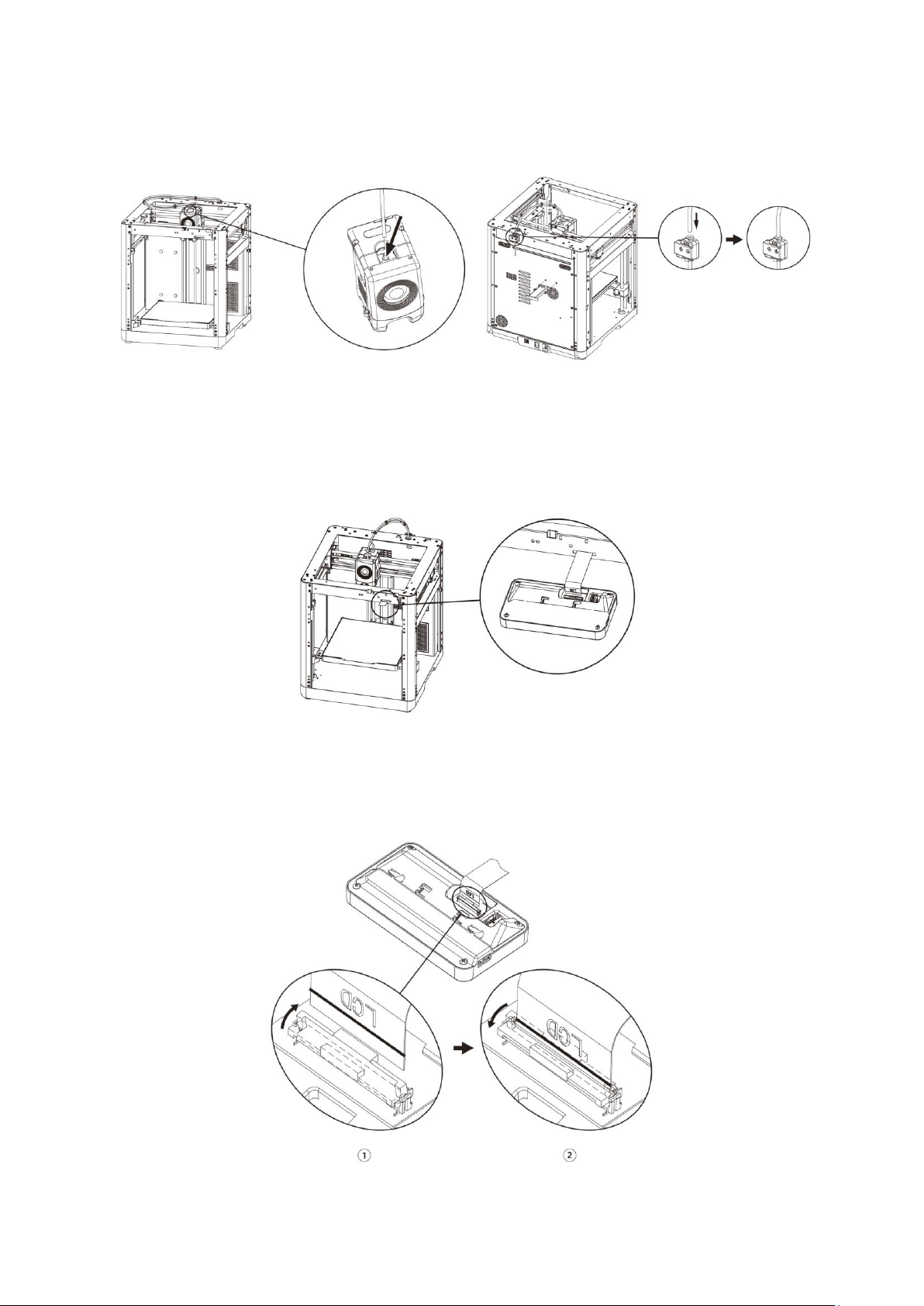

As shown in the picture, insert the screen cable into the screen connector.

Lift the buckle on the screen's cable socket to the indicated position (Fig. 1), then insert

the screen cable into the socket connector. Note: Ensure proper insertion and check

alignment of the indicator line with socket. Press down the buckle on the cable socket to

the indicated position according to the arrow direction (Fig. 2).

Insert the buckle on the back of the screen into the printer's slot and push the screen

according to the arrow direction to lock it in place.

Unlocking the Build Plate

Note: Please ensure that the platform has been cleared up!

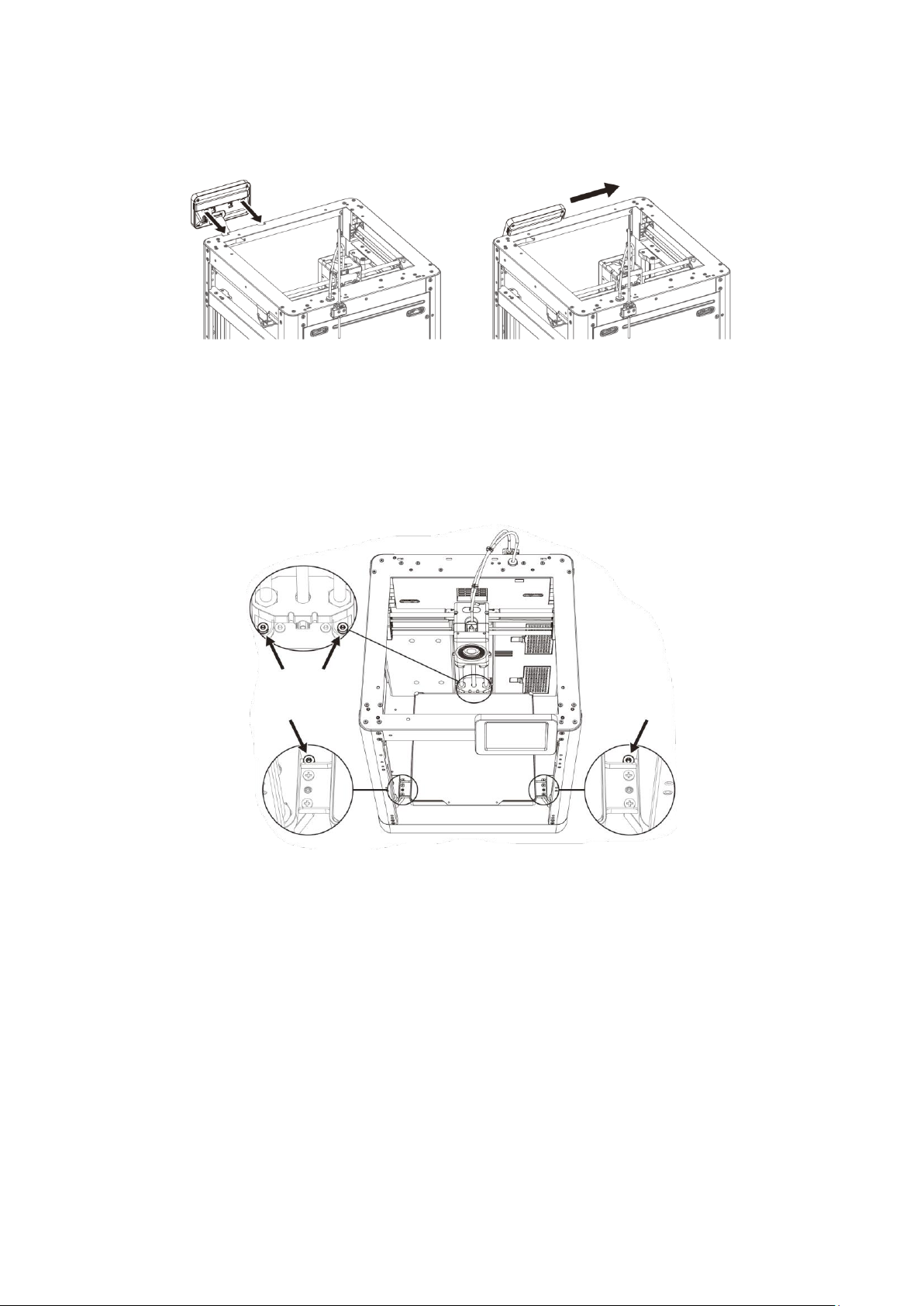

Please use a 2.0mm Allen wrench to remove four screws which lock the build plate (as

indicated by the arrow).

First Print

Power on the printer, turn on the power switch, and wait for the screen to respond.

Following the guide on the screen, select your preferred language. Upon language

selection, click [Next] and the machine will perform the first calibration. Vibrations and

noise during calibration are normal. (Note: Please keep the machine on a stable surface

and do not move it during calibration.)

Load the filament. First, cut off the bent part of the filament end. Hang the filament on

the spool holder. Pass it through the filament sensor until it's seen from the other end

of the filament guide tube. Push it forward to the feed roller, until it cannot go further.

(Please use PLA filament for the first print on initial setup).

Click [Load] and select [PLA] for the first print. Wait for the extruder to heat up. Feeding

will begin after heating. Successful filament extrusion from the nozzle indicates

successful loading. Lastly, confirm the filament guide tube is properly inserted.

Note: If no filament is extruded, manually insert the filament into the inlet and click

[Back] to retry. Feel for filament movement until it is extruded.

Please clear the filament residues on the nozzle and platform. Users must apply glue to

the platform so as to improve adhesion for the first print. Click [Print] and the machine

starts printing the built-in file (configured for PLA material).

Software Introduction & Installation

Before printing 3D model files, you need to configure slicing presets for the

corresponding printer. Recommended slicing software: OrcaSlicer / FlashPrint 5

Pre-printing steps:

•Obtain the 3D file (STEP/STL/OBJ).

•Download and install the slicing software.

•Use the slicing software to convert the file into the machine-readable format.

•Import the sliced file via a USB flash drive or network transfer to the printer for

printing.
