Flashforge Inventor II Manuale utente

This guide is only applicable to FLASHFORGE Inventor II 3D printer

The User Guide is in the USB stick.

1. Hot! Avoid touching the heating nozzle in operation.

2. Moving parts in printer may cause injury. Do not wear gloves

or other sources of entanglement in operation.

WARNING

USERGUIDE

INVENTOR II

Quick Start Guide

SZ15-EN-A02

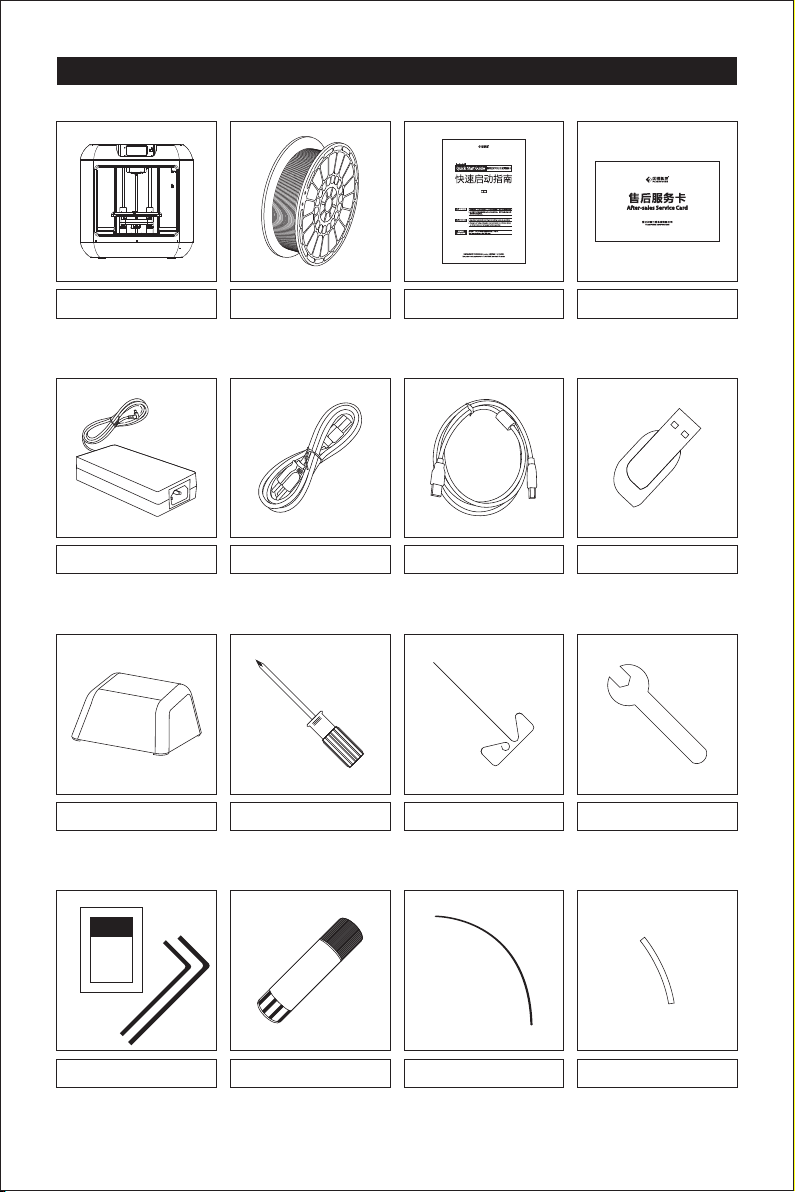

3D Printer Filament Spool Quick Start Guide After-sales Service Card

USB Stick

Power Adapter Power Cable USB Cable

Filament Guide Tube

Screwdriver Unclogging Pin Tool Wrench

Allen Wrench / Grease Solid Glue

Lid

Kit Contents

PTFE Tube

GREASE

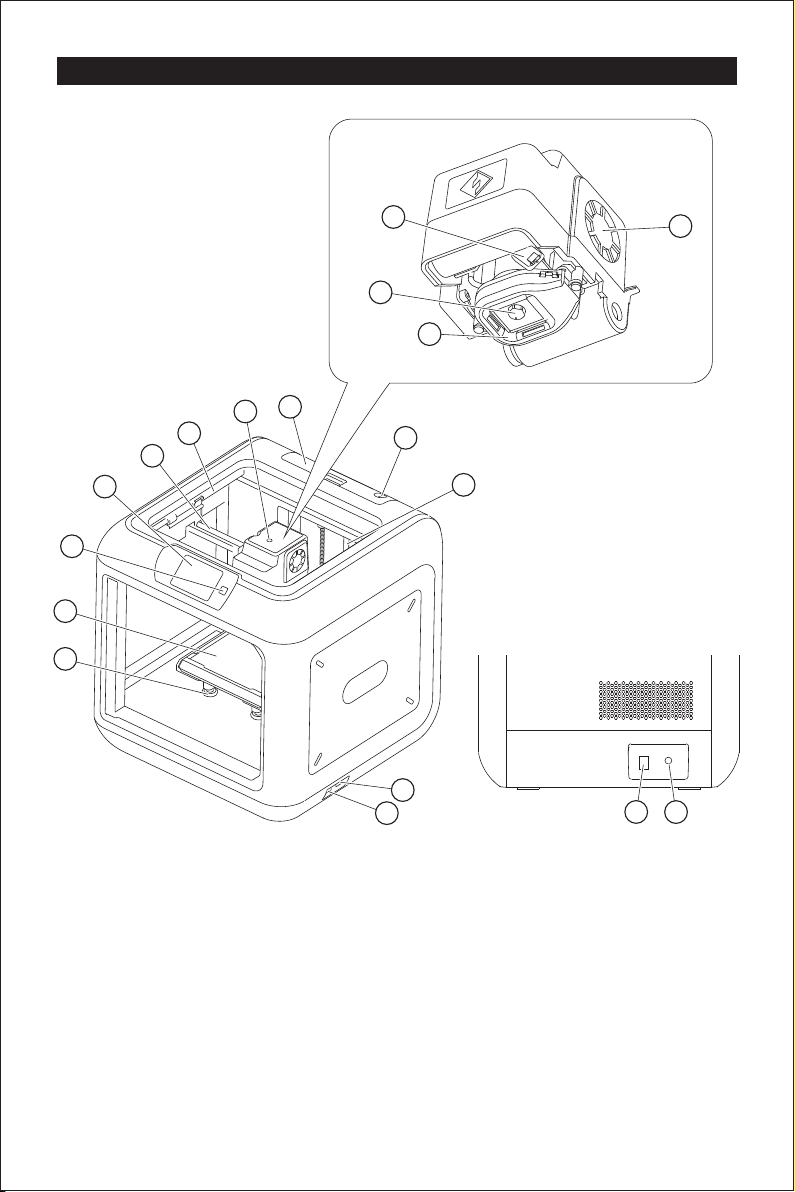

Getting to Know Your Inventor II

1. Z-Axis Guide Rod

16. Turbo Fan

14. Nozzle

8. Touch Screen Button

3. Filament Cartridge

7. Touch Screen

5. Y-Axis Guide Rod

9. Build Plate 10. Leveling Knob 12. USB Stick Input

17. Power Switch 18. Power Input

2. Filament Outlet 4. Filament Inlet

6. X-Axis Guide Rod

13. Servo

11. USB Cable Input

15. Turbo Fan Baffle

Unpacking

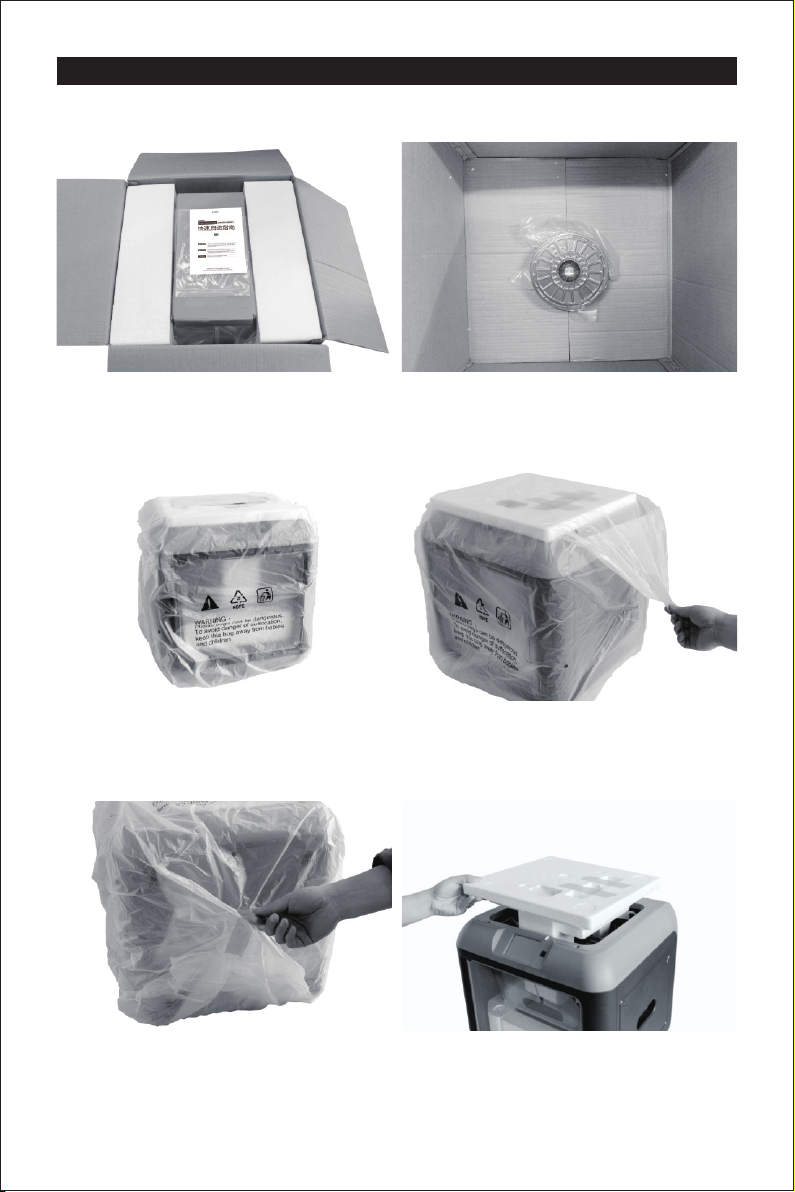

1. Take out the packaging box, which contains a

Quick Start Guide, a After-sales Service Card,

a power adapter, a power cable, a solid glue,

a filament guide tube, a tool bag, including

an USB stick.

2. Check filament inside the box.

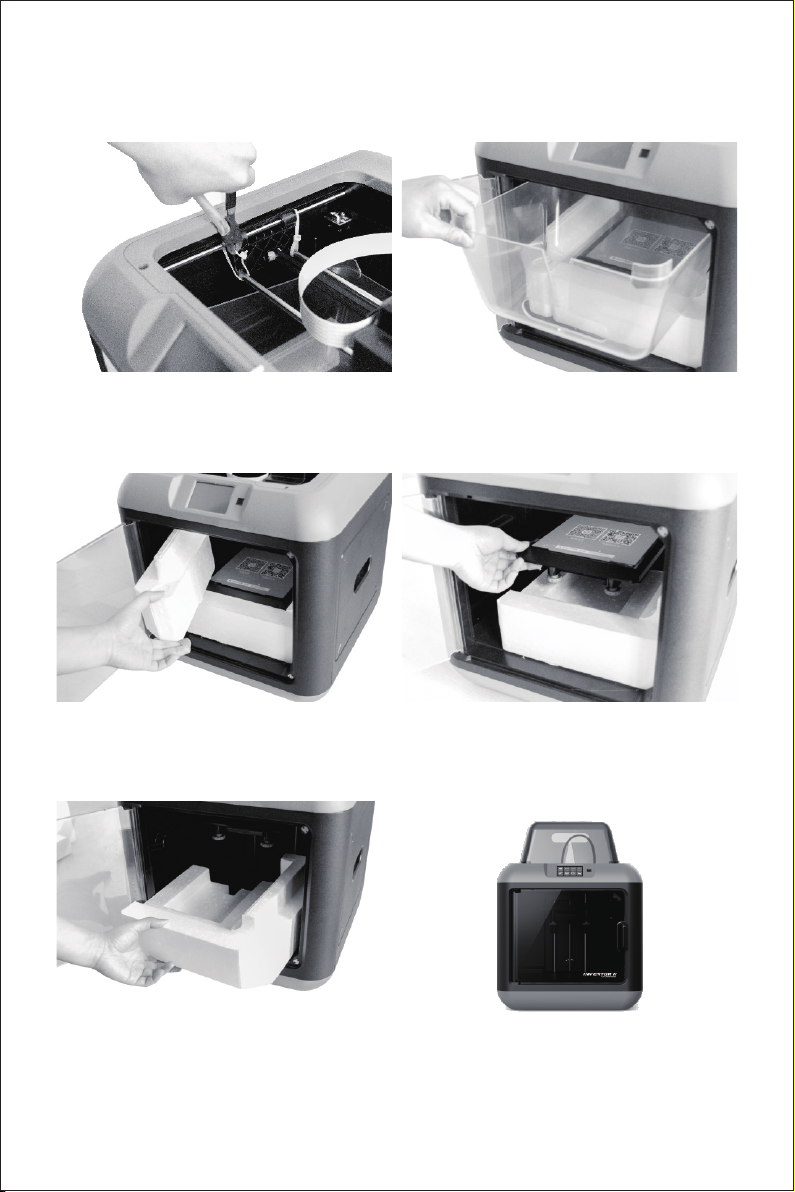

3. Remove all protective foams. 4. Remove the tape on the side.

5. Turn over the Inventor II to remove the tape

in the bottom and all packing bag.

6. Remove the top foam piece.

7. Use scissors to cut the buckles that hold the

rods in the place.

8. Open the door and take out the lid.

9. Remove the foam on the bottom left.10. Hold the platform and elevate platform

 smoothly.

11. Remove the foam at the bottom of printer. 12. Congratulations! You've unpacked your printer.

(Tip: Save packaging for future transportation

and storage)

Hardware Assembly

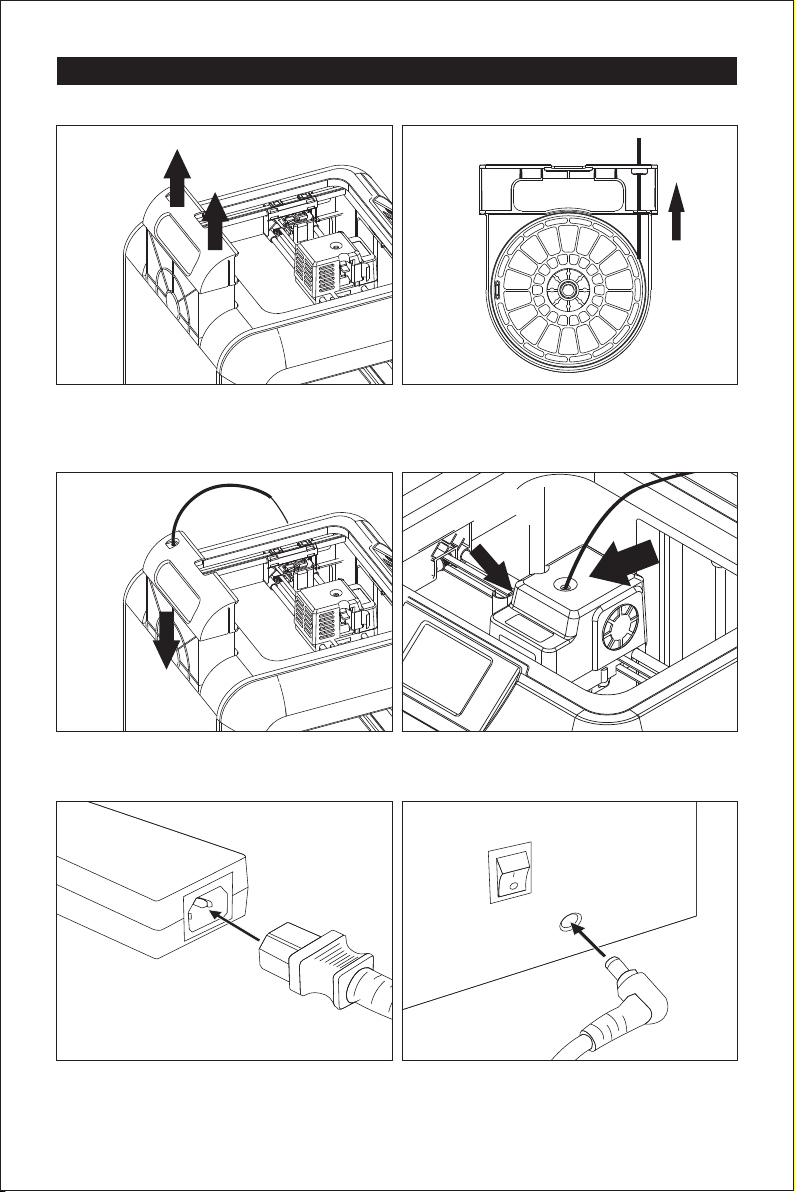

1. Lift the filament cartridge out from the rear of

Inventor II, where you will place the filament

spool.

2. Insert the filament into the guide tube and

thread the guide tube through the filament

outlet. Place the spool of filament in the

cartridge.

3. Put the filament cartridge back. 4. Press the spring presser, and insert the

filament into the filament intake. Then release

the spring presser.

5. Connect power adapter with the power cable and then insert the power supply into the power

input on the back of the finder. Turn on the power switch and press the touch screen button to

turn on the printer.

Leveling Build Platform

Build Plate Leveling

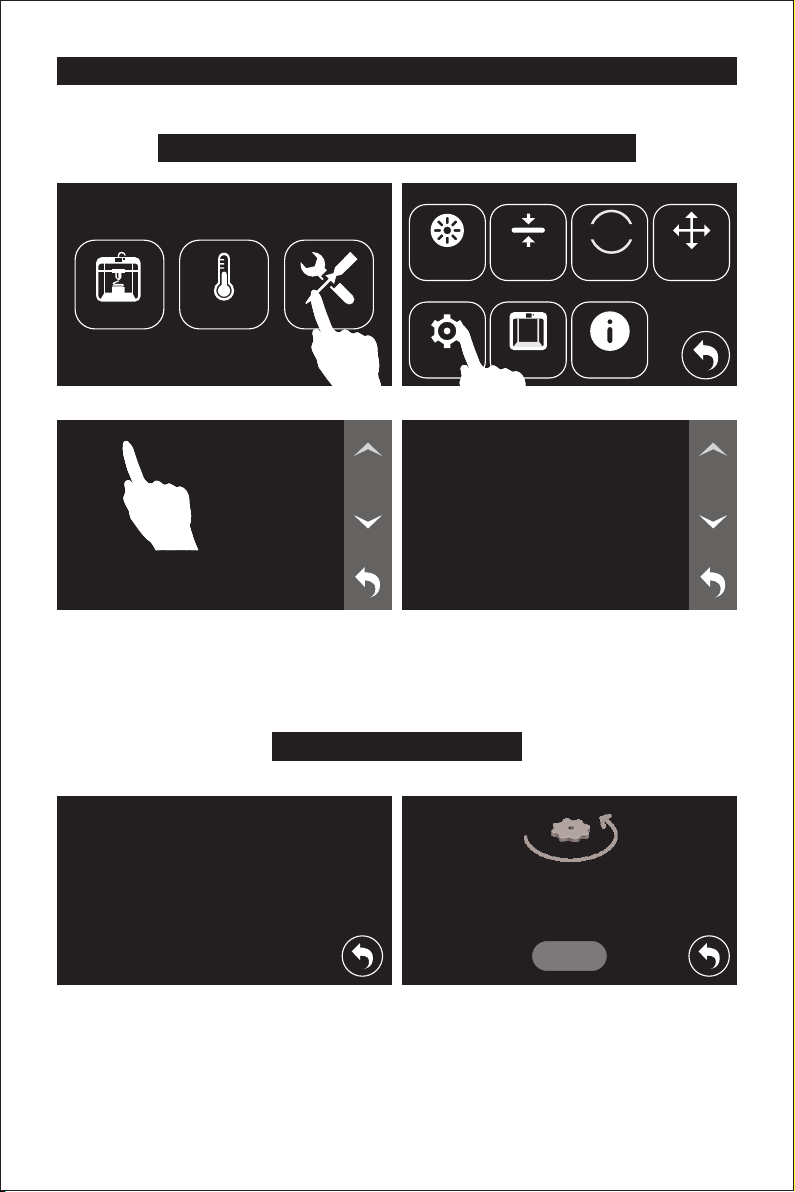

1. Tap [Tools] - [Level] on touch screen. Please wait while the extruder and platform finish initial

movements. Screw three knobs under the platform anticlockwise until you can’t tighten them

any more, then tap [OK] button.

How to change language

Language

WiFi

Wlan hotspot

Extruder Calibration

English

日本語

繁體中文

简体中文

ToolsPreheatBuild

HOME

Setting Status About

Filament Level Home Manual

1/2

Please wait while the extruder and platform

finish initial movements... Screw three nuts under the platform

anticlockwise until you can’t tighten them

any more, then tap [OK] button.

1/4

Yes No

Confirm

Are you sure you can’t finger

tighten these three knobs any

more?

Wait

Please tap [Verify] button to

check whether the distance

is appropriate now.

Verify OK

Congrats

Tap [OK] button

to next point leveling.

2. Tap [Yes] if you can’t tighten all the nuts any more, or tap [No] to continue tightening.

After tapping [Yes] button, the extruder will move towards the first point and the plate

will move up and down to verify the distance between nozzle and plate.

3. If the distance between the nozzle and plate is too large, rotate the knob underneath the

platform clockwise until you hear a steady beep. If the distance is too small, rotate the knob

anticlockwise until you hear a steady beep.

4. Then tap the [Verify] button to check whether the distance is appropriate this time.

If the distance is appropriate now, tap [OK] to the second leveling point. If still not, please

follow the prompts to adjust again till you see [OK] button.

Repeat steps 3 and 4 to level the second and third points. Then tap [Finish] to exit.

Wait

Verifying the distance between nozzle

and plate...

Distance Too Big

Unscrew corresponding knob under

platform clockwise until hearing

a steady beep.

Distance Too Small

Screw corresponding knob under

platform anticlockwise until hearing

a steady beep.

Cancel Cancel

Changing Filament Do not pull out the filament with force as it will damage the gears. If the melted

filament has cooled down in the extruder, repeat the following steps below.

Loading / Changing Filament

61℃ / 220℃

100%

HOME

27%

PreheatBuild Tools

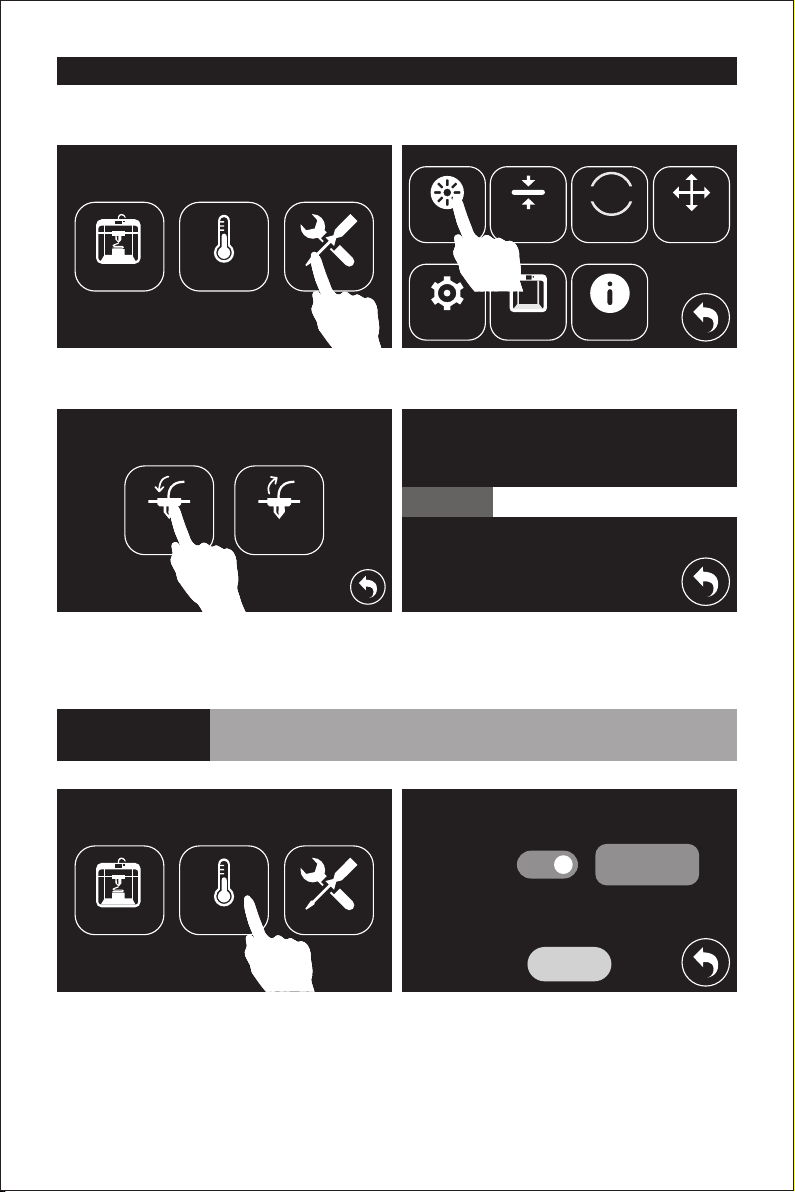

1. Tap [Preheat]--[Start] to the heat up the extruder.

2. Once preheated, hold down the spring presser and pull out the filament.

3. Tap the return button, insert the new filament into the filament intake, tap [Tools]-[Filament]-

[Load]. The filament will be drawn through the extruder once heated. Wait for the extruder to

provide a steady flow of filament.

Build Preheat Tools

Load Unload

Filament Level Home Manual

I’m heating up...

Setting Status About

1. Tap [Tools] and then tap [Filament].

2. Tap [Load]. The extruder will automatically heat up. Once heated, filament will be drawn

through the extruder. Continue extruding until the extruder provides a steady flow of filament.

Extruder

220℃

Extruder

Start

First Print

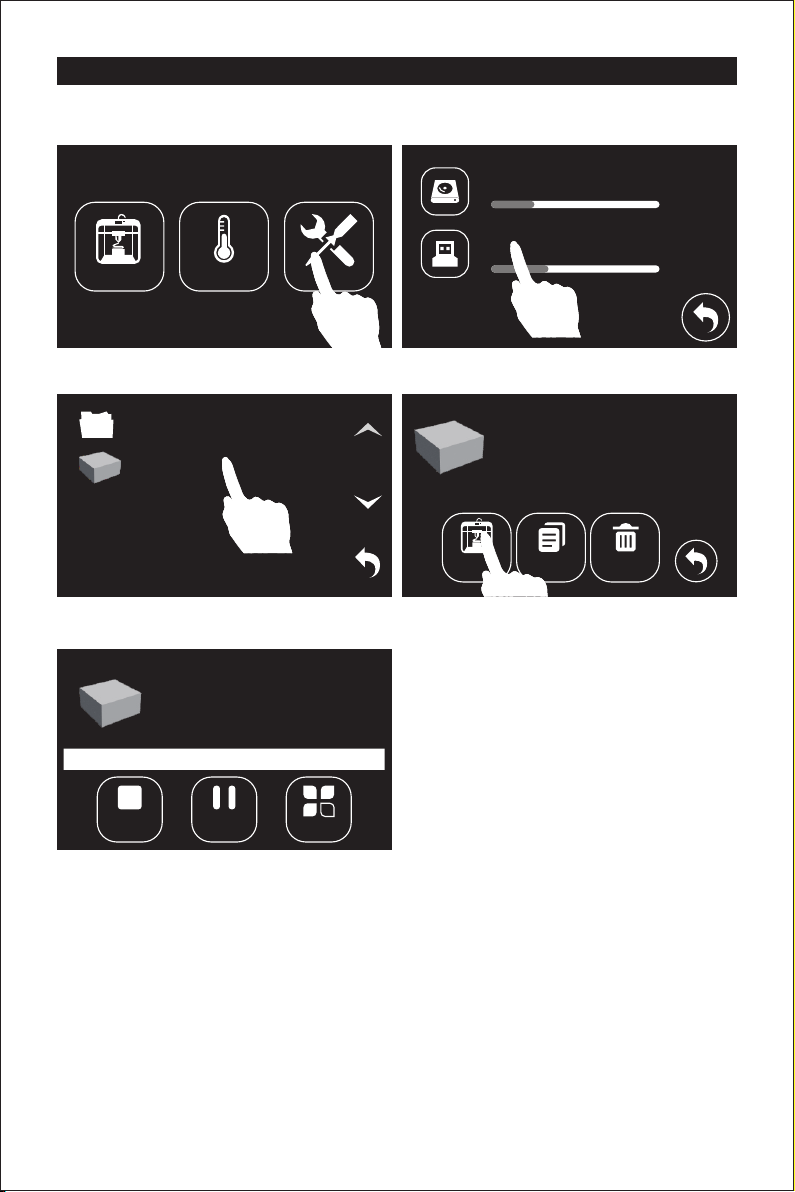

1. Please insert the USB stick into Inventor II. In the print interface, tap [Build]-[USB Stick].

2. Select [40mm_Box-PLA.gx]. 3. Tap [Build].

4. Once heated, the printer will start printing automatically.

Internal Memory

USB Stick

Build Preheat Tools

Flashprint切片软件

40mm_Box-PLA.gx 1/1

Build Copy Delete

40mm_Box-PLA

Total：0hr 54min

Extruder

40mm_Box-PLA

40℃ / 220℃

Time left：0hr 54min

MorePauseAbort
