Flashforge Guider IIs Manuale utente

SZ11S-ZN/EN-A02

P11

9. Leveling Nut

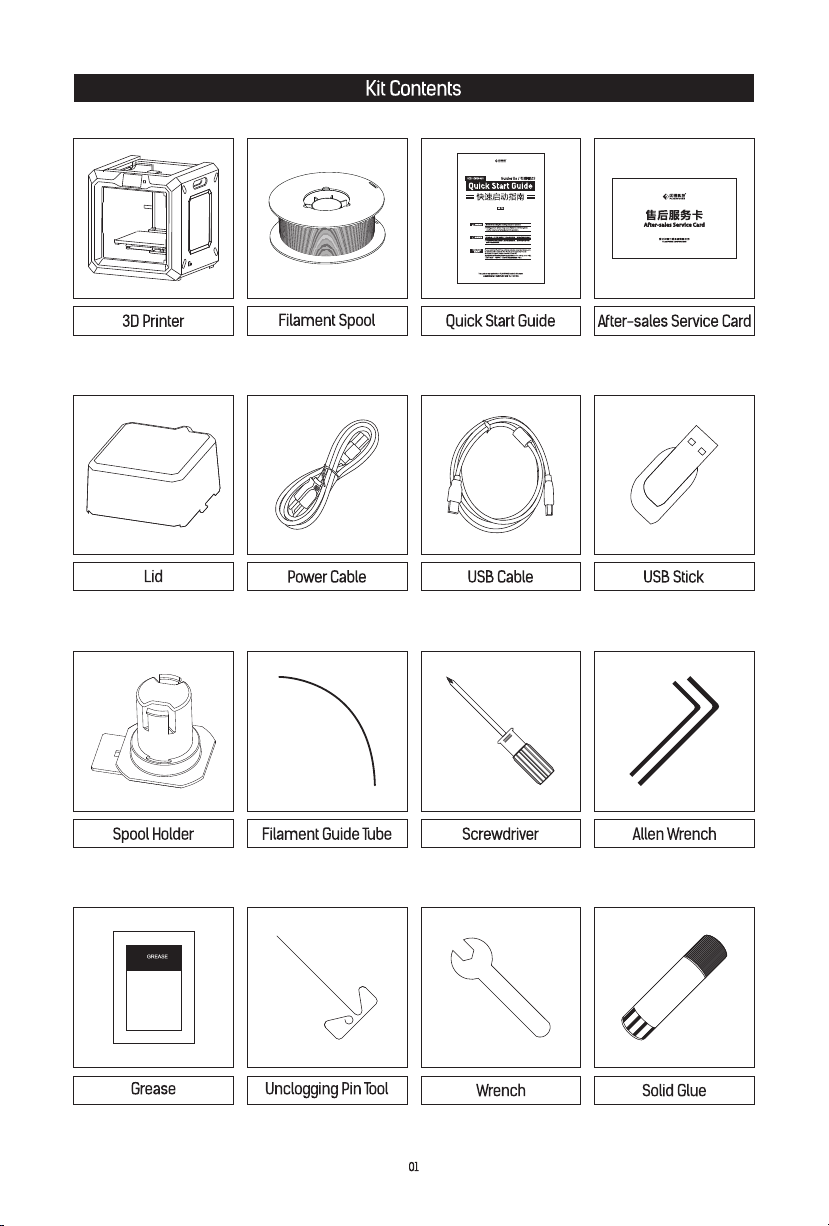

3. The bottom PE foam should contain: a spool of

PLA filament, a spool holder, a solid glue, a USB

cable, a filament guide tube and a accessories

bag.

9. Tap [Tools].

Build

Power Switch

12. Remove both bottom foam pieces. Tear off

the stretch wrap.

7. Tear off tape and the stretch wrap of front door.

Squeeze top lid slightly from both sides to the

middle so as to take top lid successfully.

Remove the stretch wrap of top lid.

Tear off the

stretch wrap

5. After filament goes through guide tube, press

spring presser on the left side of extruder, and

insert filament vertically into filament intake.

1. Locate the spool holder. Install the spool holder

into the left quadrangular opening on the back.

6. After inserting into filament intake, insert guide

tube into extruder filament intake to fix.

Press here Filament intake

How to use the leveling nuts

Rotate the nut clockwise

Rotate the nut Anticlockwise

Build Plate

Build Plate

Leveling Build Plate

Screw the three nuts under the platform

counterclockwise until they are tight,

then tap the [OK] button.

3. Please wait while the extruder and platform finish initial movements. Screw three nuts under the

platform anticlockwise, then tap [OK] button.

Attention: three nuts may be tightened up before going out, please skip this step if you find

three nuts have been tightened up, and continue to following steps

1. Tap [Tools]-[Level] on touch screen. 2. Tap [Tools]-[Level] on touch screen.

4. After tapping [OK] button, the extruder will move towards the first point and the plate will move

up and down to verify the distance between nozzle and plate.

5.

Build

6. If the distance still not appropriate, please follow the prompts to adjust again till you see [OK]

button. The extruder will move towards the next point, repeat steps according to the prompts on

the touch screen to level the second and third points. Then tap [Finish] to exit.

Loading Filament
