Flashforge EN-A01 Manuale utente

This guide is only applicable to FLASHFORGE Guider 3 3D printer

本手册仅适用于闪铸科技引领者 3打印机

中文P26

用户使用手册

USER GUIDE

EN/CN-A01 Guider 3 引领者 3

CONTENT

Notice

Equipment Parameter

1. Equipment Introduction

1.1 - Guider 3 Introduction

1.2 - Packing List

2. Preparation Before Printing

2.1 - Power Connection

2.2 - Filament Loading

2.3 - Equipment Calibration

2.4 - Network Connection

2.4.1 - Wired Network Connection

2.4.2 - Wireless Network Connection

4.1 - File Transfer: Wi-Fi Transfer

4.2 - Printing From a USB Flash Drive

4.3 - Cloud Printing

4.4 - Camera Connection

4.5 - Model Removal After Finishing Printing

5.1 - Printing Screen

5.2 - Filament Screen

5.3 - Preheating Screen

5.4 - Tools Screen

5.5 - Settings Screen

6.1 - Maintenance Screen

6.2 - Extruder Maintenance

6.3 - Platform Replacement

6.3.1 - Glass Platform Replacement

6.3.2 - Flexible Steel Plate Platform Replacement

6.4 - Platform Flatness Calibration

7. Q&A

3. Software Installation

4. First Printing

5. Equipment Operation Interface Introduction

6. Maintenance

8. Help and Support

NOTICE

SAFETY NOTICE: PLEASE CAREFULLY READ AND STRICTLY FOLLOW

ALL THE SAFETY WARNINGS AND NOTICES BELOW ALL THE TIME.

WORK ENVIRONMENT SAFETY

Please keep the work table of the equipment clean and tidy.

Please ensure that the equipment is away from combustible gases, liquids and dust

when it is in operation. The high temperature generated by equipment operation may

react with combustible gases, liquids, and airborne dust, thus causing fire.

Children and untrained personnel are not allowed to operate the equipment alone.

Note: Every 3D printer has undergone printing tests before leaving the factory.

If there are some filament residues in the extruder of the equipment or some

slight scratches on the build plate, it is normal and will not affect its use.

ELECTRICAL SAFETY

Be sure to ground the equipment. Do not modify the plug of the equipment. Not

grounded equipment/improperly grounded equipment/modified plug will inevitably

increase the risk of electric leakage.

Do not expose the equipment to damp or hot-sun environment. Humidity will increase

the risk of electric leakage. Exposure to sunlight will accelerate the aging of plastic

parts.

Make sure to only use the power cord provided by Flashforge.

Do not use the equipment during an thunderstorm.

Please shut down the equipment and unplug it if it is not in use for a long time.

PERSONAL SAFETY

Do not touch the extruder, build plate, etc., during printing.

Do not touch the extruder and build plate when finishing printing in order to avoid

high temperature burns or mechanical damage.

Do not wear scarves, masks, gloves, jewelry ornaments or other objects that can

easily get tangled into the equipment when operating it.

Do not operate the equipment while you are tired or under the influence of drugs,

alcohol or medication.

CAUTIONS

Keep the inside of the equipment clean and tidy. Do not drop metal objects into the

sliding chute at the bottom of the build plate.

Please clean up the filament debris in time. It is recommended to operate this outside

the equipment.

The room temperature should be between 15℃ and 30℃.

The humidity should be between 20RH% and 70RH%.

Any modification of the equipment by yourself will result in the situation that you will

not be entitled to warranty rights anymore.

Please keep the distance between the extruder and build plate for at least 50mm

during filament loading. Too-close distance may cause nozzle clogging.

Please operate the equipment in a well-ventilated environment.

Do not use the equipment for illegal activities.

Do not use the equipment to make any food storage products.

Do not put the printed model into your mouth.

EQUIPMENT ENVIRONMENT REQUIREMENTS

EQUIPMENT PLACEMENT REQUIREMENTS

COMPATIBLE FILAMENT REQUIREMENTS

FILAMENT STORAGE REQUIREMENTS

LEGAL STATEMENT

The equipment must be placed in a dry and ventilated environment. A distance of at

least 30cm must be reserved at the left side and rear side of the equipment, and a

distance of at least 45cm must be reserved at the right side and front side of the

equipment.The storage temperature should be between 0℃ and 40℃.

When using the equipment, it is recommended to use Flashforge’s filaments.

If non-Flashforge filaments are used, there will be certain differences in material

characteristics, and thus printing parameters may need to be adjusted.

Please store filaments in a dry and dust-free environment after unpacking. It is

recommended to use the matching filament dry box for storage.

The user has no right to make any modification to this user guide.

Flashforge will not be responsible for any safety accidents caused by the disassembly

or modification of the equipment by the customer. No one is allowed to modify or

translate this guide without the permission of Flashforge. This guide is protected by

First Edition (August 2022)

Equipment Parameter

Equipment Name

Extruder Quantity

Printing Precision

Positioning Accuracy

Layer Thickness

Build Volume

Nozzle Diameter

Nozzle Type

Printing Speed

Maximum Extruder Temperature

Maximum Platform Temperature

Supported Filament

Power Supply

Slicing Software

Input/Output File Format

Connectivity

Operating Temperature

Compatible Operating System

Compatible Slicing Software

Smart Touch Screen

Build Plate

Net Weight

Equipment Dimensions

Required Space for Installation

Guider 3

± 0.15mm or 0.002 mm/mm [The larger values shall prevail]

X/Y-axis: 0.011mm Z-axis: 0.0025mm

0.05 ~ 0.4mm

300x250x340mm

Default 0.4mm [Optional 0.6/0.8]mm

Stainless steel nozzle

10 ~ 250mm/s

320℃

110℃

ABS/PLA/PC/PA/HIPS/ASA/PETG/PA-CF/PLA-CF

PETG-CF/PETG-GF

AC100-240V/DC 24V/20.8A, 500W

FlashPrint

Input: 3MF/STL/OBJ/FPP/BMP/PNG/JPG/JPEG；

Output: GX/G/gcode

USB ﬂash drive/Ethernet/Wi-Fi

15 ~ 30℃

Windows XP/Vista/7/8/10、Mac OS

Slic3r, Cura [Need setting]

4.3-inch

Flexible steel plate platform/Glass platform

27kg

496[L] x 436[W] x 696[H] mm

≥590*543*758mm

1. Equipment Introduction

Guider 3 Introduction

1. Upper Cover 2. Air Filter

3. USB Port 4. Screen Switch

5. Front Door 6. Flexible Steel Plate

7. Platform Plate 8. Filament Chamber Door

9. Chamber Light 10. Camera 11. Extruder

12. Filament Spool Holder

13. Network Cable Port 14. Power Switch

15. Power Port

13 14 15

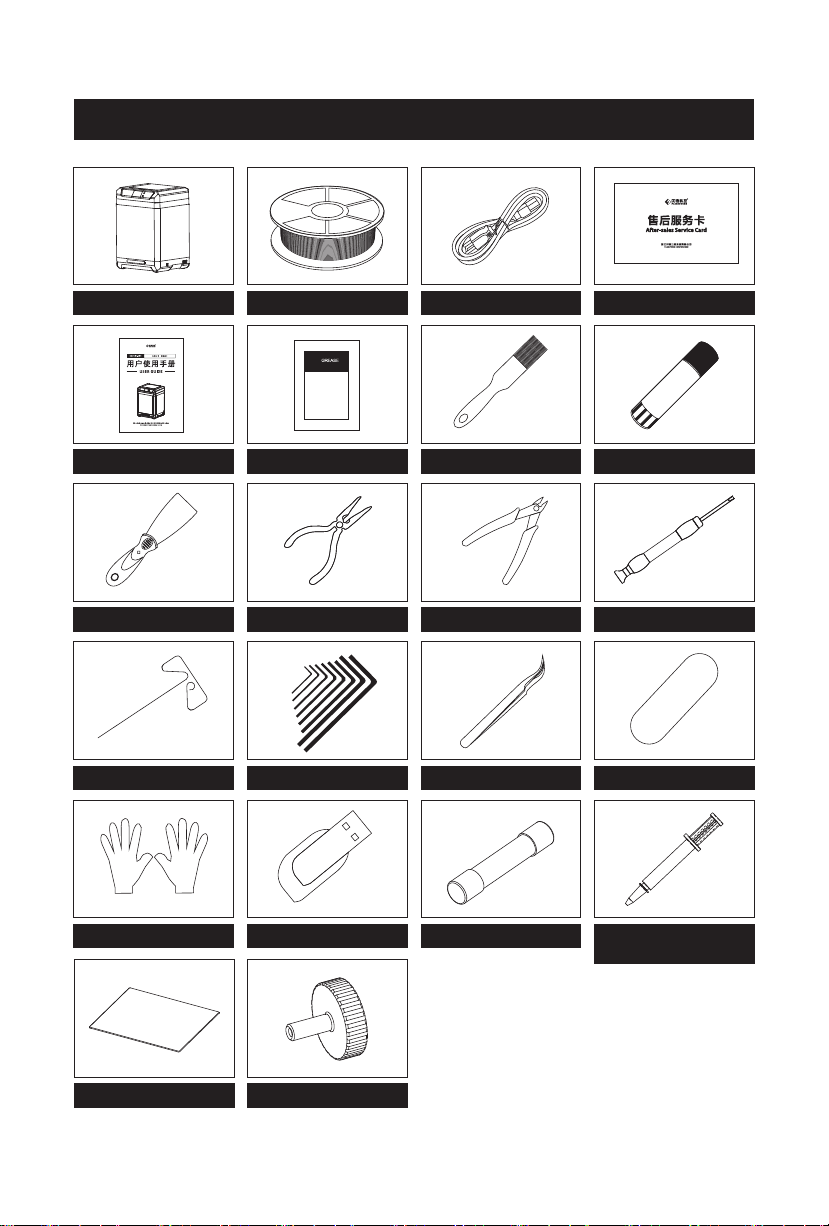

1.2 Packing List

Glass Platform Hand Screw Bolt x 2

3D Printer

GlueCleaning Brush

Diagonal PliersScraper Nipper Pliers

Power Cord

Lubricating Grease x 2

Elbow Tweezers

Allen Wrench Set

Straight Screwdriver

Unclogging Pin Tool

USB Flash Drive

Heat Insulating Gloves

Leveling Card

3D Printing Filament

Fuse x 2

After-sales Service Card

User Guide

Thermally Conductive

Adhesive

2. Preparation Before Printing

2.1 Power Connection

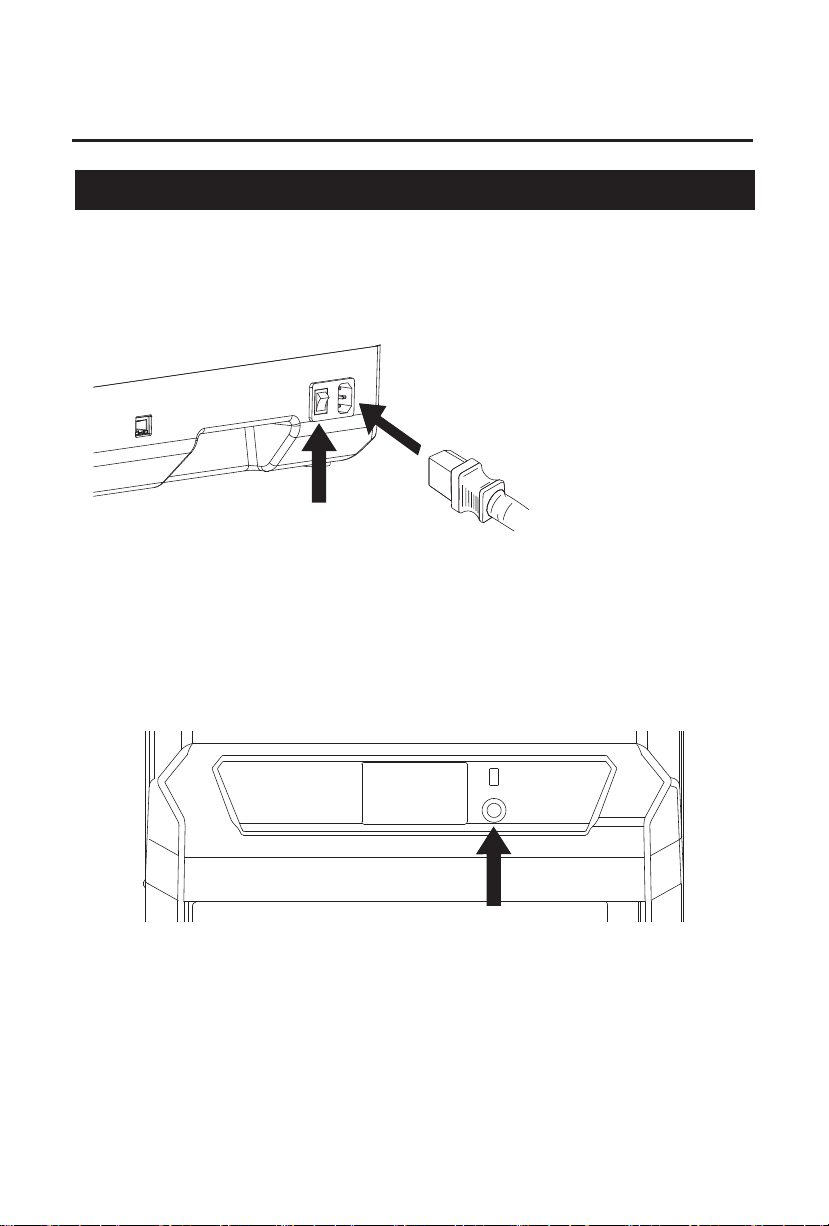

1. Connect the power cord to the socket

and equipment and press the switch to

start the machine.

Power Switch

Screen Switch

2. Turn on the screen switch and the screen light is on.

2.2 Filament Loading

1. Open the filament chamber door, hang the filament on the filament spool holder,

and pass the filament clockwise through the corresponding filament sensor at the

upper left of the chamber inside until the filament is visible from the other end of

the filament guide tube;

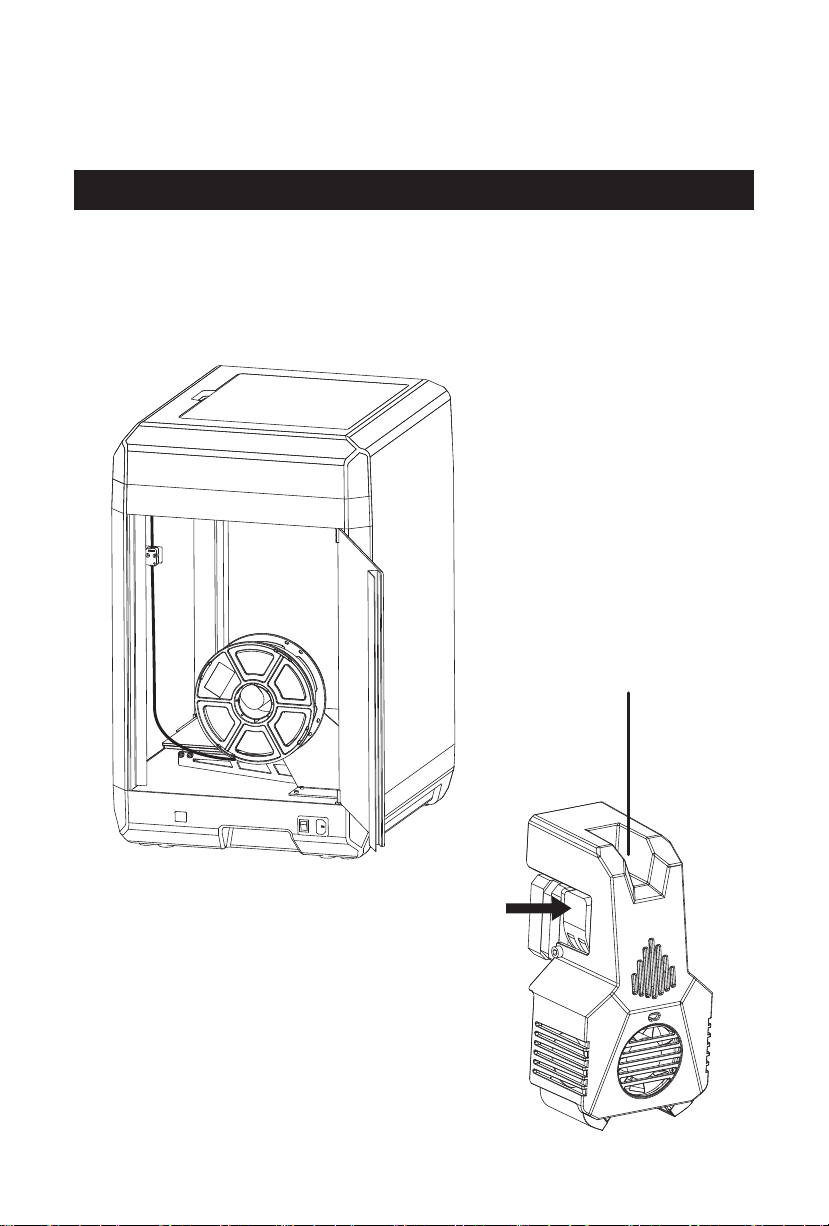

2. Press the filament feeding handle on the

extruder and insert the filament into the

extruder;

Filament

Handle

Load Unload Clean

< Load Customize

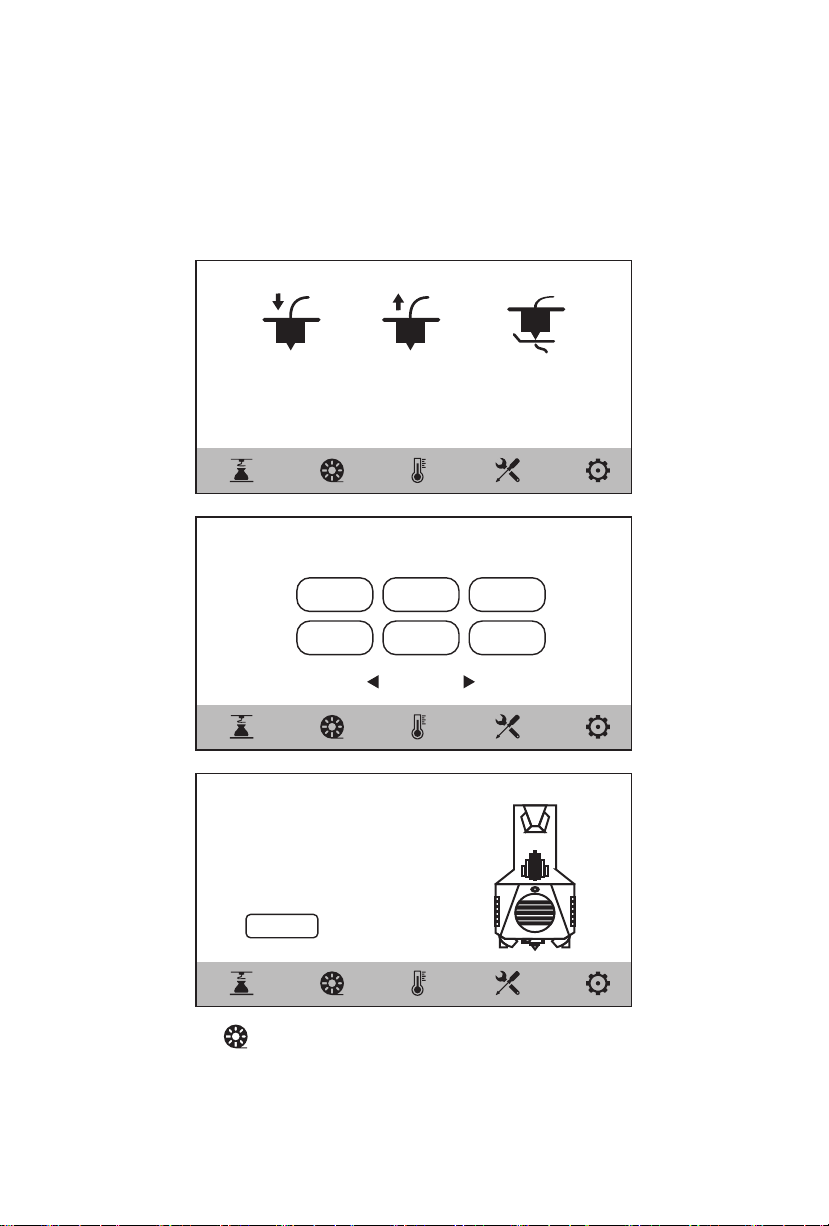

3. Click the [ ] - [Load] on the screen, select the corresponding filament

for the extruder, start filament feeding, and operate following the

prompts on the screen.

< Load

Custom

Heating extruder, please insert the

ﬁlament to spool.

100/200℃

Cancel

PLA

1/2

ABS PETG

PC PA66 PA12
