Flashforge AD1 Manuale utente
This guide is only applicable to FLASHFORGE AD1 Series 3D printer
AD13D
中文P55
Note: Please read this User Guide carefully before operating the product.Please keep this Guide properly for future reference.
SZ21-CN/EN-A01 Flashforge AD1
USER GUIDE
01
Content
Foreword
Safety Instructions
1 Equipment Introduction
1.1 Equipment Introduction
1.2 Accessories
1.3 Equipment Installation
1.4 Equipment Settings
1.5 Equipment Interface
2 Equipment Printing
2.1 Printing Software
2.2 Obtaining the Shell File
2.3 Software Settings
3 Maintenance and Support
3.1 Copy Log
3.2 Maintenance and Overhaul
3.3 Daily Maintenance
3.4 Help and Support
................................ 01
.............................. 02
................ 03
....... 06
.... 07
................... 11
..... 12
......... 14
........ 21
............. 28
............ 28
.... 29
........... 30
... 51
....................... 51
52
.......... 53
........... 54
...................................... 01
...................................... 55
................................ 57
....................... 58
........................ 59
........................ 63
........................ 64
................... 66
........................ 73
....................... 79
................... 79
.................. 80
........................ 81
.................... 97
........................ 97
..................... 97
................ 98
..................... 98
Foreword
Note:
Dear Flashforge User,
Thank you for choosing and using the products of Flashforge Technology. Thank you for
your support and help to Flashforge Technology.
The products of Flashforge Technology have excellent quality and performance. For your
convenience, please read this Guide carefully before use and follow the instructions
strictly. The Flashforge team is always ready to provide you with the perfect service. In
case of any problems during the use, please contact us by phone or email listed in this
Guide.
In order to better experience our products, you can also get operation knowledge of the
equipment from the following ways:
www.sz3dp.com
hardware, contact, equipment operation and maintenance.
normal if there is residual material in the extruder or slight scratch on the
02
Safety Instructions
Please read the following safety prompts carefully
Please ensure that the work table of the printer is clean and tidy.
temperature generated by the operation of the equipment may react with dust, liquid
Children and untrained personnel should not operate the equipment alone.
Do not abuse the power cord; be sure to use the power cord provided by Flashforge
Technology.
Never use the equipment during thunderstorms.
power cord.
Safety of Electric Operation
Do not touch the extruder or platform while the equipment is running in order to avoid
high temperature burns or mechanical collisions
Do not touch the heating part when printing is complete in order to avoid high
temperature burns.
When operating, do not wear objects that are easily caught in the equipment, such as
scarves, masks, gloves and jewelry.
Do not operate the equipment after drinking or taking medicine.
Safety of Personal Operation
03
Do not left the running equipment unattended for a long time.
Do not modify the equipment.
Operate the equipment in a ventilated environment.
Do not use this equipment for illegal activities.
Do not use this equipment to make food storage products.
Do not use this equipment to make electrical products.
Do not put the printing model into your mouth.
Do not use brute force to remove the printing model.
Do not connect the equipment with a network cable longer than 3m.
If the equipment is not in use, please remove the supplies in the extruder.
If the equipment is not used for a long time, use a dust cloth to cover it.
When the adhesion of the blue textured paper becomes weaker on the shell, replace
the paper.
Equipment Operation Tips
Temperature: 15-30°C
Relative humidity: 20% -70%
Abnormal noise may occur if the equipment is used for a long time. Please apply
lubricant on the rails and the screw regularly. It is recommended to apply once every
two weeks.
Equipment Maintenance
The equipment needs to be placed in a dry, ventilated environment. The left and rear
sides must have a space at least 20cm, the front side must have a space at least 35cm,
and the right side must have a space at least 40cm.
Equipment Placement Requirements
Third-party supplies may cause extruder blockage and damage.
Do not unpack the supplies unless needed. Keep the storage environment dry and free
of dust after unpacking.
Supplies Storage Requirements
04
Do not copy or print any items that are prohibited from being copied by law.
Copy copyrighted works. Some copyrighted works can be partially copied for “fair
use”. Multiple copies will be considered as improper. A work of art is equivalent to
copyrighted work.
The above list is for reference only and does not include all content. We are not
responsible for its completeness and accuracy. If you have questions about the legality
of copying or printing certain items, please consult your legal counsel.
The user is not authorized to make any changes to this Guide.
Flashforge Technology is not responsible for any safety incidents caused by the
customer disassembling or modifying the equipment without permission. Without the
permission of Flashforge Technology, it is prohibited to modify or translate this Guide.
interpretation.
@Copyright 2018 Zhejiang Flashforge 3D Technology Co., Ltd. All rights reserved
Legal Statement
05
1 Equipment Introduction
3D printing technology is the technology that transforms 3D models into physical objects.
which is also the application technology of AD1 Ad words printer. Its working mode is to
supplies, and stack them layer by layer to form 3D articles.
Printing Steps
3D printing has three steps, which are acquiring model, processing model, and printing
Flashforge AD1 is 3D printing equipment for making luminous character shell and it can
FlashAD software is used on Flashforge advertising machine. It has three functions, i.e.
produce Ad words.
production of the luminous character shells are provided.
Steps for the production of Ad words:
1. Generate a 3D model;
2. Export the contour line;
4. Cut the acrylic sheet according to the contour line;
5. Assemble the model and acrylic sheet.
You can use the design software such as CorelDRAW to design the font or pattern and
upgrades.
06
CDR
Software design
FlashAD
Software switch
AD1
Equipment printing
> >

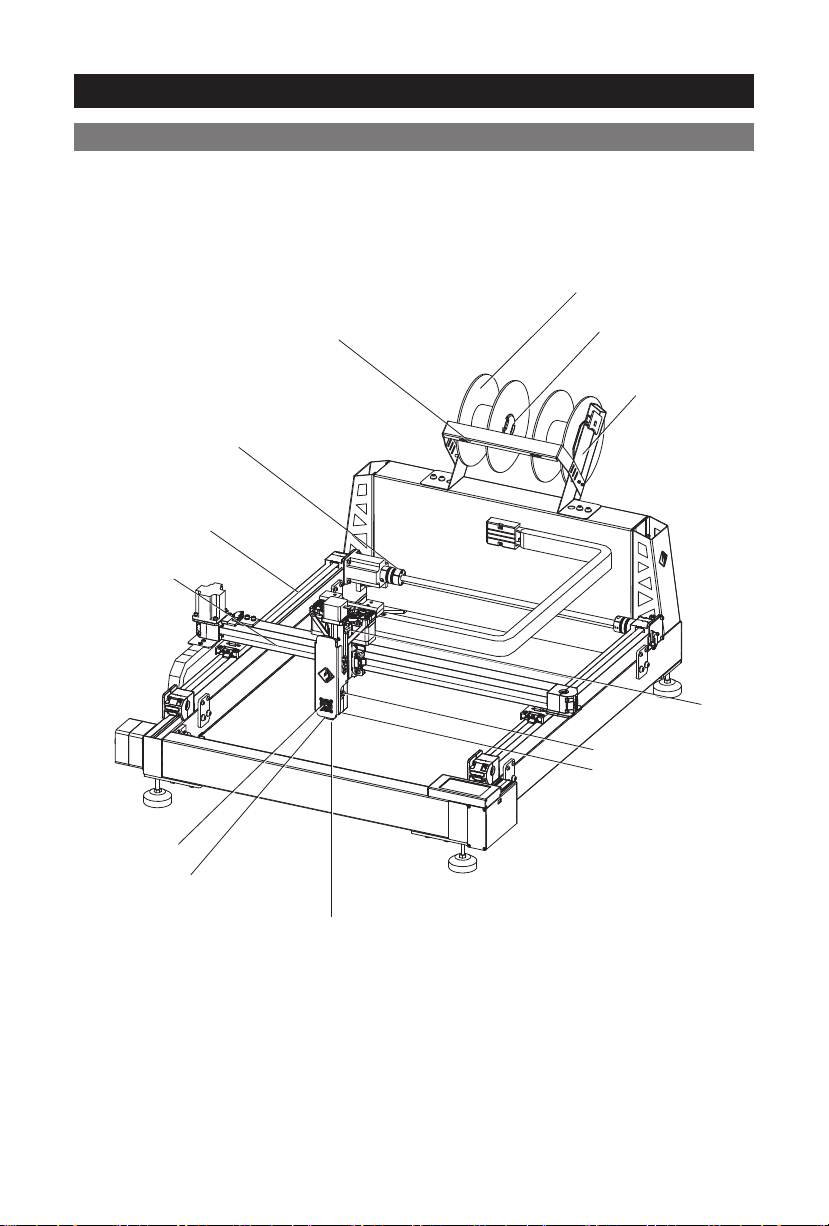

Fliament hole
Mounting bracket
Z-axis sensor
Heat sinks
Heating block
Cooling fan
Teflon tube connector
Nozzle
X-axis guide
Y-axis guide
Y-axis linkage
Spool holder
Filament spool
07

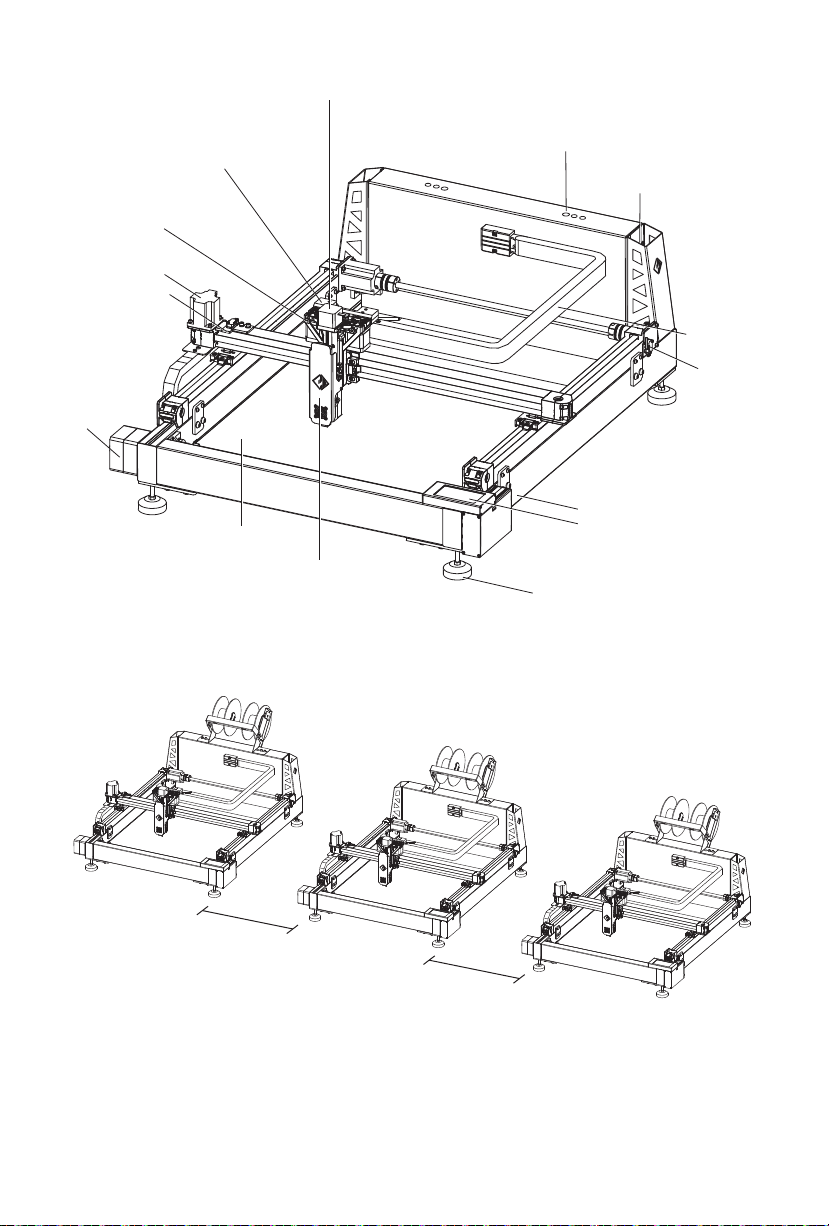

Z-axis motor
Decorating part
Drag chain
Y-axis sensor
Touch screen
Printing platform
Ethernet port
Extruder cover
Support bracket
Power switch
Filament feeding motor
X-axis motor
X-axis sensor
Filament detection sensor Mounting hole
08
The part used to build a solid model.
Printing platform
The Flashforge print sticker can be attached to the printing
platform to better attach the printing model to the platform. When
replace it in time, i.e. the attached textured paper.
Platform sticker
The printing volume refers to the length *width* height of the build
model. The maximum printing volume of AD1 Ad word 3D printer is
600*600*70mm. You can’t directly build models that exceed this
parameter.
The 8 leveling nuts under the platform bracket are used to adjust
the spacing between the printing platform and the nozzle.
Extruder
The lowermost brass-colored metal structure constituting the
extruder; the supplies heated by the extruder are extruded here.
Nozzle
Cooling fan
The hole for the supplies to enter the extruder; located at the top of
the extruder.
The cooling fan is used to reduce the temperature of the extruder
Used to clear the residual supplies in the nozzle.
box.
The device for placing supplies; located on the back of the printer.
Filament hole
Filament guide
Nozzle cleaner
09
