Flashforge Guider II Manuale utente

This guide is only applicable to FLASHFORGE Guider2/2s 3D printer

Replacement of

High-temperature

Extruder for Guider II/ IIs

Tel: +86 579 82273989 Web: www.ﬂashforge.com Add: 2/F, No.518, Xianyuan Road, Jinhua, Zhejiang, China

After-Sales Service: [email protected] Amazon.com orders only: [email protected]

All manuals and user guides at all-guides.com

all-guides.com

Scan RQ code to watch Replacement of High-temperature Extruder video.

https://youtu.be/y285mWS104E

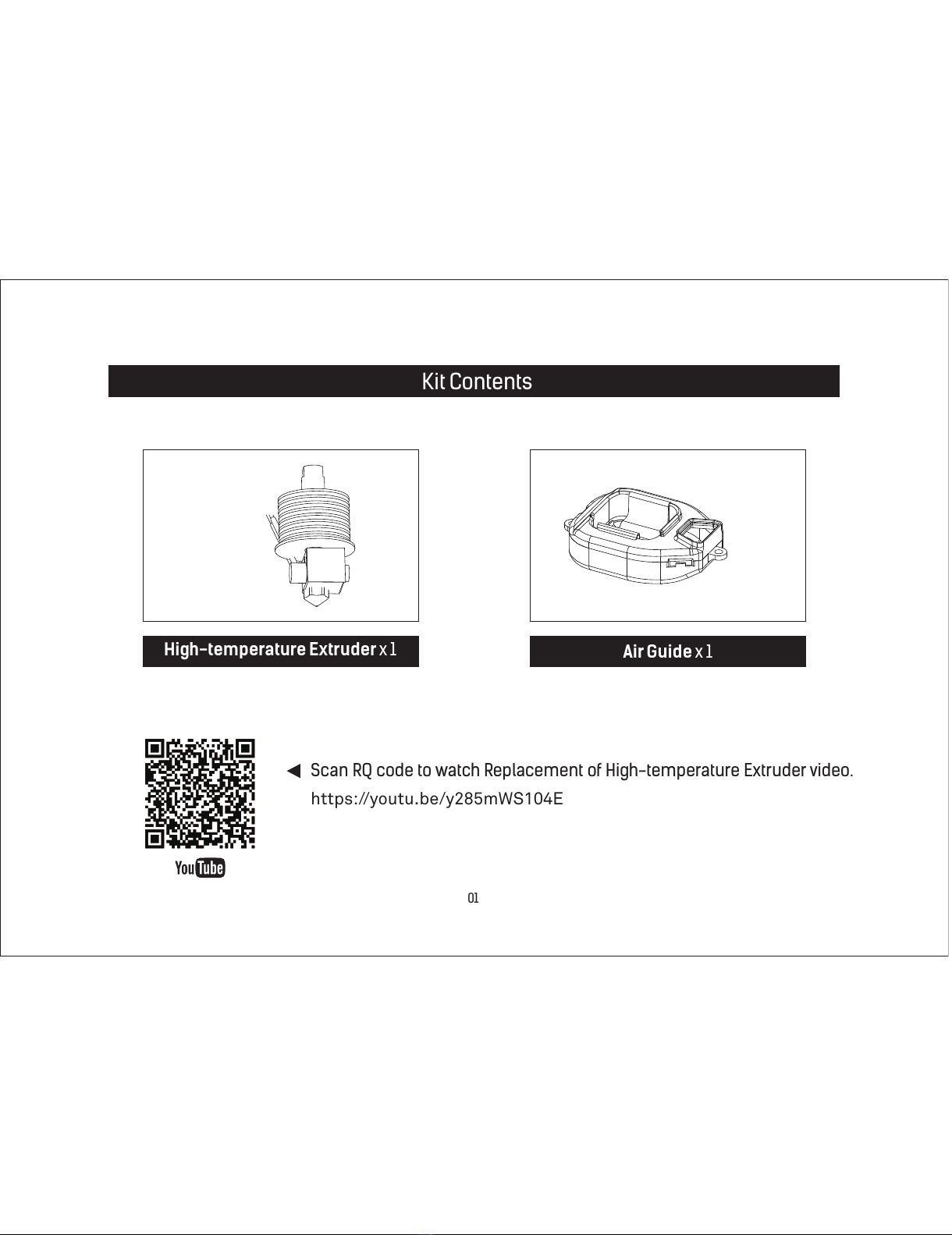

Kit Contents

High-temperature Extruder x 1Air Guide x 1

All manuals and user guides at all-guides.com

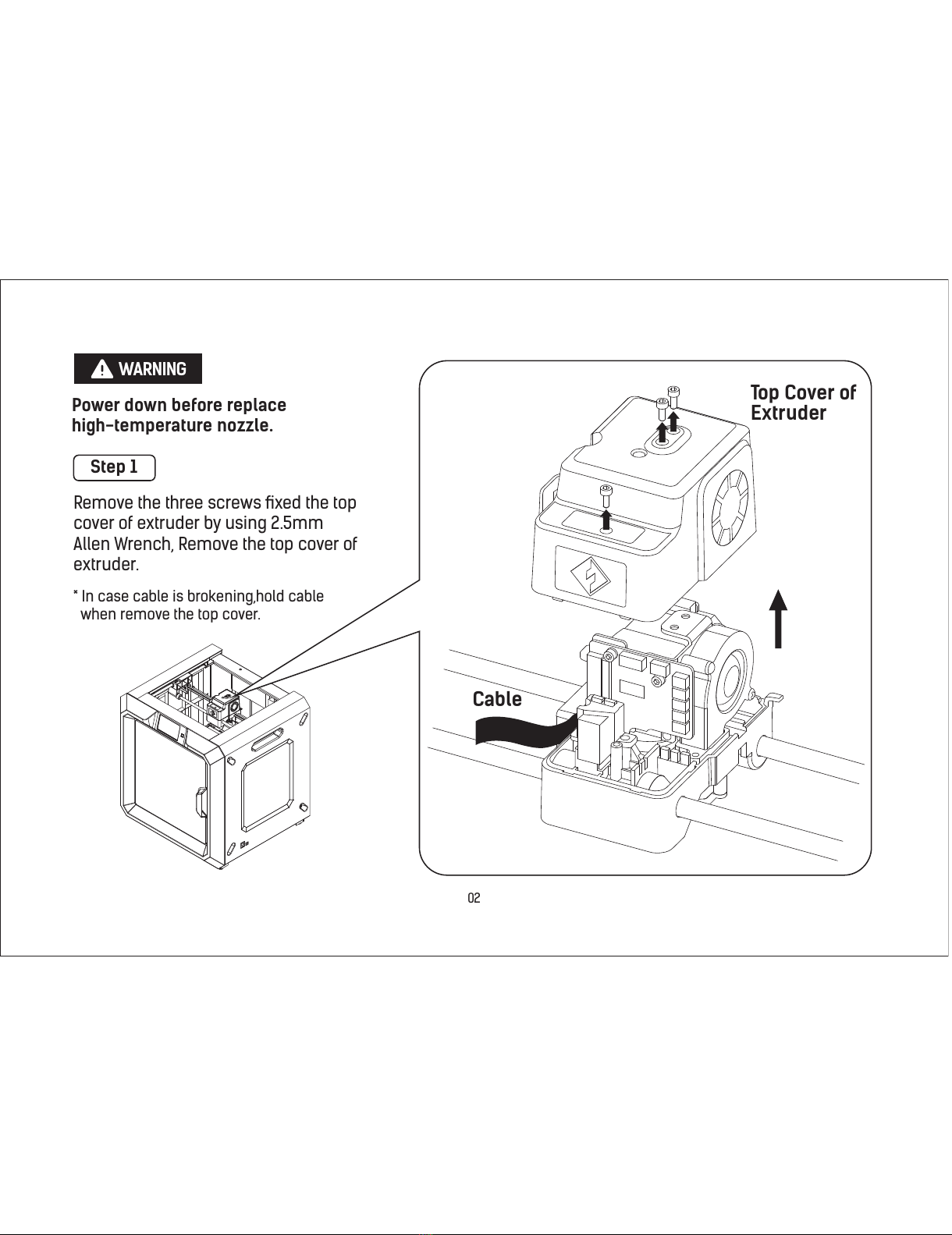

Remove the three screws ﬁxed the top

cover of extruder by using 2.5mm

Allen Wrench, Remove the top cover of

extruder.

* In case cable is brokening,hold cable

when remove the top cover.

Power down before replace

high-temperature nozzle.

WARNING

Top Cover of

Extruder

Cable

Step 1

All manuals and user guides at all-guides.com

Air Guide

Remove the two screws ﬁxed the Air

Guide by using cross screwdriver,

Remove the air guide.

Step 2

Screws Screws

All manuals and user guides at all-guides.com

ServoServoServo

HeatingHeating

TubeTube

Heating

Tube

1. Unplug the blue thermocouple. （②）

2. Loss the two screws ﬁxed the heating

tube nest by using straight screwdriver

and unplug heating tube nest. （③）

3. Remove the two screws ﬁxed the leveling

servo by using cross screwdriver, and remove

the servo. （⑤）

4. Unplug the nest of leveling servo. （④、①）

Servo

Screw

Servo Nest

Heating Tube

Blue

Thermocouple

Heating Tube

Step 3

All manuals and user guides at all-guides.com

Loose the screw hided in the back of PCB

board by using 2.0mm Allen Wrench.

Remove the nozzle assembly.

Air GuideAir GuideAir Guide

Step 4 Step 5

All manuals and user guides at all-guides.com

all-guides.com

High-temperature High-temperature

ExtruderExtruder

High-temperature

Extruder

Air Guide

Install red air guide assembly and ﬁxed it

by cross screwdriver.

Install High-temperature Nozzle Assembly.

Step 6 Step 7

All manuals and user guides at all-guides.com

Tighten the screw hide in the back of PCB

board by using 2.0mm Allen Wrench.

Fixed the two screws of leveling servo

by using cross screwdriver.

Step 8 Step 9

ServoServoServo

All manuals and user guides at all-guides.com

1. Plug back the nest of servo. （④、①）

2. Plug the blue thermocouple. （②）

3. Plug two heat tube nest and ﬁxed by

using straight screwdriver. （③）

Step 10

HeatingHeating

TubeTube

Heating

Tube

Servo Nest

2Blue

Thermocouple

Heating Tube

All manuals and user guides at all-guides.com

Cable

Top Cover

Cover up the extruder top

coverFixed the top cover by

using 2.5mm Allen Wrench.

Finished

Step 11
