FLUKE 1743/1744/1745 Memobox – Power Quality Loggers
Communication via cellular networks 2 of 18
1 Principle of Operation
1.1 Overview
A well known dial-up modem connection works like a land-line telephone connection where one
modem is required both on the local side and the remote side. One modem calls the phone number
of the remote side to establish a connection.
Using this method, wireless modems would operate in the voice channel which means:
•Throughput is very slow
•Airtime is expensive
A modern way of a communication via cellular networks is shown in figure 1.
PC
Fluke
174x
Gateway
RS232 Cable
Figure 1
In this case the analysis PC and the measurement equipment establish a connection to the Internet.
Advantages:
•No modem required on PC side.
•High-speed data transfer
•Connection costs are based on the amount of transferred data and not on time consumed.
Disadvantages:
•Without any precautions the PC and the gateway are visible in the Internet.
•Cellular network providers usually assign dynamic IP addresses to their clients. So it can
happen that each time the gateway establish a connection to the Internet it obtains a different
IP address.
In case of a connection to the Fluke 174x the PC is initiating the connection and has to know
the IP address of the gateway on remote side.
To deal with the disadvantage of dynamic IP addresses there are two possibilities:
•Use special SIM cards which offer a static IP address.
Examples of companies who offer these SIM cards are: Wyless, Mdex or WhiteSIM
•Use the service of Dynamic DNS (www.dyndns.com). See description below of how to set up
this service
FLUKE 1743/1744/1745 Memobox – Power Quality Loggers
Communication via cellular networks 3 of 18
1.2 Dynamic DNS
The free DynDNS dynamic DNS (Domain Name System) service allows users to have a subdomain
that points to a device connected to the internet with regularly-changing IP addresses. An update
client installed on the user's computer, or built into a networked device such as a router or webcam,
generally keeps the hostname up to date with its current IP address.
The gateway regularly updates the associated IP address of a user defined name on the DynDNS
server (figure 2). With this procedure the gateway can be accessed by either its IP address (which is
normally not known) or the name (figure 3).
Fluke
174x
Gateway
RS232 Cable
Cellular Network
Provider
1.) Obtain IP Address
e.g. 65.55.21.250
DynDNS
2.) Update DynDNS
associate fluke.dyndns.com
with IP address 65.55.21.250
Internet
fluke.dyndns.com:
IP address 65.55.21.250
Figure 2
PC
DynDNS
1.) What is the IP address of
fluke.dyndns.org?
2.) fluke.dyndns.org: 65.55.21.250
Figure 3
FLUKE 1743/1744/1745 Memobox – Power Quality Loggers
Communication via cellular networks 4 of 18
2 Required Equipment
174x
Cellular Gateway
Vendor: Digi (www.digi.com)
Part: Digi Connect WAN 3G
Choose one of following models for the desired region/provider:
Part No.: DC-WAN-E309-W (international)
DC-WAN-T301-A (US generic)
DC-WAN-T302-A (US, AT&T)
SIM Card
1. Get a SIM card from your preferred cellular network provider
(Requires service from DynDNS)
2. Use SIM card from one of the following companies:
Wyless, Mdex oder WhiteSIM
RS232 Cable (shipped with 174x)
3 Configuration
3.1 Gateway: Insert SIM card and connect hardware
Follow the Quick Start Guide sheet shipped with the gateway
3.2 Get provider name and connection parameters
•Ask your cellular phone provider for details (APN, username and password)
or
•Go to internet sites with a list of providers around the world
(e.g. http://www.quickim.com/support/gprs-settings.html)
FLUKE 1743/1744/1745 Memobox – Power Quality Loggers
Communication via cellular networks 5 of 18
3.3 Configure Digi Connect WAN 3G
Enter http://192.168.1.1 in the URL address bar of your preferred internet browser
Figure 4
Note: If instead of the web site an error message appears please check of a correct assigned IP
address:
oPress the Start icon
oClick on Run
oEnter cmd
oIn command window enter ipconfig followed by the <ENTER> key
oThe Ethernet adapter should have an IP address starting with 192.168.1.xxx. If it is
different from this (like 169.254.xxx.xxx) unplug the Ethernet cable and wait some few
seconds before reconnect the cable again.
FLUKE 1743/1744/1745 Memobox – Power Quality Loggers
Communication via cellular networks 6 of 18
Click on Configuration – Mobile and enter the parameter for the cellular provider.
In this example:
Service Provider: European/EMEA Providers
Service Plan: A1.net
Username: [email protected]
Password: [blank]
PIN: [blank]
Figure 5
Note: Please be careful when the PIN is enabled on your SIM card. If the log-on fails (e.g.
the PIN code is wrong) the gateway retries the log-on several times. Typically after the third
attempt the PUK code is required. If you think that the log-on parameter are correct and it
still fails check the SIM in a mobile phone.
Click Apply button
A successful link is indicated a green lighting LED labeled with LINK and 1 to 5 LEDs
according to the signal strength.
Check Internet Connection:
Disconnect the Ethernet cross-over cable and reconnect it. This will reestablish the Ethernet
connection by assigning a new IP address through the DHCP server
To verify the Internet connection, enter a website of your choice (e.g. www.digi.com) in the
URL address bar of the Internet browser and press <Enter>. Connecting to a website
indicates the connection is working.
Click on Configure – Serial Ports
Click on Port 1
FLUKE 1743/1744/1745 Memobox – Power Quality Loggers
Communication via cellular networks 7 of 18
Figure 6
Click on radio button RealPort and confirm with Apply
Figure 7
Note: If the Gateway is already configured for a profile a window appears as shown in Figure
8. Click on Change Profile to continue with the configuration shown in Figure 7.
FLUKE 1743/1744/1745 Memobox – Power Quality Loggers
Communication via cellular networks 8 of 18
Figure 8
3.4 Install RealPort
Download RealPort driver from Digi website
(http://www.digi.com/support/productdetl.jsp?pid=1916&osvid=57&tp=1&s=12)
Connect Ethernet cross-over cable (shipped with Digi gateway) to the PC and gateway and
power the gateway.
Run setup.exe
Select device with IP address 192.168.1.1 in the list
Figure 9
Compare the parameters of the next window with the figure below. Note: The starting COM
port may differ.
FLUKE 1743/1744/1745 Memobox – Power Quality Loggers
Communication via cellular networks 9 of 18
Figure 10
Press Finish to complete installation process.
3.5 Verify RealPort Settings in Device Manager
If the port number is not known you can get the information in the device manager:
In Windows click Start – Run
Enter devmgmt.msc and click OK
Look for Multi-port serial adapters and click on the entry Connect WAN 3G.
Open text sensitive menu by clicking with the right mouse button on this entry and choose
Properties
Direct connection vie Ethernet
Cellular network connection (setup described in chapter 4.4)
FLUKE 1743/1744/1745 Memobox – Power Quality Loggers
Communication via cellular networks 10 of 18

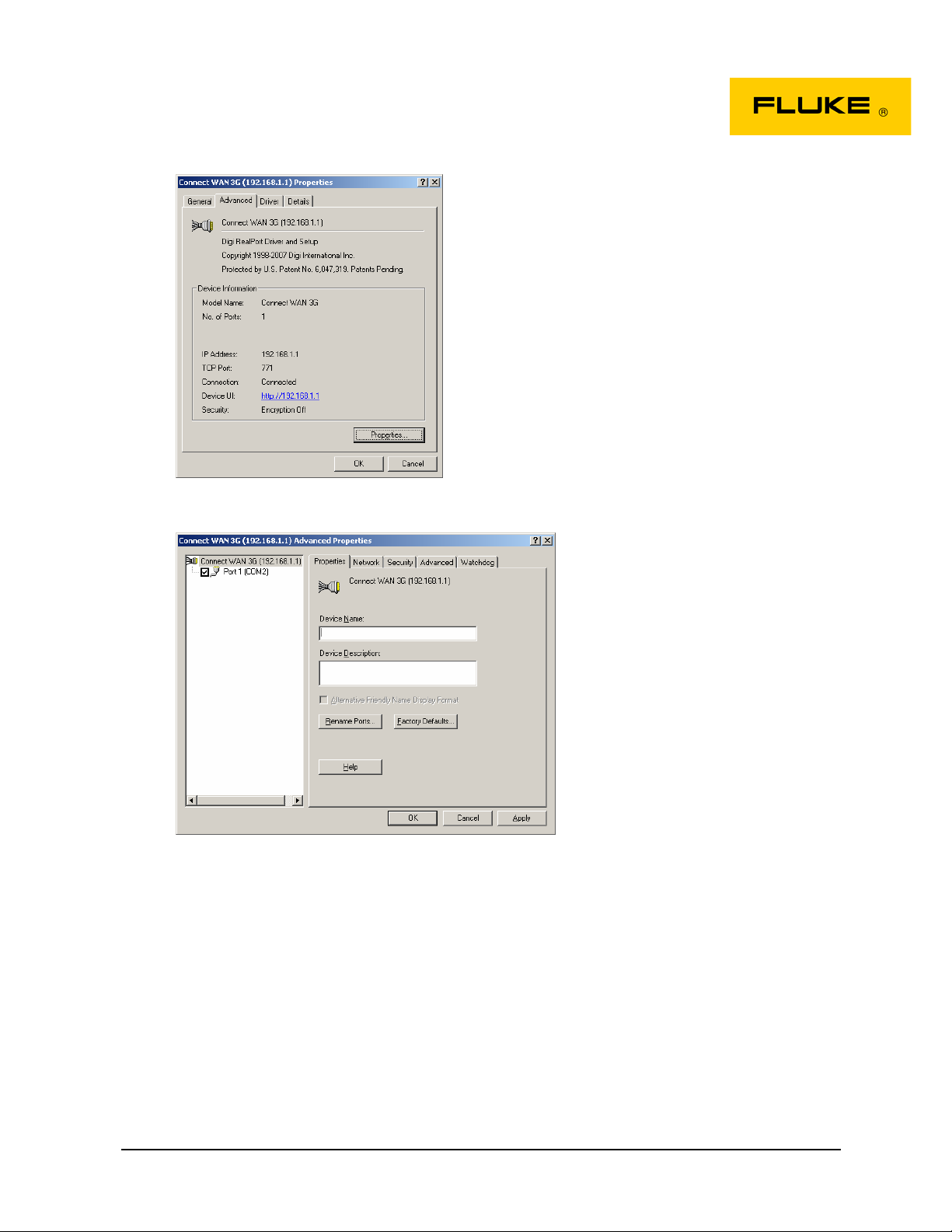

Go to Advanced tab and choose Properties
A list is shown with the used COM port. Select this port number in PQLog (see details in
chapter 5)
