Fluke FindFiber Source Manuale utente

PN 3314833 (English) September 2008

All product names are trademarks of their respective companies.

FindFiber™

Source

Instruction Sheet

The FindFiber™source is used with a SimpliFiber®Pro optical

power meter to identify fiber connections at patch panels.

The source comes with the following:

•

Two AA alkaline batteries

•

Instruction Sheet

The FindFiber-6 kit comes with the following:

•

Six FindFiber sources

•

Twelve AA alkaline batteries

•

Instruction Sheet

If something is damaged or missing, contact the place of

purchase immediately.

Safety Information

WWarning: Class 1 Laser*

To avoid possible eye damage caused by hazardous

radiation:

•

Never look directly into optical connectors. Some

sources produce invisible radiation that can

permanently damage your eyes.

•

Never turn on the source unless a fiber is

attached to the port.

•

Do not use magnification to view the optical

outputs without proper filtering.

•

Use of controls, adjustments, or procedures not

stated herein might result in hazardous radiation

exposure.

WCaution

To avoid damaging fiber connectors, to avoid data

loss, and to ensure maximum accuracy of test results:

•

Use proper cleaning procedures to clean all fiber

connectors before every use. Neglecting this step

or using improper procedures can cause

unreliable test results and may permanently

damage the connectors.

•

Cover all connectors with protective caps when

not in use.

•

Never connect the source to an active network.

Doing so can disrupt network operations.

Battery Installation, Life, and Status

ffu02.eps

•

The batteries last for about 80 hours of typical use.

•

Replace the batteries if the LED blinks.

•

To conserve battery power, the source turns off after 30

minutes if no keys are pressed.

IEC LR6

NEDA 15A

Note: Fluke Networks recommends alkaline batteries.

Locating Fibers

Connect a SimpliFiber Pro meter and one or more FindFiber

sources to the fiber links as shown below.

Turn on the meter and the FindFiber sources.

To change the number transmitted by a FindFiber source, turn

the source off, hold down the power key for about 4 seconds;

then release the key when the desired LED turns on.

Note

If you are using a SimpliFiber Pro source, press Ion the

source. The multimode source is fixed at ID 1 and the

singlemode source is fixed at ID 2.

On the meter, press Muntil FindFiber™appears.

If the meter and a FindFiber source are connected, the

number indicated by the source’s LED appears on the meter.

If the meter and source are not connected, appears

on the meter’s FindFiber display.

ffu01.eps

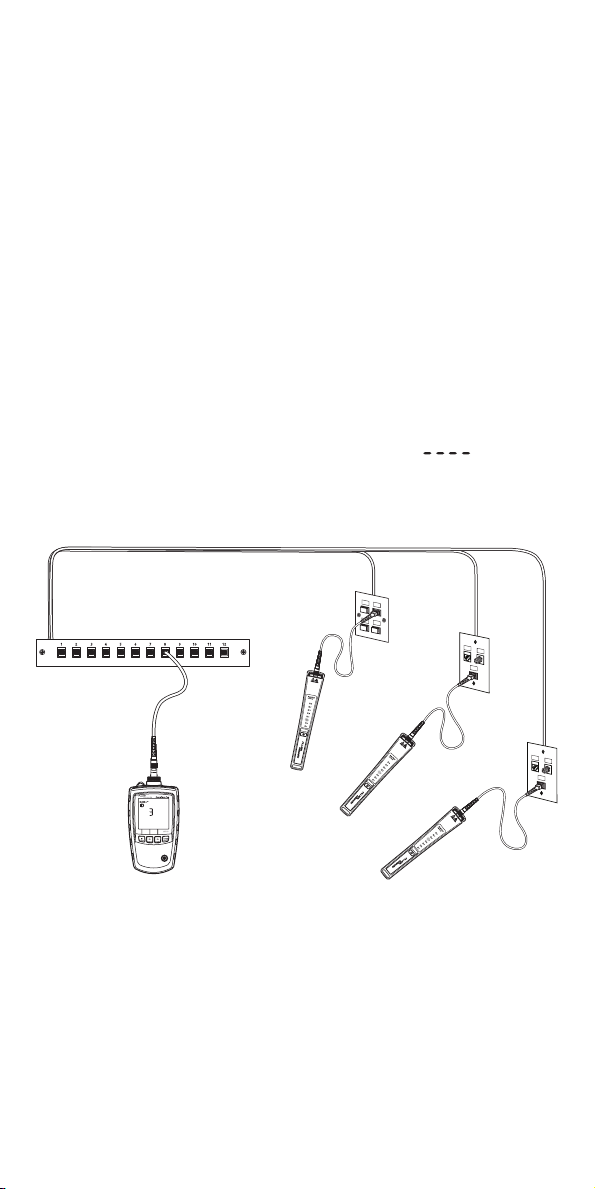

Using the FindFiber Source

ID #3

ID #4

ID #5

SimpliFiber Pro

meter

Registration

Registering your product with Fluke Networks gives you access to

valuable information on product updates, troubleshooting tips,

and other support services. To register, fill out the online

registration form on the Fluke Networks website at

www.flukenetworks.com/registration.

Contacting Fluke Networks

www.flukenetworks.com

support@flukenetworks.com

+1-425-446-4519

•

Australia: 61 (2) 8850-3333 or 61 (3) 9329-0244

•

Beijing: 86 (10) 6512-3435

•

Brazil: 11 3759 7600

•

Canada: 1-800-363-5853

•

Europe: +44-(0)1923-281-300

•

Hong Kong: 852 2721-3228

•

Japan: 03-3434-0510

•

Korea: 82 2 539-6311

•

Singapore: 65 6799-5566

•

Taiwan: (886) 2-227-83199

•

USA: 1-800-283-5853

Visit our website for a complete list of phone numbers.

Specifications

Operating temperature -10ºC to +50ºC

Storage temperature -20ºC to +50ºC

Emitter type Laser

Source connector Fixed SC

FindFiber ID numbers 1 through 8. Default is 3.

Power indicator LED

Power requirement 2 AA alkaline batteries

Battery life* >80 hours (typical)

Automatic power-off 30 minutes

Low battery indicator Blinking LED

Size 7.1 in x 1.3 in x 1.0 in

(17.9 cm x 3.2 cm x 2.5 cm)

Weight 4.4 oz (125 g)

PListed by the Canadian Standards

Association

;Conforms to relevant Australian

standards

)Conforms to relevant European

Union directives

Laser safety Complies with 21CFR.1040.10,11,

and EN60825-1, 2:2007 (Class 1,

Hazard Level 1)

* Battery life depends on the condition and type of batteries used. Fluke

Networks recommends alkaline batteries.

LIMITED WARRANTY AND LIMITATION OF LIABILITY

Fluke Networks mainframe products will be free from defects in

material and workmanship for one year from the date of

purchase. Parts, accessories, product repairs and services are

warranted for 90 days, unless otherwise stated. Ni-Cad, Ni-MH and

Li-Ion batteries, cables or other peripherals are all considered parts

or accessories.

This warranty does not cover damage from accident, neglect,

misuse, alteration, contamination, or abnormal conditions of

operation or handling. Resellers are not authorized to extend any

other warranty on Fluke Networks’ behalf. To obtain service

during the warranty period, contact your nearest Fluke Networks

authorized service center to obtain return authorization

information, then send your defective product to that Service

Center with a description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER

WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE,

ARE EXPRESSED OR IMPLIED. FLUKE NETWORKS IS NOT LIABLE

FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL

DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY.

Since some states or countries do not allow the exclusion or

limitation of an implied warranty or of incidental or consequential

damages, this limitation of liability may not apply to you.

4/04

Fluke Networks

PO Box 777

Everett, WA 98206-0777

USA
