GT3B Voltage Requlator Install Instructions

Written By

Austin Hutchison

Step 1:

Remove 4 screws located on top of the radio.

V1.0

Overkillrc.com

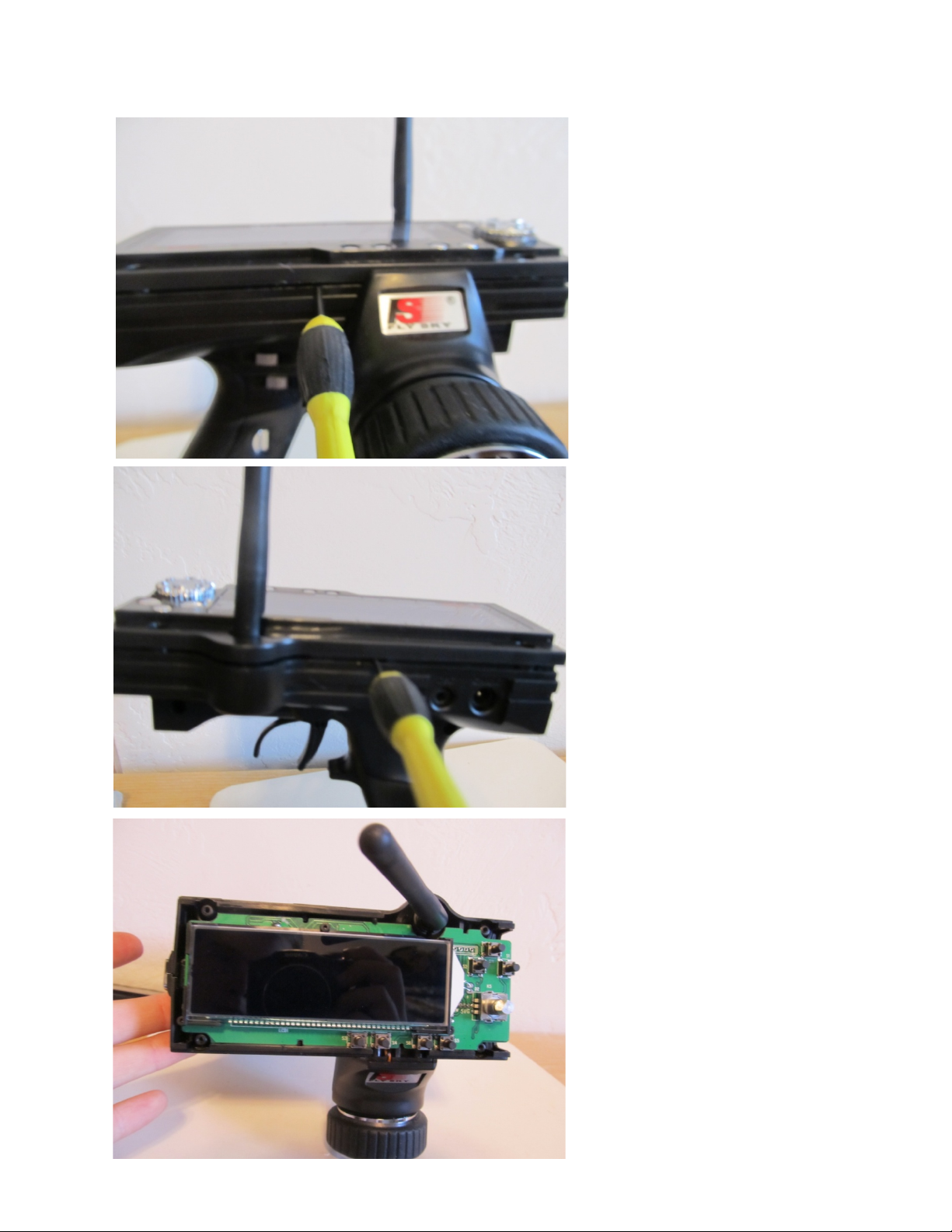

Step 2:

There are small plastic

latches that also hold the top in

place. The easiest way to pull the

top cover off is to push these latches

open, but it may knar up the plastic

alittle. If you don’t wish to knar up

the plastic you can take a chance

and muscle the top cover off,

however this may lead to worse

damage. To disengage the plastic

latches use a small flat head and

insert in the places shown on the

picture and gently pull up on the

cover…on the front side its located

near the diagonal on the screen pop

out, and the back side is located

directly across

Step 3:

With the antenna up pull the

top cover off. The rotary knob is

attached to the board as well. So it

would be smart to gently pry that off

the top cover with your fingernails or

small flat head screw driver. Other

side gently muscle off the cover, the

knob will come with it.

V1.0

Overkillrc.com

Step 4:

Gently pull the board towards

the front of the radio to pull the

power button out of its slot. Now

twist it so the screen side is resting on

the antenna. The antenna cable is

short and has a fragile connection to

the rf module. Make sure you do not

pull/apply any pressure to this cable,

as it can be a very difficult repair.

Twist the ST and TH trims buttons up

out of the case.

Step 5:

Now take a pair of snips/side

cutters and snip the leads of the

current voltage regulator as close as

you can to it. At the yellow line

Step 6:

Peel the one of films off of the

include adhesive. Apply the adhesive to

the back of the new voltage regulator;

apply a firm pressure to it. Now peel off

the other film.

V1.0

Overkillrc.com

Step 7:

Now stick the regulator in

position, make sure the pins are touching,

don’t need to be much.

Step 8:

Solder the pins together…It is

easier to-do if you pull the power button

off

Step 9:

Put it back together

Step 10:

Enjoy long battery life
