Foxconn 720AX Manuale utente

Statement:

This manual is the intellectual property of Foxconn, Inc. Although the information

in this manual may be changed or modied at any time, Foxconn does not obligate

itself to inform the user of these changes.

Trademark:

All trademarks are the property of their respective owners.

Version:

User’s Manual V1.0 for 720AX Series motherboard.

P/N: 3A220VH00-000-G

Symbol description:

Caution : refers to important information that can help you to use motherboard

better, and tells you how to avoid problems.

Warning : indicating a potential risk of hardware damage or physical injury

may exist.

WEEE:

The use of this symbol indicates that this product may not be treated as household

waste. By ensuring this product is disposed of correctly, you will help prevent potential

negative consequences for the environment and human health, which could other-

wise be caused by inappropriate waste handling of this product. For more detailed

information about recycling of this product, please contact your local city ofce, your

household waste disposal service or the shop where you purchased this product.

More information:

If you want more information about our products, please visit Foxconn’s

website: http://www.foxconnchannel.com

CAUTION

All trade names are registered trademarks of respective manufacturers listed.

All images are for reference only, please refer to the physical motherboard for specic features.

Declaration of conformity

HON HAI PRECISION INDUSTRY COMPANY LTD

66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,

TAIPEI HSIEN, TAIWAN, R.O.C.

declares that the product

Motherboard 720AX/720AX-K

is in conformity with

(reference to the specication under which conformity is declared in

accordance with 89/336 EEC-EMC Directive)

■ EN 55022:1998/A2: 2003 Limits and methods of measurements of radio

disturbance characteristics of information technology

equipment

■ EN 61000-3-2/:2000 Electromagnetic compatibility (EMC)

Part 3: Limits

Section 2: Limits for harmonic current emissions

(equipment input current <= 16A per phase)

■ EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)

Part 3: Limits

Section 2: Limits of voltage uctuations and icker in low

voltage supply systems for equipment with rated current

<= 16A

■ EN 55024/A2:2003 Information technology equipment-Immunity

characteristics limits and methods of measurement

Signature : Place / Date : TAIPEI/2008

Printed Name : James Liang

Declaration of conformity

Trade Name: FOXCONN

Model Name: 720AX/720AX-K

Responsible Party: PCE Industry Inc.

Address: 458 E. Lambert Rd.

Fullerton, CA 92835

Telephone: 714-738-8868

Facsimile: 714-738-8838

Equipment Classication: FCC Class B Subassembly

Type of Product: Motherboard

Manufacturer: HON HAI PRECISION INDUSTRY

COMPANY LTD

Address: 66 , CHUNG SHAN RD., TU-CHENG

INDUSTRIAL DISTRICT, TAIPEI HSIEN,

TAIWAN, R.O.C.

Supplementary Information:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions : (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

Tested to comply with FCC standards.

Signature : Date : 2008

Installation Precautions

Please carefully read the following procedures to install your computer :

■ It is suggested to select high-quality, certied fans in order to avoid damage

to the motherboard and CPU due to high temperature. Never turn on the

computer if the CPU fan is not properly installed.

■ We cannot guarantee that your system can operate normally when your

CPU is overclocked. Normal operation depends on the overclocking capac-

ity of your device.

■ If there is any, when connecting USB, audio, RS232 COM, IrDA or S/PDIF

cables to the internal connectors on the motherboard, make sure their

pinouts are matching with the connectors on the motherboard. Incorrect con-

nections might damage the motherboard.

■ When handling the motherboard, avoid touching any metal leads or connec-

tors.

■ If there is a PCI Express x16 graphics card installed in your system, we

recommend using a 24-pin ATX power supply to get the best performance.

■ Before turning on the power, please make sure the power supply AC input

voltage setting has been congured to the local standard.

■ To prevent damage to the motherboard, do not allow screws to come in contact

with the motherboard circuit or its components. Also, make sure there are no

leftover screws or metal components placed on the motherboard or within the

computer casing.

■ If you are uncertain about any installation steps or have a problem related to

the use of the product, please consult a certied computer technician.

CAUTION

■ Electrostatic discharge (ESD) is the sudden and momentary electric current

that ows between two objects at different electrical potentials. Normally it

comes out as a spark which will quickly damage your electronic equipment.

Please wear an electrostatic discharge (ESD) wrist strap when handling

components such as a motherboard, CPU or memory.

■ Ensure that the DC power supply is turned off before installing or removing

CPU, memory, expansion cards or other peripherals. It is recommended to

unplug the AC power cord from the power supply outlet. Failure to unplug

the power supply cord may result in serious damage to your system.

TABLE OF CONTENTS

Chapter 1 Product Introduction

Product Specications.................................................................. 2

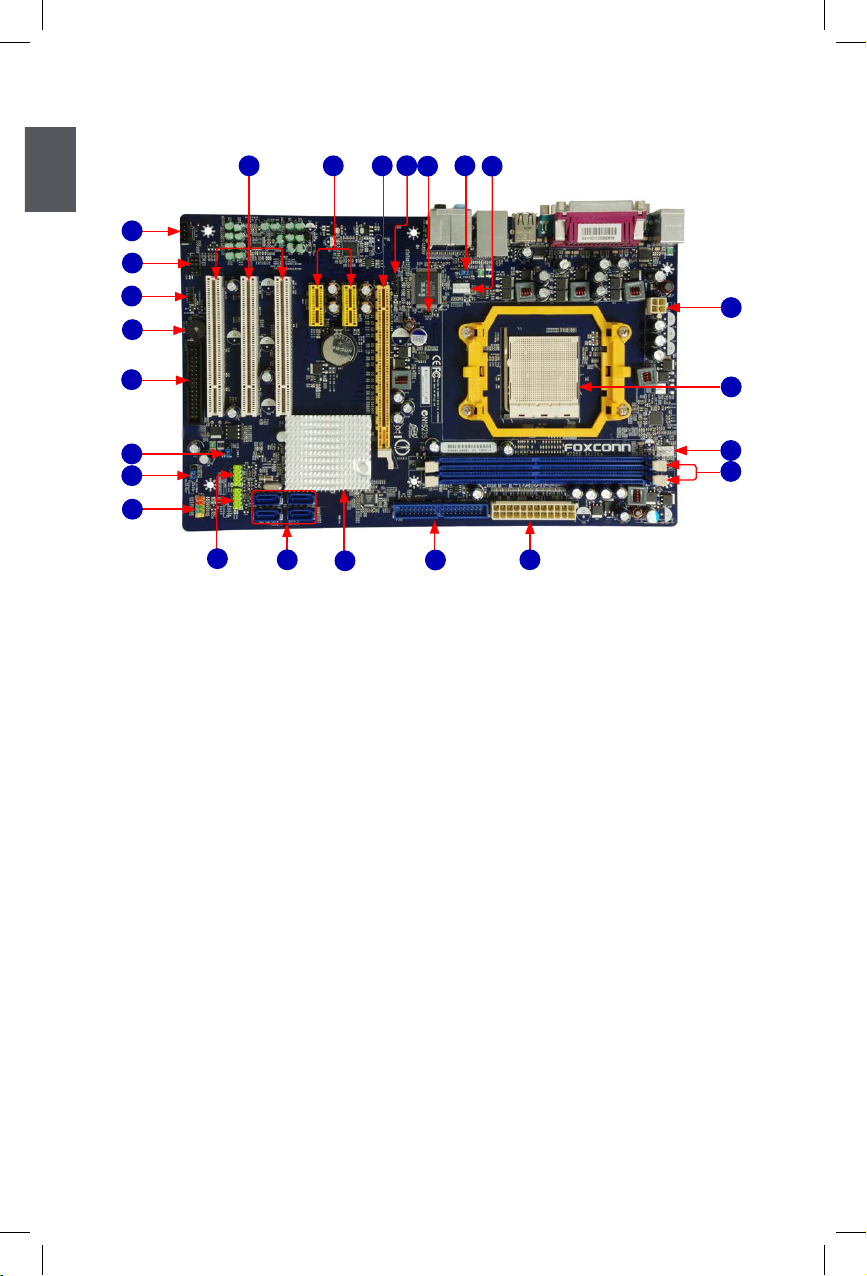

Layout...........................................................................................4

Back Panel Connectors................................................................ 5

Chapter 2 Hardware Install

Install the CPU and CPU Cooler ..................................................8

Install the Memory ...................................................................... 10

Install an Expansion Card ..........................................................12

Install other Internal Connectors ................................................ 13

Jumpers......................................................................................17

Chapter 3 BIOS Setup

Enter BIOS Setup....................................................................... 20

Main Menu..................................................................................20

System Information .................................................................... 22

Fox Central Control Unit............................................................. 24

Advanced BIOS Features...........................................................30

Advanced Chipset Features ....................................................... 31

Integrated Peripherals ................................................................32

Power Management Setup......................................................... 37

PC Health Status........................................................................ 40

Load Optimized Defaults ...........................................................41

Set Supervisor Password ........................................................... 41

Set User Password.....................................................................41

Save & Exit Setup ...................................................................... 41

Exit Without Saving ....................................................................41

Chapter 4 CD Instruction

Utility CD content........................................................................43

Install driver and utility................................................................ 44

FOX ONE

Main Page............................................................................. 46

CPU Control.......................................................................... 50

Frequency Control ................................................................ 52

Limit Setting ..........................................................................53

Voltage Control ..................................................................... 55

Fan Control ...........................................................................56

FOX LiveUpdate

Local Update......................................................................... 57

Online Update .......................................................................59

Congure .............................................................................62

About & Help......................................................................... 64

FOX LOGO.................................................................................65

FOX DMI .................................................................................... 66

Chapter 5 RAID Conguration

RAID Conguration Introduction................................................. 69

NVIDIA®MediaShield Driver.......................................................71

Create two RAID Driver Diskettes .............................................. 73

RAID Enable in BIOS .................................................................75

Select a RAID Array for Use....................................................... 75

Install a New Windows XP..........................................................91

Setting Up a Non-Bootable RAID Array...................................... 98

Technical Support :

Website :

http://www.foxconnchannel.com

Support Website :

http://www.foxconnsupport.com

Worldwide online contact Support :

http://www.foxconnchannel.com/support/online.aspx

CPU, Memory, VGA Compatibility Supporting Website :

http://www.foxconnchannel.com/product/Motherboards/compatibility.aspx

Support

Thank you for buying Foxconn 720AX Series motherboard. Foxconn

products are engineered to maximize computing power, providing

only what you need for break-through performance.

With advanced overclocking capability and a range of connec-

tivity features for today multi-media computing requirements,

720AX/720AX-K enables you to unleash more power from your

computer.

This chapter includes the following information:

■ Product Specications

■ Layout

■ Back Panel Connectors

1-1 Product Specications

CPU Support AMD socket AM2+ PhenomTM series processors

Support AMD socket AM2 series processors :

AthlonTM 64 X2 Dual-Core / AthlonTM X2 Dual-Core / AthlonTM 64 / SempronTM

HyperTransport 2000/1600MT/s for AM2 CPU

Up to 5200MT/s (HT3.0) for AM2+ CPU

Chipset NVIDIA nForce 720a

Memory 2 x 240-pin DDR2 DIMM sockets

Support up to 4GB of system memory

Dual channel DDR2 1066*/800/667/533MHz architecture

*DDR2 1066 is only supported by some AM2+ CPU

Audio Realtek 8-channel audio chip (720AX)

Realtek 6-channel audio chip (720AX-K)

High Denition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Support Jack-Sensing function

LAN Realtek 10/100/1000Mb/s LAN chip

Expansion Slots 1 x PCI Express x16 slot

2 x PCI Express x1 slots

3 x PCI slots

Onboard Serial ATA 4 x SATA connectors

300MB/s data transfer rate

Support hot plug and NCQ (Native Command Queuing )

USB Support hot plug

Support up to 8 x USB 2.0 ports (4 rear panel ports, 2 onboard USB

headers supporting 4 extra ports)

Support USB 2.0 protocol up to 480Mb/s

Internal Connectors 1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x Floppy disk drive connector

1 x IDE connector

4 x SATA connectors

2 x USB 2.0 connectors (supporting 4 x USB devices)

1 x CPU fan header (4-pin)

1 x System fan header (4-pin)

1 x Front panel connector

1 x CD_IN connector

1 x Front Audio connector

1 x IR connector

1 x Chassis intrusion alarm header (INTR)

1 x S/PDIF_OUT connector

1 x Buzzer

Back Panel 1 x PS/2 keyboard port

Connectors 1 x PS/2 mouse port

1 x COM1 port

1 x Parallel port

4 x USB 2.0 ports

1 x RJ-45 LAN port

8-channel Audio ports (720AX)

6-channel Audio ports (720AX-K)

Hardware Monitor System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan speed control

PCI Express x1 Support 250MB/s (500MB/s concurrent) bandwidth

Low power consumption and power management features

PCI Express x16 Support 4GB/s (8GB/s concurrent) bandwidth

Low power consumption and power management features

Green Function Support ACPI (Advanced Conguration and Power Interface)

Support S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4

(suspend to disk), and S5 (soft - off)

Bundled Software FOX ONE

FOX LiveUpdate

FOX LOGO

FOX DMI

Operating System Support for Microsoft®Windows®Vista/XP only

Form Factor ATX Form Factor, 12 inches x 7.6 inches (30.5cm x 19.3cm)

The chipset driver of this motherboard does not support Windows® 2000.

CAUTION

1-2 Layout

1. CD_IN Connector

2. Front Audio Connector

3. S/PDIF Out Connector

4. Buzzer

5. Floppy Connector

6. USB_PWR1 Jumper

7. Clear CMOS Jumper

8. Front Panel Connector

9. Front USB Connectors

10. SATA Connectors

11. Chipset: NVIDIA nForce 720a

12. IDE Connector

13. 24-pin ATX Power Connector

14. DDR2 DIMM Slots

15. CPU_FAN Header

16. CPU Socket

17. 4-pin ATX 12V Power Connector

18. SYS_FAN Header

19. USB_PWR2 Jumper

20. Chassis Intrusion Alarm Header

21. IR Header

22. PCI Express x16 Slot

23. PCI Express x1 Slots

24. PCI Slots

Note : The above motherboard layout is for reference only, please refer to the physical mother-

board for detail.

10 12 13

23 22

21 20 18

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Foxconn Scheda madre

Foxconn

Foxconn 6497MB Series Manuale utente

Foxconn

Foxconn P43AL Series Manuale utente

Foxconn

Foxconn A78AX 3.0 Series Manuale utente

Foxconn

Foxconn K8S760MG series Manuale utente

Foxconn

Foxconn G31AX-K Manuale utente

Foxconn

Foxconn H61AP Series Manuale utente

Foxconn

Foxconn H77M Series Manuale utente

Foxconn

Foxconn G41MXE Manuale utente

Foxconn

Foxconn BLACKOPS Manuale utente

Foxconn

Foxconn G45M Series Manuale utente

Foxconn

Foxconn 845GV4MR-ES Scheda tecnica

Foxconn

Foxconn 600A01 series Manuale utente

Foxconn

Foxconn 945P7AA series Manuale utente

Foxconn

Foxconn 761GXM2MA series Manuale utente

Foxconn

Foxconn A88GM Deluxe Manuale utente

Foxconn

Foxconn P67A Series Manuale utente

Foxconn

Foxconn H55MX-S Series Manuale utente

Foxconn

Foxconn 650M02 Series Manuale utente

Foxconn

Foxconn A88GMV Series Manuale utente

Foxconn

Foxconn D70S-P Manuale utente

Foxconn

Foxconn PL7MA User's Manuale utente

Foxconn

Foxconn 6100M2MA series Manuale utente

Foxconn

Foxconn 760GXK8MC Manuale utente

Foxconn

Foxconn MARS Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
