Frigidaire FAS155J1A1 Manuale utente

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAS155J1A1 FAS153J1A 115 15000

P.O. Box 212378

Augusta, GA 30917

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

Model No.

FAS155J1A1

WIRING DIAGRAM # - 309343701

OWNERS GUIDE # - 309000825

Publication No.

000307

-EN/SERVICE /REP

345

5995339875

FAS155J1A1

CABINET FRONT AND WRAPPER

4/00 1

FAS155J1A1

1309632704 Sleeve-Seal Assy Domestic

2309632804 Grill & RR Rail ASM HDTC

7309631104 Link-Vertical Louvers

8309630804 Louver-Horizontal

9309631004 Louver-Vertical HDTC

12 309631404 Filter-Molded BRCLN

17 309633205 FrontT ASM- HDTC

19 309341002 Plate-Dial

25 309321401 Door-Vent Actuator HDTC

26 309330404 Handle-Vent Barcelona

43 309630904 Frame-Front HDTC

70 309342401 Enclosure

78 309342604 Remote- control

*309633305 Louver assy-includes 7, 8 & 9

CABINET FRONT AND WRAPPER

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

4/00 2

FAS155J1A1

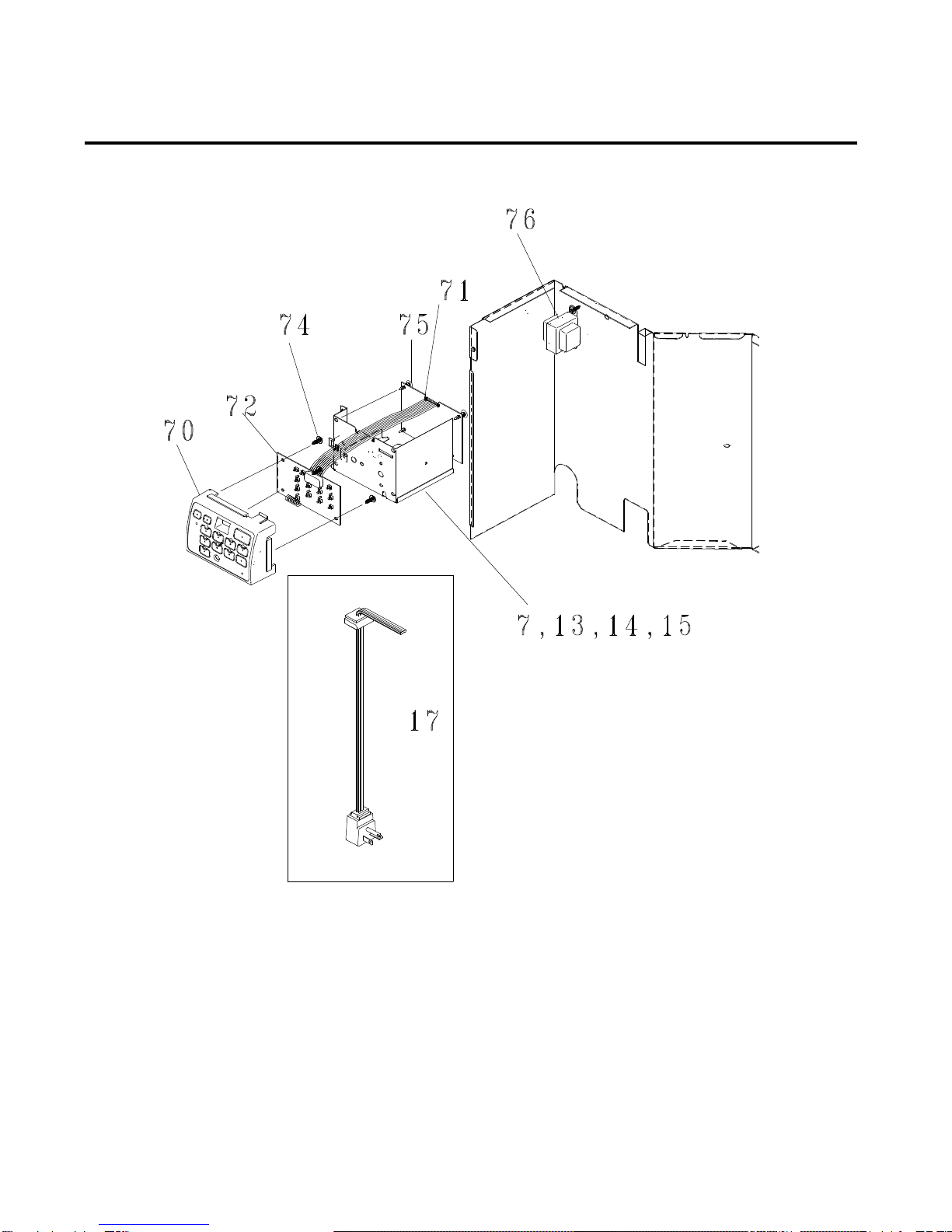

CONTROL PARTS

4/00 3

FAS155J1A1

7309630403 Box-Control

10 309623601 Bulkhead

12 * 5304414108 Clip-thermister holder

13# 309335304 Capacitor, 370V, 40+10

14 5303015427 Screw, truss head, 8-18AB x 0.47

15 5303303077 Strap-capacitor

17# 309343111 Cord-Srv Type-A 14AWG

70 # 309342401 Enclosure

71 # 309340503 Power board

72 # 309340701 Input board

74 5303301590 Screw, (2)

75 5304413781 Hardware, (4)

76 # 309111601 Transformer

*5304408752 Harness-3S;HDTC; Sanyo/14AWG

CONTROL PARTS

# = Functional Parts

* = Non-illustrated Parts

POS. NO. PART NO. DESCRIPTION

4/00 4

FAS155J1A1

AIR HANDLING PARTS

4/00 5

FAS155J1A1

1# 5303311048 Fan Blade, with clamp

23202975 Screw,10-16 x 0.72 square drive

3309623201 Condenser Shroud - One Piece

43016696 Seal, housing-fan, upper

55303015311 Seal, housing-fan, lower

75303015427 Screw, truss head, 8-18AB x 0.47

8# 5304407974 Motor-Fan GE 3SP 115/60 48Fr

10 309623401 Bulkhead-Aire Side HDTA/TC

11 309633001 Blower Whl & Clamp Assy - Plastic

13 309630301 Cover-Top HDTA/TC

15 309630101 Scroll-Evap Cool Only HDTA/TC

17 5308011040 Clamp-part of fan blade ass'y

20 309630201 Plate-Scroll HDTA/TC

AIR HANDLING PARTS

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

4/00 6

FAS155J1A1

COMPRESSOR PARTS

4/00 7

FAS155J1A1

1# 5303925103 Compressor

25303283877 Grommet-compressor,3

35308006948 Nut, compressor, 3

65303272298 Gasket-cover

73206230 Cover,terminal

8# 5303016697 Overload Protector

95303211017 Nut-cover

11# 309634103 Evap-Assy 2Row 19Fpi

12# 5303303600 Condenser

13 309623501 Tray-Evap

14 309632907 Base/Compressor-Stud Assy

16# 5303289577 Capillary Tube

17 5304417722 Tube-process

19 5303002664 Washer,compressor

COMPRESSOR PARTS

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

4/00 8

FAS155J1A1

15304407729 Seal-window

25303211056 Bracket

45304414928 Frame,LH

55304409250 Seal-top rail

65304414933 Retainer,accordian

75304414931 Support,RH

83001815 Bracket-support

93007756 Screw

10 3007759 Nut-bracket

11 5304414932 Support,LH

12 3017023 Nut, hex, 10-32, 2

13 5303281649 Screw,support

14 5304414929 Frame,RH

15 5304414930 Accordian

16 5304414116 Rail,top

17 3002803 Screw-wood

18 8012680 Screw

21 5303212504 Seal,bottom

24 3002801 Screw

*309313303 Kit-Mounting-HDSO

*5304409248 Hardware

*5304409249 Seal-shipping screw holes

# = Functional Parts

* = Non-illustrated Parts

WINDOW MOUNTING PARTS

POS. NO. PART NO. DESCRIPTION

4/00 9
