Installation Instructions

for Heavy duty

Please real ALL installations before installing. Two

or more people are recommended to install this

product. If a new electrical outlet is required, have

the outlet installed by a qualified electrician before

installing unit.

Preliminary Instructions

Do the following before starting to install unit. See

illustrations below.

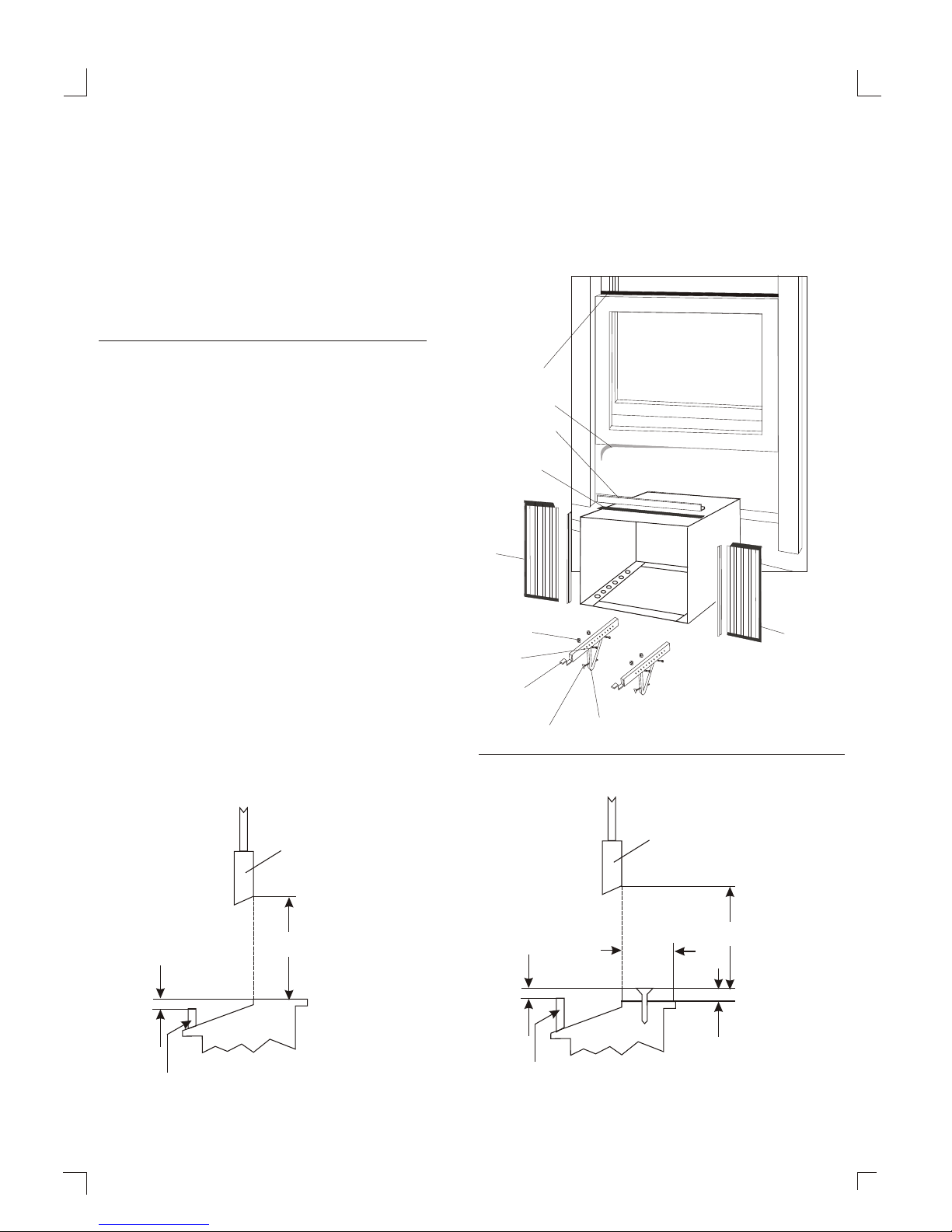

1. Check window opening size - the mounting

parts furnished with this air conditioner are

made to install in a wooden sill double-hung

window. The standard parts are for a window

opening of 32''(812 mm) minimum to 43''(1092

mm) maximum width. Open sash to a minimum

of 20'' (508 mm). (FIG. 1)

2. Check condition of window - all wood parts

of window must be in good shape and able to

firmly hold the needed screws. If not, make

repairs before installing unit.

3. Check your storm windows - if your storm

window frame does not allow the clearance

required, correct by adding a piece of wood as

shown in FIG. 2, or by removing storm window

while room air conditioner is being installed.

(Continued)

P/N:819042102-01

SASH

20”MIN.

1/2” MIN.

STORM WINDOW FRAME OR

OTHER OBSTRUCTION

Fig. 1

SASH

20”MIN.

1/2” MIN.

STORM WINDOW FRAME OR

OTHER OBSTRUCTION

Fig. 2

BOARD THICKNESS AS

REQUIRED, ALONG

ENTIRE STOOL. FASTEN

WITH TWO NAILS OR

SCREWS.

1 1/2” MIN.

SIDE

ACCORDION

(LEFT)

SIDE

ACCORDION

(RIGHT)

DOUBLE

SIDED SEAL

TOP CHANNEL

MOUNTING

BRACKET

END CAP &

LEVELING LEGS

ANGLE

BRACKET

1/4” NUT

1/4”X1 ”

BOLT

SASH SEAL

WINDOW

FOAM

4. CHECK FOR ANYTHING THAT COULD BLOCK

AIRFLOW - check area outside of window for

things such as shrubs, trees, or awnings.

Inside, be sure furniture, drapes, or blinds will

not stop proper airflow.

3/4"Screws (10)

Top Channel(1)

End Cap &

Leveling Legs(2)

Lock Washers(4)

1/4" Nuts(4)

Mounting

Brackets(2)

Angle

Brackets(2)

1-1/2"x1/4 Bolts(4)

Side Accordion RH(1)

Side Accordion LH(1)

Shutter Clamp(2)

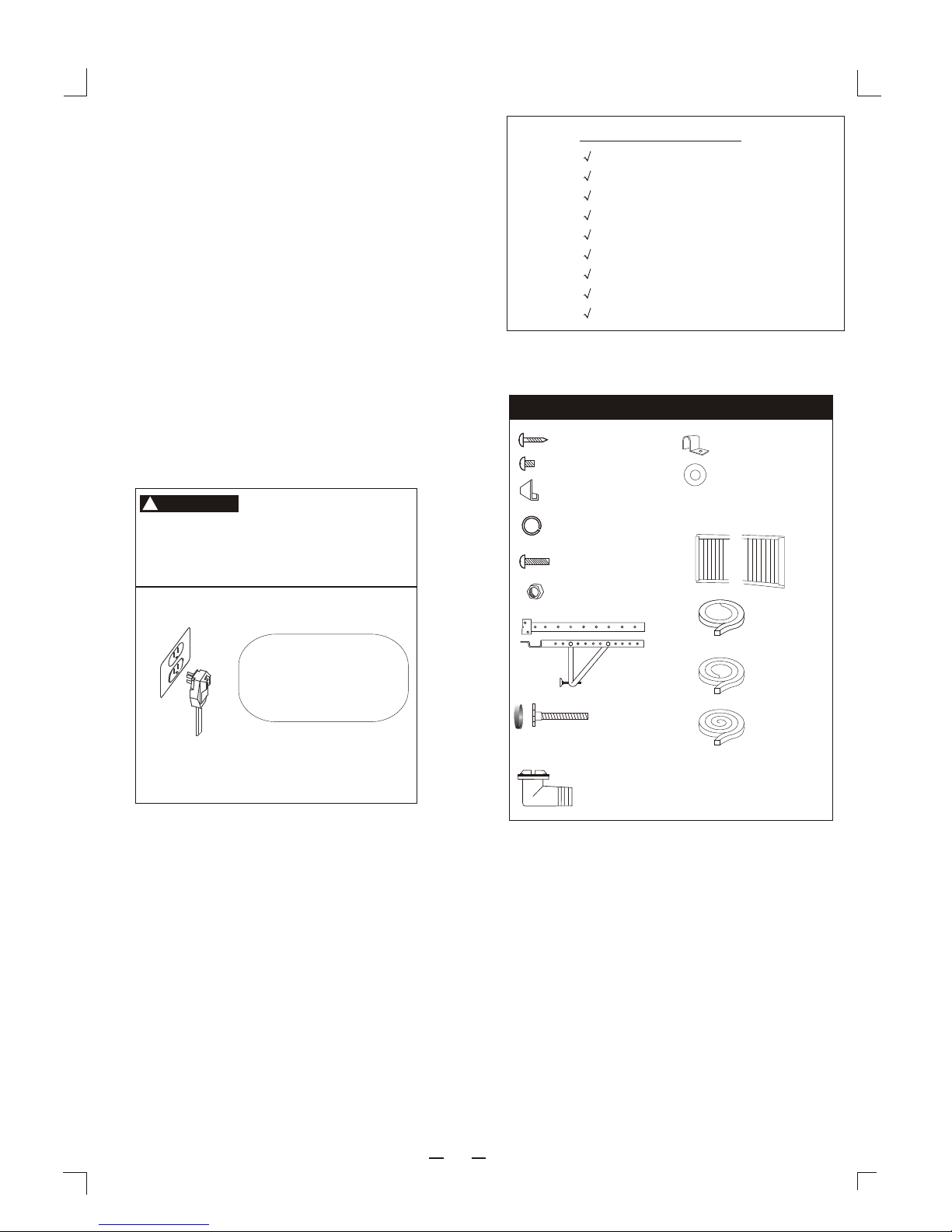

Fig. 1A Installation Hardware Model 463AAC008BA

1/4"Screws (23)

Sash

Seal(1)

Lock Washers(4)

1/4" Nuts(4)

1-1/2"x1/4 Bolts(4)

Installation Hardware

Gasket(10)

NOTE: Surplus screw(s) for spare use.

Widow

Foam (1)

Double

Sided

Seal(1)

5. Check the available electrical service - power

supply must be the same as that shown on the unit

serial nameplate. (See Owner's Guide for serial

plate location.) Power cord is 48'' long. Be sure

you have an outlet near. All models have a

3-prong service plug to provide proper service

and safe positive grounding. Do not change plug

in any way. Do not use an adapter plug or an

extension cord. If your present wall outlet does

not match your plug, call a qualified electrician to

make the needed change.

6. Carefully unpack air conditioner - remove all

packing material. Protect floor or carpet from

damage. Two people should be used to move and

install unit.

Tools Required

Flat blade screwdriver

Tape measure

Adjustable wrench or pliers

Pencil

Spirit level

Socket wrenches

Phillips screwdriver

Power drill1/8” bit

Scissors

Do not, under any

circumstances, cut,

remove, or bypass

the grounding prong.

Power supply cord

with 3-prong grounding

plug and current

detection device

Grounding type wall

receptacle

WARNINGWARNING

Avoid fire hazard or

electric shock. Do not use an extension

cord or an adaptor plug. Do not remove

any prong from the power cord.

Drain Plug(Only for 25K and 28K models)

Window Installation

Because the compressor is located on the

controls side of the unit (right side), this side

will be heavier and more awkward to manipulate.

Inadequate support on control side of the unit

can result in personal injury and damage to your

unit and property. Therefore, it is recommended

to have someone assist you during the

installation of this unit.

E. Be certain the proper electrical outlet is within

reach of the installation. All wiring should be in

accordance with local and national electrical

codes.

F. Your unit was designed to evaporate

condensation under normal conditions. However,

under extreme humidity conditions, excess

condensation may cause base pan to overflow to

the outside. The unit should be installed where

condensation run-off cannot drip on pedestrians

or neighboring properties.

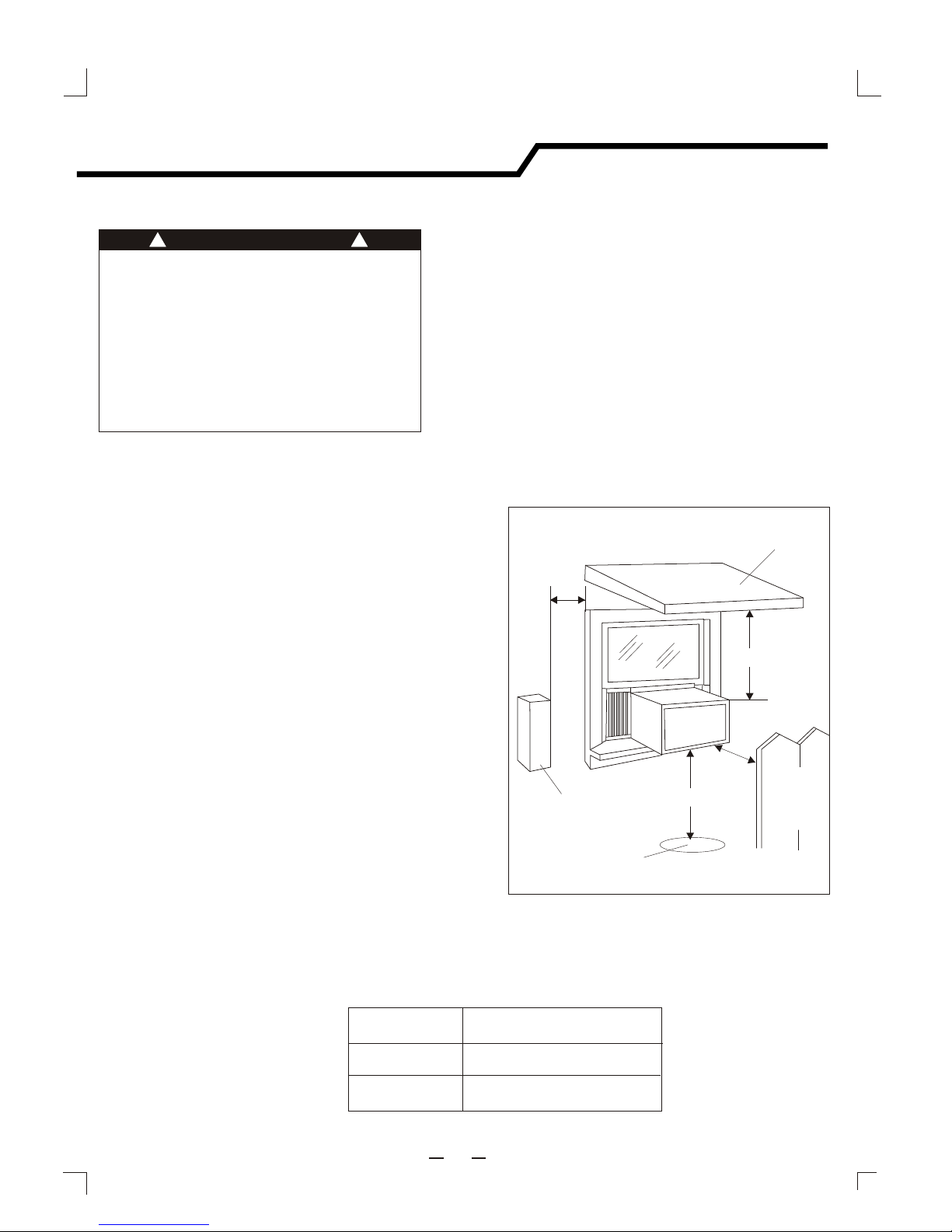

1. Select the Best Location

A. Your room air conditioner was designed to

fit easily into a single or double hung window.

However, since window designs vary, it may be

necessary to make some modifications for safe

and proper installation.

B. Make sure window and frame is structurally

sound and free from dry and rotted wood.

C. For maximum efficiency, install the air

conditioner on side of the house or building

which favors more shade than sunlight. If the

unit is in direct sunlight, it is advisable to provide

an awning over the unit.

D. Provide sufficient clearance around the

cabinet to allow for ample air circulation through

the unit. See (Fig.B). The rear of the unit should

be outdoors and not in a garage nor inside of a

building. Keep unit as far away as possible from

obstacles and obstructions and at least 30"

above the floor or ground. Curtains and other

objects within a room should be prevented from

blocking the air flow.

Awning

Window opening requirements

(see table below)

Side

obstruction

Ground

Fence,

wall, or

other

obstacle.

12" Min.

30" Min.

20"

Min.

20"

Min.

CAUTION

! !

Fig.B

Cabinet size

(W*H*D)

Min. Window

opening

Max. Window

opening

26.5" *18.5" *26.9"

44"

30"

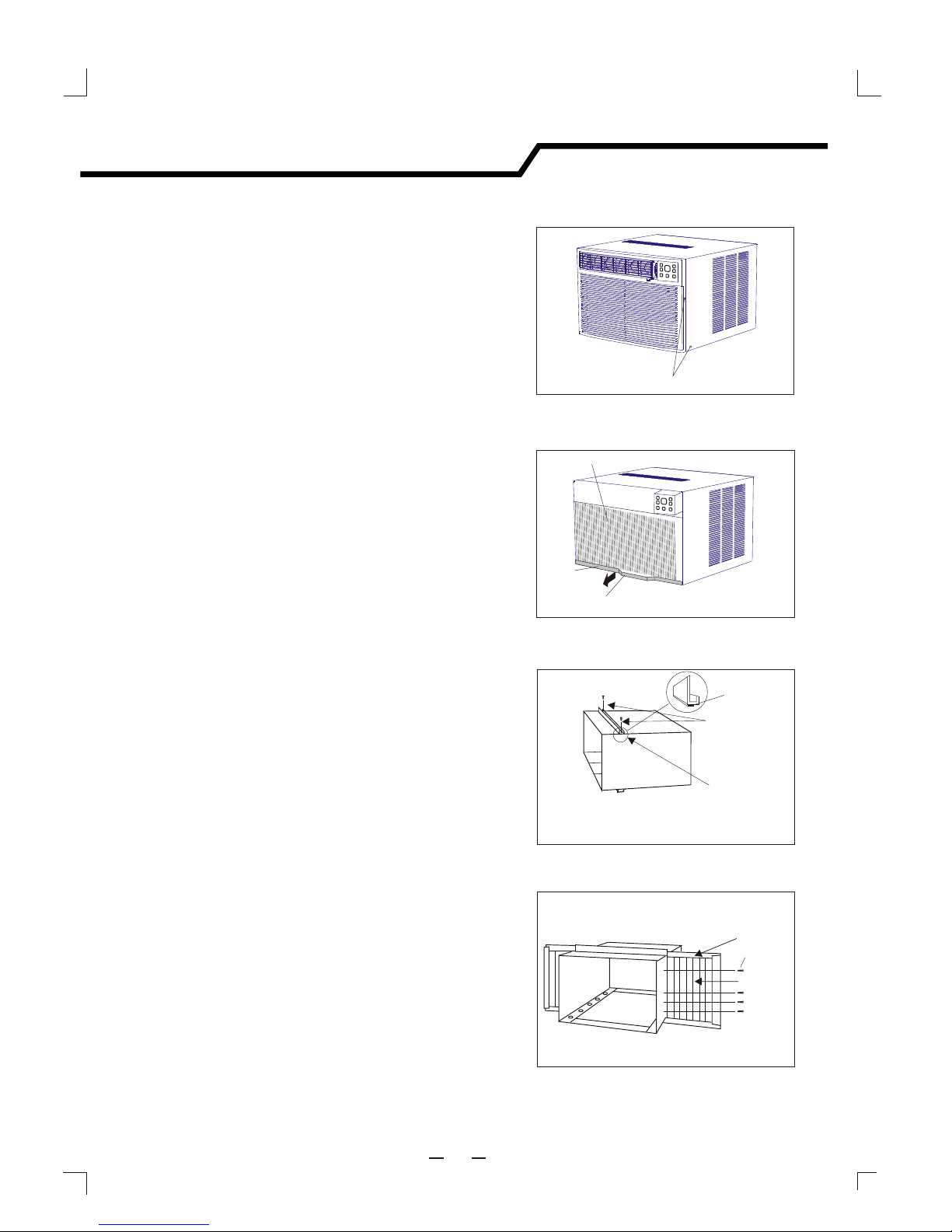

2. Preparation to Remove the Air Conditioner

From Slide-Out Chassis

A. Place unit on floor, remove total of (4)

Philips screws securing the chassis to the

cabinet. There are (2) screws on each side.

The set of screws closest to the front of the

unit secure the front panel to the cabinet.

The set of screws closest to the rear of the unit

secure the cabinet to the chassis. See (Fig. 1).

NOTE: Screws must be reinstalled upon

completion of the window installation to

secure slide-out chassis.

B. Remove the front panel assembly from the

cabinet by gently pulling it.

C. Grasp the pull handle at the front of the

slide-out chassis and carefully slide the

air conditioner out of the cabinet. See (Fig. 2).

NOTE: Avoid touching coil in case of injury

or damage..

Fig. 2

Fig. 1

Right side

Philips screws

4. Assemble of the accordions to the cabinet.

Slide the accordions into the top and bottom

channels as shown in (Fig. 4). The accordions

are identified (on each frame) as "left" & "right".

Attach the accordions to the cabinet using (4)

1/4" screws on each side.

Accordion

Right Side

1/4" screws

Top Rail

1/4" Screws

(5)

Fig. 3

Fig. 4

Coil

Pull Handle

Chassis

Double

sided seal

3. Assemble of the top channel to the cabinet

Stick the double sided seal to the top channel,

and then Install it to the cabinet as shown in

(Fig. 3) using (5) 1/4" screws.

Window Installation

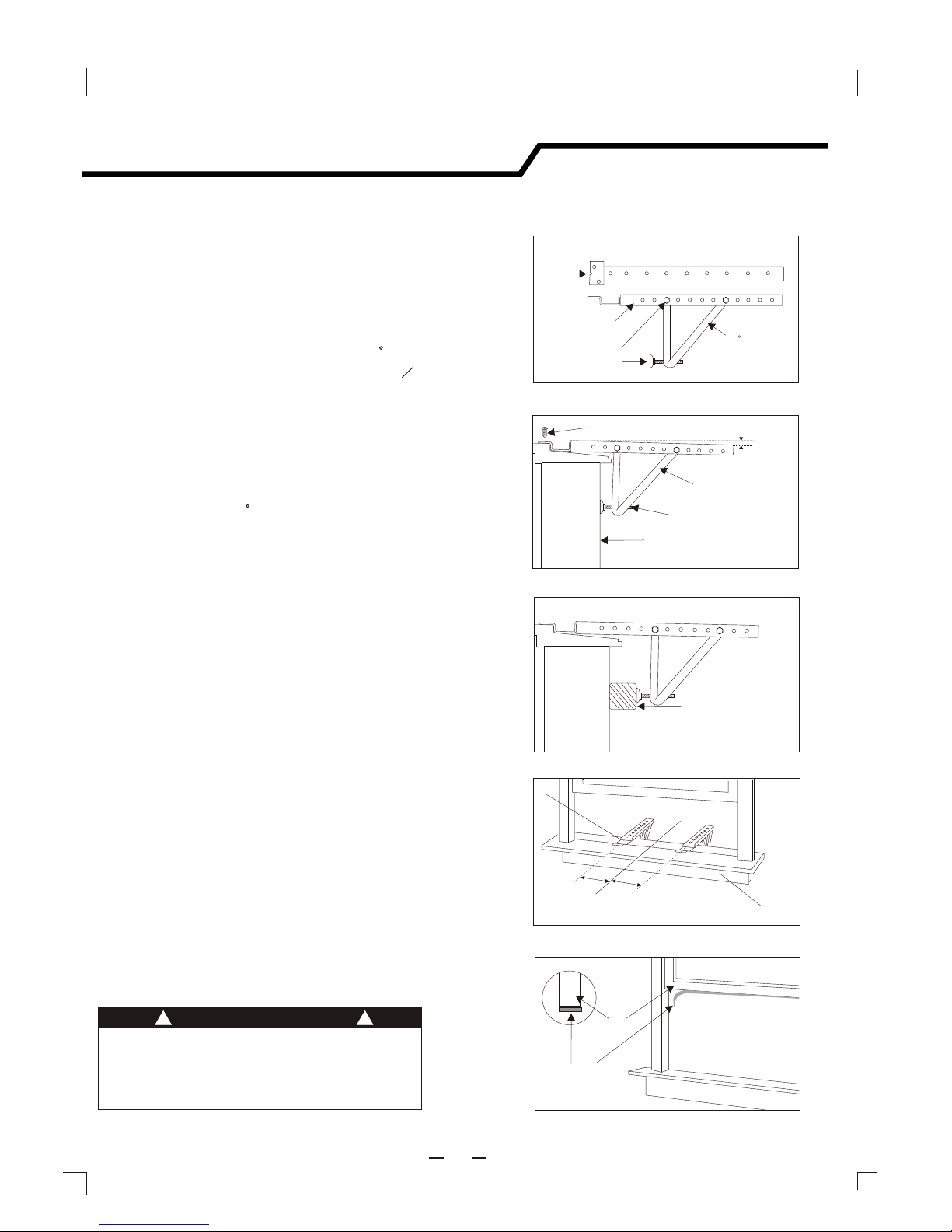

5. Installation of Mounting Brackets and the

Sealing Strip

NOTE: Windows come in a variety of different

styles. Therefore, it may be necessary to modify

or improve your particular installation.

A. Attach the bracket assembly to 90 angle

support brackets (Fig. 5) using (2) 1/4”X1 ”

bolts two bolts per bracket. Secure with the (2)

1/4" lock washers and (2) 1/4"nuts. DO NOT

immediately tighten these bolts as it may be

necessary to adjust the depth of the bracket

assembly, depending on the depth of your

window sill. See (Fig. 6).Install the two leveling

screws into the 90 support brackets. Test the

bracket assembly in the window before cabinet

installation. If the leveling screws are distanced

too far away from the wall to provide stability, it

may be necessary for you to shim this area with

a solid piece of wood. See (Fig. 7).

Fig. 5

Bracket Assembly

Bracket Bolts

Leveling Screw

V-slot

90 Angle

Support Brackets

(TOP VIEW)

12 3/5"

Center

Window sill

V-slot

(2) 3/4" screws per bracket

Bracket Assembly

Leveling Screw

Outer Wall Construction

3/16" Maximum

C. Measure the inside window sill width and

find the center as shown in (Fig. 8), and

measure 12 3/5" either side of the center line.

Align the V-slot in each bracket on these marks

and mount the brackets to the sill using 3/4"

screws provided. Brackets should be

perpendicular to the inside window sill.

See (Fig. 8).

B. For proper condensation run-off it will be

necessary to adjust the angle/pitch of the

window brackets. This is accomplished by

adjusting the distance of the leveling screw on

the outer wall. The maximum angle/pitch

should not exceed more than 3/16". See (Fig.6).

Use a solid piece of wood to provide stability. This

will be required when sills are extra deep.

See (Fig. 8).

CAUTION

! ! Window Sash

Window Sash

Sealing Strip

Solid Piece Wood

(If required)

Fig. 8

Fig. 6

Fig. 7

Fig. 9

12 3/5"

D. Cut the sash seal to fit the underside of the

bottom window sash. Remove the peel-off

backing on the foam and attach it to this sash.

See (Fig. 9).

Window Installation

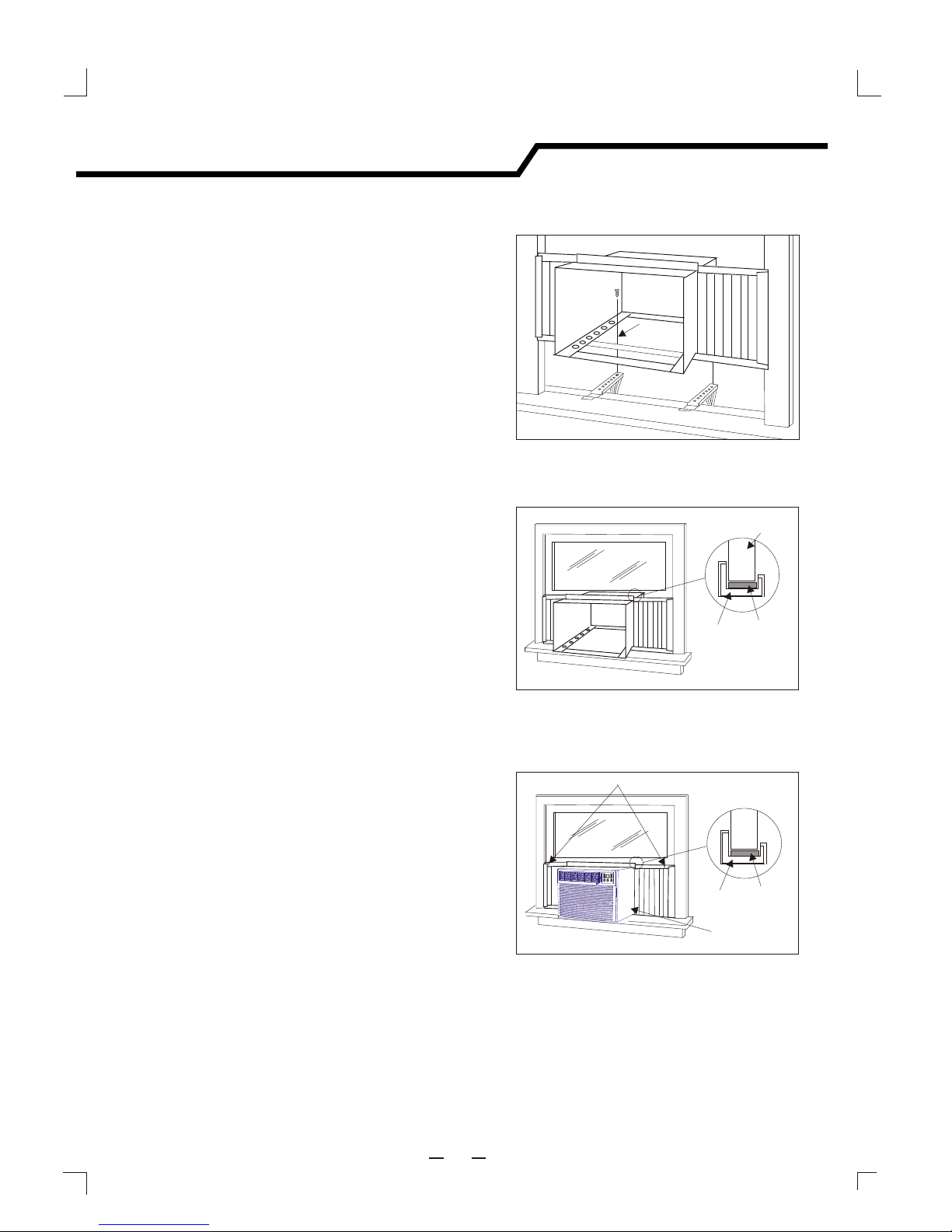

6. Installation of the cabinet

B. Ensure the top rail is positioned in front of the

sash. The "U" shaped channel on the bottom of

the cabinet should be positioned in the track

provided on the bracket assembly. Pull the

window down until it rests just behind the top

rail. See (Fig. 11).

A. Align one hole in the bottom of the cabinet

with one hole in the bracket assembly. Secure

the cabinet to the bracket using (3) 1/4" screws

provided. Repeat the same procedure on the

opposite side of the cabinet. See (Fig. 10).

C. Check to make sure that the cabinet is

slanted slightly downward on the outside. If

necessary, re-adjust support bracket as shown

in (Fig. 6).

NOTE: Secure all hardware.

Window Sash

Top Rail

1/4" Screws

Fig. 10

Fig. 11

7. Secure Accordions

A. Carefully slide the air conditioner back into

the cabinet. (Please seek assistance for this

procedure).

B. Reinstall the slide-out-chassis security

screws (removed earlier) on both sides of the

cabinet. See (Fig. 12).

Secure the top of the leave same to the window

sash with (2) 3/4" screws.

C. Now, secure bottom frame of shutters using

one accordion clamp and one 3/4" screw on

each side (Fig. 12).

8. Reinstalling Front Panel Assembly

A. Position the front panel on the cabinet starting

at the top. The front panel lock tabs must be

inserted into the retaining slots in the cabinet.

Repeat this procedure on all sides.

B. Secure the front grille to the cabinet using the

Philips screws removed earlier(Fig. 1).

Coil

3/4" screws

Security Screw

Top rail

Fig. 12

Seal

Window Installation

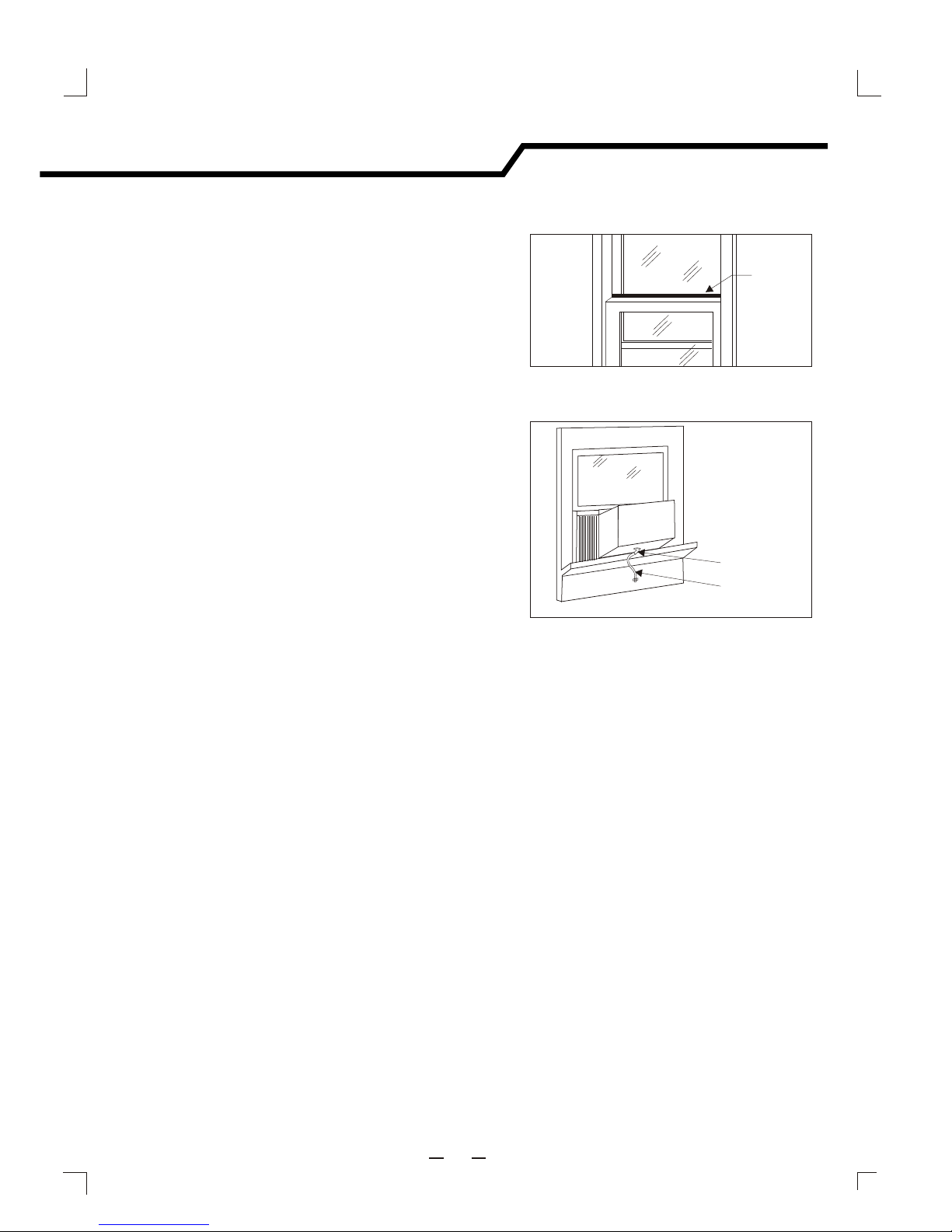

9. Complete the installation

A. Cut the foam to fit the opening between the

top of the inside and outside window.

See (Fig. 13).

B. Some installations may require additional

sealing around the window and air conditioner.

Check for any air leaks and seal where

necessary.

C. For 25K and 28K models, the condensed

water will maybe overflow the unit in highly

humid areas. You may wish to install the drain

plug underneath the base and attach a drain

hose (not included) to the plug.

See (Fig. 14).

Fig. 14

Drain Hose

(not included)

Fig. 13

Foam

Window Installation

Drain Plug

Wall Installation

NOTE: Consult local building codes prior to

installation, or a qualified carpenter.

Select Wall Location

This air conditioner has a slide-out chassis, so

it can be installed through an outside wall up to

12'' thick. IMPORTANT: Side louvers must

never be blocked.

NOTE: All parts needed for Wall Installation are

provided, except a wood frame, shims, and 10

wood screws (#10-1'' long minimum).

Select a wall surface that:

1. does not support major structural loads such

as the frame construction at ends of windows,

and under truss-bearing points, etc.

2. does not have plumbing or wiring inside.

3. is near existing electrical outlets, or where

another outlet can be installed.

4. faces, and is not blocked to the area to be

cooled.

5. allows unblocked airflow from rear sides and

end (outside) of installed air conditioner.

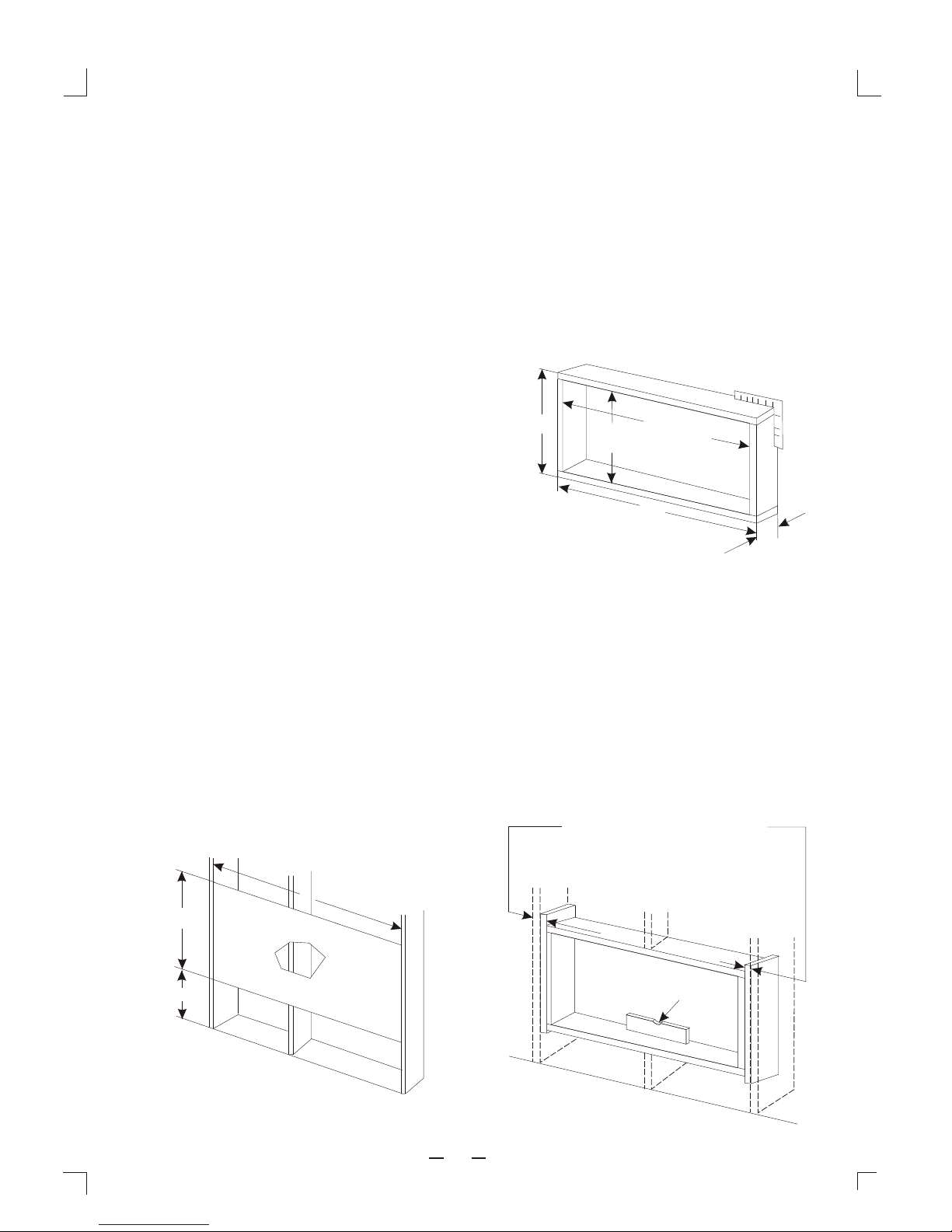

Prepare Wall

1. Prepare wall in frame construction (including

brick and stucco veneer). Working from

inside the room, find wall stud nearest the

center of area where air conditioner will be

installed (by sounding wall, or by

magnetically inding nails).

2. Cut or knock out a hole on each side of

center stud.

3. Measure between inside edges of every

other stud as shown in FIG. 1.

Carefully measure and cut an opening with the

following dimensions. See FIGS. 1 and 2.

WIDTH “X” = 26 '' (68cm) plus twice the

thickness of framing material used.

HEIGHT “Y” = 18 '' (47cm) plus twice the

thickness of framing material used.

4. Build a wooden sleeve with the INSIDE

dimensions of 26 '' (68cm) in width and

18 '' (47cm) in height. Frame depth

should be the same as wall thickness. Fill in

the space from the opening to the studs with

wood spacers, as shown in FIG.3.

5. Nail frame to spacers to studs with front

flush with drywall.

3-3/8” Min.

(8.6 cm)

26 3/4”

(68cm)

Y18 3/4”

(47.5cm)

UP TO

8-1/2”

LEVEL

NAIL SPACERS TO STUDS

FIG. 1

FIG. 3

FIG. 2

NOTE: If wall thickness is 8-1/2'' or more, add

aluminum flashing over bottom of frame

opening to assure no water can enter area

between inner and outer wall.

4. OPTIONAL: Support brackets may be used.

Installation brackets are recommended for

walls under 5'' thick. Refer to Step 4 of

Window Mounting for assembly of support

brackets. A wooden strip nailed to the

outside wall should be used in conjunction

with sill support angle brackets.

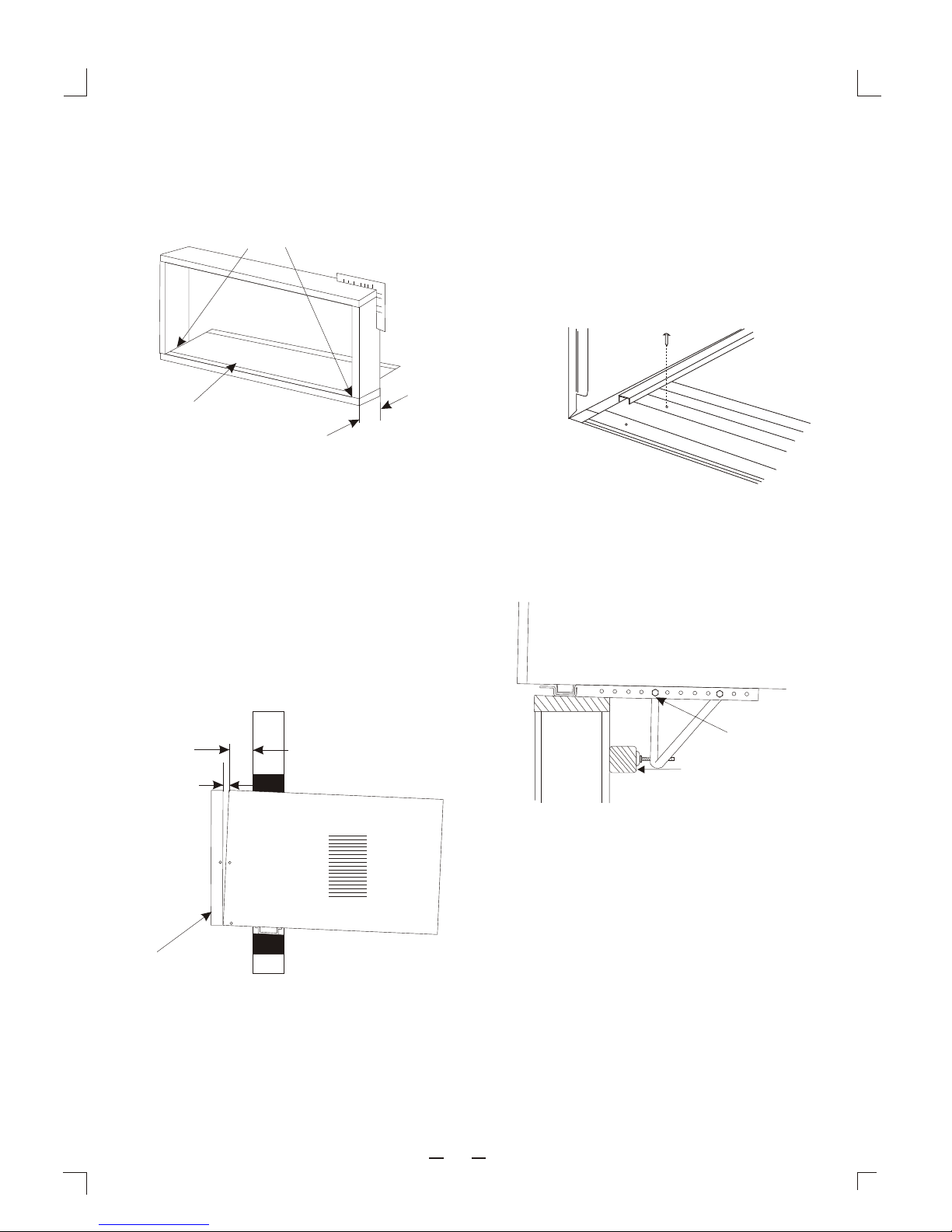

Prepare and Install Cabinet

1. Slide chassis from cabinet. Refer back to

Step 2 of Window Mounting.

2. Place cabinet into opening with bottom rail

resting firmly on bottom board of wooden

frame.

3. Position cabinet to achieve proper slope for

water removal. (See FIG. 1 below.)

5. Secure bottom rail to wood frame with two

large wood screws 1''(2.5 cm) long using the

two holes in the bottom of the channel

resting on frame. (See FIG. 2 following)

6. Screw or nail cabinet wooden frame using

shims if frame is oversized, to eliminate

distortion. Remember to maintain proper

slope as described in Step 3.

7. Install chassis into cabinet by following all

steps in Step 8 of Window Mounting.

CAULK AS

REQUIRED

ALUMINUM FLASHING

OVER BOTTOM OF FRAME OVER

8-1/2”

LEVEL

5/16”

3/8”

3/4” PLUS

TRIM THICKNESS

SEE STEP 5 Solid Piece Wood

(If required)

1” LONG

WOOD SCREW

FIG. 2

Support bracket

(Continued)

RECOMENDED: Caulking and installation of

trim on interior wall may be done. You can

buy wood from your local lumber or hardware

supply. On the outside, caulk openings

around top and sides of cabinet, and all

sides of wood sleeve to the opening.

Masonry Construction

1. Cut or build a wall opening in the masonry

wall similar to the frame construction

(refer to Step 2 of Wall Installation for a

wall thickness greater than 8-1/2'').

2. Secure cabinet in place using masonry

nails, or the right masonry anchor screws.

(Another way to do this is to build an

in-between frame of 2x4's as shown in the

Step 2 Prepare Wall illustrations-but make

it double framed on either side, and install

between masonry wall opening and

cabinet. Frame must be securely anchored

to masonry wall opening) This way gives

very good louver clearance on either side

of cabinet.

3. Install a lintel to support masonry wall

above cabinet. Existing holes in cabinet

can be used and/or additional holes can

be drilled to fasten cabinet at various

positions. Be sure that side louver

clearance is in accordance with Step 1

above.

4. Install exterior cabinet support brackets

as shown in Step 2 of Wall Installation.

Caulk or flash if need, to provide a

wether-tight seal around top and sides of

cabinet.

5. To complete installation, apply wood trim

molding around room side projection of

cabinet.

Altri manuali per FAS296P2A1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Frigidaire Condizionatore d'aria

Frigidaire

Frigidaire Home Comfort FRA106HT1 Istruzioni per l'installazione

Frigidaire

Frigidaire GHWQ103WC1 Manuale del proprietario

Frigidaire

Frigidaire CRA102BT110 Manuale del proprietario

Frigidaire

Frigidaire FAH14EQ2T4 Manuale utente

Frigidaire

Frigidaire FFRH1222Q20 Manuale del proprietario

Frigidaire

Frigidaire FRA053XT7 Istruzioni per l'installazione

Frigidaire

Frigidaire FAC127P1A Manuale utente

Frigidaire

Frigidaire FAC054K7A6 Manuale utente

Frigidaire

Frigidaire FFRA0811R1 Manuale del proprietario

Frigidaire

Frigidaire FRA084KT71 Manuale del proprietario

Frigidaire

Frigidaire FFRA0811Q10 Manuale del proprietario

Frigidaire

Frigidaire FAS186N2 Manuale utente

Frigidaire

Frigidaire GAL123K1A2 Manuale utente

Frigidaire

Frigidaire CRA09EPT115 Manuale del proprietario

Frigidaire

Frigidaire Gallery FGRC1044T1E00 Manuale utente

Frigidaire

Frigidaire FAK104R1V 10,000 Manuale utente

Frigidaire

Frigidaire FAP09EP1Z3 Guida rapida

Frigidaire

Frigidaire LRA127CT110 Manuale del proprietario

Frigidaire

Frigidaire FRS093LS1 Istruzioni per l'installazione

Frigidaire

Frigidaire FAC052K7A9 Manuale utente

Frigidaire

Frigidaire FAS183K2A2 Manuale utente

Frigidaire

Frigidaire FFTA123WA1 Manuale del proprietario

Frigidaire

Frigidaire Home ComfortFRA08PZU1 Istruzioni per l'installazione

Frigidaire

Frigidaire FAK107P1V1 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Samsung

Samsung AS09HM3N Manuale utente

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB Manuale utente
