ELECTRIC

DRYER

Model No.

GLER642CA

FACTORY PARTS CATALOG

DRYER

WIRING DIAGRAM - # 134067000

OWNER’S GUIDE - # 131679000

INSTALLATION INSTRUCTIONS - # 131751700

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

GLER642CAS3 GLER642CA Frig Canada white 240

MARKET

Canada

Publication No.

5995380580

021031

-EN/SERVICE /KC

361

10/02 2

Publication No. GLER642CAS3

5995380580

CABINET/DRUM

# = Fast-moving Parts 3 10/02

* = Non-Illustrated Parts

GLER642CAS3 Publication No.

5995380580

CABINET/DRUM

POS. NO PART NO DESCRIPTION

2 131168200 Screw,pan head ,8-18B x 0.31

4 131785200 Bracket,elec power cord ,knock out

5 5303281019 Ball

6 5303281020 Clip,ball ,steel ,flat nut

7 134121200 Rack,drying

9 131793201 Panel,access ,rear

11 5303211428 Cover,terminal block

12 131825900 Bearing,drum support

13 131724300 Bracket,bearing support

14 131205400 Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq drive

15 # 131553900 Heater Assy,w/housing/felt

17 3204254 Baffle,heater shield

18 131477000 Screw,shaft/baffle mt ,10-16AB x 0.375 ,special

19 131205300 Screw,10-16 x 0.750

20 131469100 Bracket,hinge ,rear ,top panel mtg.

21 134122532 Drum,dryer ,galvanized stl. ,21 ,service kit

24 131963900 Glide,drum

25 5303015671 Screw,hex washer head ,8-18 x 0 .375 ,cup point

29 131382300 Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,special

30 5303201200 Vane,straight

31 # 5303270977 Power Cord,electric svce ,4-wire Canada

* 5303297892 Clamp,strain relief ,power cord ,power cord

32 131777700 Shaft,drum support ,ballhitch

32* 5303307893 Lubricant,high temp

33 # 3204267 Thermostat,safety

34 131243700 Screw,pan head ,8-18AB x 0.375 ,cr/sq drive

35 131892100 Screw,6-20B x 0.230

36 # 134120900 Thermal Limiter

42 131209600 Screw,flat head ,8-18AB x 0.44 ,cr/sq drive

44 134158000 Screw,leveling leg

51 131472100 Insulator,heater housing

52 # 134101400 Terminal Block,main

52A 3202786 Terminal Block,heater housing

64 131704600 Clip

* # 5303281153 Rear Bearing Kit,includes 5,6 ,12,13,14,18,32

10/02 4

Publication No. GLER642CAS3

5995380580

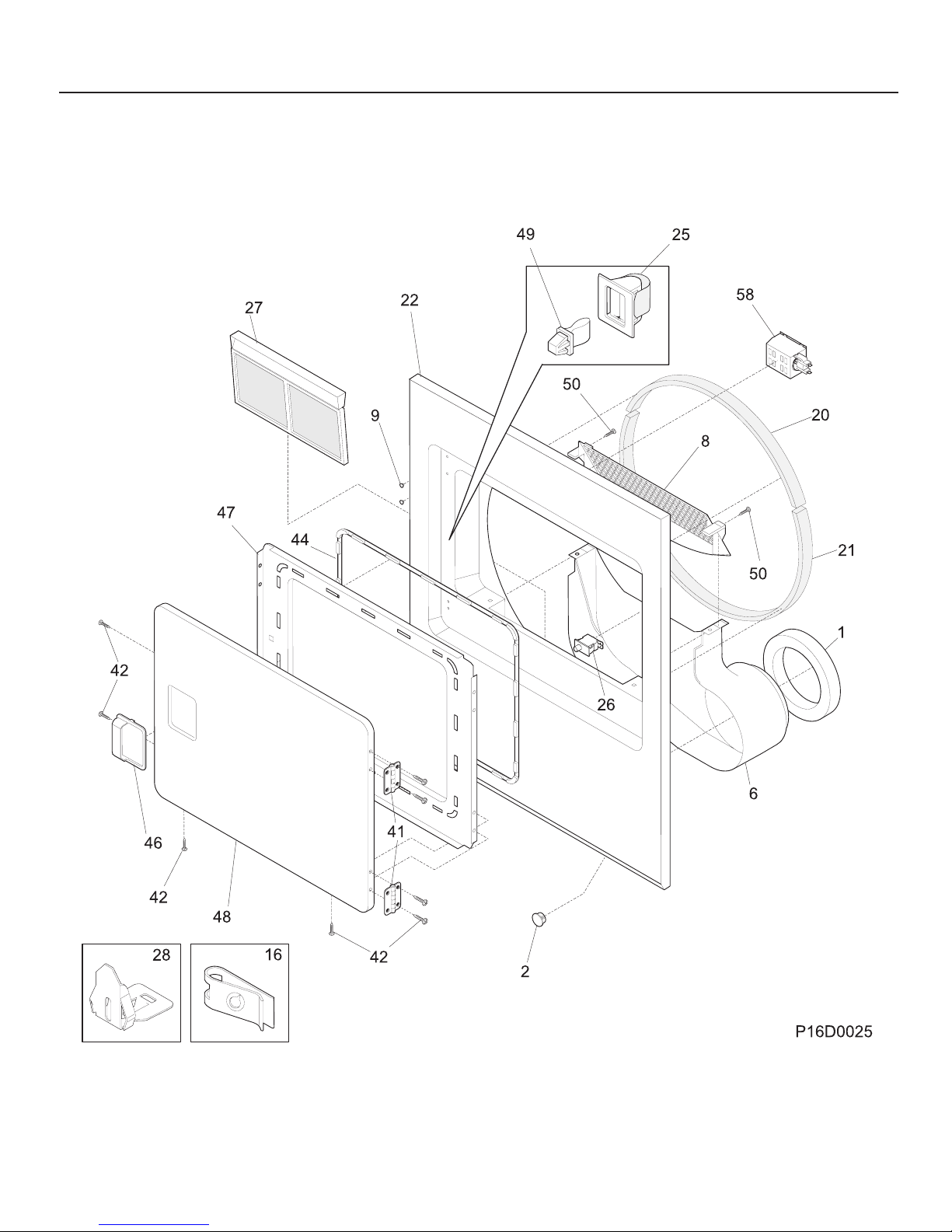

FRONT PANEL/LINT FILTER

# = Fast-moving Parts 5 10/02

* = Non-Illustrated Parts

GLER642CAS3 Publication No.

5995380580

FRONT PANEL/LINT FILTER

POS. NO PART NO DESCRIPTION

1 134063300 Seal,air duct

2 131397000 Plug,dome ,white

6 131621900 Duct,air

8 # 131845800 Cover,lint housing ,w/moist sensor

8* # 131846600 • Wiring Harness,sensor & light

9 131633200 Plug,white

16 131063700 Clip,wiring

20 134036400 Seal,felt ,upper

* 5308027429 Adhesive,high temp

21 134134700 Seal,felt ,lower

22 131845912 Panel,front ,white ,w/light hole

25 131658800 Door Catch

26 # 131843101 Switch,door ,with drum light

27 131450300 Trap,lint blade assy

28 5303281074 Clip,guide ,(3)

41 131627500 Hinge,door

42 131209600 Screw,flat head ,8-18AB x 0.44 ,cr/sq drive

44 131129900 Gasket,door seal

46 131644700 Handle,door ,white

47 131844104 Panel,inner door ,white

48 131789303 Panel,outer door ,white

49 5303211430 Door Strike

50 131303300 Screw,pan head lock ,10-16AB x 0.500

58 # 131843500 Lamp Assy,drum light

58*# 131862800 • Lamp

* 131474700 Insulation

10/02 6

Publication No. GLER642CAS3

5995380580

CONTROLS/TOP PANEL

# = Fast-moving Parts 7 10/02

* = Non-Illustrated Parts

GLER642CAS3 Publication No.

5995380580

CONTROLS/TOP PANEL

POS. NO PART NO DESCRIPTION

1 # 131930600 Timer

2 134096100 Spacer,console mtg

4 134034900 Knob,rotary ,white

5 134019900 Closure,console trim ,front

7 3205821 Clip,top-to-front

9 131992900 Panel,backsheet ,console

10 # 131447800 Switch,start ,turn type

12 # 131620200 Control Board,moisture sensor

15 # 131641900 Switch,temperature ,4 posn rotary

16 134034300 Screw,pan hd phillips ,8-18B x 0.250

17 131993010 Bracket,control mtg.

18 134067400 Panel,trimplate ,white ,console front

20 134019610 End Cap,white ,LH

21 134035500 Knob,timer ,white/gray

22 131266300 Screw,cr oval head ,8-18AB x 1.250 ,black

23 # 134124300 Wiring Harness,main

27 131197000 Clip,console mtg

31 134019600 End Cap,white ,RH

35 # 131243200 Switch,xrinse/temp/bzr ,2 position ,(2)

38 # 131959200 Beeper,continuous ,low tone

39 131168200 Screw,pan head ,8-18B x 0.31

45 131205100 Screw,#8 pan head ,10-10B x 0.500 ,cr/sq drive

53 134086802 Panel,dryer top ,white ,console mtg

56 131243800 Screw,pan hd locking ,8-32CA x 0.375 ,brkt-to-top pnl

10/02 8

Publication No. GLER642CAS3

5995380580

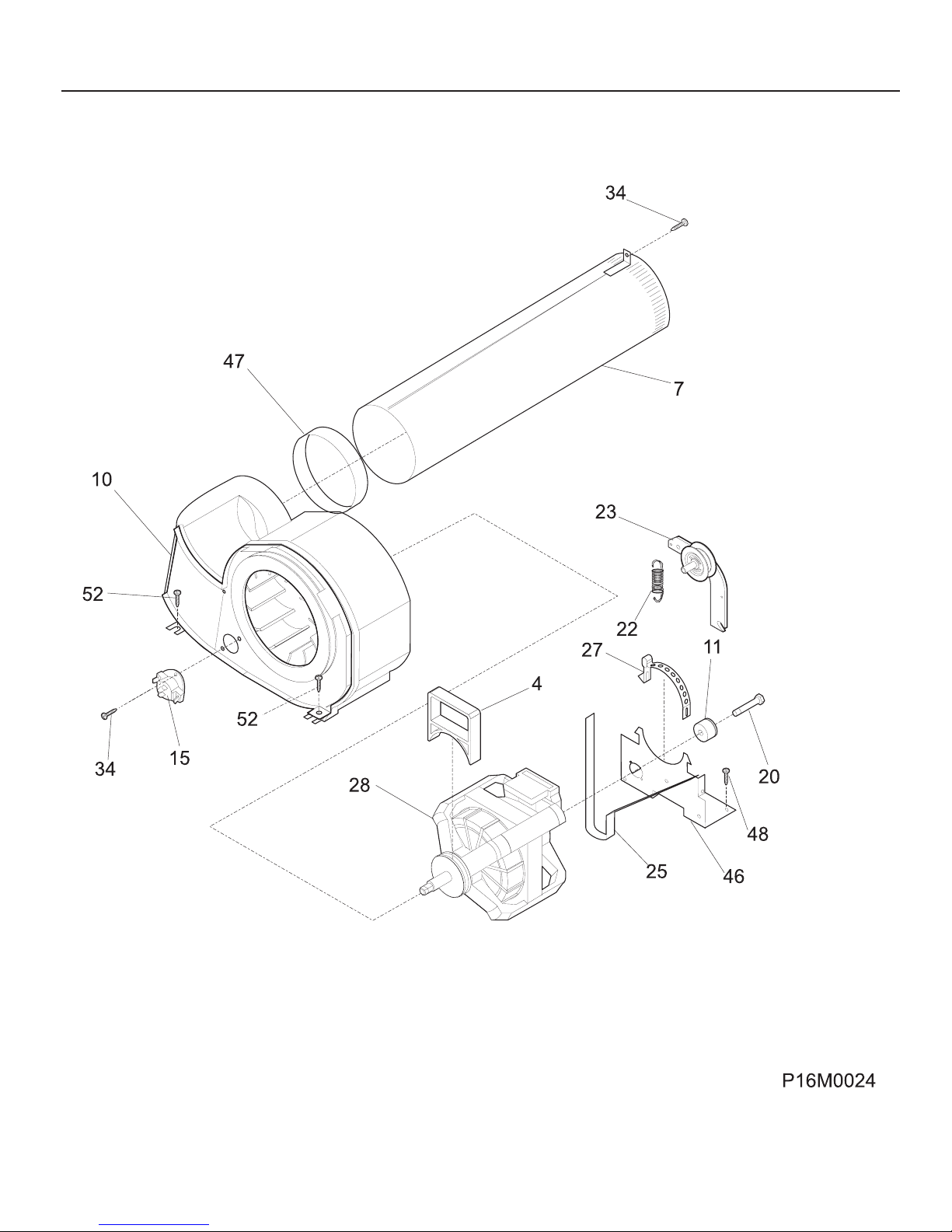

MOTOR

# = Fast-moving Parts 9 10/02

* = Non-Illustrated Parts

GLER642CAS3 Publication No.

5995380580

MOTOR

POS. NO PART NO DESCRIPTION

4 131435200 Lock,blower housing

7 131451600 Tube,exhaust ,rear ,w/mtg bracket

7* 131456800 Tube,exhaust ,side/bottom ,Optional Kit

10 # 131775600 Housing,blower assy ,cover & wheel

11 131749800 Spacer,idler

15 # 134048800 Thermostat,control

20 131017900 Screw,hex head ,1/4-20T x 1.25 ,spacer mtg.,thread cutting

22 131601000 Spring,idler arm

23 # 131863000 Idler Arm

25 # 134163400 Belt

27 131419800 Clamp,motor mtg.

28 # 131560100 Motor,main drive ,w/pulley

34 131243700 Screw,pan head ,8-18AB x 0.375 ,cr/sq drive

46 131601100 Bracket,motor mtg.

47 131633300 Seal,exhaust tube

48 131168200 Screw,pan head ,8-18B x 0.31

52 131303100 Screw,hex washer head ,10-16AB x 0.625

10/02 10

Publication No. GLER642CAS3

5995380580

WIRING DIAGRAM
