Frigidaire FEB386CE Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB386CESG 38254391F6017 WHITE U.S.A.

FEB386CEBG 38254391F6067 BLACK U.S.A.

ELECTRIC WALL OVEN

Model No.

FEB386CE

Inc.

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM # - 318046208

OWNER’S GUIDE # - 318200914

TIMER INSTRUCTION GUIDE # - 318130806

INSTALLATION INSTR. # - 318064310

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995318218

990215

-EN/SERVICE

377

Publication No. FEB386CE

5995318218

02/99 2

CONTROL PANEL

LA9923G03

FEB386CE Publication No.

5995318218

# = Functional Part 302/99

* = Non-Illustrated Part

CONTROL PANEL

A=FEB386CE (FEB386CESG)

B=FEB386CE (FEB386CEBG)

POS. NO PART NO DESCRIPTION

19 318030115 APanel-control white

19 318030114 B Panel-control black

20 # 318010700 AB Clock/Timer

23 318111602 AB Bracket-timer

42 318027401 ATrim-vent white

42 318027409 B Trim-vent black

80 318111500 AB Relay

*3201861 AB Screw, 6 X 3/8

FEB386CE Publication No.

5995318218

02/99 4

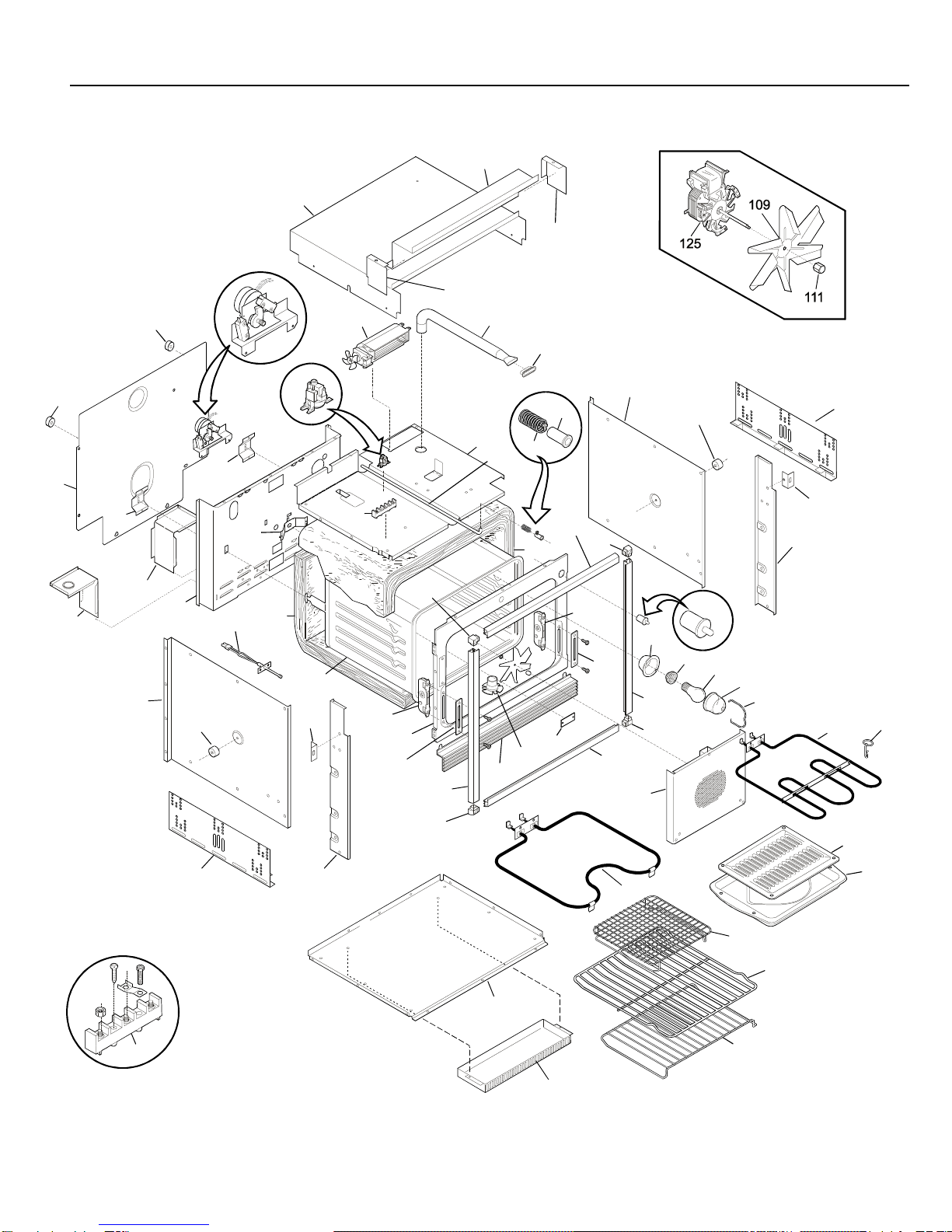

CAVITY / ELEMENTS

124

103

LA9923V12

66 68

58B

58A

108

119

127

37 12

129

128

185

99 98A

185

130

15 1617

150A

150

107

222

131

132

132A

102

177

188

FEB386CE Publication No.

5995318218

# = Functional Part 502/99

* = Non-Illustrated Part

CAVITY / ELEMENTS

A=FEB386CE (FEB386CESG)

B=FEB386CE (FEB386CEBG)

POS. NO PART NO DESCRIPTION

1 5303310527 AB Back-main

2 318102100 AB Shield-oven top

2A 318071700 AB Shield-oven top

6 5303310522 AB Rack-oven

6A 5303311206 A B Rack broiler pan

6B 318025400 AB Shelf-oven

9 5303317977 AB Pan-broiler

10 5303317976 AB Insert-broiler pan

12# 318089910 AB Switch-light

14 5308011085 AB Socket-light/lamp

15 3201908 AB Lamp-oven light

16 3201911 AB Glass-oven light lens

17 5304400195 AB Retainer-lens

37 # 316111203 AB Probe-oven temp

41 5303310526 AB Cover-hinge cutout

54 5303310514 AB Housing-oven light

56 318083501 ATrim-bodyside white

56 318083500 B Trim-bodyside black

58A 5303310539 AB Insulation

58B 5303310538 AB Insulation oven back

59 318072504 AB Tube-oven vent

62 # 5303310518 AB Terminal Block

66 # 5303310513 AB Element-broil

67 # 5303310512 AB Element-bake

68 5304403015 AB Support element

70 5303300142 AB Shield-insulation

71 318071200 AB Shield-wire

76 318056202 AB Front-oven

80 5303301261 AB Spring-oven

81 5303320846 A B Plate-oven mtg

82 318072300 AB Shield

83 318089609 AB Liner-oven assy

86 5303310524 AB Channel-hinge

88 5303311222 AB Rod-latch

89 # 5304404899 AB Motor-latch

89* 318120702 AB Switch-latch

98 318029201 AB Trim-side RH

98A 318029203 AB Trim-side LH

99 318055420 AB Support-adjustable

102 318090900 AB Support fixation

103 318028501 ATrim-base white

103 318028500 B Trim-base black

107 318119600 A B Cover-fan

108# 318073001 AB Motor-fan

109 5303311203 A B Fan blade

111 5303311205 A B Nut-fan retainr

119# 318004900 AB Switch-thermal

124 318076903 AB Box-vent

125# 5303311202 A B Motor-convection

125* 5303320346 A B Washer

127 5303310542 AB Adapter assy

128 5303311163 AB Bushing

129 5303311164 AB Spring

130 318070801 AEnd Cap-trim white

130 318070800 BEnd Cap-trim black

131 318102301 AB Cover-control housing

132 318101800 AB End-cover RH

132A 318101801 AB End-cover LH

150 318072205 AB Bracket-support RH

150A 318072204 AB Bracket-support LH

177 318053800 AB Gasket-vent

185 318014700 AB Spacer-oven shield

188 08007817 A B Spacer

222 318080000 A B Plate hole convection element

* 5303211311 AB Screw #8 X ½

*3015722 AB Clip-wire

Publication No. FEB386CE

5995318218 CAVITY/ELEMENTS

02/99 6

POS.NO PART NO DESCRIPTION

* 5303300265 AB Screw 8-18 X ½

*5303308449 AB Fastener

*5303323136 AB Screw ground

*5303323139 AB Screw, 10-24 X 29/32

*5303323277 AB Screw, 8-18 X 13/32

*5303324184 AB Screw, 8 X 5/16

*5303323137 AB Screw, 10-32 X 17/32

*# 318078511 AB Box & wires assy

*5303302745 AB Screw, 10-16 X 1 1/8

*5304407813 A B Washer

*3131048 A B Screw, 8 X 5/8

A = FEB386CE (FEB386CESG)

B = FEB386CE (FEB386CEBG)

FEB386CE Publication No.

5995318218

0299 7

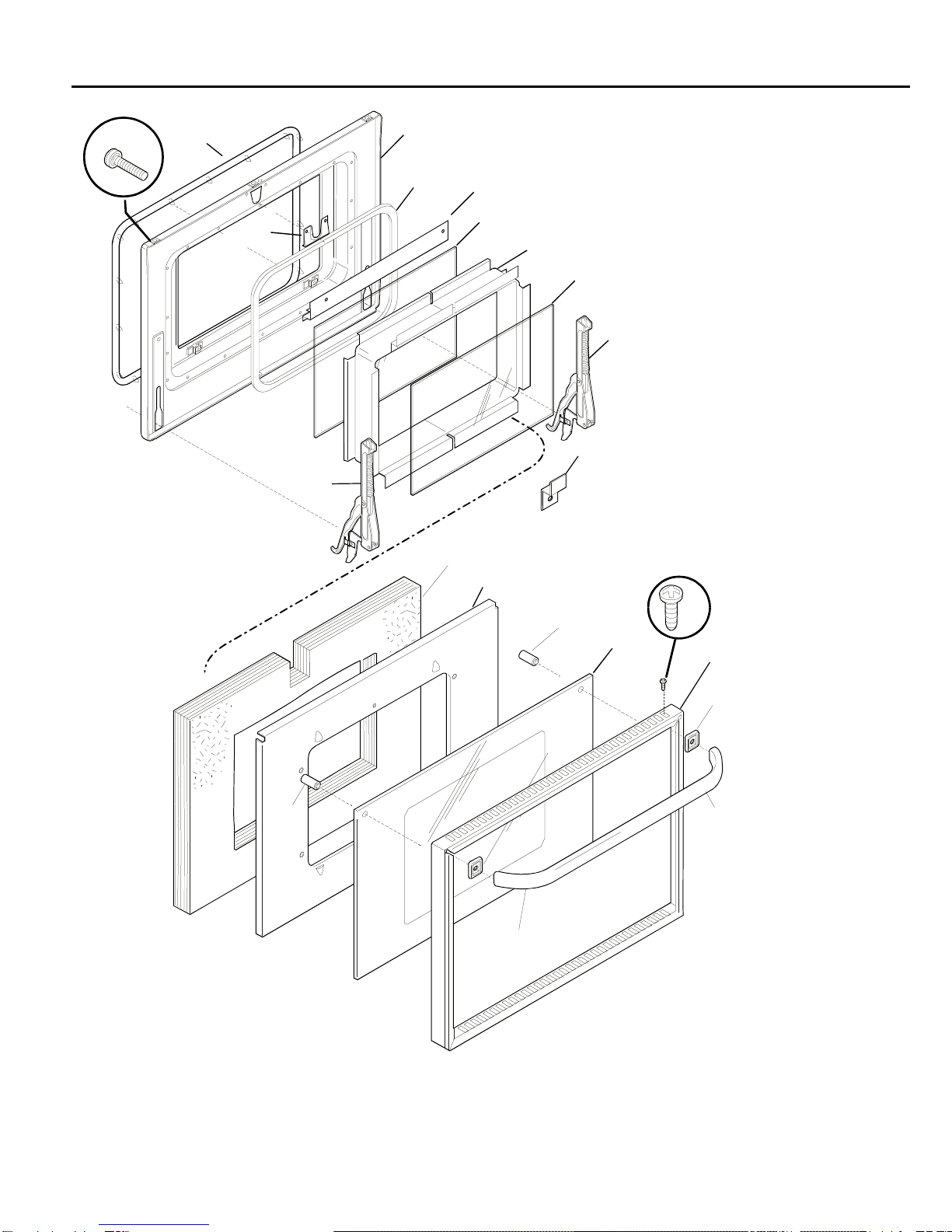

DOOR

LA9923CD02

FEB386CE Publication No.

5995318218

# = Functional Part 802/99

* = Non-Illustrated Part

DOOR

A=FEB386CE (FEB386CESG)

B=FEB386CE (FEB386CEBG)

POS. NO PART NO DESCRIPTION

3 318026125 ATrim-oven door white

3 318026710 BTrim-oven door black

4 318041304 AGlass-oven door white

4 318041303 B Glass-oven door black

6 318056811 AB Baffle-door

7 318106001 AB Insulation

9 318048606 AB Liner-oven door

10 5303311217 AB Screw-handle10-24X2 3/16

12 318053103 AB Seal-oven door

15 318091102 AB Bracket glass

16 318041603 AB Glass-oven door

17 318042102 AB Spacer-glass

18 318053001 AB Seal-window

20 318014301 ASpacer-handle white

20 318014300 BSpacer-handle black

23 5303310506 AB Hinge-oven door

29 5303210003 AB Spacer-handle mtg

31 318065100 AB Latch-door

39 316091111 AHandle-door white

39 316091113 BHandle-door black

54 5303308456 AB Screw 8-18 X 0.531 black

*5303323277 AB Screw, 8-18 X 13/32

*5303316982 A B Tape seal

*5303211311 A B Screw, 8 X ½

*5303300265 A B Screw, 8-18 X ½

Publication No. FEB386CE

5995318218

02/99 9

WIRING DIAGRAM
