Frigidaire FEB798CC Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB798CCSH 37054791F5018 WHITE U.S.A.

FEB798CCBH 37054791F5068 BLACK U.S.A.

ELECTRIC WALL OVEN

Model No.

FEB798CC

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM # - 318046110

OWNER’S GUIDE # - 318200914

INSTALLATION INSTR. # - 318064300

TIMER INSTRUCTION GUIDE # - 318200130

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995320396

990329

-EN/SERVICE

377

UPPER OVEN

BR OILBAKE

BAKE

TIME CLEAN CANCEL CLOCK

TIMER

ON/OFF

STOP

TIME

LOWER OVEN

BAKE

TIME CLEAN CANCEL

OVENLIGHT

SELF-CLEANINGCONVECTION OVENS

BROIL

UPPERO VEN LO WERO VEN

Galler y

DUAL RADIANT BAKING AND ROASTING

CONV

BAKE/ROAS TCONV

BAKE/ROAST

Publication No. FEB798CC

5995320396

03/99 2

CONTROL PANEL

82A

18A 42

20 19

15A

LA9923G14

FEB798CC Publication No.

5995320396

# = Functional Part 303/99

* = Non-Illustrated Part

CONTROL PANEL

A=FEB798CC (FEB798CCSH)

B=FEB798CC (FEB798CCBH)

POS. NO PART NO DESCRIPTION

15 5303302286 A B Support backguard RH

15A 5303302287 A B Support backguard LH

18 5303311208 AEnd Cap white RH

18 5303311231 BEnd Cap black RH

18A 5303311209 AEnd Cap white LH

18A 5303311232 BEnd Cap black LH

19 318030016 APanel-control white

19 318030015 BPanel-control black

20 # 318010501 A B Clock/Timer

21 5303302283 ATrim-canopy white

21 5303300968 BTrim-canopy black

23 318015110 A B Bracket timer

42 5303318709 ATrim-vent white

42 5303316983 BTrim-vent black

78 318036901 ACover, oven vent white

78 318036900 BCover, oven vent black

80 318022002 A B Board relay

81 318022001 A B Board relay

82 318023600 A B Support, relay board

82A 5303317199 A B Support, snap-in

99 5303316956 AScrew, 6-32 X 3/8/ white

99 5303307406 BScrew, 6-32 X 3/8/ black

*3201861 A B Screw, 6 X 3/8

*5303323136 A B Screw ground

*5303320848 A B Screw, 6-20 X ¼

FEB798CC Publication No.

5995320396

03/99 4

123

264

157

222

LA9923V19

66 68

58B

58A

156

99 187

108

125 119

127

129

128

15 16

107

UPPER BODY PARTS ONLY

CAVITY / ELEMENTS (UPPER)

FEB798CC Publication No.

5995320396

# = Functional Part 503/99

* = Non-Illustrated Part

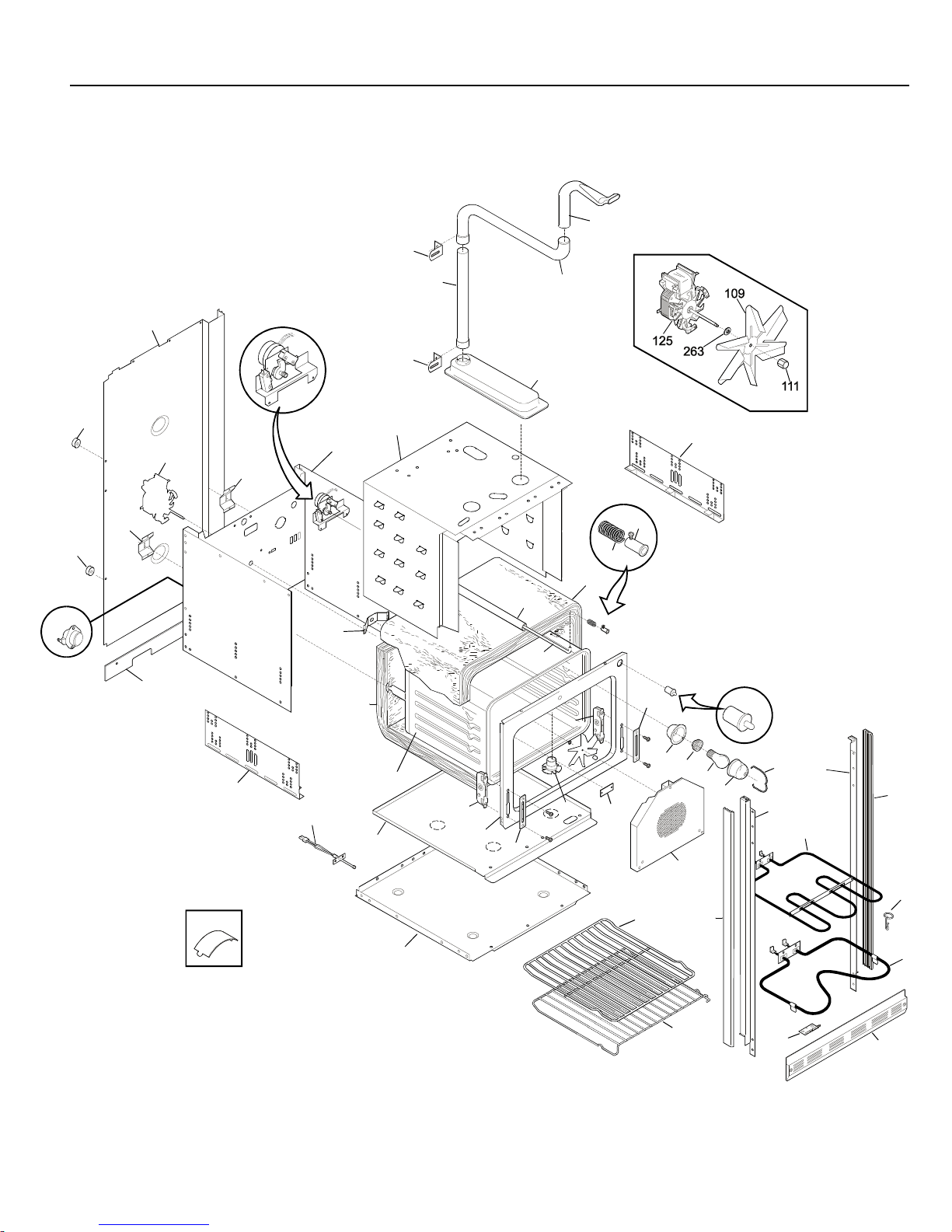

CAVITY / ELEMENTS (UPPER)

A=FEB798CC (FEB798CCSH)

B=FEB798CC (FEB798CCBH)

POS. NO PART NO DESCRIPTION

1A 318071000 A B Rear panel box

2318070200 A B Shield-oven top

3318070601 A B Panel bodyside upper RH

3A 318070600 A B Panel bodyside upper LH

6 5303299719 A B Rack-oven

6A 5303311206 A B Rack-broiler pan

6B 318025202 A B Shelf-oven

95303317977 A B Pan-broiler

10 5303317976 A B Insert broiler pan

12# 318089910 A B Switch-light

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer-lens

37# 316111203 A B Probe-oven temp

41 5303310526 A B Cover-hinge cutout

54 5303310514 A B Housing-oven light

57 318072100 A B Support connection

58A 5303311218 A B Insulation wrapper

58B 5303311219 A B Insulation oven back

59 318072510 A B Tube-oven ventilation

62# 5303310518 A B Terminal block

66# 5303322963 A B Element-broil

67# 5303299718 A B Element-bake

68 5304403015 A B Support-element

76 318056104 A B Front-oven

80 5303301261 A B Spring-oven

81 5303320846 A B Plate-oven mtg

83 318089519 A B Liner-oven assy

86 5303310524 A B Support-door hinge

88 5303311222 A B Rod-latch

89# 5304409801 A B Motor-latch/lock

89* 318120701 A B Switch-latch

89* 318120702 A B Switch-latch

97 318066500 A B Wrapper back & sides

99 318055200 A B Support

107 5303318711 A B Cover fan

108 318073000 A B Motor-fan

109 5303311203 A B Fan blade

111 5303311205 A B Nut fan retainer

119# 318005200 A B Switch-thermal

123 318071440 A B Shield-insulation top

125# 5303311202 A B Motor-convection

127 5303310542 A B Adapter assy

128 5303311163 A B Bushing

129 5303311164 A B Spring

156 318024100 A B Bracket vent tube

157 318071600 A B Divider upper oven

187 318013501 A B Tube (rod latch)

222 318080000 A B Plate, plug hole convection element

263 5303322885 A B Spacer

264 318143811 BHidden wires shield

*5303323144 A B Nut (10-32)

*318078501 A B Bx & wires assy

*5304407813 A B Washer

*08002868 A B Screw, 10-24 x ½

*3051070 A B Screw, 10-24 X 7/16

*5303211311 A B Screw, #8 X ½

*5303323778 A B Screw, 8-18 X 13/32

Publication No. FEB798CC

5995320396 CAVITY/ELEMENTS (LOWER)

03/99 6

121

101

98A

103

123

156

156 96

96A 96B

188

227

119

222

LA9923V20

58B

142

58A

187

125

127

129

128

15 16

107

LOWER BODY PARTS ONLY

FEB798CC Publication No.

CAVITY/ELEMENTS (LOWER) 5995320396

# = Functional Part 703/99

* = Non-Illustrated Part

A=FEB798CC (FEB798CCSH)

B=FEB798CC (FEB798CCBH)

POS. NO PART NO DESCRIPTION

6 5303299719 A B Rack-oven

6B 318025202 A B Shelf-oven

12# 318089910 A B Switch-light

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer-lens

37# 316111203 A B Probe-oven temp

41 5303310526 A B Cover-hinge cut out

54 5303310514 A B Housing-oven light

56 5303302282 ATrim-bodyside white

56 5303300956 BTrim-bodyside black

58A 5303311218 A B Insulation wrapper

58B 5303311219 A B Insulation oven back

59 5303300951 A B Tube-oven vent

66# 5303322963 A B Element-broil

67# 5303299718 A B Element-bake

68 5304403015 A B Support-element

71 5303305023 A B Shield-wire

76 318056104 A B Front-oven

80 5303301261 A B Spring-oven

81 5303320846 A B Plate-oven mtg

82 5303304699 A B Shield-insulation

83 318089519 A B Liner-oven assy

86 5303310524 A B Receptacle hinge

88 5303311222 A B Rod-latch

89# 5304409801 A B Motor-latch/lock

89* 318120701 A B Switch-latch

89* 318120702 A B Switch-latch

96 5303317197 A B Duct-oven vent

96A 3016325 A B Duct-oven vent

96B 3016327 A B Duct-oven pipe

97 318066604 A B Wrapper back & sides

98 318029332 A B Trim side inner RH

98A 318029333 A B Trim side inner LH

99 5303299686 A B Support-adjustable

101 318039512 ABracket-trim white

101 318039511 BBracket-trim black

103 318028701 ATrim-base white

103 318028700 BTrim-base black

107 5303318711 A B Cover fan

109 5303311203 A B Fan blade

111 5303311205 A B Nut fan retainer

119# 318004900 A B Switch-thermal

121 318145002 A B Wrapper base

123 318071440 A B Shield-insulation top

125# 5303311202 A B Motor-convection

127 318072801 A B Adapter assy

128 5303311163 A B Bushing

129 5303311164 A B Spring

142 318054900 A B Support

156 5303317198 A B Bracket-vent tube

187 318013501 A B Tube (rod latch)

188 08007817 A B Spacer

222 318080000 A B Plate, plug hole convection element

227 5303323955 A B Clip retainer

263 5303322885 A B Spacer

*5303302745 A B Screw, 10-16 X 1-1/8, black

*5304407813 A B Washer

*08002868 A B Screw, 10-24 x ½

*3051070 A B Screw, 10-24 X 7/16

*5303211311 A B Screw, #8 X ½

*5303323778 A B Screw, 8-18 X 13/32

*5303935083 AScrew, 10-16 X 1 ¼ white

Publication No. FEB798CC

5995320396

03/99 8

DOOR

LA9923CD02

FEB798CC Publication No.

5995320396

# = Functional Part 903/99

* = Non-Illustrated Part

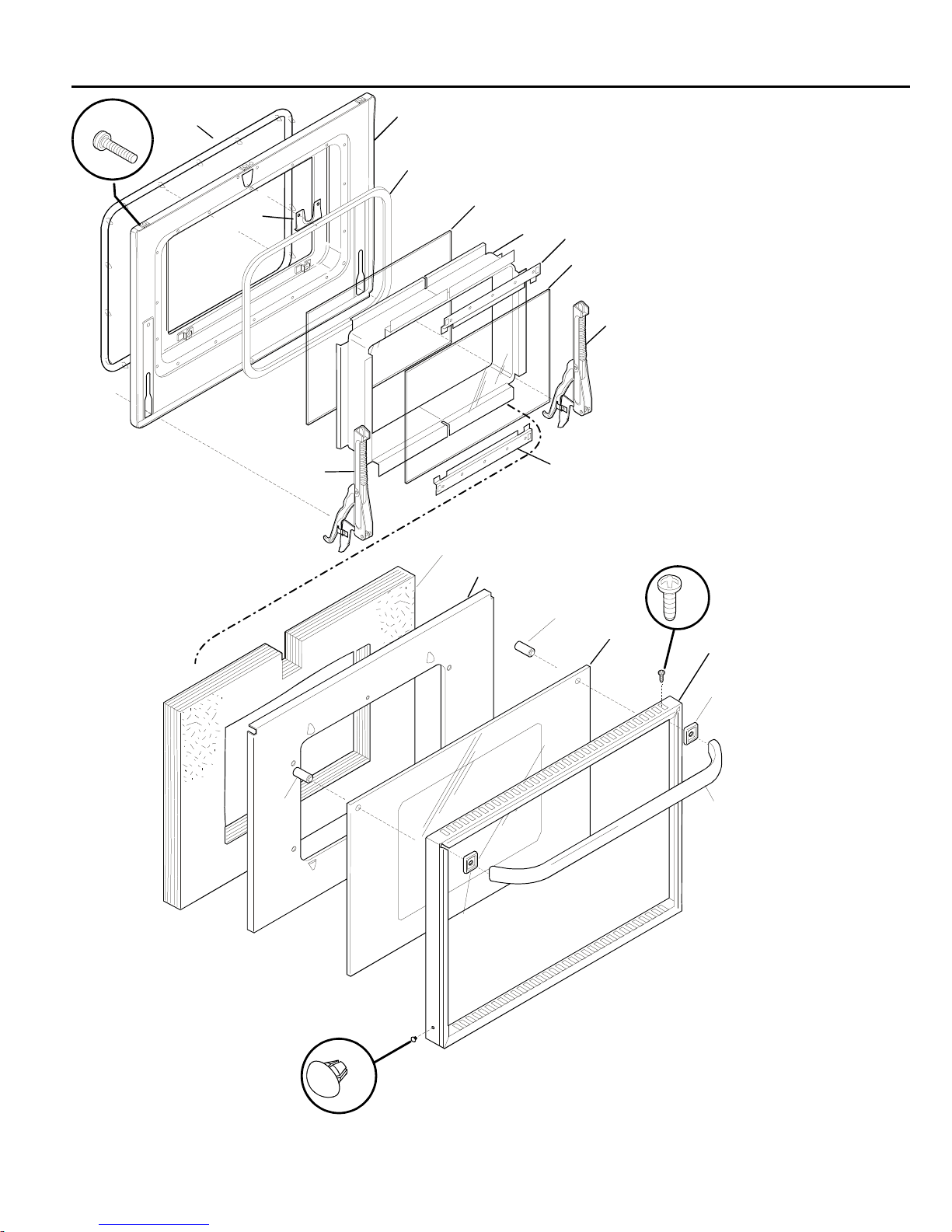

DOOR

A=FEB798CC (FEB798CCSH)

B=FEB798CC (FEB798CCBH)

POS. NO PART NO DESCRIPTION

3318026110 ATrim-oven door white

3318026600 BTrim-oven door black

4318051601 AGlass-oven door, white

4318051600 BGlass-oven door, black

6318073503 A B Shield-wool

75303311214 A B Insulation, oven door

9318048503 A B Liner-oven door

10 5303311217 A B Screw-handle, door 10-24 x 2-3/16

12 318053100 A B Seal-oven door

16 318042300 A B Glass-oven door, heat

17 318042000 A B Spacer-glass

18 318053000 A B Seal-rope

20 318014301 ASpacer-handle white

20 318014300 BSpacer-handle black

22 5303310511 A B Retainer-glass

23 318024701 A B Hinge-oven door

29 5303210003 A B Spacer-handle mtg

31 318065100 A B Latch-door

39 316091107 AHandle-door, white

39 316091109 BHandle-door, met 114

54 5303308456 A B Screw,8-18 x 0.531

59 3202113 A B Button-plug

*5303323277 A B Screw, 8-18 x 13/32

*5303308450 A B Screw, 8 x 3/8

*5303307980 A B Screw, 8-32 X 7/16

*3051070 A B Screw, 10-24 X 7/16

*08002868 A B Screw, 10-24 X ½

*53033211311 A B Screw, #8 X ½

Publication No. FEB798CC

5995320396

03/99 10

WIRING DIAGRAM
