Frigidaire FGB24S5D C Manuale utente

FGB24S5DC.eps LA00CP74431-2.eps LA00BR74431-1.eps LA00B74431-1.eps

LA20D74431-2.eps 318046316-1.eps 318046316-2.eps

Product No. FGB24S5DCD

37454432E40S4

Series 24" single

Color stainless

Market North America

Wiring Diagram 318046316

Owner's Guide 318200957

Installation Instructions 318201554

Service Data Sheet 318047410

Timer Guide 318200191

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995490504

07/05/09

(EN/SERVICE/BJH)

377

SINGLE GAS WALL

OVEN

Model No.

FGB24S5D

Publication No: 5995490504 FGB24S5DCD

05/07 2

CONTROL PANEL

FGB24S5DCD Publication No: 5995490504

# Functional Parts 3 05/07

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

18 5303280338 End Cap, black, RH

18A 5303280339 End Cap, black, LH

19 318234108 Panel, control, black

20 # 318185431 Clock/Timer, electronic, black

20* 316220805 Overlay, clock, black, ES300

21 5303308451 Trim, splasher, black

23 318015034 Bracket, clock/timer

24 # 316005602 Switch, rocker, black

42 318027101 Trim, center vent, black

53 318056901 Deflector trim, black

99 5303311528 Screw, oval hd sq dr, 6-20AB x 0.625, black

100 318112200 Plate, mounting, rocker switch

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303323130 Screw, 8 x 1/4, (4)

Publication No: 5995490504 FGB24S5DCD

05/07 4

BURNER

FGB24S5DCD Publication No: 5995490504

# Functional Parts 5 05/07

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

9 3201885 Nut, Keps, 10-24

14 # 5303210167 Regulator, pressure

17 # 5303210798 Valve, safety

18 # 5303210787 Burner, oven

19 # 318177710 Ignitor, oven burner

20 3203676 Baffle, oven burner

22 5303271092 Tubing, valve

23 # 5303283132 Burner, broiler

24 # 5303210786 Mixer Elbow, bake

24A# 5303210807 Mixer Elbow, broiler

25 5303326220 Baffle, broil burner

26 # 316119302 Ignitor, broiler

28 # 5303295305 Valve, shut off

30 5303305657 Elbow, fitting

36 318177801 Tubing, safety valve, upper

58 318123600 Shield, broiler

* 3051070 Screw, hex washer head, 10-24 x 0.438, special

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303311306 Screw, 8-18 x 0.375, (8)

* 5303311549 Screw, burner mtg

Publication No: 5995490504 FGB24S5DCD

05/07 6

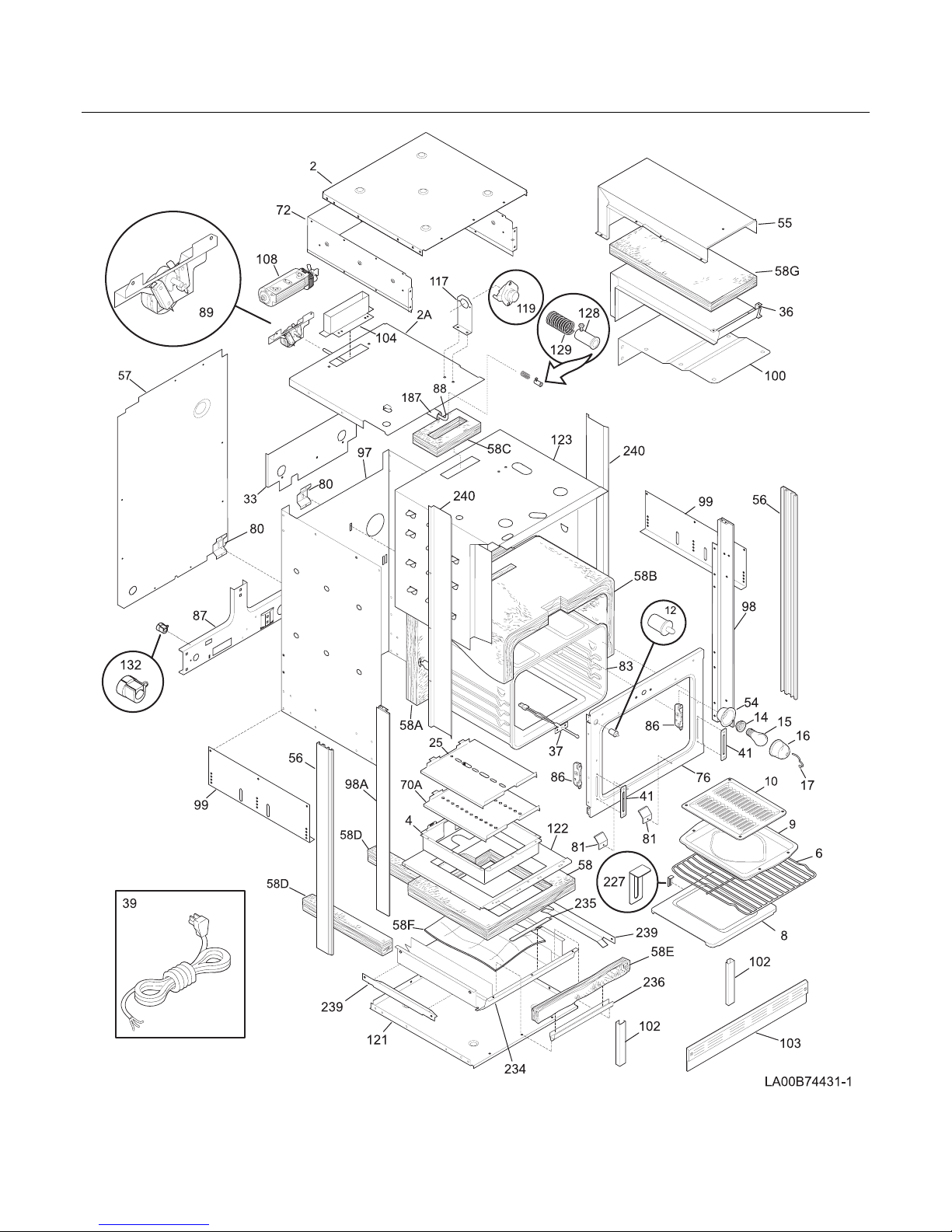

BODY

FGB24S5DCD Publication No: 5995490504

# Functional Parts 7 05/07

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

2 318145003 Wrapper, base

2A 318102402 Cover, mid top

4 318161500 Box, oven burner

6 318345204 Rack, oven, (2)

8 318121400 Panel, oven bottom

9 5303317977 Pan, broilerOPTIONAL ACCESS0RY

10 5303317976 Insert, broiler panOPTIONAL ACCESS0RY

12 # 318089913 Switch, light

12* 5303271097 Bracket, light switch

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

25 318179000 Shield, insulation, base

33 318187301 Shield, housing

36 3203725 Flue

37 # 316217002 Probe, oven temp

39 318144007 Cord, service

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

55 5303326219 Shield, flue

56 318145508 Trim, bodyside

* 5303320422 Screw, 6-20 x 5/16, black, (6)

57 318071130 Shield, rear wall

58 318285010 Insulation, oven bottom

58A 318285011 Insulation, oven back

58B 318285015 Insulation, top & sides, oven wrapper

58C 318285090 Insulation, flue

58D 318285033 Insulation, 3"x4"x17", (2)

58E 318285034 Insulation, 1"x1.75"x18"

58F 318285067 Insulation, deflector

58G 318285035 Insulation, flue

70A 5303210843 Shield, insulation

72 318327900 Wrapper, shield

76 318056139 Front, oven

80 318192400 Spring, oven

81 5303323710 Bracket, oven

83 318089411 Liner, oven assy

86 5303310524 Receptacle, hinge

87 5303308443 Bracket, safety valve

88 5303311222 Rod, latch

* 5303311528 Screw, oval hd sq dr, 6-20AB x 0.625, black

89 # 318095953 Motor, latch assy, w/brkt & switch

89* 318120711 Switch

97 318066804 Wrapper, back & sides

98 318029400 Trim, side, inner, RH

98A 318029401 Trim, side, inner, LH

99 318284201 Panel, adjustable, side, (2)

100 5303302715 Shield, flue, bottom

102 3203688 Support, oven front

103 5303316735 Trim, base, black, lower

Publication No: 5995490504 FGB24S5DCD

05/07 8

BODY

FGB24S5DCD Publication No: 5995490504

# Functional Parts 9 05/07

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

104 318170210 Flue

108# 318073025 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

117 5303302718 Bracket, thermo protect

119# 5303326252 Switch, thermal

121 318145005 Wrapper, base

122 5303210844 Shield, heat, lower

123 318071422 Shield, insulation, top & sides

128 5303311163 Bushing

129 5303311164 Spring

132 3201437 Strain relief

187 318013501 Tube, latch rod

227 5303323958 Retainer, oven bottom

234 5303210851 Shield, burner box

235 5303326207 Bracket

236 318108900 Shield, insulation, 1.25x1.0x12.9

239 5303326183 Angle, burner box

240 318119301 Shield, bodyside

* 318232523 Wiring Harness, main

* 318147411 Bumper, (2)

* # 318003606 Thermostat, safety, .945" mtg., 140/170

* # 318003613 Thermostat, safety, 1.375" mtg, 105/120

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 08011955 Screw, 10-24 x 0.375, square drive

* 5303211311 Screw, 8 x 0.500

* 5303300195 Screw, 10-32 x 0.375, terminal block, (2)

* 5303302745 Screw, 10-16x1-1/8, square drive

* 5303323130 Screw, 8 x 1/4, (4)

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995490504 FGB24S5DCD

05/07 10

DOOR/DRAWER

134

135

37A

LA20D74431-2
