Frigidaire GLEFS76A Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

GLEFS76AQE GLEFS76A bisque North America

GLEFS76AQF GLEFS76A bisque North America

GLEFS76ASE GLEFS76A white North America

Publication No.

5995362588

011217

-EN/SERVICE /ECL

369

12/01 2

BACKGUARD

A = GLEFS76A (GLEFS76ASE)

B = GLEFS76A (GLEFS76AQE)

C = GLEFS76A (GLEFS76AQF)

POS. NO PART NO DESCRIPTION

1 316239900 A B C Shield,backguard ,rear wall

14 316022503 A B C Light/Lamp,indicator ,surface ,250 V

14A 316022500 A B C Light/Lamp,warmer,indicator ,drawer/zone,125 V

15 316220202 A - - Support,backguard ,white ,RH

15 316220208 - B C Support,backguard ,bisque ,RH

15A 316220203 A - - Support,backguard ,white ,LH

15A 316220209 - B C Support,backguard ,bisque ,LH

19 316232619 A - - Panel,backguard ,white

19 316232621 - B C Panel,backguard ,bisque

20 # 316222907 A B C Clock/Timer,electronic

20A 316220804 A - - Overlay,clock ,white

20A 316220806 - B C Overlay,clock ,bisque

24 # 316246000 A - - Switch,rocker ,white ,oven light

24 # 316246002 - B C Switch,rocker ,bisque ,oven light

24C# 316114000 A - - Switch,speed bake,white

24C# 316114004 - B C Switch,convection ,bisque

31 316223000 A - - Knob,control ,white

31 316223003 - B C Knob,control ,bisque

46 316040201 A B C Lens,indicator light ,red

54 # 316021500 A B C Switch,infinite ,small element

54A# 316021501 A B C Switch,infinite ,large element

56 316234001 A - - Shield,backguard ,white ,inner

56 316234004 - B C Shield,backguard ,bisque ,inner

69 5303288565 A B C Screw,truss sqdr ,8-32 x 3/16 ,switch mtg

* 316021108 A B C Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 A B C Screw,8-18 x 0.5 ,chrome

* 316021110 A B C Screw,8-18 x 0.5 ,black

BACKGUARD

12/01 4

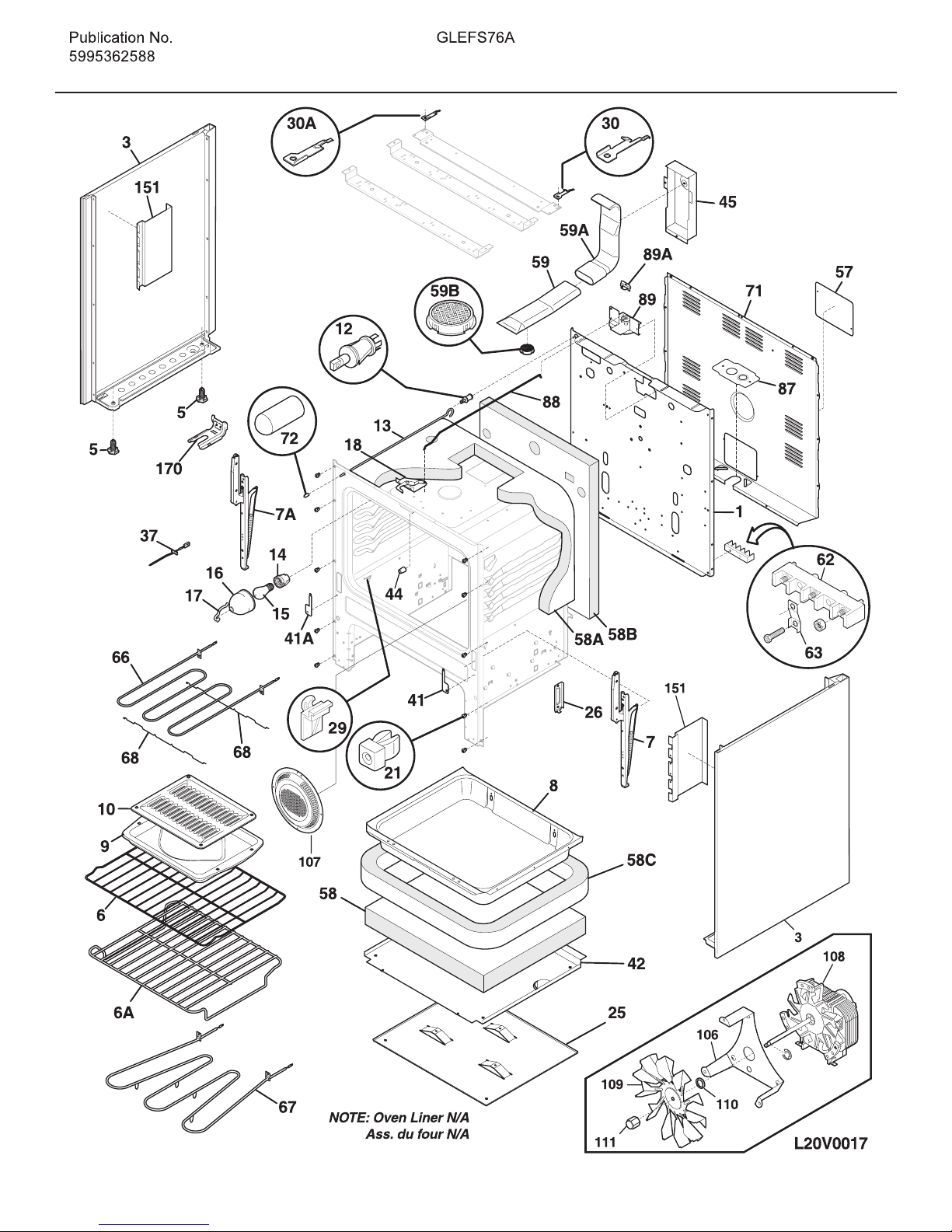

BODY

A = GLEFS76A (GLEFS76ASE)

B = GLEFS76A (GLEFS76AQE)

C = GLEFS76A (GLEFS76AQF)

POS. NO PART NO DESCRIPTION

1 316201300 A B C Back,main

3 316230102 A - - Panel,bodyside ,white ,RH

3 316230103 A - - Panel,bodyside ,white ,LH

3 316230108 - B C Panel,bodyside ,bisque ,RH

3 316230109 - B C Panel,bodyside ,bisque ,LH

5 316129200 A B C Screw,leveling ,plastic ,with stop

6 316067902 A B C Rack,oven

6A 316214401 A B C Rack,oven sump

7 316212900 A B C Hinge,oven door ,RH

7A 316212901 A B C Hinge,oven door ,LH

8 316201501 A B C Panel,sump ,oven bottom

9 316081900 A B C Pan,broiler

10 316082000 A B C Insert,broiler pan

12 # 316027701 A B C Switch,oven light

13 316238800 A B C Rod,light switch

14 316116400 A B C Receptacle,oven light

15 5303013071 A B C Bulb/Lamp,oven light

16 08011086 A B C Lens,oven light ,glass

17 316087500 A B C Retainer,lens

18 # 316213900 A B C Latch,oven door

21 3014099 A B C Spacer,bodyside

25 3200848 A B C Shield,heat ,lower

26 316206300 A B C Support,chassis ,(2)

29 3051162 A B C Glide,drawer ,front

30 316217700 A B C Bracket,hinge ,RH ,main top

30A 316217701 A B C Bracket,hinge ,LH ,main top

37 # 316233900 A B C Probe,oven temp

41 316233400 A B C Cover,hinge cutout ,RH

41A 316233500 A B C Cover,hinge cutout ,LH

42 316206200 A B C Shield,wool ,lower

44 316246500 A B C Spacer,oven door

45 316234100 A B C Shield,wire ,vent tube

57 316081100 A B C Cover,access

58 316240300 A B C Insulation,oven bottom

58A 316047708 A B C Insulation,2" ,oven wrapper

58B 316240102 A B C Insulation,oven back

58C 316240400 A B C Insulation,oven sump

59 316208200 A B C Tube,oven vent ,lower

59A 316208300 A B C Tube,oven vent ,upper

59B 316247300 A B C Catalyst,oven vent ,ceramic

62 # 5303935061 A B C Terminal Block Kit

62* 316085600 A B C Insulator

62* 5303308427 A B C Nut,hex ,10-32

63 5301145190 A B C Plate,grounding strap

66 # 316203200 A B C Element,broil

67 # 316225000 A B C Element,bake

68 316203400 A B C Support,broil element

71 316015810 A B C Shield,rear wall ,galv steel

72 316234500 A B C Cover,rod end ,light switch

87 316081200 A B C Bracket,cable mtg

88 316203500 A B C Rod,auto latch

89 # 316135202 A B C Motor,latch/lock

89A 316245800 A B C Bracket,latch ,rear

106 316026600 A B C Bracket,motor mtg

107 316026701 A B C Cover,fan

108# 316136300 A B C Motor,fan

109 316136400 A B C Blade,fan

110 316136500 A B C Washer,fan motor

111 316136600 A B C Nut,fan retainer

BODY

12/01 6

BODY

A = GLEFS76A (GLEFS76ASE)

B = GLEFS76A (GLEFS76AQE)

C = GLEFS76A (GLEFS76AQF)

POS. NO PART NO DESCRIPTION

151 316239300 A B C Shield,bodyside

170 5303935180 A B C Anti-tip Kit,w/bracket,screw

170* 316107200 A B C Bracket,anti-tip

170* 316112500 A B C Template,anti-tip

170* 316116000 A B C Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* # 316253205 A B C Wiring Harness,main

* 316231800 A B C Cover,hole ,conv. element

* 5303305324 A - - Paint,touch-up ,white

* 5304414035 - B C Paint,touch-up ,bisque

* 316021108 A B C Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303271648 A B C Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 A B C Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 A B C Screw,wafer head ,8-32T x 0.500 ,black

* 5308014215 A B C Screw,6-20 x 0.312

BODY

12/01 8

TOP/DRAWER

A = GLEFS76A (GLEFS76ASE)

B = GLEFS76A (GLEFS76AQE)

C = GLEFS76A (GLEFS76AQF)

POS. NO PART NO DESCRIPTION

1 316011503 A B C Drawer

2 316231500 A B C Liner,drawer

4 316231305 A - - Panel,drawer ,white

4 316231309 - B C Panel,drawer ,bisque

7 3051163 A B C Glide,drawer ,rear

15 # 316010206 A B C Element,surface ,8" ,2200 W ,radiant

15A# 316010205 A B C Element,surface ,6" ,1200 W ,radiant

15B# 316224200 A B C Element,surface ,9" ,2500W ,radiant

16 316251942 A - - Main Top Assy,glass/steel ,white

16 316251943 - B C Main Top Assy,glass/steel ,bisque

18 316235900 A B C Hinge,main top ,RH

18A 316235901 A B C Hinge,main top ,LH

26 316230200 A B C Channel,element support ,(2)

26A 316099200 A B C Bracket,chassis support ,rear

26B 316214200 A B C Bracket,chassis support ,front

52 316099400 A B C Clip,element mtg

88 316099500 A B C Pin,guide ,(2)

* # 316253513 A B C Wiring Harness,surface element

* 316112101 A B C Cleaner,cooktop

* 316021108 A B C Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 A B C Screw,8-18 x 0.5 ,black

* 5303280311 A B C Screw,wafer hd sq dr ,10-32 x 0.312

* 5308014215 A B C Screw,6-20 x 0.312

TOP/DRAWER

12/01 10

DOOR
