Frigidaire FRS23BH6C Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS23BH6CB1 FRS23BH6C R134a black 115

FRS23BH6CS1 FRS23BH6C R134a stainless/black 115

MARKET

North America

Publication No.

5995394490

030821

-EN/SERVICE/DCS

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS23BH6C

ENERGY GUIDE - 240592237

OWNER’S GUIDE - 240389311

SERVICE DATA SHEET - 240389613

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

08/03 2

Publication No. FRS23BH6C

5995394490

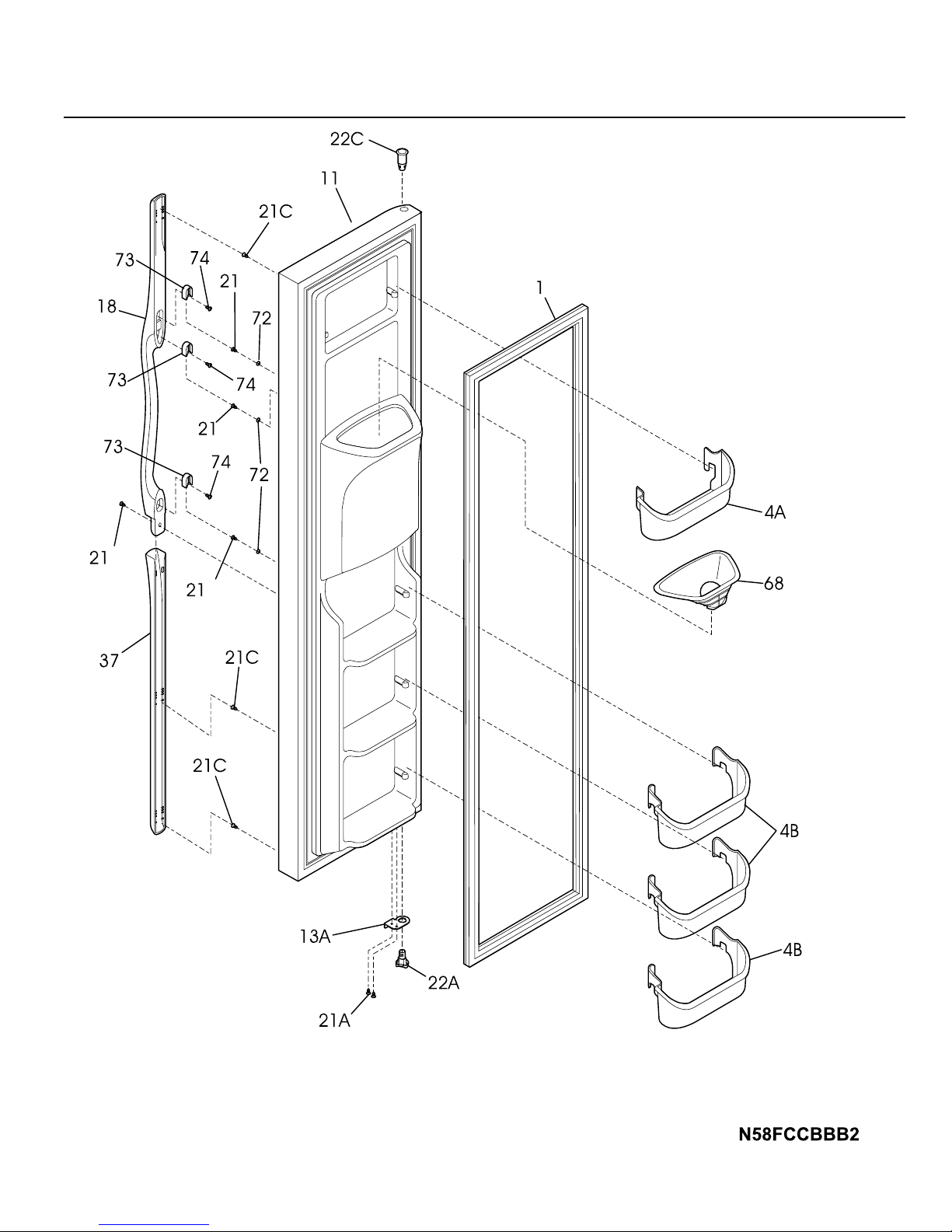

FREEZER DOOR

# = Fast-moving Parts 3 08/03

* = Non-Illustrated Parts

FRS23BH6C Publication No.

5995394490

FREEZER DOOR

A = FRS23BH6C (FRS23BH6CB1)

B = FRS23BH6C (FRS23BH6CS1)

POS. NO PART NO DESCRIPTION

1 # 240390608 A B Gasket-frzr door, black, magnetic

4A 240367301 A B Bin-door, frzr-upper

4B 240359001 A B Bin-door

11 240554221 A - Door-frzr, black ,complete assy

11 240451871 - B Door-frzr, stainless steel, complete assy

13A 240537106 A - Door Stop, black, frzr

13A 240581906 - B Door Stop, black, frzr

18 240359108 A B Handle-door, black, LH

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 5308016566 A - Screw, hex washer head, 8-15A x 0.625, low profile

21A 240598401 - B Screw, 10-32 x 1/2

21C 240521302 A B Screw, #8-18 x 3/4

22A 240328202 A B Bearing-hinge,closer

22C 240328404 A B Bearing-hinge, black, upper

37 240359203 A B Trim-handle, 30.13", black, lower

68 240465801 A B Chute-ice

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

* 240545101 A B Connector-water, straight

* 240552102 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

* 218490900 - B Cleaner, stainless steel

08/03 4

Publication No. FRS23BH6C

5995394490

REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/03

* = Non-Illustrated Parts

FRS23BH6C Publication No.

5995394490

A = FRS23BH6C (FRS23BH6CB1)

B = FRS23BH6C (FRS23BH6CS1)

POS. NO PART NO DESCRIPTION

2 # 240390607 A B Gasket-refr door, black, magnetic

4 240363702 A B Bin-door, 2-liter

7 240338303 A B Door,dairy, clear

12 240449707 A B Nameplate, black

13 240537105 A - Door Stop, black ,ref

13 240581905 - B Door Stop, black ,ref

15 240451977 A - Door-refr, black ,complete assy

15 240451940 - B Door-refr, stainless steel, complete assy

18 240359103 A B Handle-door, black, RH

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 5308016566 A - Screw, hex washer head, 8-15A x 0.625, low profile

21A 240598401 - B Screw, 10-32 x 1/2

21C 240521302 A B Screw, #8-18 x 3/4

22 240328201 A B Bearing-hinge, closer

22B 240328403 A B Bearing-hinge, upper

37 240359203 A B Trim-handle,30.13" ,black ,lower

49 240324502 A B Bin-door, gallon

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

* 218490900 - B Cleaner, stainless steel

REFRIGERATOR DOOR

08/03 6

Publication No. FRS23BH6C

5995394490

CABINET

# = Fast-moving Parts 7 08/03

* = Non-Illustrated Parts

FRS23BH6C Publication No.

5995394490

A = FRS23BH6C (FRS23BH6CB1)

B = FRS23BH6C (FRS23BH6CS1)

POS. NO PART NO DESCRIPTION

10 240435901 A B Cover-air duct

10A 240475901 A B Cover-evap coil,lower

11 5303208309 A B Plug-hole, factory test

14 # 240505801 A B Switch, light/lamp

14A# 215486600 A B Switch-light/lamp

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020, (2)

30 240419103 A B Bracket-lower hinge, ref

30A 240419104 A B Bracket-lower hinge

37 240337603 A B Trim-cabinet corner, black, (2)

38 240327202 A B Bracket-upper hinge

40 240327007 A B Cover-upper hinge, black

41 240358701 A B Grommet-shelf mtg, 1.40" long

41* 240358801 A B Grommet-shelf mtg, .875" long

42 240578901 A B Screw-hinge mtg, hex head ,1/4-20 x 5/8

43 240335003 A B Roller Assy, front, (2)

45 241500301 A B Screw,hex washer head ,8-18AB x 0.500

47 240349402 A B Channel-shelf mtg, side, (2)

58 218781100 A B Screw, pan head, 8-18 x 0.625

66 240504901 A B Cover-damper

66* 240518802 A B Pin-push,push-in ,plastic

66A 240505001 A B Damper-meat keeper

66B 240355901 A B Insulation-damper

72 240324405 A B Grille/Kickplate,black

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326103 A B Cover, access, system compt, with label

90 218249807 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support,crisper cover ,front ,(4)

100* 240350802 A B Support,crisper cover ,rear ,(4)

150 240368701 A B Guide-control bulb

* 218515401 A B Clip

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes, (2)

* 240481601 A B Shim-lower hinge

* 5303305345 A B Paint, touch-up, black

* 5308016571 A B Plug-button, cab liner holes

CABINET

08/03 8

Publication No. FRS23BH6C

5995394490

SHELVES

# = Fast-moving Parts 9 08/03

* = Non-Illustrated Parts

FRS23BH6C Publication No.

5995394490

A = FRS23BH6C (FRS23BH6CB1)

B = FRS23BH6C (FRS23BH6CS1)

POS. NO PART NO DESCRIPTION

2 240434603 A B Trim-basket

11 240338801 A B Shelf-freezer, flip-up

11B 240338703 A B Shelf-freezer, fixed wire

15A 240436702 A B Light Bulb, A-15, clear, 40 W, 120 V, miniature

16A 241513901 A B Socket-light

16A* 240323102 A B Harness-wiring

24 240355201 A B Shelf-"Spill-Safe”, fixed, (1)

24A 240350103 A B Shelf-"Spill-Safe", sliding, (2)

24B 240424603 A B Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240354502 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240354602 A B Cover-crisper pan, lower

26 240354705 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240351101 A B Control-humidity

27 240354805 A B Pan-crisper, lower

39 240430705 A B Trim-shelf, front

39A 240430701 A B Trim-shelf, front

42 240356501 A B Track,meat pan hanger, RH

42A 240349701 A B Hanger-meat pan, LH

42A* 240349901 A B Block-meat pan rail, LH

42A* 240350001 A B Spring-meat pan rail

47 240350613 A B Insert-pan cover, glass

47A 240350614 A B Insert-pan cover, glass

49 240564301 A B Basket-sliding

49B 240530503 A B Basket-sliding,upper ,full

51 240343002 A B Hanger-basket,RH

52 240343102 A B Hanger-basket,LH

62 240355505 A B Pan-meat

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B Water Tank Assy, coiled tubing, front filter

100 240326301 A B Cover-water tank

101 218493100 A B Screw,hex washer head ,8-18AB x 1-3/4

109 240351301 A B Base-crisper light socket

120 240342902 A B Shelf-ice cream

123 215005100 A B Screw,hanger/rlr mtg ,8-10 x 0.438

126 218867405 A B Channel, auger mtg, LH

126 218867406 A B Channel, auger mtg, RH

136 240424502 A B Dispenser-can,clear

140 240430501 A B Channel, wtr tube cover

* 240592237 A B Energy Guide

SHELVES

08/03 10

Publication No. FRS23BH6C

5995394490

CONTROLS
