Frigidaire FRS24MWG Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS24MWGW3 FRS24MWG R134a System white 115

MARKET

North America

Publication No.

5995324992

990618

-EN/SERVICE /ECL

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS24MWG

FACTORY PARTS CATALOG

SIDE BY SIDE

REFRIGERATOR

WIRING DIAGRAM - # 218682800

OWNER’S GUIDE - # 218870500

SERVICE DATA SHEET - # 218905000

101 Masters Blvd.

Anderson, SC 29624

06/99 2

Publication No. FRS24MWGW3

5995324992

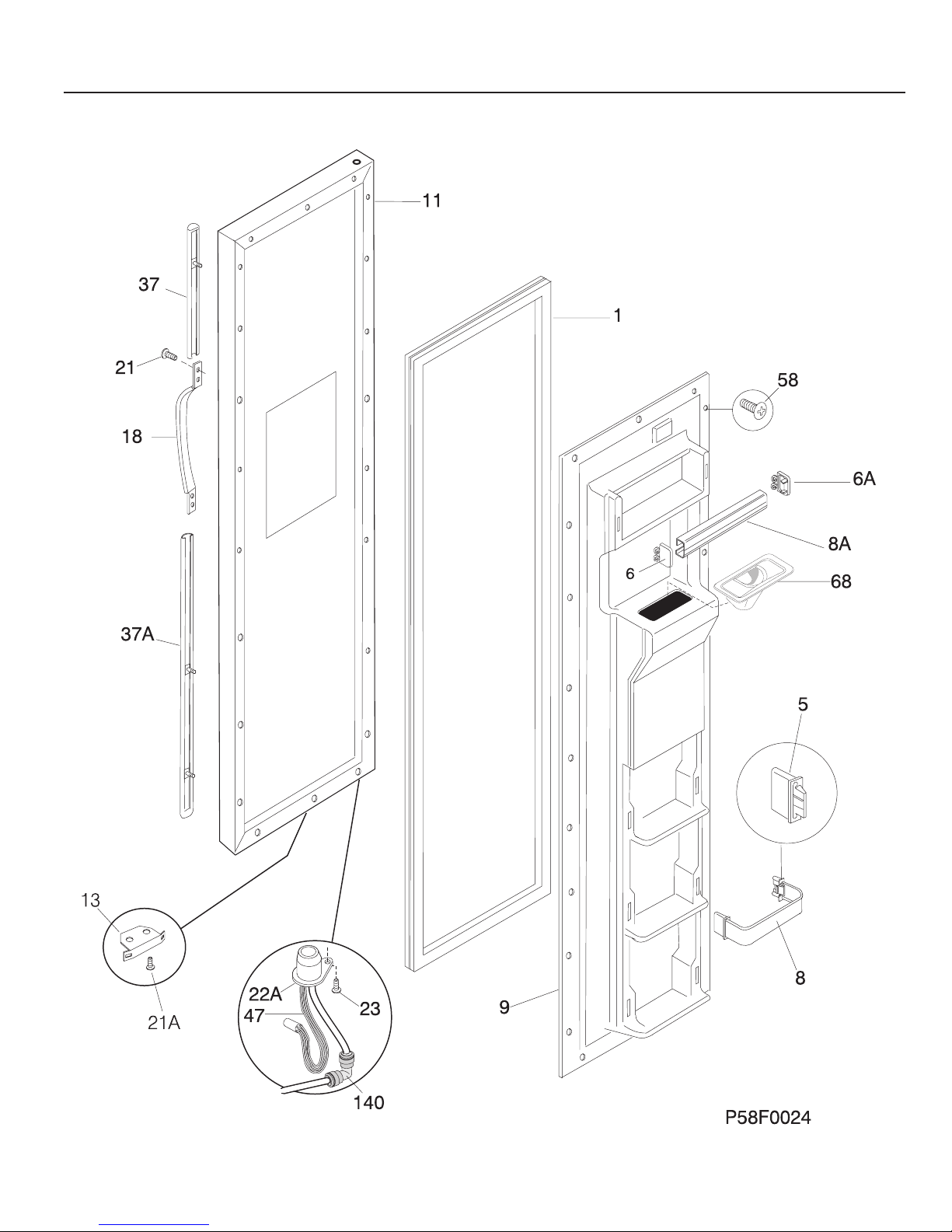

FREEZER DOOR

# = Fast-moving Parts 3 06/99

* = Non-Illustrated Parts

FRS24MWGW3 Publication No.

5995324992

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 215734313 Gasket-frzr door,white ,magnetic

5 5303288950 Support-door rack,RH/LH

6 5303323484 Support-door rack,white ,LH

6A 5303323485 Support-door rack,white ,RH

8 218807004 Rack-door,w/end caps

8A 215474025 Rack-door

9 218510601 Panel-inner door,frzr

11 5303918095 Panel-ext frzr door white,white ,w/foam insulatn

13 5303289522 Door Stop

18 218762703 Handle-door,black

21 218886801 Screw-8-32 X 1/2 #10 Truss ca,8 32 x 1/2 #10

21A 218578600 Screw-door stop mtg,phl truss hd ,10-16 x 3/4

22A 215615300 Bushing-door,bronze

23 5303001020 Screw,cr flat head ,8-32D x 1/2

37 215867093 Trim-handle,black ,upper ,w/chrome band

37A 215867092 Trim-handle,black ,lower ,w/chrome band

37A* 215782300 • Lock-handle trim,snap-in

37A* 215940700 • Lock-handle trim,stick-on

37A* 218676001 • Band-decorative,chrome ,handle trim

47 218895301 Harness-wiring,frzr door

58 218781100 Screw,pan head ,8-18 x 0.625

68 218020600 Chute-ice

140 218518700 Elbow-water tube

* 5303917276 Insulation-door,fiberglass ,(bulk)

06/99 4

Publication No. FRS24MWGW3

5995324992

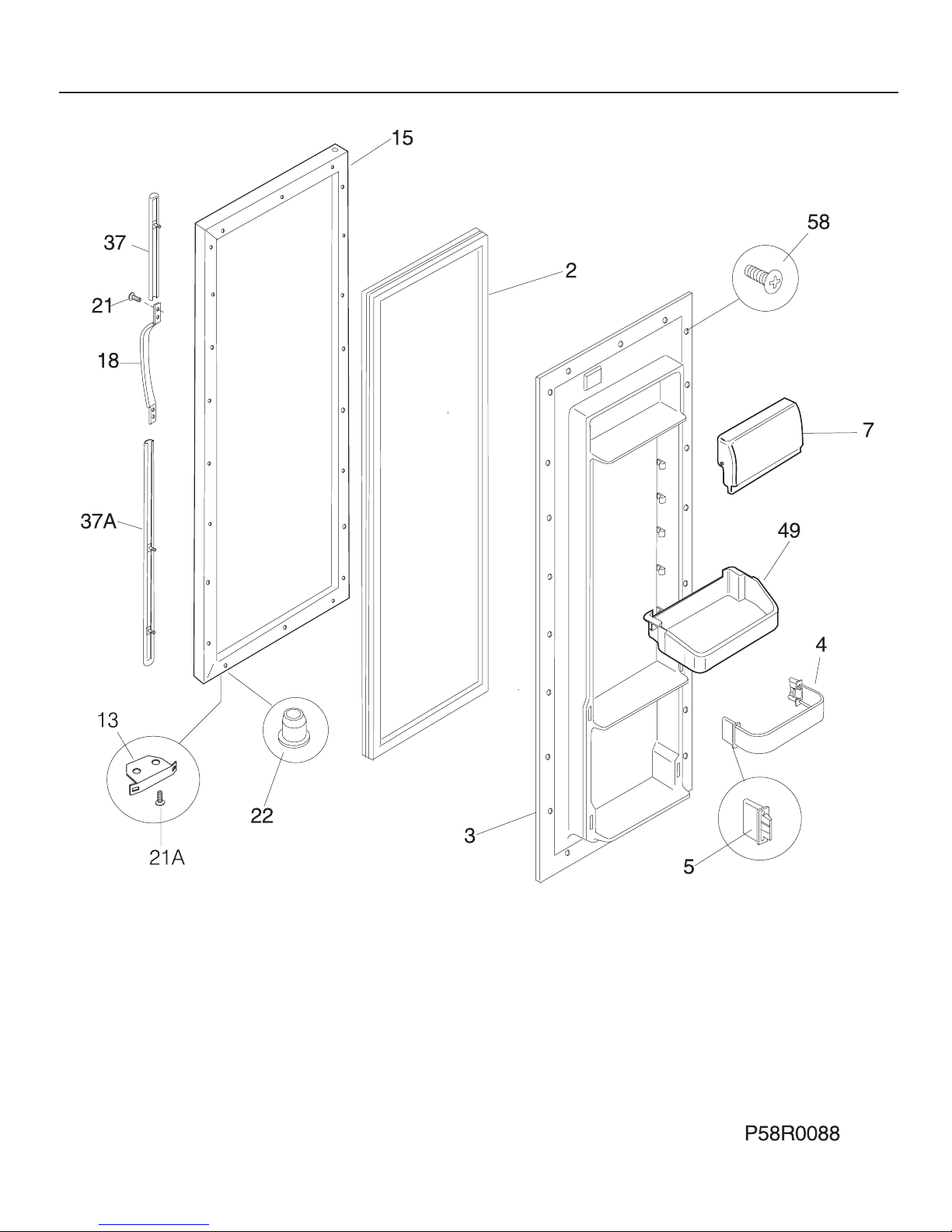

REFRIGERATOR DOOR

# = Fast-moving Parts 5 06/99

* = Non-Illustrated Parts

FRS24MWGW3 Publication No.

5995324992

POS. NO PART NO DESCRIPTION

2 # 215734314 Gasket-refr door,white ,magnetic

3 215390401 Panel-inner door,refr

4 218807002 Rack-door,w/end caps

5 5303288950 Support-door rack,RH/LH

7 5303308608 Door-dairy

13 5303289522 Door Stop

15 5303917498 Panel-refr door,white ,w/foam insulatn

18 218762703 Handle-door,black

21 218886801 Screw-8-32 X 1/2 #10 Truss ca,8 32 x 1/2 #10

21A 218578600 Screw-door stop mtg,phl truss hd ,10-16 x 3/4

22 5303289320 Bearing-hinge

37 215867093 Trim-handle,black ,upper ,w/chrome band

37A 215867092 Trim-handle,black ,lower ,w/chrome band

37A* 215782300 • Lock-handle trim,snap-in

37A* 215940700 • Lock-handle trim,stick-on

37A* 218676001 • Band-decorative,chrome ,handle trim

49 215441608 Bin-door,gallon

58 218781100 Screw,pan head ,8-18 x 0.625

* 5303917276 Insulation-door,fiberglass ,(bulk)

REFRIGERATOR DOOR

06/99 6

Publication No. FRS24MWGW3

5995324992

CABINET

# = Fast-moving Parts 7 06/99

* = Non-Illustrated Parts

FRS24MWGW3 Publication No.

5995324992

POS. NO PART NO DESCRIPTION

10 215637602 Cover-air duct

10* 5303209814 Nut,"U" type ,8-15(A) ,fan mtr mtg

10A 215637401 Cover-evap coil,lower

11 5303208309 Plug-hole,factory test

12 215230400 Plug-harness hole

18 5303289043 Support-air duct cvr,2.55" long

18* 5303289044 Support-air duct cvr,1.83" long

28 5303289062 Bolt-roller adj,hex head ,5/16-24 x 7/8

29 215314301 Washer,.40 x .75 x .06 ,nylon

29* 215598900 Washer-flat,.691x1x.05,zinc ,I&W hinge brkt

29* 218871201 Washer,nylon ,0.363 ID w/nibs

30 5303289060 Bracket-lower hinge,RH ,w/hinge pin

30* 218730800 Tapping Plate,RH

30A 215009000 Bracket-lower hinge,LH ,w/hinge pin

30A* 218730700 Tapping Plate,LH

37 5303321081 Trim-cabinet corner,white

38 218215213 Bracket-upper hinge,with closer ,white ,RH

38 218215215 Bracket-upper hinge,with closer ,white ,LH

40 5303318773 Cover-upper hinge,white

41 5303001609 Grommet,shelf/rod mtg ,RH

41* 5308009759 Grommet,shelf mtg ,LH

43 218615300 Roller Assy,front ,(2)

43* 5308017044 Screw-roller mtg,spcl ind hex hd ,5/16-18(23)x7/8

44 218738300 Roller Assy,rear ,(2)

47 218659500 Channel-shelf mtg,side ,(2)

52 215454600 Tube-water inlet

58 5308002748 Screw,hex wshr hd ,8-15A x 0.500 ,special

66 215050201 Damper-meat keeper

66A 218171301 Cover-meat kpr dmpr

71 218515401 Clip-grille

72 218359609 Grille/Kickplate,black

77 5303001216 Washer-nylon,3/16 x 5/8 OD

78 5303274237 Screw-bracket,hex wshr hd ,8-32CA x 0.500

80 218249802 Seal-coil cover,(2)

80* 5303289036 Gasket-coil cover,(2)

80* 5303289037 Gasket-air duct cvr,(2)

81 5308016566 Screw,hex wshr hd ,8-15A x 0.625 ,low profile

85 218359805 Cover-lower hinge,black

89 215176300 Cover-machine compt

90 215022602 Seal-foam

90* 5303322647 Tape-foam

91 218770000 Deflector-air,air duct cover

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 5303288973 Support-pan cover

101 215305702 Seal-foam

101* 218663103 Gasket-air duct cvr

* 218902101 Cap-protector, lower hinge

* 5303305324 Paint,touch-up ,white

* 5308016571 Plug-button,cab liner holes

CABINET

06/99 8

Publication No. FRS24MWGW3

5995324992

SHELVES

# = Fast-moving Parts 9 06/99

* = Non-Illustrated Parts

FRS24MWGW3 Publication No.

5995324992

POS. NO PART NO DESCRIPTION

2 5303298147 Trim-basket

11 218298003 Shelf-freezer,sliding ,wire

11A 5304405879 Shelf-freezer,fixed wire

11A* 218159700 Spacer-shelf

24 215919139 Frame-refr shelf,cantilever

25 218147701 Cover-storage pan

25* 5303307878 Trim-storage pan cvr,upper ,w/humidity hole

25* 5303308340 Control-humidity

25A 218015302 Trim-storage pan cvr,snap-on ,front

25C 218015402 Trim-storage pan cvr,snap-on ,rear

26 5303289500 Pan-storage,upper

26A 5303289501 Pan-storage,lower

28 08013638 End Cap-shelf,protector ,lower fzr shelf

29 215919415 Trim-refr shelf,front ,(3)

39 215217543 Trim-frzr shelf

39A 215217558 Trim-frzr shelf

41 215919815 Trim-refr shelf,rear

42 215002301 Hanger-pan/tray,LH

42* 215002401 Hanger-pan/tray,RH

46 5303308604 Front-storage pan,upper

46A 5303308605 Front-storage pan,lower

47 5303289387 Insert-pan cover,glass ,clear

47A 215723552 Insert-pan cover,glass ,clear

49 5303296573 Basket-sliding

51 5303296575 Hanger-basket,RH

52 215162502 Hanger-basket,LH,with spring

57 5303271653 Ferrule-inner

62 5303289517 Tray-deli

67 5303308609 Front-deli tray

81 5308016566 Screw,hex wshr hd ,8-15A x 0.625 ,low profile

96 215192600 Support-water tank

97 218871301 Water Tank

100A 218015501 Support-pan cover,LH

100B 218015601 Support-pan cover,RH

101 215005000 Screw,hex wshr hd ,8-18AB x 0.750 ,gusset/hanger

123 215005100 Screw-roller/hanger,8-10 x 0.438

126 218867401 Channel,auger mtg ,LH

126 218867402 Channel,auger mtg ,RH

* 215328300 Clip-shelf

* 5303001038 Washer,.28 x .62 x .19 ,nylon

SHELVES

06/99 10

Publication No. FRS24MWGW3

5995324992

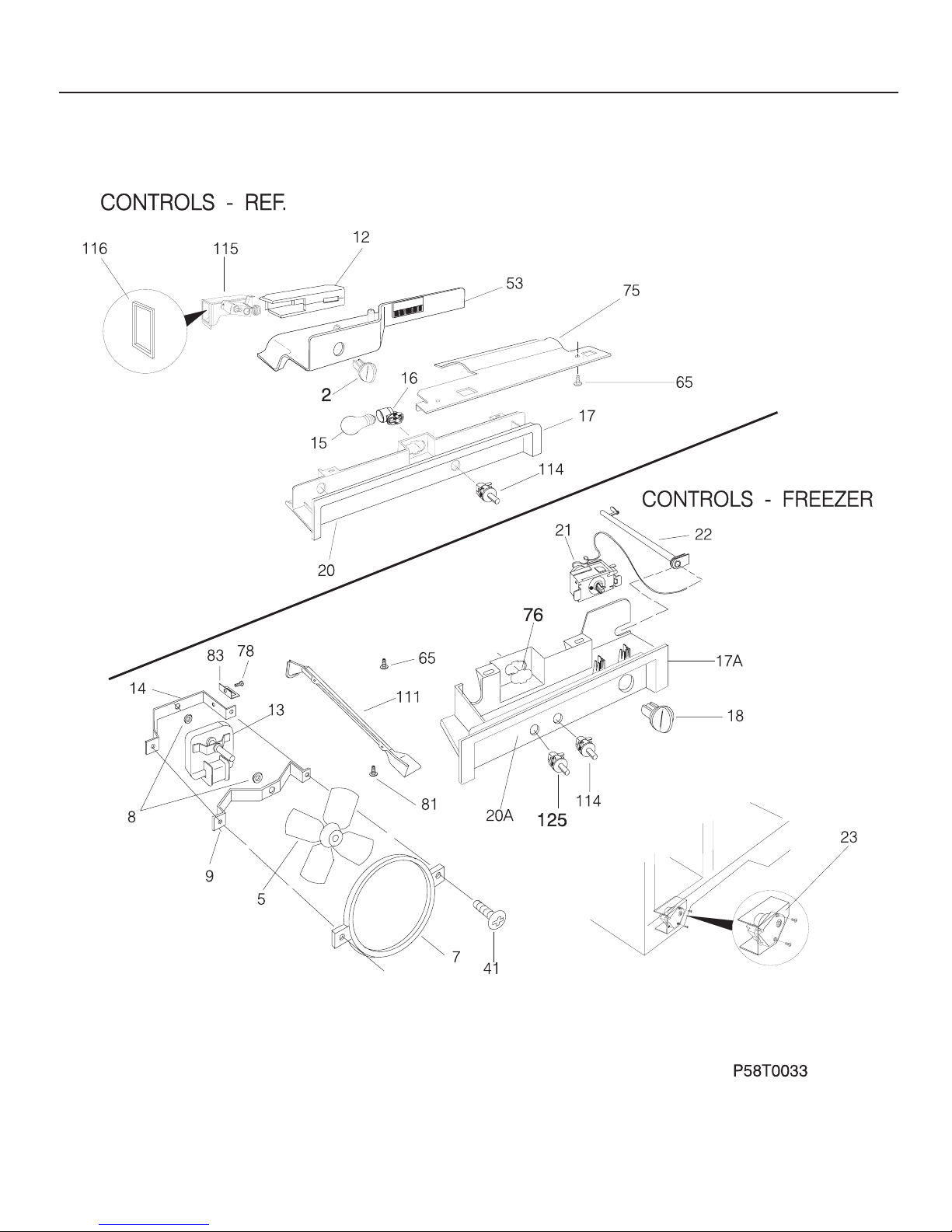

CONTROLS
