Frigidaire FRS26W2BS Manuale utente

Product No. FRS26W2BSB7

Series R134a

Color stain/blk

Volts 115

Wiring Diagram 241526901

Owner's Guide 240389311

Market North America

Energy Guide 218791402

Service Data Sheet 240389616

N58L00001.eps N58FACBBB4.eps N58RACBBB6.eps N58BAAAAA0.eps

N58SACACF2.eps N58TAAAAC3.eps N58CAAAAA4.eps N58XCAAAA0.eps

N58YCAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995417267

04/09/28

(EN/SERVICE/WC)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS26W2BS

Publication No: 5995417267 FRS26W2BSB7

09/04 2

FREEZER DOOR

FRS26W2BSB7 Publication No: 5995417267

# Functional Parts 3 09/04

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 240390606 Gasket-frzr door, black, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

11 240554261 Door-frzr, stainless, complete assy

13A 240581906 Door Stop, black, frzr

18 218762703 Handle-door, black

21A 240598401 Screw, 10-32 x 1/2

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21C 218781100 Screw, pan head, 8-18 x 0.625

22A 240328204 Bearing-hinge(frz), black, closer

22C 240328404 Bearing-hinge, black, upper

37 218811620 Trim-handle, black, upper

37* 218676004 Band-decorative, satin aluminum, handle trim

37A 218811617 Trim-handle, black, lower

37A* 215782300 Lock-handle trim, snap-in

68 241525101 Chute-ice

* 218490901 Cleaner, stainless steel

* 240352102 Connector-water, straight

* 240552101 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995417267 FRS26W2BSB7

09/04 4

REFRIGERATOR DOOR

FRS26W2BSB7 Publication No: 5995417267

# Functional Parts 5 09/04

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 240390605 Gasket-refr door, black, magnetic

4 240323001 Bin-door, pseudo, bottom

7 240326203 Door-dairy

13 240581905 Door Stop, black, ref

15 240451998 Door-refr, stainless steel, complete assy

18 218762703 Handle-door, black

21A 240598401 Screw, 10-32 x 1/2

21C 218781100 Screw, pan head, 8-18 x 0.625

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

37 218811620 Trim-handle, black, upper

37* 218676004 Band-decorative, satin aluminum, handle trim

37A 218811617 Trim-handle, black, lower

37A* 215782300 Lock-handle trim, snap-in

49 240356401 Bin-door, gallon

* 218490901 Cleaner, stainless steel

Publication No: 5995417267 FRS26W2BSB7

09/04 6

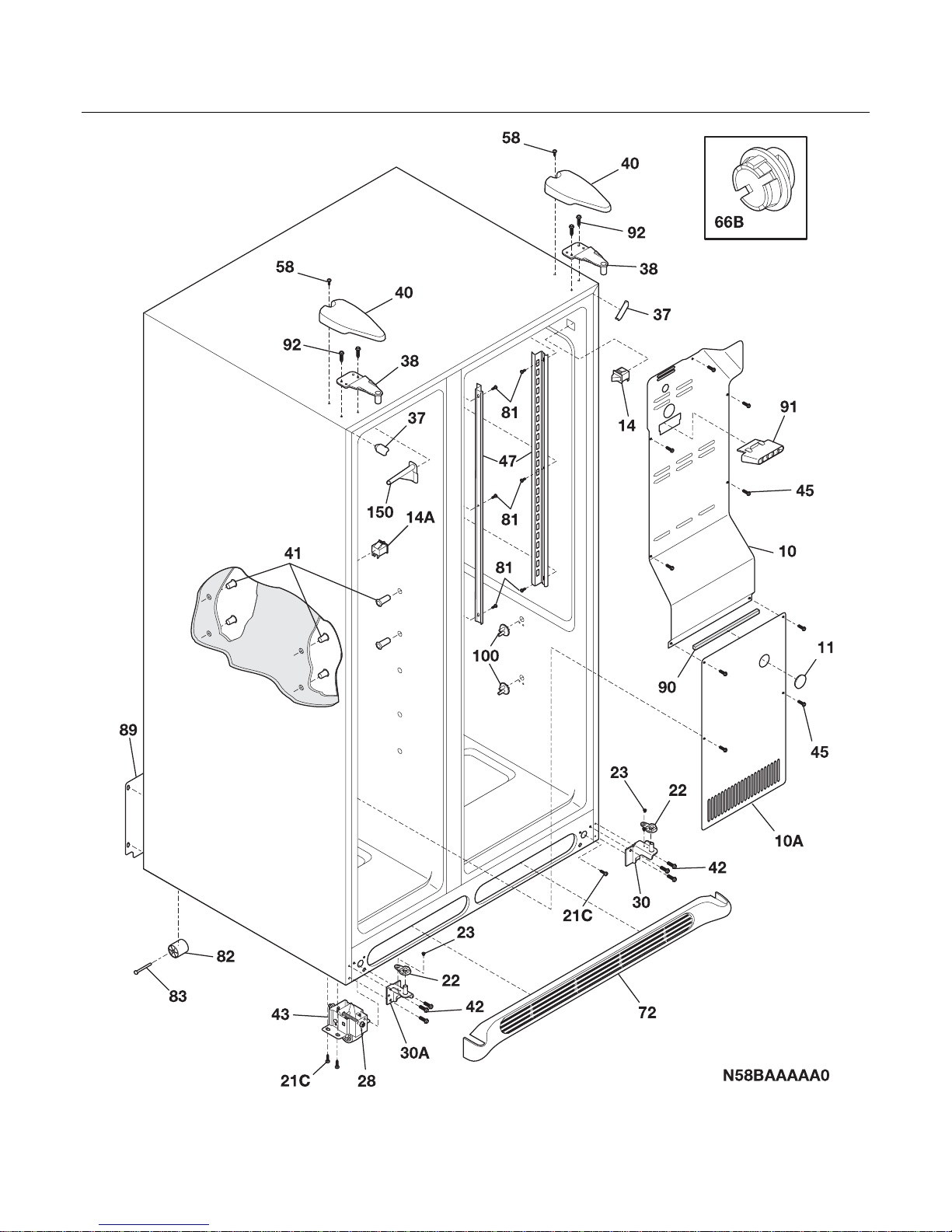

CABINET

FRS26W2BSB7 Publication No: 5995417267

# Functional Parts 7 09/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435906 Cover-air duct

10A 240475907 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419101 Bracket-lower hinge, ref

30A 240419102 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327201 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324406 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326104 Cover, access, system compt, with label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes, (2)

* 240481601 Shim-lower hinge

* 5303305345 Paint, touch-up, black

Publication No: 5995417267 FRS26W2BSB7

09/04 8

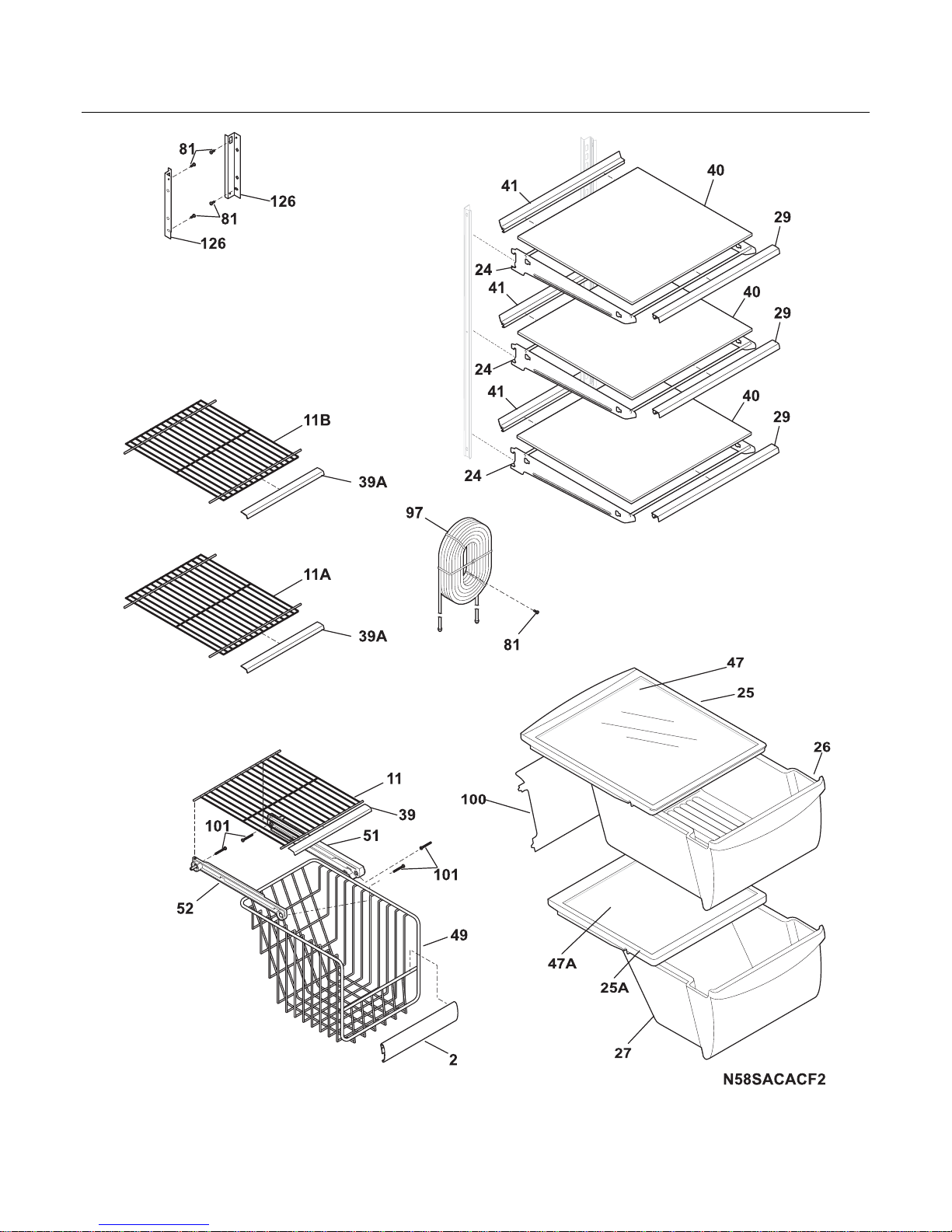

SHELVES

FRS26W2BSB7 Publication No: 5995417267

# Functional Parts 9 09/04

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 240434604 Trim-basket

11 240338802 Shelf-freezer, flip-up

11A 240338702 Shelf-freezer, fixed wire

11B 240338704 Shelf-freezer, fixed wire

24 240373108 Frame-shelf, cantilever

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351007 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

27 240351207 Pan-crisper, lower

29 240357706 Trim-shelf, front

39 240430706 Trim-shelf, 11.21", front

39A 240430702 Trim-shelf, 12.39", front

40 240350623 Glass-shelf, 16.76" x 17.60"

41 240357806 Trim-shelf, rear

47 240350649 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240530402 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545301 Water Tank Assy, coiled tubing, no filter

100 240326302 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

126 218867405 Channel, auger mtg, LH

126 218867406 Channel, auger mtg, RH

Publication No: 5995417267 FRS26W2BSB7

09/04 10

CONTROLS

115

101

21A 21

149

N58TAAAAC3
