Frigidaire PLHS268ZC Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

PLHS268ZCB0 PLHS268ZC R134a Professio stainless/black 115

MARKET

North America

Publication No.

5995380614

021031

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

PLHS268ZC

WIRING DIAGRAM - 240389608

OWNER’S GUIDE - 240389309

SERVICE DATA SHEET - 240389608

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

10/02 2

Publication No. PLHS268ZCB0

5995380614

FREEZER DOOR

# = Fast-moving Parts 3 10/02

* = Non-Illustrated Parts

PLHS268ZCB0 Publication No.

5995380614

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 240390606 Gasket-frzr door,black ,magnetic

4A 240334206 Bin-door,frzr-upper

4B 240351606 Bin-door

4C 240351706 Bin-door,frzr-dispenser

11 240451873 Door-frzr,stainless steel, complete assy

13A 240537106 Door Stop, black, frzr

18 240536801 Handle-door, stainless steel, with insert

21A 5308016566 Screw, hex wshr hd ,8-15A x 0.625, low profile

22A 240561602 Bearing-hinge,closer

22C 240328404 Bearing-hinge,black ,upper

68 240467701 Chute-ice

79 218755402 Screw-set,10-32 x 0.375

80 218755503 Screw-shoulder,#10 AB ,handle mounting

* 218490900 Cleaner,stainless steel

* 240470401 Connector-amp

* 240545101 Connector-water,straight

* 5303918256 Dispenser heater kit

* 240552102 Harness-wiring,door

10/02 4

Publication No. PLHS268ZCB0

5995380614

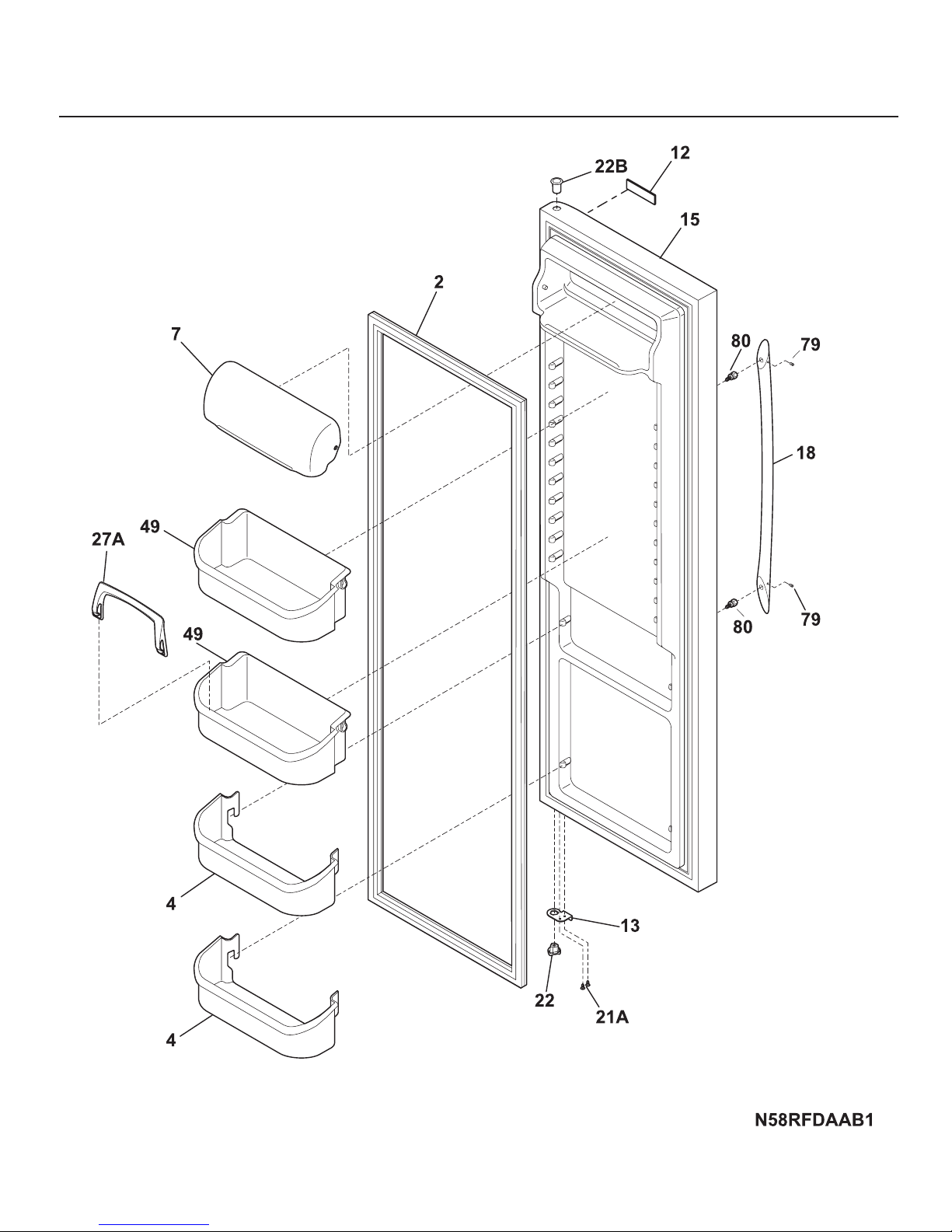

REFRIGERATOR DOOR

# = Fast-moving Parts 5 10/02

* = Non-Illustrated Parts

PLHS268ZCB0 Publication No.

5995380614

POS. NO PART NO DESCRIPTION

2 240390605 Gasket-refr door,black ,magnetic

4 240323006 Bin-door,2 ltr

7 240326209 Door-dairy,aeg aqua

12 240558801 Nameplate,aluminum

13 240537105 Door Stop,black ,ref

15 240451941 Door-refr, stainless steel, complete assy

18 240536801 Handle-door, stainless steel, with insert

21A 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile

22 240561601 Bearing-hinge,closer

22B 240328403 Bearing-hinge,upper

27A 240396105 Retainer,tall bottle

49 240430307 Bin-door,gallon

79 218755402 Screw-set,10-32 x 0.375

80 218755503 Screw-shoulder,#10 AB ,handle mounting

* 218490900 Cleaner,stainless steel

REFRIGERATOR DOOR

10/02 6

Publication No. PLHS268ZCB0

5995380614

CABINET

# = Fast-moving Parts 7 10/02

* = Non-Illustrated Parts

PLHS268ZCB0 Publication No.

5995380614

POS. NO PART NO DESCRIPTION

10 240435902 Cover-air duct

10A 240475902 Cover-evap coil,lower

11 5303208309 Plug-hole,factory test

14 240505801 Switch,light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj,hex wshr hd,1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner,black ,(2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge,black

41 240358701 Grommet-shelf mtg,1.40" long

41* 240358801 Grommet-shelf mtg,.875" long

42 240315301 Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 Roller Assy,front ,(2)

45 241500301 Screw,hex washer head ,8-18AB x 0.500

47 240349401 Channel-shelf mtg,side ,(2)

58 218749600 Screw,#10 pan hd ,8-18 x .5

66 240504901 Cover-damper

66* 240518802 Pin-push,push-in ,plastic

66A 240505001 Damper-meat keeper

66B 240355901 Insulation-damper

72 240324406 Grille/Kickplate,black

81 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet, flat hd, 1/4 OD x 1-3/4, roller pin

89 240326104 Cover, access , system compt, with label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 5303001479 Screw-hinge mtg, hex hd, 1/4-20 x 0.875

100 240423701 Support,crisper cover ,front ,(4)

100* 240350802 Support,crisper cover ,rear ,(4)

150 240368701 Guide-control bulb

* 218515401 Clip

* 240396801 Clamp,tube/wiring ,nylon ,black/natural

* 240479601 Plug,button ,cab liner holes

* 240481601 Shim-lower hinge

* 5303305345 Paint,touch-up ,black

CABINET

10/02 8

Publication No. PLHS268ZCB0

5995380614

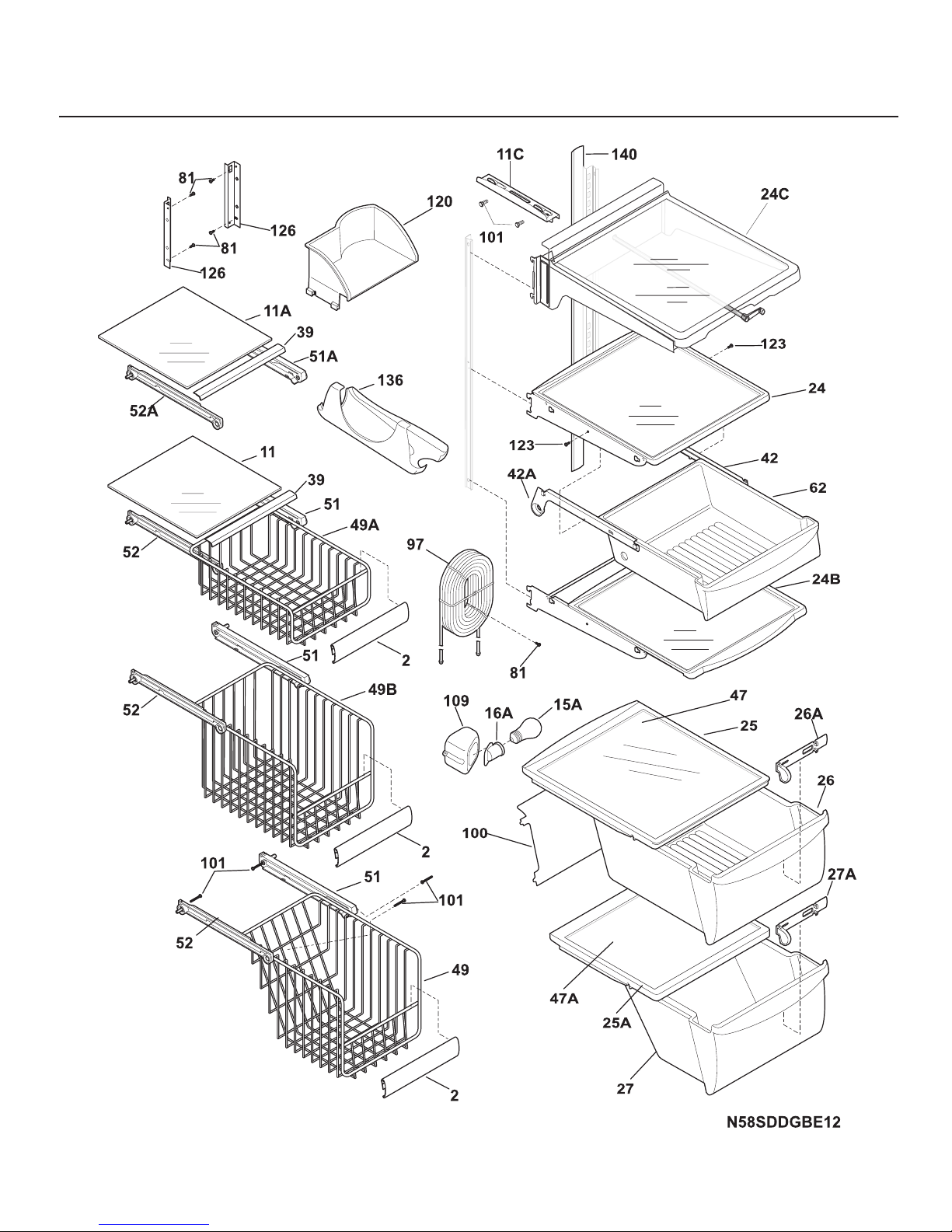

SHELVES

# = Fast-moving Parts 9 10/02

* = Non-Illustrated Parts

PLHS268ZCB0 Publication No.

5995380614

POS. NO PART NO DESCRIPTION

2 240434604 Trim-basket

11 240350668 Shelf-freezer, glass, lower

11A 240350667 Shelf-freezer, glass, upper

11C 240324101 Shelf-pizza

15A 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16A 218906801 Socket-light/lamp

* 240323102 Harness-wiring

24 240355203 Shelf-"Spill-Safe",fixed

24B 240350106 Shelf-"Spill-Safe", cantilever, sliding

24C 240424602 Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240350702 Cover-crisper pan,upper

25* 240362101 Clip-slide,cover-crisper

25A 240350902 Cover-crisper pan,lower

26 240351018 Pan-crisper,upper

26* 240349801 Clip-slide,pan-crisper

26* 240423101 Channel-divider

26* 240423204 Retainer-crisp pan divider

26* 240423304 Divider-crisper pan

26A 240422904 Control-humidity

27 240351215 Pan-crisper,lower

27A 240362205 Control-humidity

39 240367602 Trim-shelf,front

42 240356501 Track,meat pan hanger ,RH

42A 240349701 Hanger-meat pan,LH

42A* 240349901 Block-meat pan rail,LH

42A* 240350001 Spring-meat pan rail

47 240350602 Insert-pan cover,glass

47A 240350603 Insert-pan cover,glass

49 240530402 Basket-sliding

49A 240530502 Basket-sliding,upper ,half

49B 240530504 Basket-sliding,upper ,full

51 240343002 Hanger-basket,RH

51A 240395502 Hanger-basket,RH

52 240343102 Hanger-basket,LH

52A 240395602 Hanger-basket,LH

62 240342813 Pan-meat

81 5308016566 Screw,hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy,coiled tubing, front filter

100 240326302 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

101* 215005000 Screw, hex wshr hd, 8-18AB x 0.750, gusset/hanger

109 240351301 Base-crisper light socket

120 240342905 Shelf-ice cream

123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438

126 218867401 Channel,auger mtg ,LH

126 218867402 Channel,auger mtg ,RH

136 240424505 Dispenser-can,auqa

140 240430501 Channel,wtr tube cover

* 240465050 Energy Guide

SHELVES

10/02 10

Publication No. PLHS268ZCB0

5995380614

CONTROLS
