Frigidaire FRT18HS7J Manuale di istruzioni

N05L00003.eps N05DCDBBA11.eps N05BBAABA17.eps N05SAAAFI21.eps

N05CAABAD4.eps W241582401.eps S241582801.eps

Product No. FRT18HS7JS0

Series R134a

Color stainless

Volts 115

Wiring Diagram 241582401

Owner's Guide 241857201

Market North America

Energy Guide 241935580

Service Data Sheet 241588203

Installation Instructions 240568303

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995533121

09/02/11

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18HS7J

Publication No: 5995533121 FRT18HS7JS0

02/09 2

DOOR

21 14B

14B

13A

48A

21C

18A

N05DCDBBA11

FRT18HS7JS0 Publication No: 5995533121

# Functional Parts 3 02/09

* Non-Illustrated Parts

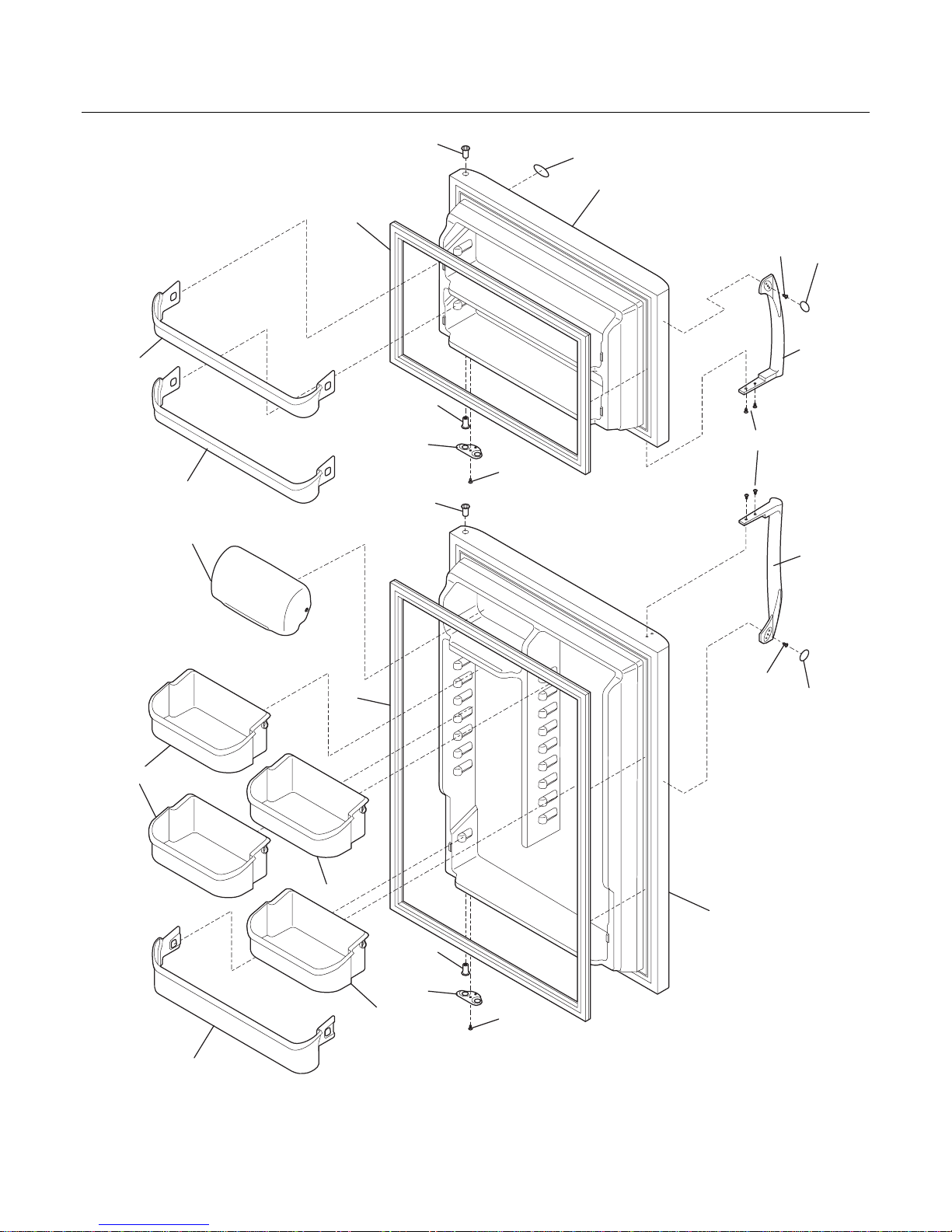

DOOR

POS. NO PART NO. DESCRIPTION

1 # 241872509 Gasket-frzr door, black, magnetic

2 # 241872512 Gasket-refr door, black, magnetic

7 240338313 Door, dairy, clear

11 241623305 Door, frzr, stainless, RH, complete assy

12 241808601 Label-nameplate

13 240312405 Door Stop, black, refr

13A 240312406 Door Stop, black, frzr

14B 240383603 Plug-button, black, door handle

15 241623405 Door, refr, stainless steel, stainless, RH

18 240339203 Handle-door, black, refr-LH/frzr-RH

18A 240339208 Handle-door, black, refr-RH/frzr-LH

21 240383406 Screw, truss hd quad, #10-16 x .500, zinc

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 Bearing-hinge, black

48 240338101 Bin-door, pseudo, bottom

48A 240338201 Bin-door, gallon, white

49 240495804 Bin-door, pseudo, frzr

Publication No: 5995533121 FRT18HS7JS0

02/09 4

CABINET

FRT18HS7JS0 Publication No: 5995533121

# Functional Parts 5 02/09

* Non-Illustrated Parts

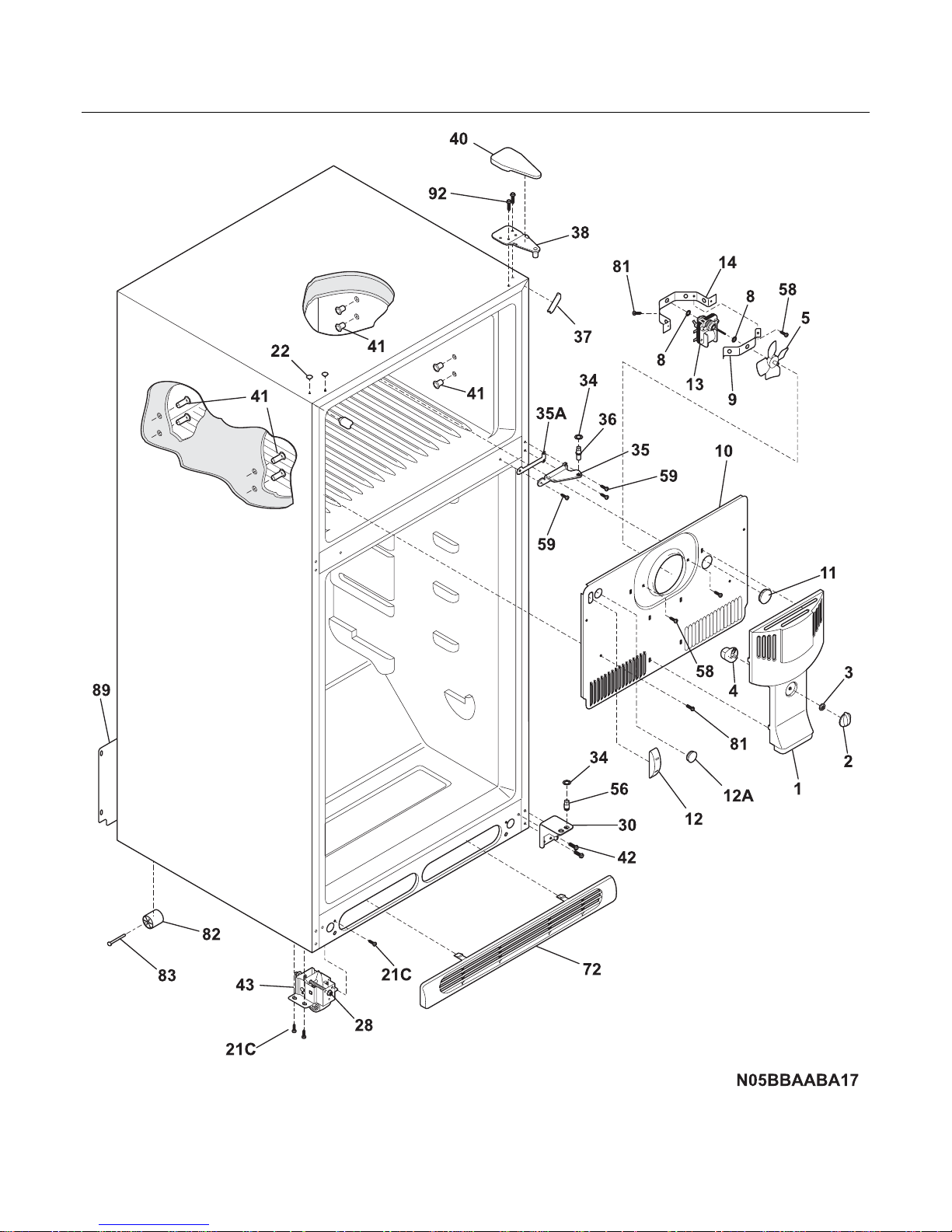

CABINET

POS. NO PART NO. DESCRIPTION

1 241652301 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 241652214 Cover-evap coil

10* 240568601 Seal-coil cover

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13 # 241854301 Motor-fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433204 Screw, hex washer head, 8-18 x 5/16

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 Plug-button, black, upr hinge holes

28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 Bracket-lower hinge, black

34 240311303 Washer, hinge, nylon, (2)

35 240313803 Bracket-ctr hinge, black

35A 240336803 Spacer-hinge, center, black

36 240516402 Pin-center hinge

37 241611303 Trim-cabinet corner, black, (2)

38 240313701 Bracket-upper hinge

40 240354404 Cover-upper hinge, black

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 Screw, hex head, 1/4-20 x 5/8

43 240335005 Roller Assy, adjustable, front, (2)

56 240516502 Pin-lower hinge

58 5304456287 Screw, hex washer head, 8-15A x 0.500

59 240442707 Screw-#10-32 X 3/4, black

72 241839407 Grille/Kickplate, black

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733907 Cover-access, with label

89* 241500304 Screw, hex washer head, 8-18AB x 0.625

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 Plug, button, cab liner holes

* 5303321321 Paint, touch-up, black

Publication No: 5995533121 FRT18HS7JS0

02/09 6

SHELVES

24A

22A

25B

25C

N05SAAAFI21

FRT18HS7JS0 Publication No: 5995533121

# Functional Parts 7 02/09

* Non-Illustrated Parts

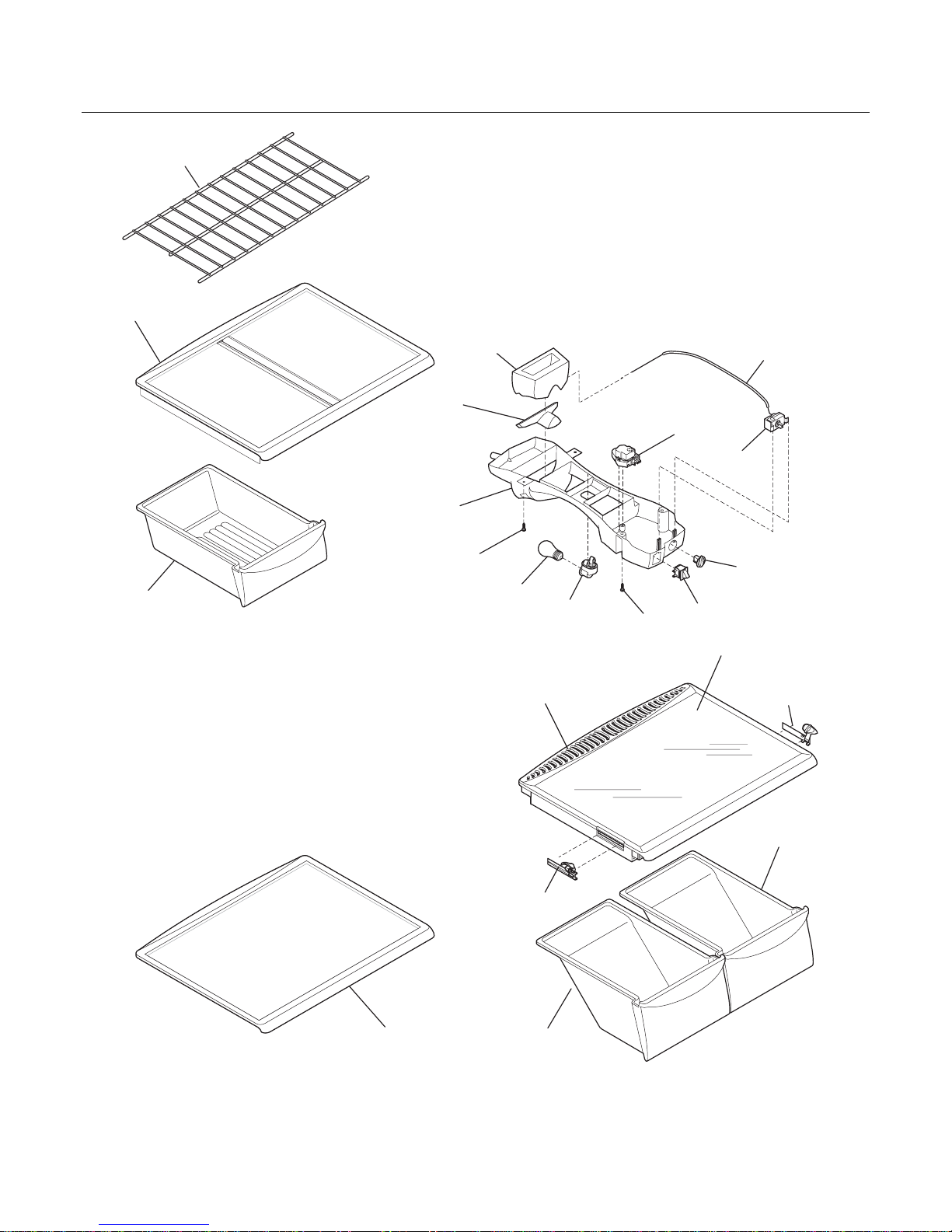

SHELVES

POS. NO PART NO. DESCRIPTION

11 240358005 Shelf, freezer, full-width, wire

12 241542001 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 241559801 Socket-light

17 240352702 Control Box

17* 240568607 Seal

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 Timer-defrost

23* 5304455649 Screw, pan hd, 6-20 x 0.438

24 240358905 Shelf-"Spill-Safe", sliding

24A 240358906 Shelf-"Spill-Safe", sliding, w/pan hanger

25 240364714 Cover-crisper pan

25B 241613501 Control-humidity, RH

25C 241613502 Control-humidity, LH

26 240337103 Pan-crisper, clear, (2), no graphics

31 240530811 Pan-meat, w/o graphics, clear

47 241711219 Insert-pan cover, glass

58 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

* 241935580 Energy Guide

Publication No: 5995533121 FRT18HS7JS0

02/09 8

SYSTEM

17 21

N05CAABAD4

24 25

59B

59A

59A 58

FRT18HS7JS0 Publication No: 5995533121

# Functional Parts 9 02/09

* Non-Illustrated Parts

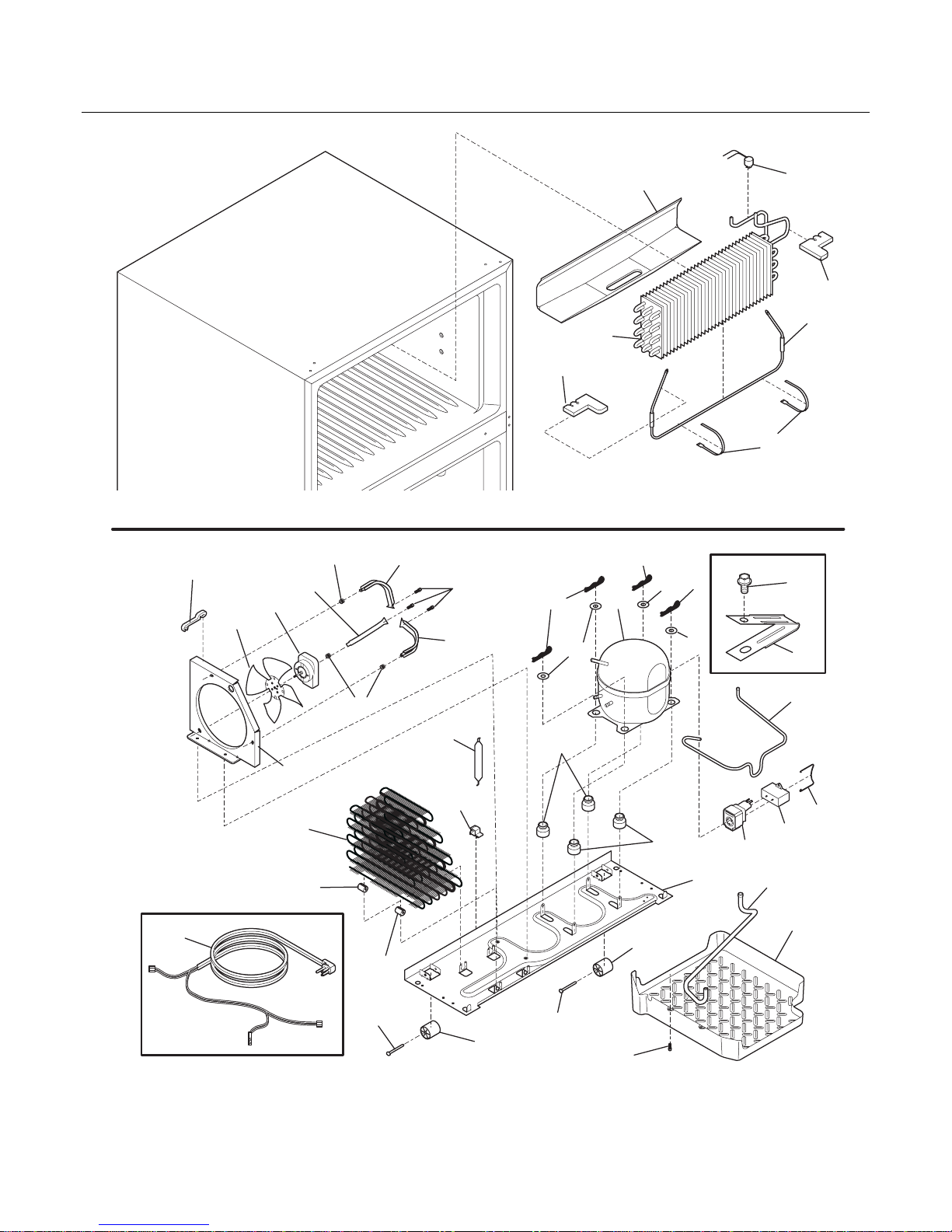

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 241873404 Condenser

4 218944002 Drier-filter, R134a System

6 # 241607001 Harness-wiring, machine compt

6*# 240388701 Wiring Harness, control box

14 # 240356221 Heater-defrost

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241801301 Trough-drain

20 241551902 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241665606 Base-compressor

22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

24 241812301 Washer-compr mtg

25 216056401 Clip-compressor mtg

26 241683601 Pan-defrost

29 # 5303918380 Compressor Kit

30 # 241941001 Starter

32 297030500 Clip, controller

34 240405201 Grommet, rubber, black, cond tube/wire

41 240433204 Screw, hex washer head, 8-18 x 5/16

44 5304456288 Clamp-wiring harness, strain relief, galv steel

45 241500304 Screw, hex washer head, 8-18AB x 0.625

55 216985003 Capacitor-run

57 240542601 Clip-wiring harness

58 240569201 Screw, 8-18 x 0.500

59 240315505 Shroud-cond fan

59* 240346701 Tape-foam seal, shroud

59* 240359403 Screw-fan shroud, (2)

59A 240346501 Bracket-support, cond mtr, (3)

59B 240346601 Grommet-bracket, (3)

60 241584301 Motor-condenser fan

61 241639501 Blade-condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 Tube-drain, rubber, lower

85 241871501 Tube-connector, suction

86 240409302 Spacer-cond tube, black

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 5303918263 Heat Exchanger Kit, suction line

* 5303918222 Hot Tube Repair Kit, service

Publication No: 5995533121 FRT18HS7JS0

02/09 10

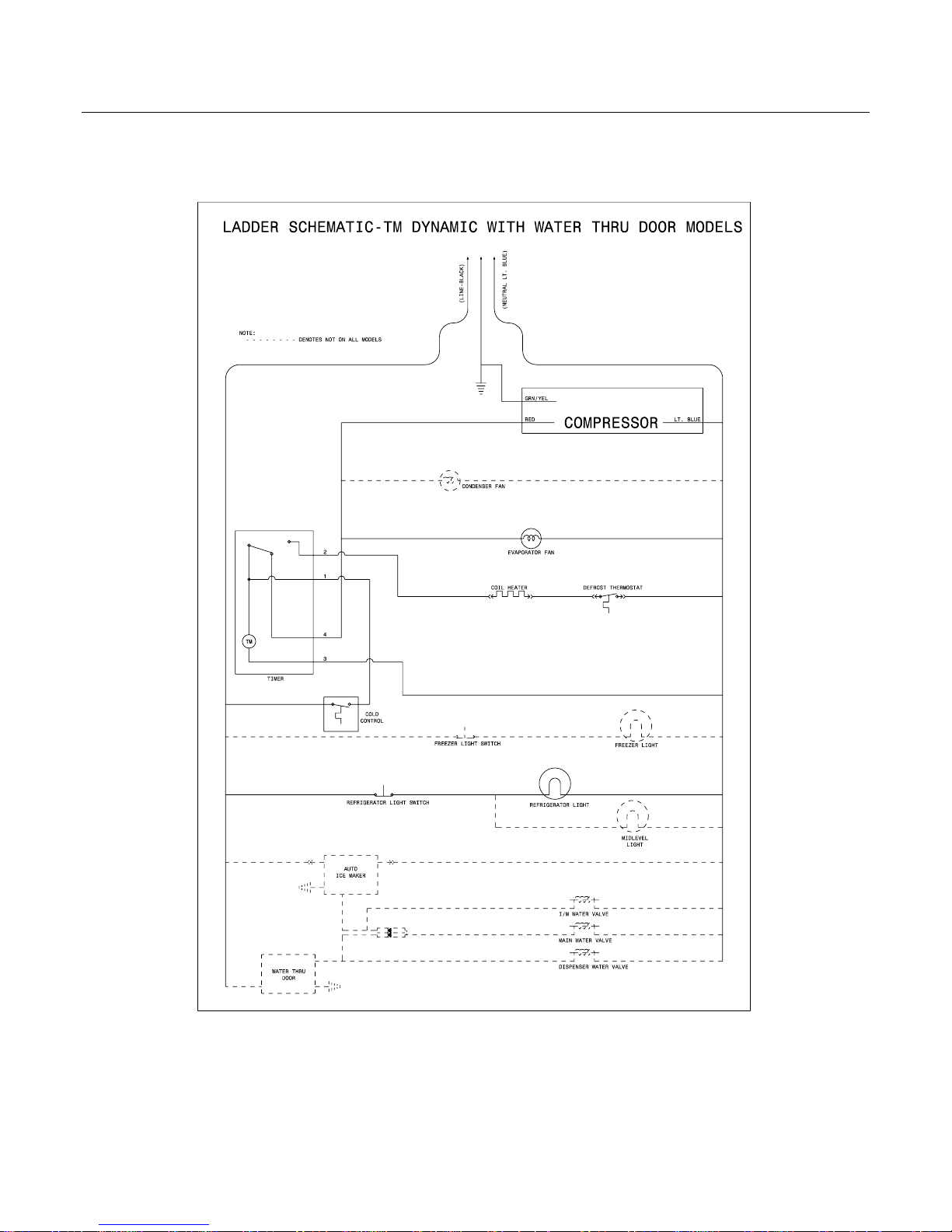

WIRING SCHEMATIC
