Frigidaire FTH61200C Manuale utente

USER MANUAL

用戶

用戶用戶

用戶手冊

手冊手冊

手冊

FTH61200C

Dear Customer

Thank you for buying our hood. Please read these instructions carefully for

its optimum installation, use and maintenance.

Notes: The figures mentioned in this manual are in the first pages.

This Hood is designed for fitting in a cabinet or on some other

support.

Warning: consult local regulations regarding fumes outlets. Do not

connect the hood to a fume, ventilation or hot air duct. Confirm that room

ventilation is appropriate with the local authorities. Make sure the

maximum air extraction flow rate for the appliances in the room does not

exceed 4 Pa (0.04 mbar). The room must have adequate ventilation if an

extractor hood is used simultaneously with appliances that run on gas or

other fuels. The evacuated air must be extracted through ducts that are

used for evacuating fumes from appliances that run on gas or other fuels.

Regulations regarding air extraction must be complied with.

This product is intended for HOUSEHOLD USE only.

Use a venting hose with a min. diameter of 120mm to evacuate fumes

outside.

The above restrictions do not apply to hoods with no fumes outlet to

outside (recirculation system with activated charcoal filter).

Install the hood in line with the instructions on the template.

For gas cooking appliances only: the minimum distance to the hood must

be at least 65 cm.

Warning: Failure to install the screws or fixing device in accordance with

these instructions may result in electrical hazards.

INSTALLATION

The cooker hood is supplied with :

3 Spacer (F, H)

4 Screws C

2 Bulbs

To fixing the Hood, use the 4 Screws (C) 6mm supplied with the hood.

Close the space that remains between the hood and the wall, adjusting the

spacer (F).

Before completing any connection, make sure the house voltage

corresponds with the voltage indicate on the data label.

Connecting the hood to the grid

Warning: before connecting the hood: switch off the electricity supply

and check that the supplied voltage and frequency coincide with that

indicated on the appliance nameplate.

If the extractor hood has a plug, connect it to a power socket in line with

applicable regulations, located in an accessible area.

If the hood does not have a plug, connect it directly to the electrical grid

protected by a separator device accessible for disconnection, in line with

local regulations.

The connection to the electrical mains must be made as follows:

BLUE………………………..”N” NEUTRAL

BROWN……………………..”L” LIVE

GREEN AND YELLOW…….(simbolo tierra) EARTH

If the terminals of the plug are unmarked or if you are in any doubt, consult a

qualified electrician.

If it is not supplied fit a a plug normalized in the cord for the load showed on

the rating plate.

Use of the hood - Safety

Warning: the hood may stop working during an electrostatic

discharge (e.g. lighting). This involves no risk of damage. Switch off the

electricity supply to the hood and reconnect after one minute.

This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand

the hazards involved. Children shall not play with the appliance. Cleaning

and user maintenance shall not be made by children without supervision.

To avoid the risk of fire, clean the metal filter regularly, permanently control

pans containing hot oil and do not flame food underneath the hood.

Do not use the hood if it shows signs of damage or imperfection. Contact

an official distributor or Customer Service.

Accessible parts may heat up when using cooking appliances.

Air Intake Speed (Fig 2)

The front panel has to be pulled its maximum extension so as to optimize the

extraction capacity.

The three setting switch (C-2) has the following functions:

0 – Stop / Off

1 – Low Speed

2 – High Speed

Switch on the Lamps (C-1 Fig 2)

Pull out the grill (G) more than 50mm

SUCTION VERSION

If the hood is to be installed as a suction hood, connect the plastic outlet piece (A)

supplied with the hood (150mm diameter pipe for better performance and lower

noise levels.

FILTERING VERSION (INTERNAL RE-CYCLING)

When there is no exhaust duct for venting out-door, you can use a carbon filter

(D). The air is depurate by the filter and put again in the surrounding.

The air is released in the room through a connecting pipe, which goes through

the hanging cupboard and is connected to the connecting ring supplied (A) Fig 1.

To use the appliance in this version, proceed as follows:

1. Open the grids (E)

2. To proceed to change the charcoal filter (D), the screw (B) has to be

removed.

3. Reinstall the grids.

Hood Maintenance

Warning: always switch off the electricity supply before carrying out

maintenance work on the hood. In the event of a fault, contact an official

distributor or Customer Service.

Exterior Cleaning : Use non-corrosive, liquid detergent and avoid the use of

abrasive cleaning products.

Grease Filters Cleaning : To avoid fires, clean thoroughly once a month. To

do so, remove the filters and wash with hot water and detergent. If using a

dishwasher, position the filters vertically to prevent solid remains from

depositing on them.

Activated charcoal filters : Replace every 2 months.

Important: increase the filter cleaning/replacement frequency if the

hood is used for more than 2 hours a day. Always use genuine filters from

the manufacturer.

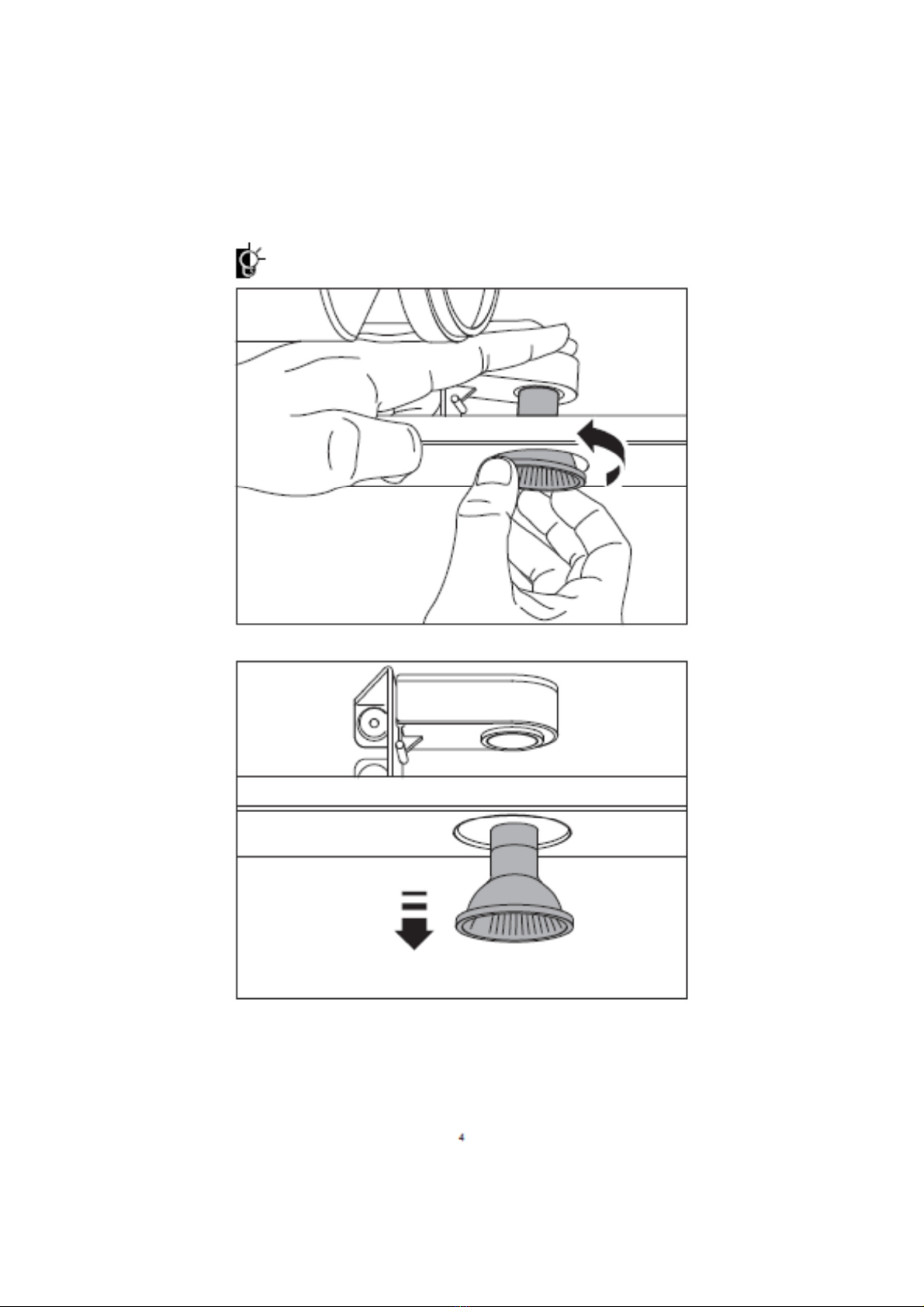

Bulb Replacement (Look for the symbol in the figures)

Warning: do not handle the bulbs until the electricity supply has been

switched off and they have cooled.

Important: use new bulbs according to that indicated on the hood

nameplate.

Legal Information

The manufacturer:

- Declares that this product meets all basic requirements regarding low-

voltage electrical equipment established in Directive 2014/35/EU of 29

March 2014 and electro-magnetic compatibility established in Directive

2014/30/EU of 29 March 2014.

- Is not responsible for any failure to observe the instructions given in this

manual and current safety regulations for the correct use of the equipment.

- Reserves the right to make any modifications to the equipment or this

manual without prior notice.

Contact our official distributor or Customer Service should you require

technical assistance or additional information on our products.

親愛的用戶:

感謝您購買飛歌牌抽油煙機產品。為了達到最佳的安裝、使用及保養效果，

請您仔細閱讀本用戶手冊。

說明

說明說明

說明:

:本手冊第一包括了所有的圖示。

此

此此

此款

款款

款抽油煙機只適合安裝於廚櫃中或是其他方式的支架上

抽油煙機只適合安裝於廚櫃中或是其他方式的支架上抽油煙機只適合安裝於廚櫃中或是其他方式的支架上

抽油煙機只適合安裝於廚櫃中或是其他方式的支架上

注意事項:請參考您當地有關於油煙放標準的規定。請勿將抽油煙

機與其他排煙管道、通風管道或熱風管道連接。請向當地權威機構確認室內

通風條件是否適合安裝。請確保室內家用電器的最大排氣風壓率不超過

4Pa(0.04mbar)。如果抽油煙機需要與其他燃氣設備一同使用，必須遵照有

關排氣標準的規定。

此抽油煙機是只作一般家庭使用。

請使用最小直徑 120mm 作為室外排煙喉。

以上要求並不適用於室內循環式無排煙系統的抽油煙機(須配備活性炭過濾網

同時使用)。

請遵照圖例中的說明及圖示安裝抽油煙機。

假如本抽油煙機是配合氣體煮食爐使用, 請注意抽油煙機與燃氣爐之間的最

少距離必須為65厘米。

注意

注意注意

注意:

:如不按照圖示安裝螺絲及其他固定裝置配件，有機會引至觸電危險。

中文

安全

安全安全

安全用抽油煙機

用抽油煙機用抽油煙機

用抽油煙機說明

說明說明

說明

注意事項

注意事項注意事項

注意事項:抽油煙機可能會在靜電放電時停止工作(如閃電時)。這不會造成

抽油煙機的損壞。此時，請把電源關掉，等一分鐘後再重新開啟。

請勿讓8歲以下兒童、障礙人士(包括生理、感官、心理)或缺乏知識經驗者使

用，必須有人在旁指導，保證其安全使用抽油煙機。

應注意照顧兒童，防止兒童玩弄設備。

為避免火災危險，請定期清洗金屬過濾網及長期積聚油漬的抽油煙機控制面板。

切勿在抽油煙機下方直接燒烤食物。

若發現抽油煙機出現損壞或瑕庛，請勿使用。應聯絡顧客服務部，讓技術人士

檢查。

在使用燃氣爐具時，附近的零部件可能會受熱。

使用抽油煙機

使用抽油煙機使用抽油煙機

使用抽油煙機

排氣速度

排氣速度排氣速度

排氣速度(

((

(圖二

圖二圖二

圖二)

))

)

請將油煙機全面抽出以達致最高的煙效能。

右方的控掣(C-2)有以下的功能:

0– 停止/關機

1– 低速

2– 高速

照明燈開關 (C-1 圖二)

請將油煙機的前端(G)抽出至少50毫米

排氣式安裝

排氣式安裝排氣式安裝

排氣式安裝

如須將室內空氣出，請將附件(A)排氣軟喉(直徑150毫米)接上以提昇排氣效

能及低聲音。

室內循環過濾式安裝

如未能連接氣喉將室內空氣出，可裝上活性碳過濾網(D)將室內混濁空氣

過濾及去除氣味之後，於室內循環流動。

混濁空氣會經過油煙機的導管貫通於上方的廚櫃後出室內

安裝及更換活性碳過濾網

安裝及更換活性碳過濾網安裝及更換活性碳過濾網

安裝及更換活性碳過濾網

1. 打開金屬濾網(E)

2. 將螺絲帽(B)除下以更換活性碳濾網(D).

3. 更換後,裝回金屬濾網

中文
