Cleaning Instructions for

ScanSnap S510/S510M

It is recommended that these items be

cleaned EVERY 1,000 SCANS

Using F1 Impregnated Cleaning Wipes



Pad Assy

Wipe downwards. When cleaning take care to prevent the cleaning wipe from catching on the

metal parts





Turn the Scanner OFF while cleaning the following locations

ADF Glass Surfaces x 2

Located on the ADF cover and opposite side. Clean lightly.

Pick Roller

Clean lightly taking care not to scratch the surface.

P.T.O.



Plastic Rollers x 4

Clean lightly while rotating with your finger. Take care not to roughen the surface.









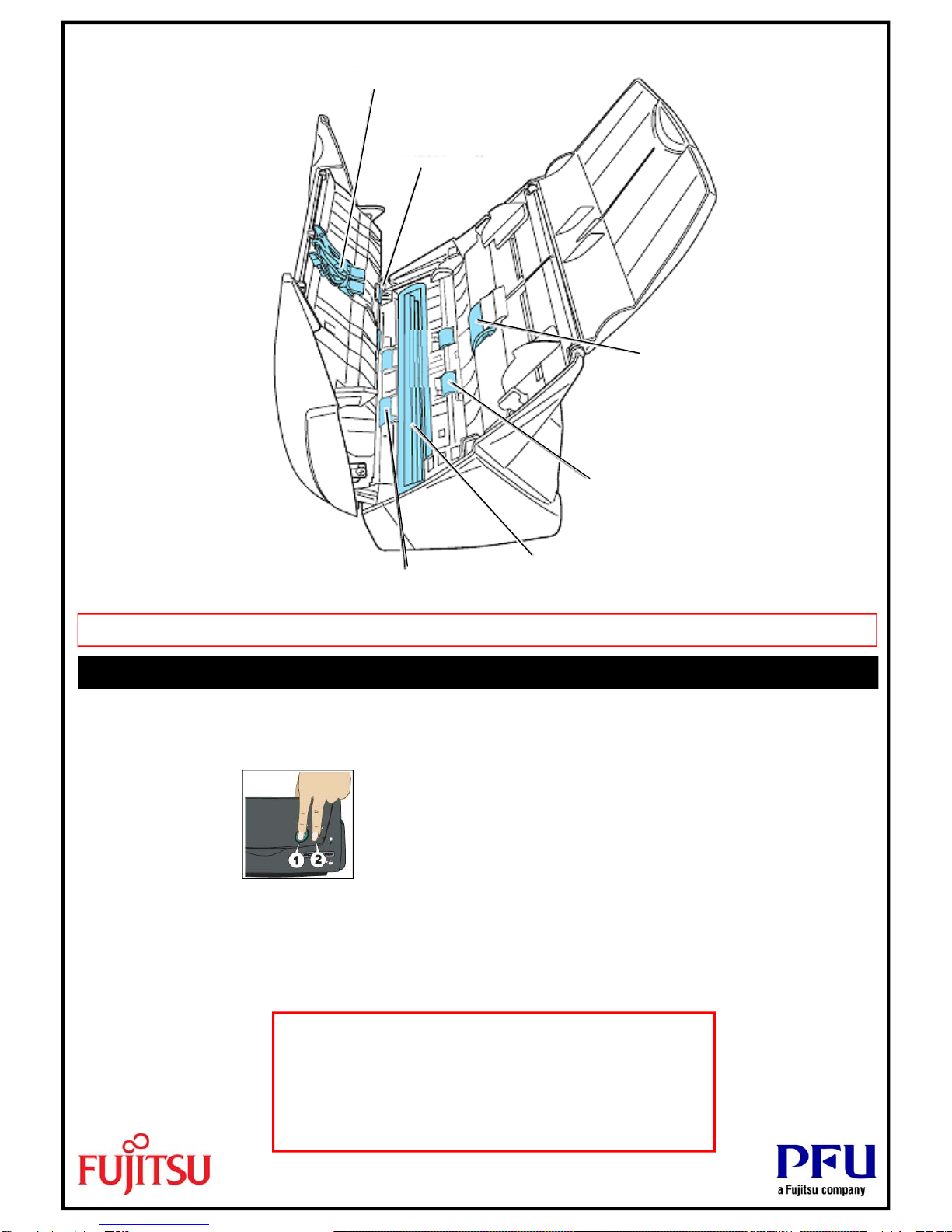

Plastic Rollers

Eject Rollers

Feed Rollers

Glass

Pick Roller





Pad Assy

BEFORE CLEANING

Open the ADF while pressing the cover open button

ADF Cover

Cover Open

Lever

Paper Chute

Cover

Consumables Part Number

Consumable Kit CON-3360-001A

Cleaning Kit SC-CLE-WGD



Plastic Rollers x 4

Clean lightly while rotating with your finger. Take care not to roughen the surface.

For further information please refer to the

ScanSnap S510/S510M Operators Guide

which can be found on our Website:

http://www.fujitsu.com/emea/products/

January 2010

Using F1 Impregnated Cleaning Wipes

Eject Rollers x 2

Clean lightly taking care not to roughen the surface.



Turn the Scanner ON while cleaning the following locations

PFU Imaging Solutions Europe Ltd Cleaning Instructions for ScanSnap S510/S510M











Plastic Rollers

Eject Rollers

Feed Rollers

Glass

Pick Roller

Pad Assy



To rotate the Feed and Eject Rollers, press the POWER button while holding down the SCAN button.

As a guideline, six presses of the POWER button makes the rollers rotate one full turn.

While holding down the SCAN button 

Press the POWER button 

Each press of the POWER button will

cause the rollers to rotate
