FTP-641MCL101/102

■OVERVIEW

This thermal printer (driven by 24 VDC) provides ultra-high speed

printing for 4-inch wide paper (114 mm). This printer is small in size,

light weight, and has low power consumption. The print head is

designed with open construction for easy maintenance.

This printer is suitable for a variety of applications, such as POS

terminals, ticket machines, label printers, measuring devices and

medical equipment.

In addition to the interface board, a driving LSI (MCU + Gate Array) is

also available.

■HIGHLIGHTS

• Ultra high speed printing

It can print at 100 mm/s (800 dotlines/s) by using Fujitsu

Components' unique head drive control system.

• Compact and lightweight

The printer has a low profile of only 28 mm, and a light weight of

approximately 290 g.

• Low power consumption

The peak current for head driving is approximately 6.0 A (at 50

mm/s printing speed, 50% printing ratio).

• Easy head access

Head-open construction makes head maintenance easy,

especially for head cleaning.

• Paper auto loading function

The thermal paper can be loaded without head-up lever operation.

• High resolution

8 dots/mm head provides clear print output.

• Selectable paper paths

Front or rear insertion types are available.

FTP-641MCL102 can print on paper thicknesses of up to 150 µm.

24V DRIVE, ULTRA HIGH SPEED LINE THERMAL PRINTER

4” MECHANISM

FTP-641MCL101, 102

FTP-621DCL002

FTP-621CU102, FTP-633GA101

FTP-641MCL101/102

Printing method Thermal-sensitive line dot method

Dot structure 832 dots/line

Dot pitch (Horizontal) 0.125 mm (8 dots/mm)—Dot density

Dot pitch (Vertical) 0.125 mm (8 dots/mm)—Line feed pitch

Effective printing area 104 mm

Number of columns 69 columns/line (maximum)—Alphanumeric KANA

Maximum printing speed 800 dotlines/s (100 mm/s) maximum

JIS ANK : 128 International characters : 130

Character types Semi-graphic : 63 ASCII small characters : 31

Download : 384

24 ×12 dots, (3.0 ×1.5 mm), 69 columns

32 ×16 dots, (4.0 ×2.0 mm), 52 columns

24 ×24 dots, (3.0 ×3.0 mm), 34 columns

32 ×32 dots, (4.0 ×4.0 mm), 26 columns

Interface 1) Centronics standard 2) Bus interface*1

24 VDC ±5%, average:*2

0.33 (1.72) A (at 25 mm/s printing speed, 25% printing ratio)

For head 0.64 (3.01) A (at 50 mm/s printing speed, 25% printing ratio)

3.09 (5.58) A (at 100 mm/s printing speed, 25% printing ratio)

( ): Peak

For motor 24 VDC ±5%, 1.0 A maximum

For logic 5 VDC ±5%, 0.5 A maximum

Weight Mechanism: approximately 290 g. Interface board: approximately 100 g

Mechanism 159 (W) ×48 (D) ×28.0 (H) mm (excluding connector)

Interface board 140 (W) ×89 (D) ×24.0 (H) mm

■DESIGNATION

Part number

Front paper insertion type

Rear paper insertion type (supports thick paper)

FTP-641MCL101

FTP-641MCL102

FTP-621DCL002

FTP-621CU102

FTP-633GA101

Item

Printer mechanism

Interface board

Micro Controller Unit

Gate Array

LSI

■GENERAL SPECIFICATIONS

SpecificationsItem

Power supply

Character composition, dimensions (H×W),

Number of columns (standard)

(Continued)

Dimensions

FTP-641MCL101/102

Pulse durability : 1 ×108pulse/dot (using Fujitsu Takamisawa's standard

driving method)

Wear resistance: 50 km (at 25% printing ratio)

Operating temperature +5 to +40°C*3

Operating humidity 20 to 85% RH (no condensation)

Storage temperature –20 to +60°C (excluding paper)

Storage humidity 5 to 95% RH (no condensation)

Head temperature By thermistor (applied energy control, abnormal temperature detection)

Detection Paper out/Mark detect By photointerrupter (command set)

Head-up By microswitch

Paper width 114 mm

1 ply paper in roll : FTP-040P0020

Thicker paper in roll : FTP-040PJ102*4

SpecificationsItem

(Continued)

Thermal head life

Environmental

conditions

Recommended thermal sensitive

paper*5

*1: The data to be printed is automatically read out by the printer driver equipment memory (host system frame

memory). The communication is parameter transfer.

*2: At 25°C, maximum applied voltage, minimum head resistance, specified paper, stable printing ratio.

*3: Temperature range for guaranteed printing density. It can operate at 0 to +40°C.

*4: Printer mechanism FTP-641MCL102 is to be used.

*5: Please contact us for other thermal papers.

–1

FTP-641MCL101/102

■DIMENSIONS

Printer mechanism

Unit: mm

Y-Y SECTION

(FTP-641MCL102)(FTP-641MCL101)

66.6

135.2

161

35.5

40.5

7.5

11.8 2.5

(300)

14.2

21.9

123.8

Paper insertion Paper insertion

48 (Head-up)

2-M3 burring

(Paper center)

Location hole

for fixing 3-M3 fixing screw (reference)

Head open

FTP-641MCL101/102

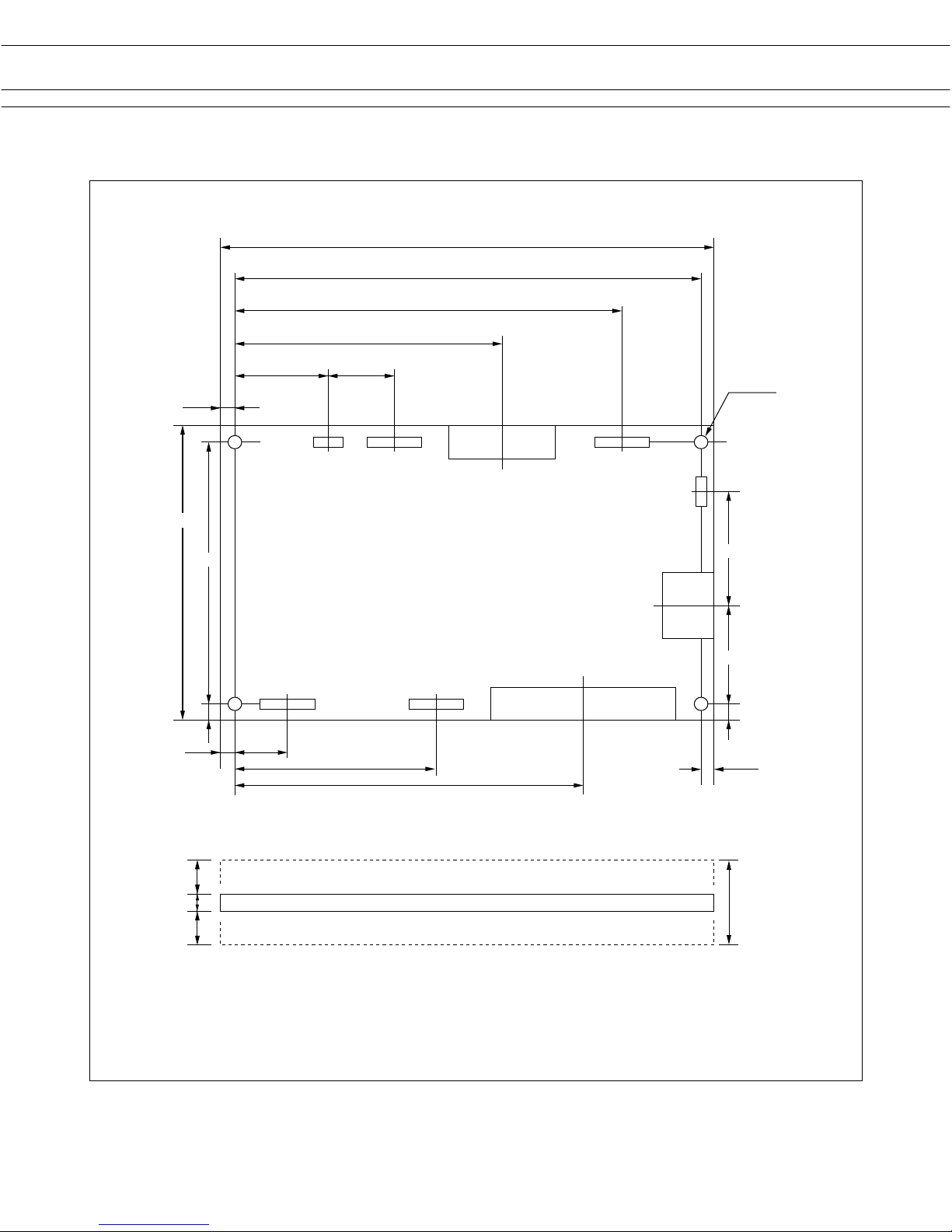

Interface board

Unit:mm

CN3 CN4 CN9 CN2

CN5 CN1 CN10

CN11

CN7

Height of devices side

Height of solder side

139.7

129.6

113.1

22.9

73.7

14.0

(5.1)

88.9

78.8

(5.1)

14.0 47.1 88.9 (5.1)

(5.1)

28.0

25.4

4—ø3.6

1.6 23.6

■INTERFACE, COMMAND, OPTIONS

Please refer to the FTP-621DCL002/012 DATA SHEET for Interface, Command, and Options.

FTP-641MCL101/102

trademarks of their respective owners. Rev. 09/2001

Japan

Fujitsu Component Limited

Gotanda-Chuo Building

3-5, Higashigotanda 2-chome, Shinagawa-ku

Tokyo 141, Japan

Tel: (81-3) 5449-7010

Fax: (81-3) 5449-2626

Email: [email protected]

Web: www.fcl.fujitsu.com

North and South America

Fujitsu ComponentsAmerica, Inc.

250 E. Caribbean Drive

Sunnyvale, CA 94089 U.S.A.

Tel: (1-408) 745-4900

Fax: (1-408) 745-4970

Email: [email protected]

Web: www.fcai.fujitsu.com

Europe

Fujitsu Components Europe B.V.

Diamantlaan 25

2132 WV Hoofddorp

Netherlands

Tel: (31-23) 5560910

Fax: (31-23) 5560950

Email: [email protected]

Web: www.fceu.fujitsu.com

Asia Pacific

Fujitsu Components Asia Ltd.

102E Pasir Panjang Road

#04-01 Citilink Warehouse Complex

Singapore 118529

Tel: (65) 375-8560

Fax: (65) 273-3021

Email: [email protected]

www.fcal.fujitsu.com

Fujitsu Components

International

Headquarter

Offices
