PRIMERGY BX630 S2

Scalable Server Blade

Options Guide

Edition October 2007

Comments…Suggestions…Corrections…

The User Documentation Department would like to

know your opinion of this manual. Your feedback helps

us optimize our documentation to suit your individual

needs.

Feel free to send us your comments by e-mail to

[email protected].

Certified documentation

according to DIN EN ISO 9001:2000

To ensure a consistently high quality standard and

user-friendliness, this documentation was created to

meet the regulations of a quality management system

which complies with the requirements of the standard

DIN EN ISO 9001:2000.

cognitas. Gesellschaft für Technik-Dokumentation mbH

www.cognitas.de

All hardware and software names used are trade names and/or trademarks of their respective

manufacturers.

BX630 S2 Options Guide

Contents

1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 Concept and target groups . . . . . . . . . . . . . . . . . . . 5

1.2 Documentation overview . . . . . . . . . . . . . . . . . . . . 5

1.3 Extensions and conversions . . . . . . . . . . . . . . . . . . 7

1.4 Structure of the server blade . . . . . . . . . . . . . . . . . . 8

1.5 Configurations . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.6 Notational conventions . . . . . . . . . . . . . . . . . . . . 12

2 Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . 15

4 Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5 Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.1 Installing a second processor . . . . . . . . . . . . . . . . . 23

6 Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

6.1 Fitting rules . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.2 Replacing memory modules . . . . . . . . . . . . . . . . . . 34

7 Optional I/O module . . . . . . . . . . . . . . . . . . . . . . 37

7.1 Installing an I/O daughter card . . . . . . . . . . . . . . . . 41

OptionsGuide BX630 S2

Contents

8 Replacing the battery . . . . . . . . . . . . . . . . . . . . . . 43

9 Upgrading to a quad-socket server blade . . . . . . . . . . . 45

9.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

9.2 Assembly instructions . . . . . . . . . . . . . . . . . . . . . 47

10 Completion . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

10.1 Closing the server blade . . . . . . . . . . . . . . . . . . . . 57

Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

BX630 S2 Options Guide 5

1 Preface

The PRIMERGYBX630 S2 scalable server blade is an AMD-based server blade

designed for the PRIMERGY BX600 S3 basic unit. It can also be operated in

slots 1-3 and 5-9 of the BX600 S2 basic unit. The BX630 S2 scalable server

blade can be installed as a dual-socket server blade or, in a multi-blade config-

uration, as a quad-socket server blade.

1.1 Concept and target groups

This Options Guide shows you how to extend and upgrade your server.

VCAUTION!

The activities described in this manual may only be performed by

technical specialists.

IThe installation and removal of the hot-plug components is described in

the Operating Manual supplied with the server.

1.2 Documentation overview

More information on your PRIMERGY BX630 S2 can be found in the following

documents:

– “Quick Start Software - Quick Installation Guide” leaflet (only included as a

printed copy)

– “Safety notes and other important information” manual

– “Warranty” manual

– “Ergonomics” manual

– “Returning used devices” manual

– “Helpdesk” leaflet

– “PRIMERGY BX630 S2 Server Operating Manual”

IPRIMERGY manuals are available in PDF format on the ServerBooks

DVD. The ServerBooks DVD is part of the ServerView Installation

Management Suite supplied with every server.

6 OptionsGuide BX630 S2

Documentation overview Preface

The PDF files of the manuals can also be downloaded free of charge

from the Internet. The overview page showing the online documentation

available on the Internet can be found using the URL:

http://manuals.ts.fujitsu.com. The PRIMERGY server documentation can

be accessed using the Industry standard servers navigation option.

If you need a replacement copy of the ServerBooks DVD, send the

details of your server to the following e-mail address: rlc@ts.fujitsu.com

Further sources of information:

– Manual for the monitor

– Documentation for boards and drives

– Documentation for your operating system

– Information files on your operating system

BX630 S2 Options Guide 7

Preface Extensions and conversions

1.3 Extensions and conversions

Second processor

If only one processor is installed in your server blade, you can upgrade it to

include a second one. You may only use processors of the same type in the

server blade. The second processor must have the same clock frequency as the

first.

Extending the main memory

The system board of the BX630 S2 scalable server blade has four memory

banks with two 184-pin DDR2 DIMM slots each. This allows a maximum

memory configuration of 32 GB. Each memory bank can be fitted with

512 Mbyte, 1 Gbyte, 2 Gbyte or 4 Gbyte registered DDR2 667 MHz PC2-5300

memory modules.

The two memory modules of one bank must always be fitted in pairs and have

the same capacity.

Optional I/O module

The server blade can be equipped with a 4-Gbit FC I/O module or a 1-Gbit

Ethernet I/O module.

To allow use of the additional I/O functionality, at least one FC pass-thru blade

(or switch blade) or Ethernet LAN pass-thru blade (or switch blade) must be

installed in the NET3 and/or NET4 slots of the PRIMERGY BX600 basic unit.

Multi-blade configuration

You can upgrade the BX630 S2 scalable server blade to a quad-socket server

blade by connecting two dual-socket server blades, see section “Configura-

tions” on page 10.

8 OptionsGuide BX630 S2

Structure of the server blade Preface

1.4 Structure of the server blade

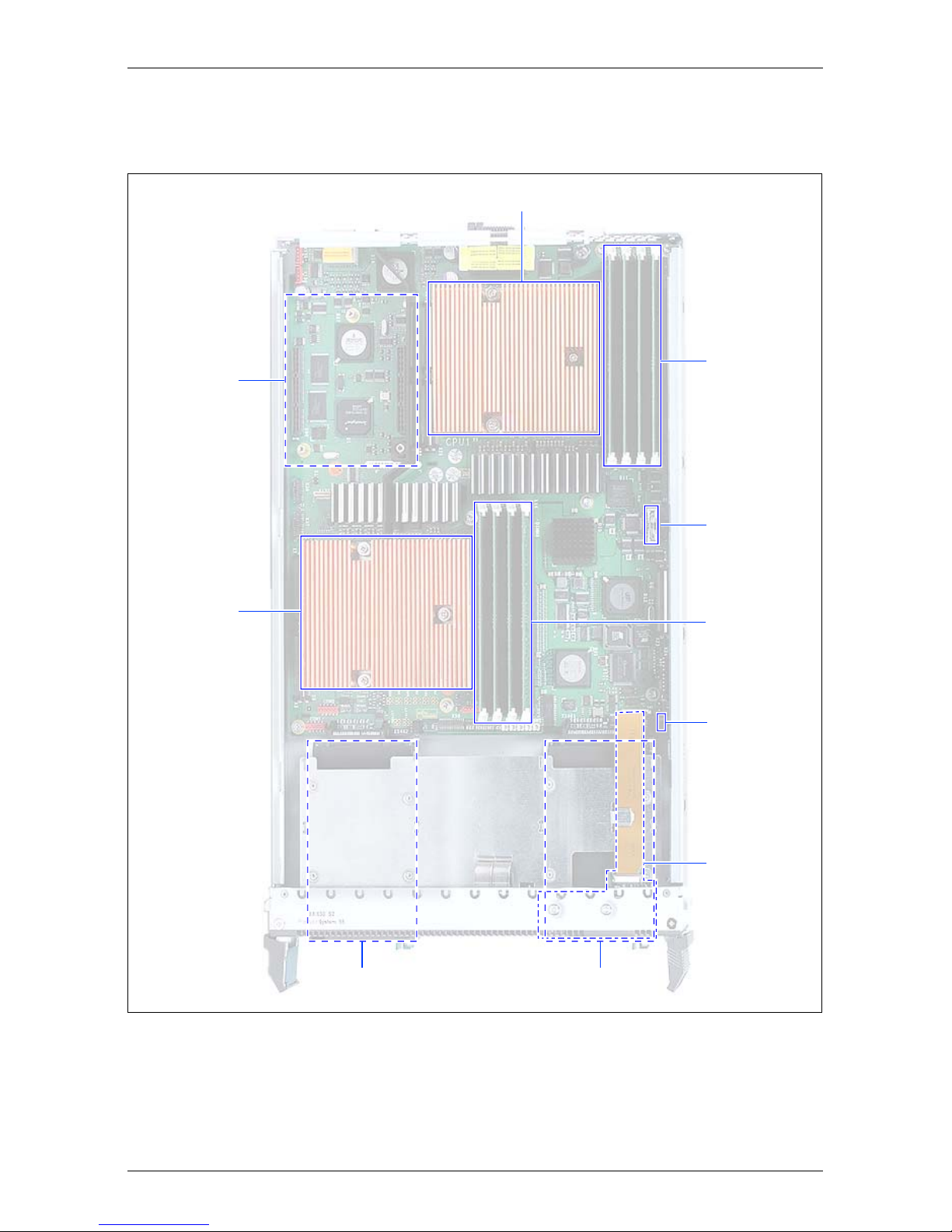

Figure 1: PRIMERGYBX630 S2 scalable server blade

The above figure shows the positions of the most important components of the

PRIMERGYBX630 S2 scalable server blade.

BX630 S2 Options Guide 9

Preface Structure of the server blade

1 CPU 1 and heat sink

2 DIMM slots for four DDR2 667 modules (two banks, assigned to CPU1)

3 Lithium battery

4 DIMM slots for four DDR2 667 modules (two banks, assigned to CPU2)

5 DIP switch SW4 (user switch)

6 Control panel board with connection cable

7 2.5-inch SAS/SATA-II hard disk module 1

8 2.5-inch SAS/SATA-II hard disk module 2

9 CPU 2 and heat sink

10 Position for a 4-Gbit FC daughter card or a 1-Gbit Ethernet daughter

card (optional I/O module)

10 OptionsGuide BX630 S2

Configurations Preface

1.5 Configurations

The PRIMERGY BX630 S2 scalable server blade can be installed as a dual-

socket server blade or as a quad-socket server blade. The possible configura-

tions are shown in the following diagrams.

Dual-socket server blade

Figure 2: PRIMERGY BX630 S2 dual-socket server blade

Processor Hard disksI/O moduleMain memory

Basic configuration

Optional module

Opteron CPU 2 FC or GbE

I/O module or

emtpy

SAS/SATA

Bank 4 (2 modules)

Opteron CPU 1

Bank 3 (2 modules)

Bank 2 (2 modules)

Bank 1 (2 modules)

SAS/SATA

onboard

2.5" HDD module

controller

or dummy module

SAS/SATA

2.5" HDD module

or dummy module
