FVC Sprinter Bed System Adventure Wagon Kit Manuale utente
PRODUCT
SP0302B
Sprinter Bed System Adventure Wagon Kit
Installation Guide
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
All Flatline Van Co products must be properly assembled and secured before attaching to your
vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily
injury or death to you or to others involved. You are responsible for assembling and securing flatline
van co products to your vehicle, checking the mounting points and attachments prior to use, and
regularly inspecting the products for wear and or damage. We always recommend you use a
professional to install any aftermarket accessories to your vehicle. If you have no mechanical
experience and are not thoroughly familiar with the installation procedures, you must have the
product installed by a professional installer or other qualified persons. The responsibility is yours
and must be taken seriously for everyone's safety.
1
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
thanks.
2
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
THANK YOU!
ARE YOU EXCITED ABOUT YOUR NEW SPRINTER BED SYSTEM? HERE ARE A FEW
THINGS TO DO BEFORE BEGINNING THE INSTALLATION PROCESS--
• PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO
DAMAGE INCURRED DURING SHIPPING.
• IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR
CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
• NEXT, USING THE “PACKAGE CONTENTS” PAGE, CHECK
INVENTORY AND FAMILIARIZE YOURSELF WITH THE PARTS
AND HARDWARE.
• GATHER ALL TOOLS REQUIRED FOR INSTALL.
-7/32 HEX KEY ALLEN WRENCH
• IT’S RECOMMENDED TO HAVE A SECOND SET OF HANDS
WHEN INSTALLING THE BED RAILS TO HELP LEVEL THEM.
• YOU CAN INSTALL THIS BED USING SELF TAPPING SCREWS,
OR BY USING RIVNUTS (REQUIRE SEPARATE TOOL)
TOOLS
7/32 ALLEN KEY

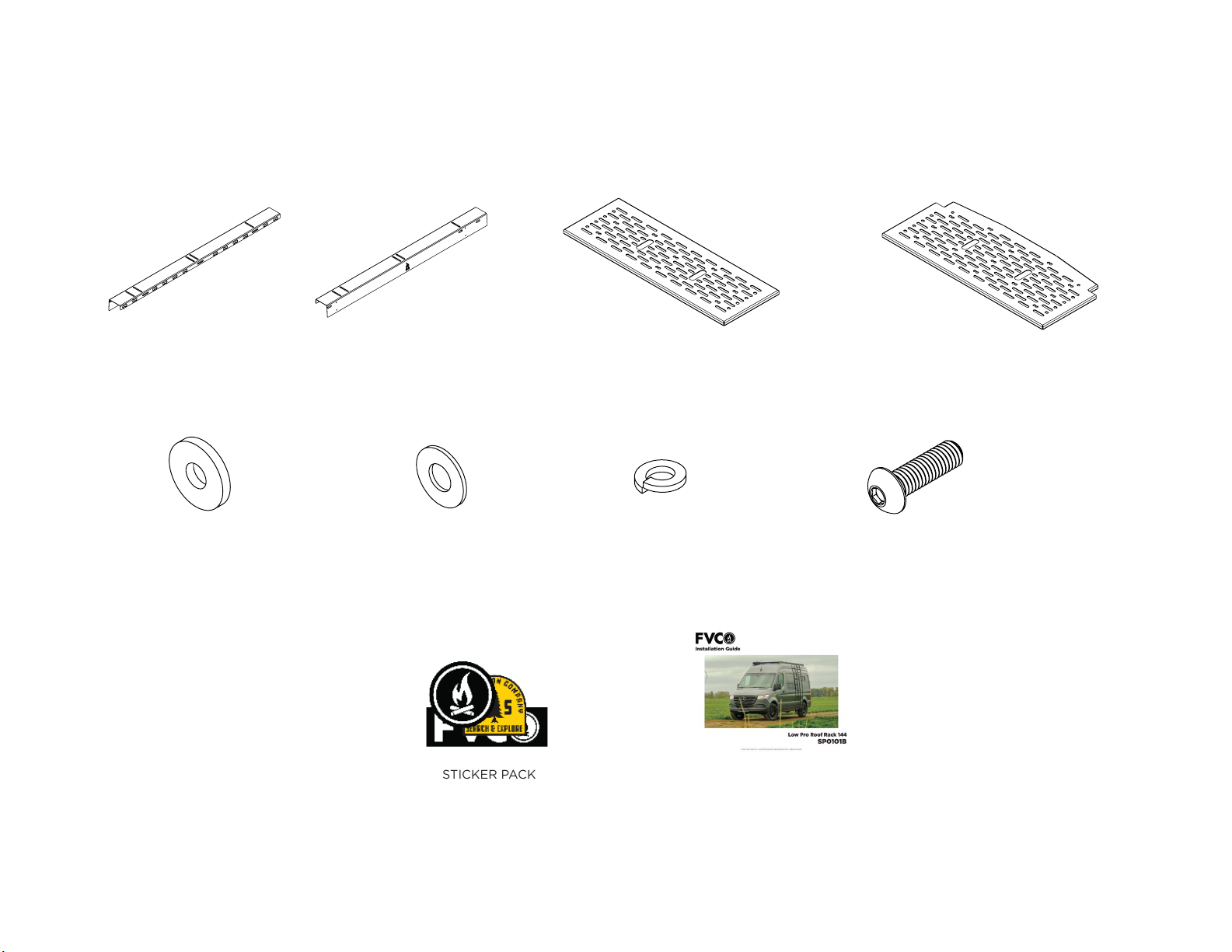

PACKAGE CONTENTS
3
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
DRIVER BED RAIL
QTY-1
BED PANEL
QTY-2
REAR BED PANEL
QTY-1
3/8 CUSHIONING WASHER
QTY-6
3/8 FLAT WASHER
QTY-6
3/8-16 BUTTON HEAD SCREW
QTY-6
3/8 SPLIT LOCK WASHER
QTY-6
STICKER PACK
QTY-1
INSTALLATION GUIDE
QTY-1
PASS. BED RAIL
QTY-1
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
LET’S GET STARTED!

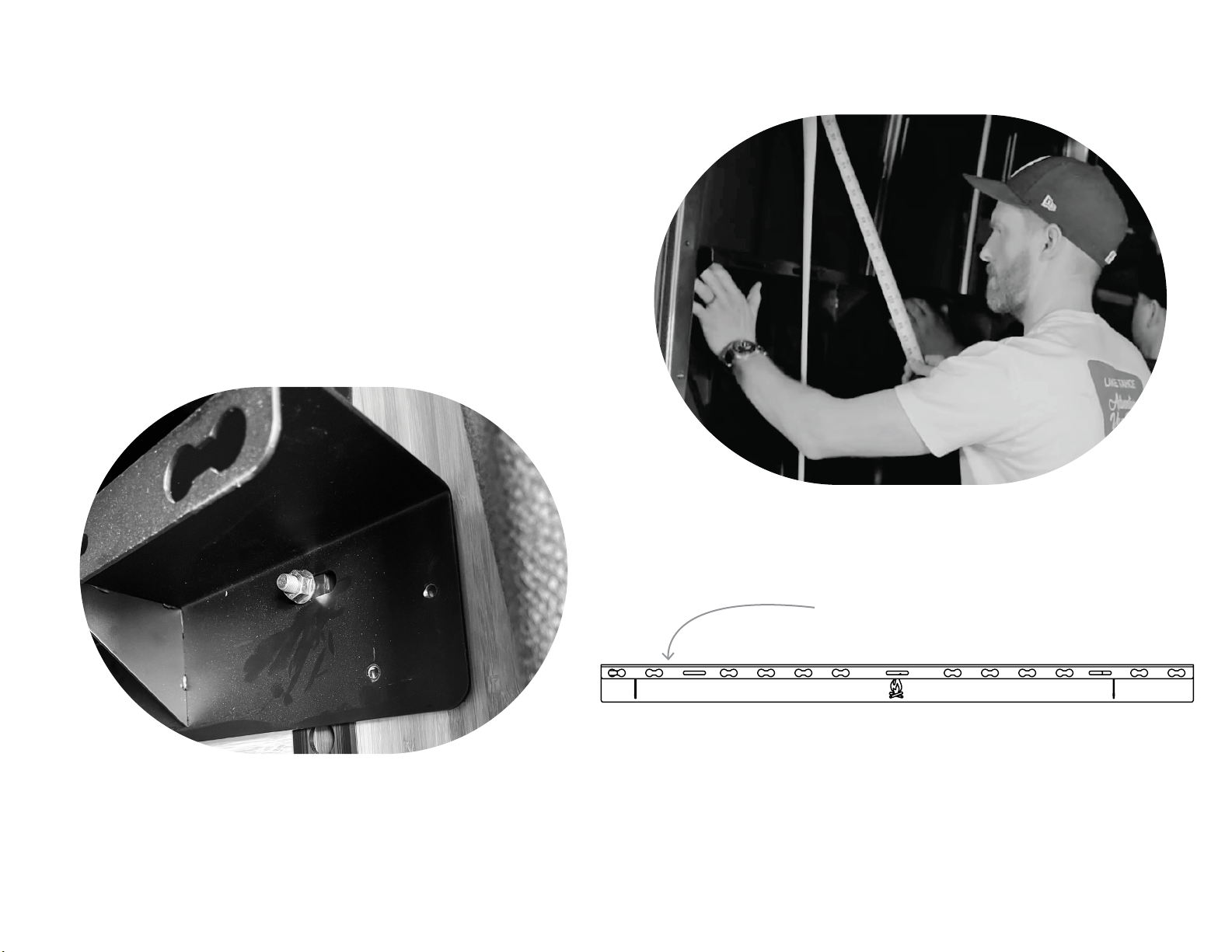

1. FIRST STEP IS TO GET THE BED RAILS UP. HAVING A SECOND SET OF HANDS
MAKES THIS MUCH EASIER. POSITION THEM WHERE YOU WANT THEM, THEN
PLACE THE L-TRACK ANCHORS IN POSITION IN YOUR ADWAG KIT TO RECIEVE
THE RAILS.
NOTE- THE BED HAS A VAST RANGE OF HEIGHT ADJUSTMENT,
WE RECOMMEND MOUNTING IT BETWEEN 25”-41” HIGH WHEN
MEASURED FROM THE FLOOR OF THE VAN.
2. NEXT, TIGHTEN DOWN THE NUTS FOR THE STUDS.
NOTE- YOU WANT THE END OF THE RAIL WITH TWO SLOTS FACING THE FRONT OF
THE VAN. THIS ALLOWS YOU THE OPTION TO EXTEND YOUR BED PANELS AN
ADDITIONAL 3”
4
MEASURE TO THIS EDGE
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
3. ONCE YOU HAVE YOUR BED RAILS UP AND FULLY MOUNTED, YOU CAN SIMPLY
PLACE THE BED PANELS ON AND FASTEN THEM USING THE 3/8-16 BUTTON
HEAD SCREWS, 3/8 SPLIT LOCK WASHER, 3/8 FLAT WASHER, AND 3/8
CUSHIONING WASHER, IN THAT ORDER (SEE FIGURE 1)
NOTE- THERE ARE TWO (2) CONFIGURATIONS FOR YOUR DIY BED!
THERE ARE TWO SERIES OF MOUNTING SLOTS ON THE RAILS. YOU
HAVE THE OPTION FOR A 72” LONG BED OR A 75” LONG BED
FOR YOU TALLER FOLKS! SEE NEXT PAGE FOR DETAILS.
5
FIGURE 1
• 3/8 CUSHION WASHER
• 3/8 FLAT WASHER
• 3/8 SPLIT LOCK WASHER
• 3/8-16 BUTTON HEAD SCREW
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
4. THE TWO BED SIZE OPTIONS ARE SHOWN TO THE RIGHT (FIGURE 2) AND
BELOW. THE 75” OPTION WILL LEAVE A SMALL GAP BETWEEN PANELS, BUT
YOU WON’T FEEL IT UNDERNEATH YOUR MATTERESS. ONCE YOU PLACE
YOUR PANELS, YOU’RE READY TO CRASH!
6
72”
75”
FIGURE 2
72” 75”
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576 7
GET OUT AND EXPLORE!
LEAVE US A REVIEW
Happy with your new FVC product? We would love to hear (and see) from you! Head to
the product page and click "Leave Review." Add a short review and upload a few photos
to be showcased on the product page.
SHARE YOUR PHOTOS WITH US
We love seeing how our customers use their FVC products and following along with your
adventures. Tag us in your photos with @flatlinevanco or send them to us via email. We
love posting customer pictures in our feed!
CUSTOMER SUPPORT
If you are having any issues with your product, please reach out, and we will make it right.
FVC is a company of van and outdoor enthusiasts that design and use our own products,
so we want you to be as stoked on your new parts as we are!
thanks!
@flatlinevanco
facebook.com/flatlinevanco
youtube.com/flatlinevanco
support@flatlinevanco.com
