SP0201B

Sprinter Side Ladder

Installation Guide

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

All Flatline Van Co products must be properly assembled and secured before attaching to your

vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily

injury or death to you or to others involved. You are responsible for assembling and securing ﬂatline

van co products to your vehicle, checking the mounting points and attachments prior to use, and

regularly inspecting the products for wear and or damage. We always recommend you use a

professional to install any aftermarket accessories to your vehicle. If you have no mechanical

experience and are not thoroughly familiar with the installation procedures, you must have the

product installed by a professional installer or other qualiﬁed persons. The responsibility is yours

and must be taken seriously for everyone's safety.

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

thanks.

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

THANK YOU!

ARE YOU EXCITED ABOUT YOUR NEW SPRINTER SIDE LADDER? HERE ARE A FEW

THINGS TO DO BEFORE BEGINNING THE INSTALLATION PROCESS--

• PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO

DAMAGE INCURRED DURING SHIPPING.

• IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR

CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.

• NEXT, USING THE “PACKAGE CONTENTS” PAGE, CHECK

INVENTORY AND FAMILIARIZE YOURSELF WITH THE PARTS

AND HARDWARE.

• GATHER ALL TOOLS REQUIRED FOR INSTALL.

-9/16 BOX WRENCH OR SOCKET

-7/32 HEX KEY ALLEN WRENCH

-POWER DRILL

-1/8” DRILL BIT

• HAVING A SECOND PERSON TO HELP OUT IS RECOMMENDED.

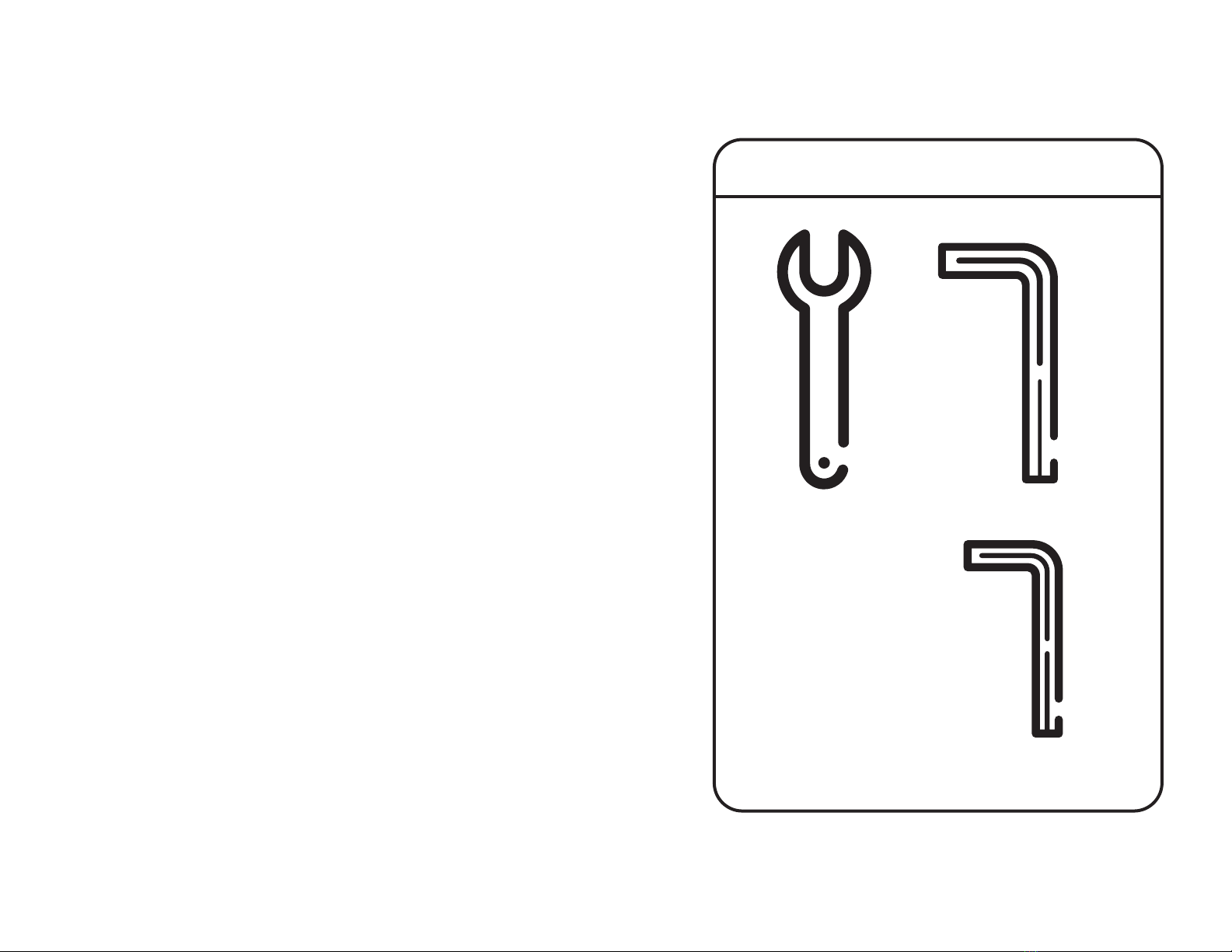

TOOLS

7/32 ALLEN KEY

9/16 WRENCH

5/32 ALLEN KEY

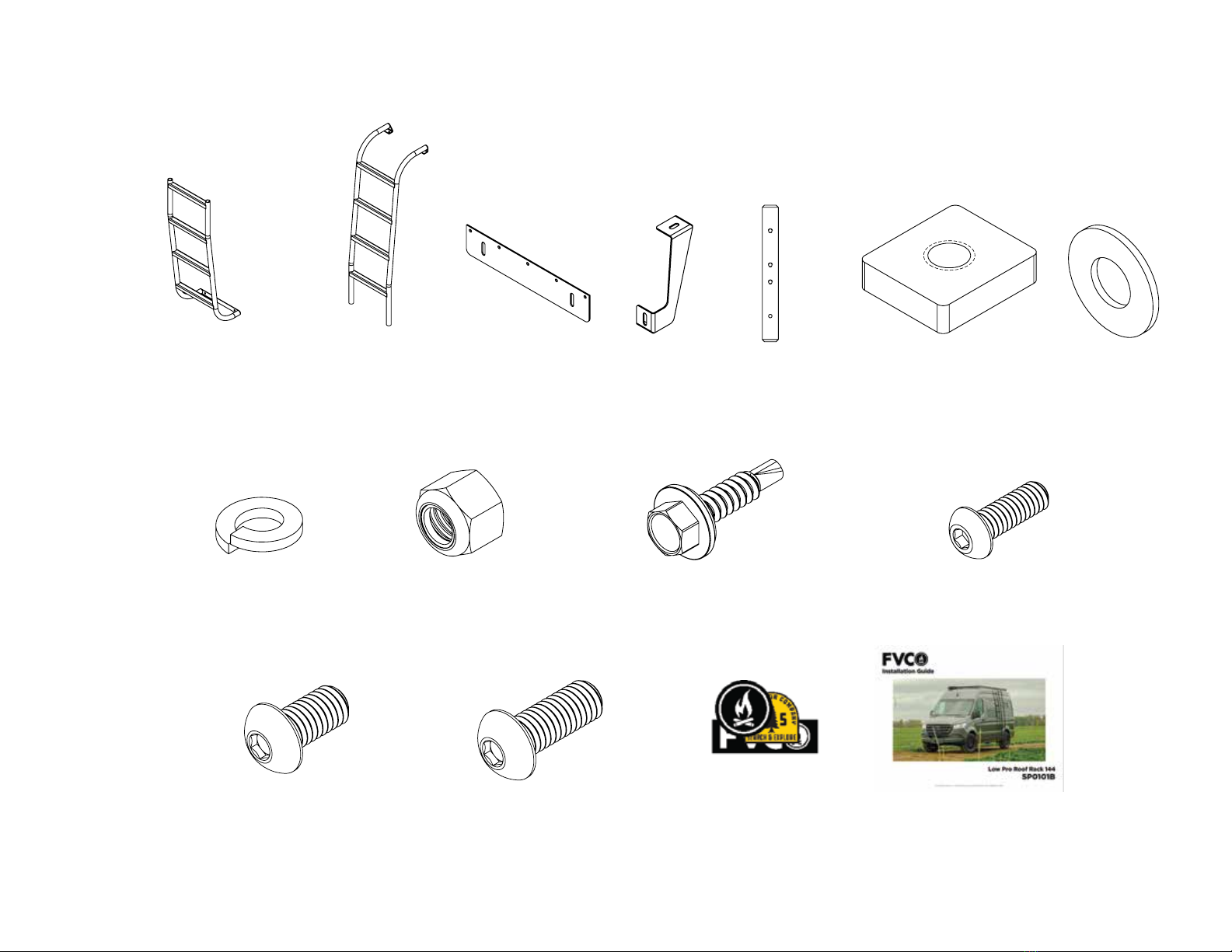

PACKAGE CONTENTS

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

LADDER BOTTOM

QTY-1

LADDER TOP

QTY-1

MOUNT PLATE

QTY-1

RAIL NUT

QTY-2

1/4-20 FLANGE HEAD SCREW

QTY-8

3/8-16 X 1” BUTTON HEAD

SCREW

QTY-3

3/8 SPLIT LOCK WASHER

QTY-2

STICKER PACK

QTY-1

INSTALLATION GUIDE

QTY-1

3/8-16 X .75” BUTTON HEAD

SCREW

QTY-2

COUPLER

QTY-2

3/8 FLAT WASHER

QTY-4

1/4 SELF DRILLING

SCREW

QTY-5

3/8-16 NYLOCK

QTY-2

SUPPORT BRACKET

QTY-1

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

LET’S GET STARTED!

1. PLACE THE LADDER HALVES FRONT SIDE DOWN, INSERT THE COUPLERS

INTO ONE HALF (SEE FIGURE 1), AND TIGHTEN DOWN USING THE 1/4-20

SCREWS.

2. SLIDE THE OTHER LADDER HALF ONTO THE COUPLERS AND TIGHTEN DOWN.

NOTE- IF DESIRED YOU CAN USE BLUE LOCTITE ON THE SCREWS.

FIGURE 1

FIGURE 2

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

3. NEXT, SLIDE THE TWO (2) RAIL NUTS INTO THE ROOF RAIL ON YOUR VAN.

NOTE- IF YOU’VE ALREADY INSTALLED A ROOF RACK, THIS MAY BE

TIME CONSUMING.

4. NOW POSITION THE LADDER ON THE VAN, HANGING IT ON THE ROOF RAIL.

LOOSELY SCREW THE TOP OF THE LADDER DOWN TO THE ROOF RAIL USING

THE 3/8-16 X .75” SCREWS AND THE 3/8 SPLIT LOCK WASHERS JUST ENOUGH

THAT IT IS SNUG (SEE FIGURE 3)

NOTE- WE LIKE TO PLACE THE LADDER AS CLOSE TO THE REAR

WHEEL WELL AS WE CAN. SEE IMAGE BELOW.

RAIL NUT

FIGURE 3

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576 6

5. TAKE THE MOUNT PLATE AND THE SUPPORT BRACKET (SEE RIGHT) AND

LOOSELY ATTACH THEM TO THE BOTTOM OF THE LADDER USING THE

3/8-16 X 1” SCREWS, 3/8 FLAT WASHERS, AND 3/8-16 NYLOCK NUTS.

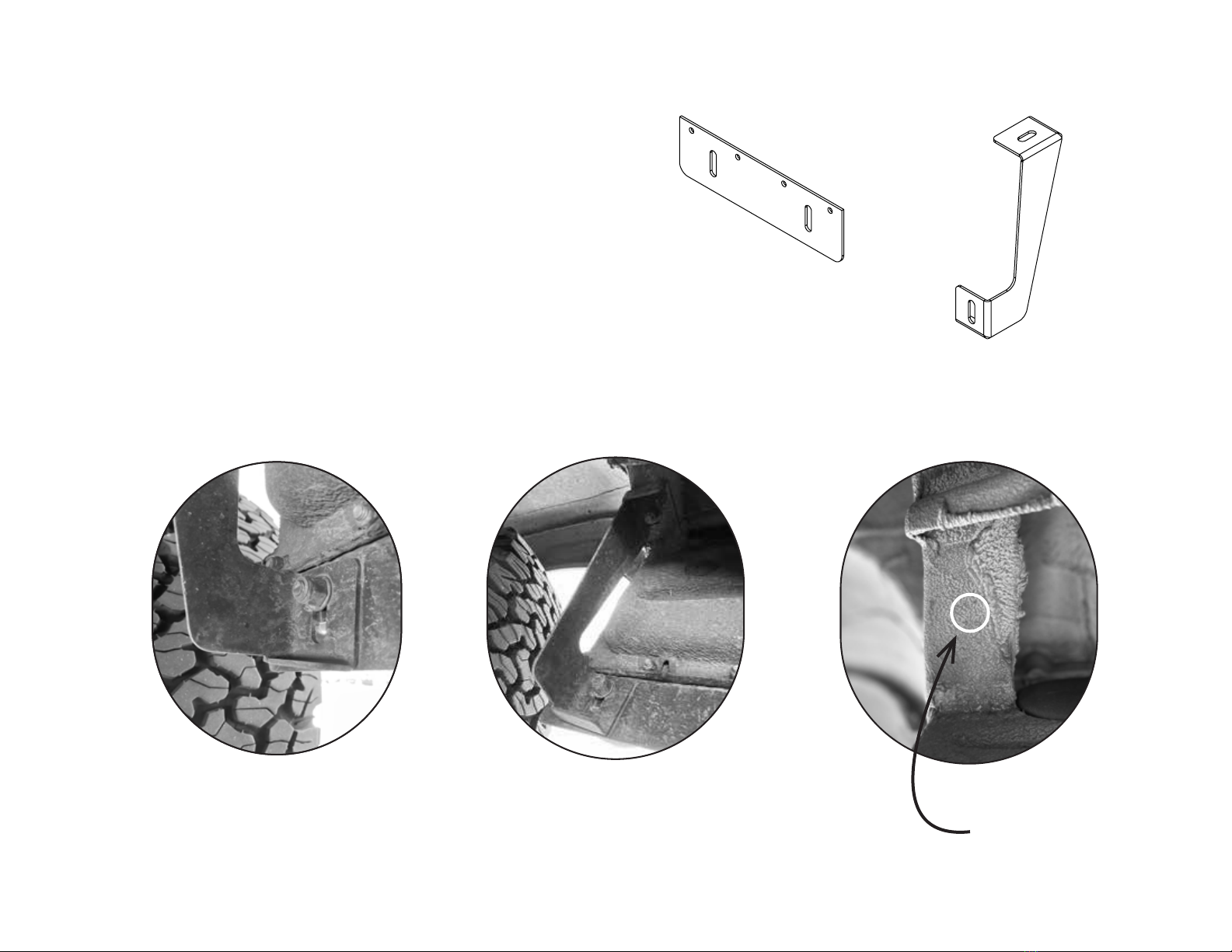

SEE REF PHOTO 1 & 2

NOTE- MAKE SURE THAT THE LADDER IS STRAIGHT UP AND DOWN.

6. LOCATE THE SUPPORT BRACKET ON THE CHASSIS BEAM SHOWN IN

REF PHOTO 2 & 3 AND USE IT TO MARK THE THRU HOLE TO BE DRILLED. ONCE

MARKED, SWING THE BRACKET OUT OF THE WAY SO YOU CAN ACCESS WITH

POWER DRILL. AFTER DRILLING, SWING THE BRACKET BACK IN PLACE AND

LOOSELY ATTACH USING THE REMAINING 3/8-16 X 1” SCREW, 3/8 FLAT

WASHERS, AND 3/8-16 NYLOCK NUT.

NOTE- LEAVE THIS SUPPORT BRACKET LOOSE AS YOU FIT EVERY

THING IN PLACE, OR YOU’LL LIKELY NEED TO LOOSEN IT AGAIN.

MOUNT PLATE SUPPORT BRACKET

REF PHOTO 1 REF PHOTO 2 REF PHOTO 3

DRILL 1/2” THRU

HOLE HERE

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576 7

GET OUT AND EXPLORE!

LEAVE US A REVIEW

Happy with your new FVC product? We would love to hear (and see) from you! Head to the product page and click "Leave

Review." Add a short review and upload a few photos to be showcased on the product page.

SHARE YOUR PHOTOS WITH US

We love seeing how our customers use their FVC products and following along with your adventures. Tag us in your photos

with @ﬂatlinevanco or send them to us via email. We love posting customer pictures in our feed!

CUSTOMER SUPPORT

If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and

outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are!

thanks!

@ﬂatlinevanco

facebook.com/ﬂatlinevanco

youtube.com/c/ﬂatlinevanco

support@ﬂatlinevanco.com
