Gator GHDVR62R Manuale utente
!
Resolution Screen Size
2.7”
143
Wide Angle Recording G Sensor Suction
Mount
1080P
Full
HD
Channe
l
2
Manual
GHDVR62R
FULL HD 1080P DaSH cam +
reversing camera
FRONT & REAR
RECORDING
!
2
Introduction
Product features
Thank you for purchasing the Gator GHDVR62R FULL HD
1080P Dash Cam. Please ensure that you have read the
product manual and instructions in full, prior to installation
and use. Failure to do so may result in product
failure/damage or incorrect operation and therefore impact
the product performance.
FULL HD 1920x1080 @ 30FPS
2.7" High-resolution LCD screen
143 Degree HD wide angle lens
2 Channel input
G-Sensor function
Seamless cycle loop recording
Suction car mount with 360 degree rotation
8GB Micro SD card included
Supports Micro SD card class10 up to 64GB
Butterfly mount camera
130 Degree HD wide angle lens 1280x720 @ 25FPS
IP-67 Dust and water protection
CMOS Sensor
6 M (total length) secondary camera cable
Dimensions 33(H) x 40(W) x 37mm(D)
ATTENTION: Please charge the unit for 4 hours before
use with Dash Cam turned off.
3
Table of Contents
Introduction...........................................................2
Product feature.....................................................2
Table of contents..................................................3
Package components...........................................4
Universal hard wiring kit........................................4
Product structure..................................................5
Installation of Dash Cam......................................7
Fixing the Dash Cam............................................8
Installation of reverse camera..............................8
Blue mirror image loop wire................................8
Instructions for video and photo operation...........9
Taking photos.......................................................9
Video/Photo playback..........................................9
Dash Cam Picture in Picture Screen..................10
Dash Cam Single Screen View..........................10
Dash Cam Settings.............................................11
Menu settings explained....................................11
Resetting Dash Cam .........................................14
Dash Cam glossary............................................14
Product specifications........................................16
Trouble shooting guide......................................17
Safety information & warnings...........................18
Infringement of copyright warning......................18
!
4
Package components
Universal hard wiring kit GUNIHWC (Sold seperately)
GHDVR62R Mounting
Bracket
Reversing camera Car Charger
8G Micro SD
Card
!
!
5
Product structure
1) Screen
2) Power ON/OFF
3) Camera Lens
4) Speaker
1
3
2
4
6
!
5
6
7
9
11
10
13 15
12
8
14
5) Micro SD Card slot
6) Up
7) Down
8) Microphone
9) Menu
10) Mode
11) OK
12) Reset
13) Micro USB charger input
14) Suction mount connection
15) Mini USB rear camera input
7
Installation of Dash Cam
1. Ensure windscreen is clean and free of debris. Use an
Alcohol wipe to enhance suction. Attach suction cup to the
windscreen and lock into position with the lever.
2. Fix where the vision is not blocked (Place close to
rear-view mirror is recommended). Do not install the device
on airbag or within its working range.
3. Insert Micro SD card into the Dash Cam
4. Insert Micro USB end of the power cord into the Micro
USB interface/ charging point of the Dash Cam. Connect
USB charging end of the cable into 12V power socket of
vehicle.
5. Adjust the mounting bracket and rotate the camera
direction to get the best view. Ensure of the vehicles
bonnet is visible from the bottom of the screen
for alignment.
6. Turn vehicles ignition to accessories and the Dash Cam
will power ON and start recording automatically, you will
hear an audible tone once powered.
7. A RED circle will start flashing and a timer will appear
when recording has started on the top left corner of the
LCD.
8. For the Dash Cam to work it must receive power from
the charging adapter. Once power is removed or turned off
the Dash Cam will save the current file and turn off.
Installation of Reversing Camera
Blue mirror image loop wire
1. Insert the Mini USB end of the reversing camera
extension cable into the Mini USB interface of the Dash
Cam. 2. Run the extension cable to the reversing cameras
location. 3. Attach red wire from the extension cable to the
reversing lamp of vehicle to trigger when reverse is
activated for rear view. 4. Connect the reversing camera to
the extension cable and test for signal on the Dash Cam
5. Then mount the butterfly camera to the vehicle
The secondary camera can be used as a front view or
reversing camera by simply cutting the blue loop wire in
the camera cable to reverse the image.
8
Suggested
Fixing the Dash Cam
9
Fixing the Dash Cam
Dash Cam
Camera
Powerwire
(Reverse Tailight)
(43 cm)
(Blue Mirror Wire
reverses image)
(Red Trigger Wire)
(3.4m)
(5.5m)
(1.1m)
F
+
M
Moulded
splitter
10

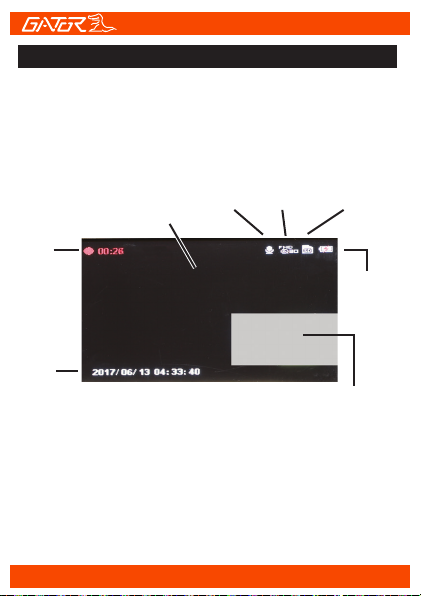

Dash Cam Picture in Picture Screen
Video
recording
time
Date &
Time
Primary
view screen
Secondary
view screen
Battery
Level
ResolutionMic SD Card
Default view is Picture in Picture (PIP). Press Mode button
to switch between single or PIP views. When using reverse
trigger wire, the screen view will revert to PIP once trigger
has been disengaged.
