GE 14845 Manuale utente
14845
Flat Digital
Amplified Antenna
User’s Manual
14845
Version01
7/1/14
2
Introduction:
The 14845 Flat Digital Amplified Antenna is
specially designed to receive digital and analog
terrestrial broadcasted TV signals. The compact
and stylish design will blend in with any décor.
Important Safety Instructions:
•Use only the supplied UL-listed
power adapter
•This antenna is for indoor use only
•Do not install in wet locations or locations
that can get wet
Features:
•VHF/UHF/HDTV
•Impedance 75 Ohm
•Gain 18dB
•Stylish slim profile
Package Contents:
•Digital indoor antenna
•In-line power inserter
•Ul-listed power adapter
•Users manual
•Wall mounting hardware
3
Wall Mounting
For best reception, you will likely want to mount the
antenna above your television. Please follow the
instructions below for proper wall mounting.
1. Locate the mounting hardware
2. Locate the tools below (tools not included)
a. Some tools you will need are:
i. Tape measure
ii. Pencil or pen to mark your holes
iii. 1/8” drill bit and drill
iv. Hammer
v. Phillips screwdriver
3. Identify where you want to mount the antenna
4. Use your tape measure and a pencil, mark two
places on the wall exactly 7 inches apart (as
shown on the back of your antenna)
5. Use a 1/8" drill bit and carefully drill the two
holes marked in step 4.

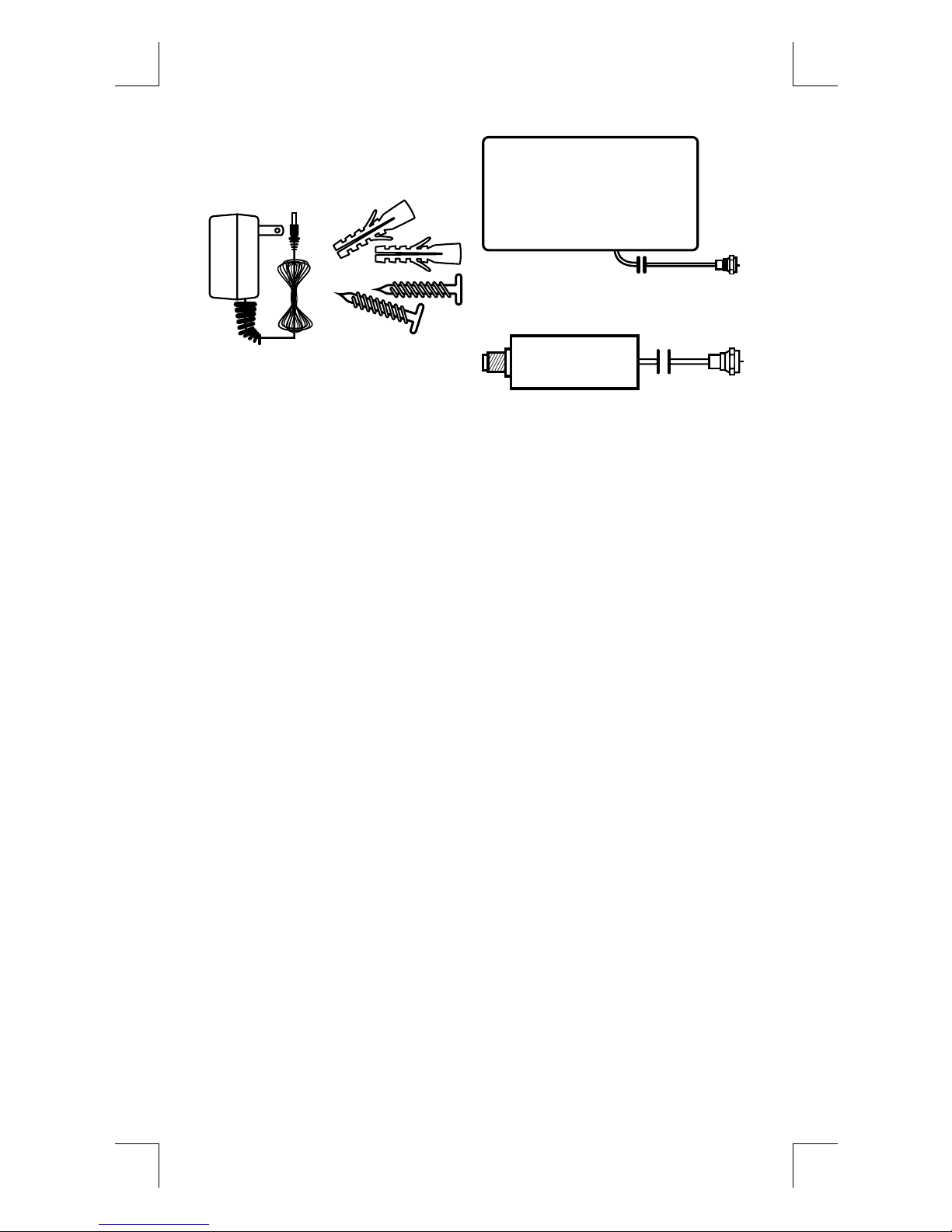

Digital Indoor Antenna
Mounting
Hardware
UL-listed
Power
Adapter Power Inserter
Installation:
1. Attach the coax cable from the antenna to
the power inserter “Antenna”
Power inserter must be used for the
antenna to work
2. Connect the attached coax cable from the
power inserter labeled “Receiver” to the
back of the TV
3. Connect the D/C plug from the power
adapter to the power inserter
6. Use your hammer and lightly tap in the
supplied drywall anchors until they are flush
with receptacle.
7. Use your Phillips screwdriver. Screw in
the screws provided until they stick out
about 1/16".
8. Mount the antenna onto the screws by
lining up the keyhole slots on the back of the
antenna with the screws.
a. Be sure you have routed the coax cable
in the direction you want the cable to go by
using the cable channel on the bottom of
the antenna.
5
4. Plug the power adapter into an AC outlet
5. Turn on your TV
6. Scan for your local TV channels following
the instructions found in your TV’s users
manual
ANTENNA HELPFUL TIPS
Maximize the number of channels you receive by
placing the antenna in several different locations
to see which location provides the best reception
and the maximum number of channels. Be sure
to run a new channel scan on your TV in each
position. Refer to the instruction manual that came
with your TV if you are not sure how to do this.
Position or mount the antenna as high as possible
or near a window for best performance.
Visit www.antennaweb.org or www.dtv.gov and
look for the DTV Reception Maps to determine the
available television stations and location of the
broadcast towers in your area.
6
Made in China
GE is a trademark of the General Electric Company and is under
license by Jasco Products Company LLC, 10 E. Memorial Road,
Oklahoma City, OK 73114.
This Jasco product comes with a limited lifetime warranty.
Visit www.jascoproducts.com for details. Contact us at
1-800-654-8483 between 7:30AM—5:00PM CST.
FOR FURTHER ASSISTANCE CALL, (800) 654-8483
FOR TECHNICAL SUPPORT.
14845
Antena digital
amplificada piso
Manual del usuario
8
Introducción:
La antena digital amplificada piso 14845 está
especialmente diseñada para recibir señales
de difusión televisiva terrestre tanto digital
como analógica. El elegante y compacto diseño
quedará bien con cualquier estilo de decoración.
Medidas de seguridad importantes:
•Solo use el adaptador de corriente
homologado por UL provisto.
• Esta antena es solo para uso en interiores.
• No instale esta antena en lugares húmedos
o lugares que puedan tener humedad.
Características:
•VHF/UHF/HDTV
• Impedancia: 75 Ohm
• Ganancia 18dB
• Diseño esbelto y moderno
Contenido del paquete:
•Antena digital para interiores
•Inyector de corriente de línea
•Adaptador de corriente homologado por UL
•Manual del usuario
•Accesorios para el montaje en la pared
9
Antena digital para interiores
Accesorios
de montaje
Adaptador
de corriente
homologado
por UL
Inyector de corriente
Montaje en la pared
Para obtener la mejor recepción, le conviene
instalar la antena por encima del televisor.
Siga las siguientes instrucciones de montaje
de la antena para instalarla en la pared
correctamente.
1. Localice los accesorios de montaje.
2. Busque las herramientas abajo
especificadas
a. Algunas de las herramientas que necesitará
son las siguientes:
i. Cinta métrica
ii. Lápiz o lapicero para marcar el lugar en
donde hará los orificios
iii. Broca de 1/8” (3,5 mm) y taladro
iv. Martillo
v. Destornillador Phillips
10
3. Identifique el lugar en dónde desea instalar
la antena.
4. Use la cinta métrica y un lápiz, marque
dos puntos en la pared a 7 pulgadas de
distancia (como se muestra en la parte
posterior de la antena).
5. Use una broca de 1/8" y cuidadosamente
haga los dos agujeros que marcó en el
paso 4.
6. Con el martillo coloque los anclajes para
pared de yeso provistos hasta que queden
al ras de la pared.
7. Use el destornillador Phillips. Atornille los
tornillos provistos hasta que queden a 1/16"
de la pared.
8. Para instalar la antena, alinee las ranuras
en la parte posterior de la antena con los
tornillos.
a. Asegúrese de que el cable coaxial haya
quedado en la dirección deseada utilizando
el canal de cable en la parte inferior de la
antena.
