Gefen DVI Audio Extender Manuale utente
DVI Audio
Extender
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 884-6294
(800) 545-6900
Fax (818) 884-3108
Technical Support Hours:
9:00 AM to 5:00 PM Monday through Friday.
Write To:
Gefen Inc.
C/O Customer Service
6265 Variel Ave.
Woodland Hills, CA91367-9897
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
The DVI Audio Extender is a trademark of Gefen Inc.
© 2006 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction
DVI Audio Extender Sender Panel Descriptions
DVI Audio Extender Receiver Panel Descriptions
How To Connect The DVI Audio Extender
Dip Switch Usage Guide
CAT5 Link Cable - Wiring Diagram
Frequently Asked Questions
Terminology
Specifications
Warranty
1
2
3
4
5
6
7
8
9
10
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE DVI AUDIO EXTENDER
• The DVIAudio Extender is housed in a metal box for better RF shielding.
• Your CAT-5 cable should not exceed 200 feet for 1280x1024/1080i.
• Your CAT-5 cable should not exceed 150 feet for 1920x1080/1080p.
• If you do not need DDC data you can use a single CAT-5 cable for the video only. The
DDC will not be connected. An additional 5V DC power supply will be needed for the
receiver side.
• If the source requires EDID present, you can use the Gefen DVI Detective to provide
EDID information.
OPERATION NOTES
INTRODUCTION
The DVIAudio Extender sender unit sits next to your computer, DVD player or any set-top
box with a DVI output. The cable supplied with the DVIAudio Extender connects your DVI
source to the send unit. The DVIAudio Extender receiver unit sits next to your DVI display
- up to 200 feet at 1280x1024/1080i ( 150 feet at 1920x1200/1080p). The display plugs
into the back of the DVIAudio Extender receiver unit. Two CAT-5 cables connect the DVI
Audio Extender-S and the DVI Audio Extender-R units to each other.
CONTENTS
The DVI Audio Extender system consists of:
DVI Audio Extender-S
DVI Audio Extender-R
1x 6 ft DVI to DVI Cable M-M
2x 5V DC power supply
1x 6 ft Audio RCA Cable
1

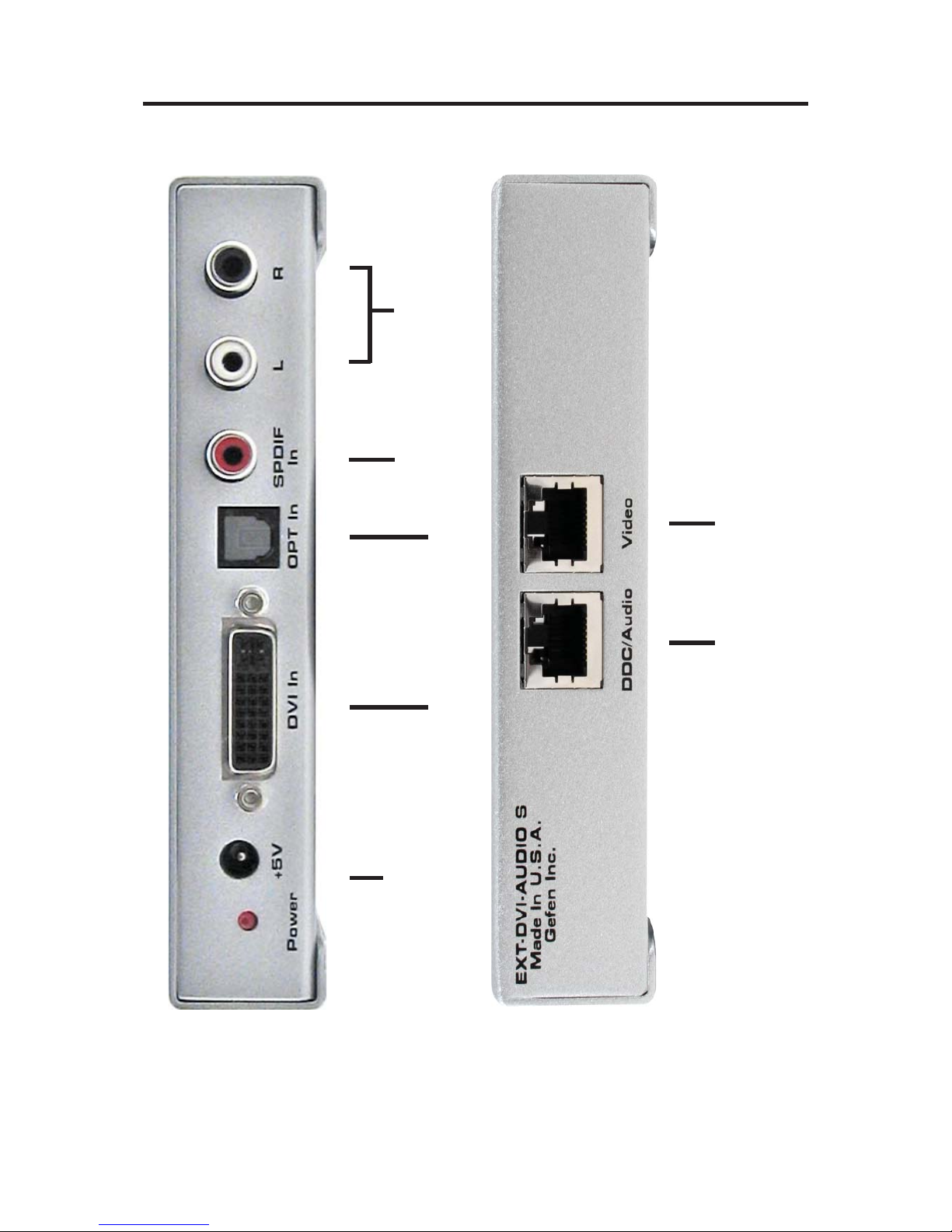

DVI AUDIO EXTENDER SENDER PANEL DESCRIPTIONS
2
DVI input connects to
DVI source
Connects to 5 volt
power supply Optical Audio In
SPDIF Audio In Analog Audio In
DDC/Audio Video
DVI AUDIO EXTENDER RECEIVER PANEL DESCRIPTIONS
3
Analog Audio In DVI input connects to
DVI source
Connects to 5 volt
power supply
Optical Audio In
SPDIF Audio In EQ Trim Pod
DDC/Audio Video
Connect your source to the DVI Audio Extender sender unit using the included DVI
Cable.
Connect the audio from your source to the DVI Audio Extender sender using the
included analog RCA cables or optional digital audio cable.
Connect your display to the DVI Audio Extender receiver unit using a DVI Cable.
Connect the audio on your display or audio receiver to the DVI Audio Extender
receiver unit using the analog RCA cables or optional digital audio cable.
Connect your CAT-5 cables between the sender and the receiver
Plug the 5V power supply into the DVI Audio Extender sender and receiver unit
You should now have picture and sound. If you do not see a picture, try unplugging
and re-plugging the DVI input on the DVI sender unit. Make sure your CAT-5 cables
are not crossed. Recycle the power on the unit.
* If problems presist try adjusting the Dip Switches by following the Dip Switch
Usage Guide.
HOW TO CONNECT THE DVI AUDIO EXTENDER
1
2
3
4
5
6
7
4
DIP SWITCH USAGE GUIDE
5
Gefen CAT5 Extreme products (sender and receiver) both contain a pair of dip
switches located underneath the unit. These dip switches are used to select from
sets of configurations that will equalize the signal to best match the conditions in your
setup.
Receiver Configuration Sender Configuration 10m to 33m Cables
Dip #1 Dip #2 Dip #1 Dip #2
Off Off Off Off Very Good quality cable
On Off Off Off Good quality cable
Off On Off Off Medium cable
On On Off Off Bad cable
Dip #1 Dip #2 Dip #1 Dip #2 2m to 10m Cables
On Off On Off Very Good quality cable
On / Off Off On Off Good quality cable
Off On / Off Off Off Medium cable
On On / Off Off Off Bad cable
Adjustment Guidelines:
1) Dip #1 and Dip #2 on the receiver are Equalization Controllers
a) When both are OFF Equalization is zero => Good quality cables or Bad
quality short cables.
b) When both are ON Equalization is max => Bad quality long cables.
2) Dip #1 on the sender side should be ON when a short and good quality cable is
connected
CAT5 LINK CABLE - WIRING DIAGRAM
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
RJ-45 Jack RJ-45 Jack
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
1818
6
