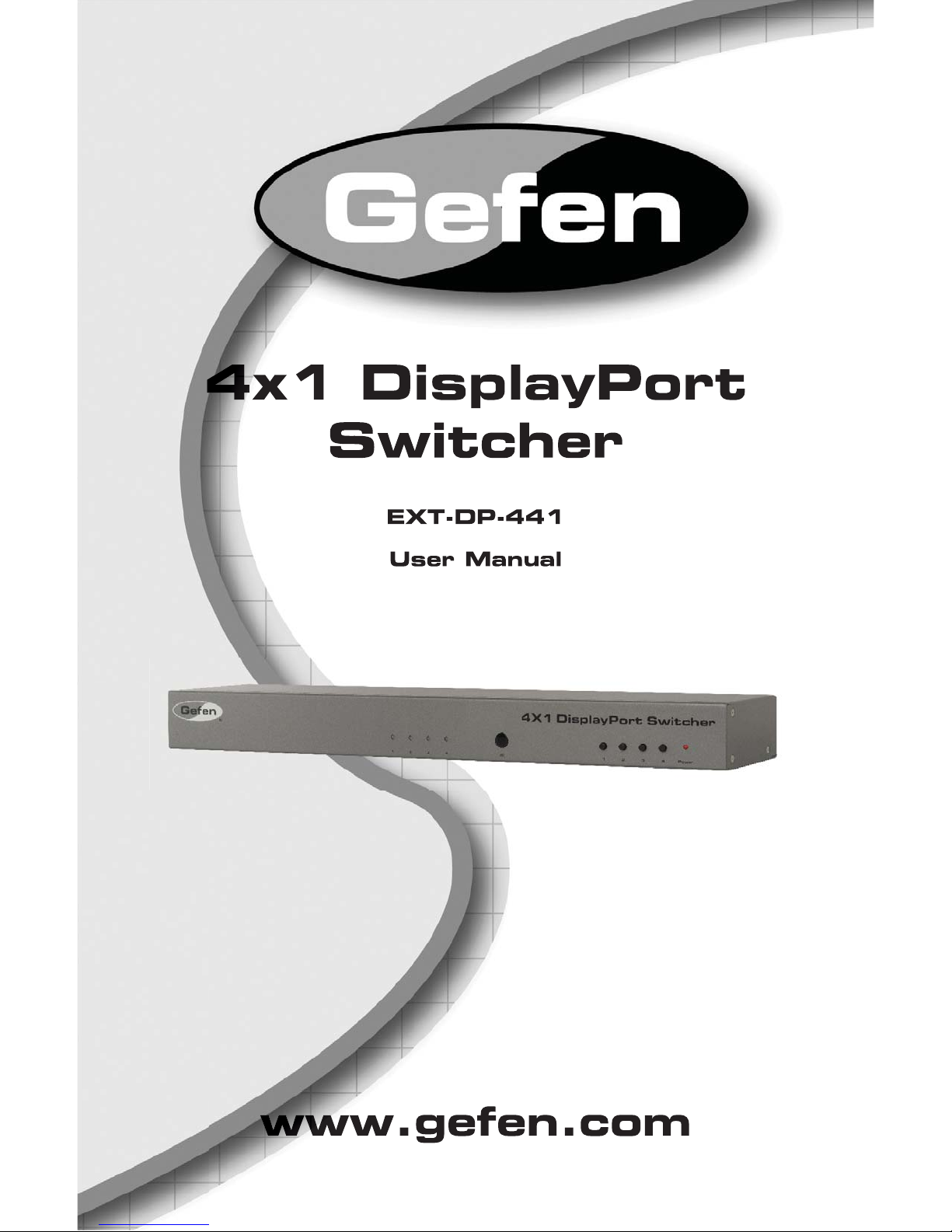

Gefen EXT-DP-441 Manuale utente

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging, and

any accompanying documentation without prior written notice.

4x1 DisplayPort Switcher is a trademark of Gefen LLC

All trademarks are the property of their respective owners.

ASKING FOR ASSISTANCE

Rev A3

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Front Panel Layout

5 Front Panel Descriptions

6 Back Panel Layout

7 Back Panel Descriptions

8 IR Remote Control Unit

8 Layout and Description

9 Installing the Battery

10 Conﬁguring the IR Remote Control Unit

11 Connecting the 4x1 DisplayPort Switcher

11 Wiring Diagram

12 Operating the 4x1 DisplayPort Switcher

12 Front Panel Buttons and LED Indicators

12 Switching sources using the front panel buttons

12 Switching sources using the IR Remote Control Unit

13 Switching sources using RS-232

13 Switching sources using Telnet

14 RS-232 Control

15 RS-232 Commands

15 IP Conﬁguration

20 General Commands

23 Routing and Extender Commands

24 Telnet Control

26 Speciﬁcations

27 Warranty

INTRODUCTION

Congratulations on your purchase of the 4x1 DisplayPort Switcher. Your complete

satisfaction is very important to us.

Gefen

Gefen delivers innovative and progressive computer and electronics

add-on solutions that harness integration, extension, distribution, and conversion

technologies. Gefen’s reliable plug-and-play products supplement cross-platform

computer systems, professional audio/video environments, and HDTV systems

of all sizes with hard-working solutions that are easy to install and simple to

operate.

The Gefen 4x1 DisplayPort Switcher

Easily switch between four computers using DisplayPort with the 4x1 DisplayPort

Switcher.

The rack-mountable 4x1 DisplayPort Switcher offers an economical solution for

switching between four different computers to one display location at the touch of

a button.

Eliminating the need to purchase many displays in a studio or professional en-

vironment, this versatile solution saves money, supports both Mac and PC-type

computers, and offers uncluttered and increased desktop space.

This Switcher can be controlled using front panel discrete switching, the included

IR Remote control, IP control, or the RS-232 port for switching automation.

The 4x1 DisplayPort Switcher is compatible with all operating systems using

DisplayPort.

How It Works

Connect the four included 6-foot DisplayPort cables between the computers and

the Switcher inputs. Connect the Switcher output to the monitor using a Display-

Port cable. Connect the included 5V DC locking power supply to the 4x1 Switcher

and connect the AC power cord to an available electrical outlet. The currently

selected source will be displayed.

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE 4X1 DISPLAYPORT SWITCHER

• The 4x1 DisplayPort Switcher supports Pass-through EDID. The Switcher

will use the EDID from the currently connected monitor.

• Dual Link resolutions up to 2560 x 1600 are supported.

• HDCP content is not supported.

• This Switcher does not support DHCP.

• The default IR channel for both the Switcher and the IR Remote Control Unit

is channel 0. See page 10 for more information.

OPERATION NOTES

FEATURES

Features

• Switches a single Hi-Def display between four DisplayPort-equipped

sources.

• Supports HD resolutions up to 1080p Full HD

• Supports VESA resolutions up to 2560 x 1600

• Supports RGB and YCbCr color spaces

• RS-232 control

• Ethernet / Telenet Control

• IR remote control

• Jack for external IR Receiver

• Saves space on your desktop

• Rack-mountable

Package Includes

(1) 4x1 DisplayPort Switcher

(4) 6ft. DisplayPort Cables

(1) IR Remote Control Unit

(1) 5V DC Locking Power Supply

(1) Set of Rack Ears

(1) User Manual

FRONT PANEL LAYOUT

Front Panel

21 3

FRONT PANEL DESCRIPTIONS

1 Input Indicators (1 - 4)

Each of these LED indicators glows bright blue according to the input selection

(see Input Buttons, below)

2 IR

Receives IR signals from the included IR Remote Control Unit.

3 Input Buttons (1 - 4)

Pressing each of these buttons selects the desired input source (1-4).

4 Power

This LED indicator will glow bright red when the unit is powered.

BACK PANEL LAYOUT

Back Panel

BACK PANEL DESCRIPTIONS

1 5V DC

Connect the included 5V DC locking power supply to this receptacle.

2 DP In 1 - DP In 4

Each of these ports will accept a standard DisplayPort source device.

3 DP Out

This port will accept a single standard DisplayPort output device. The currently

selected DisplayPort input source will be output via this port.

4 Ext IR

Connect an IR extender cable to this port.

5 RS-232 Serial Port

This port is used for serial communication using an RS-232 control device. For

details, refer to page 14.

6 Ethernet

Connect the Switcher to a network in order to communicate via Telnet.
