GeoMax Zoom75/95

Quick Guide Version 1.0

English

1 Important Information about your

Instrument

Read and follow the User Manual on the accompanying data storage device

before using the product.

Keep for future reference!

•Measuring horizontal and vertical angles

•Measuring distances

•Recording measurements

•Automatic target search, recognition and tracking

•Visualising the aiming direction and vertical axis

•Remote control of product

•Data communication with external appliances

•Computing with software

The Zoom75/95 instrument contains the following laser products:

☞

Intended Use

Laser products

Important Information about your Instrument 6

Laser product Laser class

EDM (Electronic Distance Measurement) module

•measurements with reflectors Class 1

•measurements without reflectors Class 3R

Red laser pointer Class 3R

AiM (Automatic Prism Aiming) Class 1

Scout (Prism Search)*

only available at Zoom95 Class 1

NavLight (Navigation Light) Exempt Group

Laser plummet Class 2

*optional laser product

•The classification for the EDM, red laser pointer, AiM, Scout and laser

plummet is in accordance with IEC 60825-1 (2014-05).

•The classification for the NavLight is in accordance with IEC 62471-1

(2006-07).

Important Information about your Instrument 7

CAUTION

Class 3R laser products

From a safety perspective, class 3R laser products should be treated as

potentially hazardous.

Precautions:

▶Prevent direct eye exposure to the beam.

▶Do not direct the beam at other people.

CAUTION

Class 2 laser product

From a safety perspective, class 2 laser products are not inherently safe for

the eyes.

Precautions:

▶Avoid staring into the beam or viewing it through optical instruments.

▶Avoid pointing the beam at other people or at animals.

Important Information about your Instrument 8

11169_002

a LED beam red

(NavLight)

b LED beam yellow

(NavLight)

c Laser beam

(Scout), only avail-

able at Zoom95

d Laser beam (EDM,

AiM)

e Laser beam (Laser

plummet)

f Exit for laser beam

(Laser plummet)

The product must not be disposed with household waste.

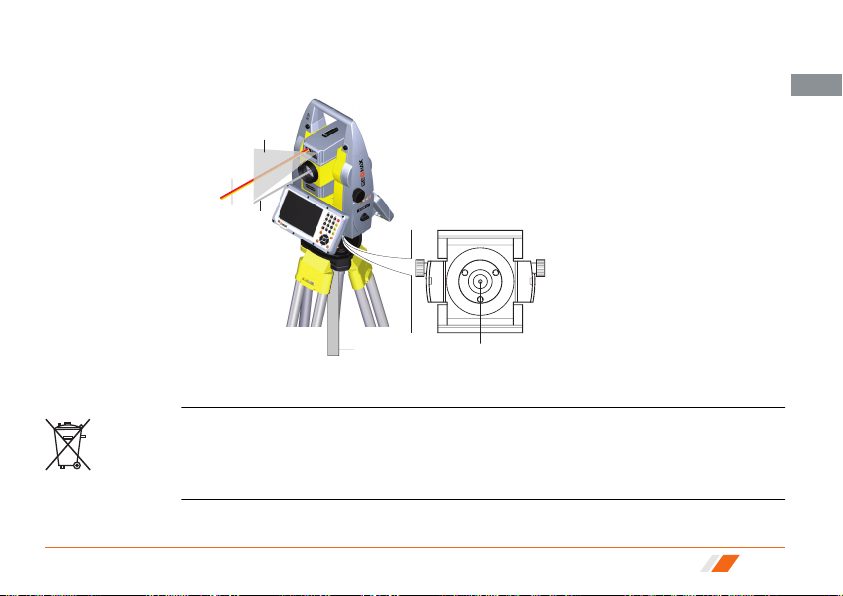

Locations of

laser apertures

Important Information about your Instrument 9

•FCC Part 15 (applicable in US).

•Hereby, GeoMax AG declares that the radio equipment type

Zoom75/95 is in compliance with Directive 2014/53/EU and other

applicable European Directives.

The full text of the EU declaration of conformity is available at the

following Internet address: https://geomax-positioning.com/part-

ner-area.

Class 1 equipment according to European Direct-

ive 2014/53/EU (RED) can be placed on the market and be

put into service without restrictions in any EEA member

state.

•The conformity for countries with other national regulations not

covered by the FCC part 15 or European Directive 2014/53/EU has

to be approved prior to use and operation.

The products of GeoMax are powered by Lithium batteries.

Conformity to

national regula-

tions

Dangerous

Goods Regula-

tions

Important Information about your Instrument 10
