Giada MI-A75 Manuale utente
www.giadatech.com User’s Manual
MI-A75
All right reserved
Version 001
Motherboard
(2) this device must accept any interference received, including interference that may cause undesired operation.
FCC ID:YIKMIR880G
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
21
Gratitude ……………………………………………………………………………
I. About the product ………………………………………………………………
1. Picture of the motherboard ………………………………………………
2. Features ……………………………………………………………………
2.1 Processor ………………………………………………………………
2.2 Memory …………………………………………………………………
2.3 BIOS ……………………………………………………………………
2.4 Interfaces of peripherals ………………………………………………
2.5 Power management……………………………………………………
2.6 Expansion slot …………………………………………………………
II. Hardware installation……………………………………………………………
1. Layout of motherboard ……………………………………………………
2. Install CPU …………………………………………………………………
3. Installing memory …………………………………………………………
4. Install expansion slot card …………………………………………………
5. Motherboard jumper setting ………………………………………………
5.1 SATA1/SATA2/ SATA3/ SATA4 (Serial ATA flat-cable sockets)……
5.2 CPU_FAN/ SYS_FAN (CPU fan /System fan socket)………………
5.3 CLR_CMOS(CMOS pin) ………………………………………………
5.4 F_USB1 (frond-end USB pin) …………………………………………
5.5 F_ AUDIO(Pins for front-end audio adapter) ………………………
5.6 ATX 20PIN(Power receptacle ) ………………………………………
5.7 ATX 12V (12V Power receptacle) ……………………………………
5.8 F_ PANEL (Front-end control panel) ………………………………
4. Rear panel interface ………………………………………………………
5.9 F_COM (Front end COM port) ………………………………………
Contents
III. BIOS setting ……………………………………………………………………
1. Main menu …………………………………………………………………
2. Main (standard CMOS setup) ……………………………………………
3. Advanced (Advanced BIOS setup) ……………………………………
3.1 CPU configuration ……………………………………………………
3.2 IDE Configuration ……………………………………………………
3.3 IO chipset configure …………………………………………………
3.4 PC health configuration ……………………………………………
4. Power ………………………………………………………………………
5. Boot …………………………………………………………………………
6. Security Setup ………………………………………………………………
7. Chipset ………………………………………………………………………
7.1 USB configuration ……………………………………………………
8. T.W.L …………………………………………………………………………
9. Exit …………………………………………………………………………
IV. Software installation ……………………………………………………………
1. Install driver for motherboard ……………………………………………
1.1 Install driver for chipset ………………………………………………
1.2 Install sound card driver ………………………………………………
1.3 Install driver for on-board LAN chip …………………………………
1.4 Install driver for graphic card …………………………………………
2. HD_AUDIO and sound card setup ………………………………………
V. Appendix …………………………………………………………………………
3
4
5
5
5
5
5
6
7
8
9
10
10
10
12
11
13
14
15
18
17
18
19
4
5
5
20
22
23
24
24
25
25
26
27
28
30
31
32
33
33
35
35
37
38
39
40
40
47
www.giadatech.com
4
3
Gratitude I. About the product

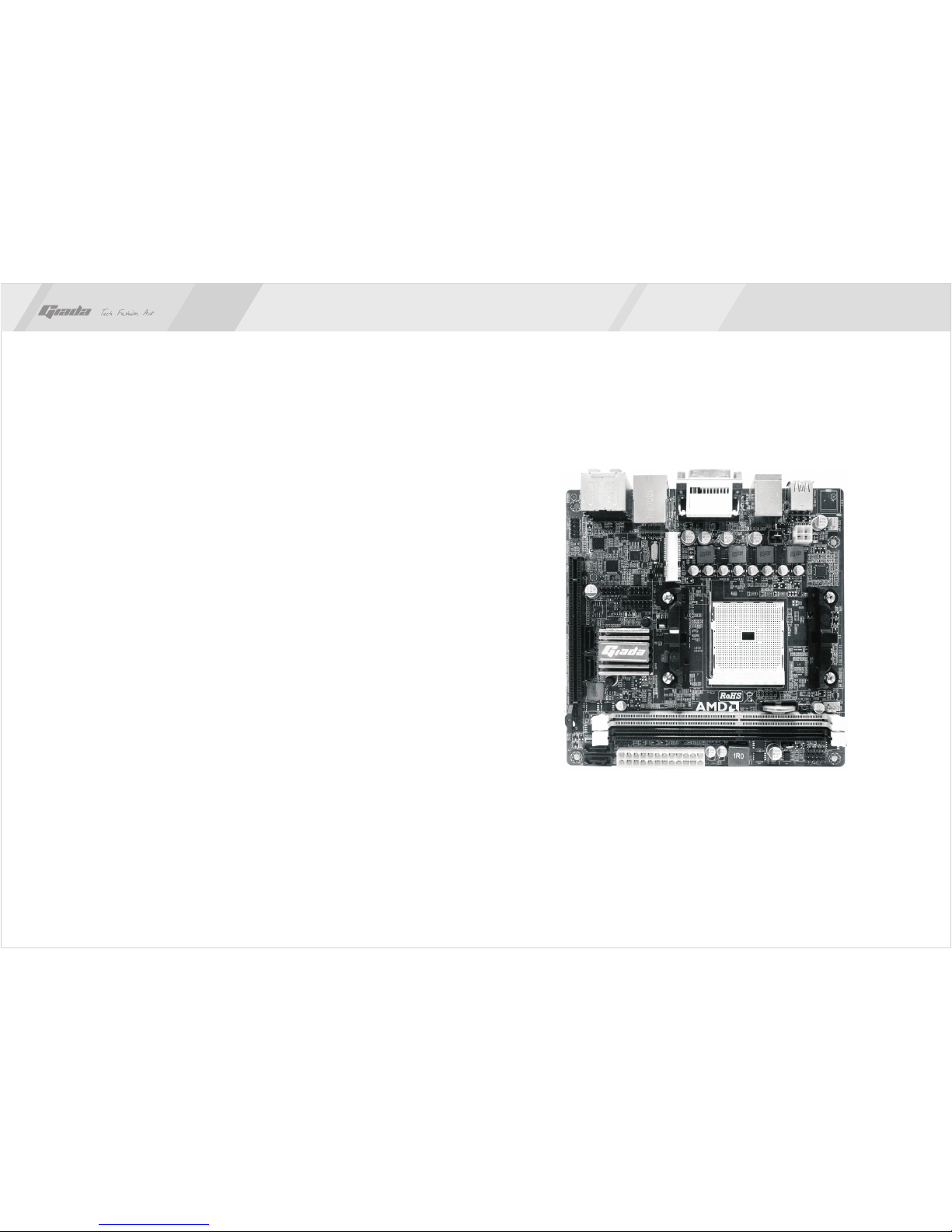

1. Picture of the motherboard
Thank you for choosing Giada motherboard.
®
Giada MI-A75 is based on AMD A75 chipset, support socket APU 905 type
processor.
It supports HT3.0 technology, DDR3 1333/1066 Dual-channel memory, 4*SATA3
port, 2*USB3.0, 8*USB2.0 port, on-board 7.1-channels HD-AUDIO sound card,
Supports S/PDIF out ports on rear，gigabit LAN and HDMI display output.
Any question about the product, please send e-mail to our support center.
Headquarter:
USA office: [email protected]
www.giadatech.com
NOTE: This is Giada real product photo show for your reference only, Product
appearance depends on goods.
6
5
2.1 Processor
· Support socket 905 APU type processor.
NOTE: This board only supports processor consumption less than or equal
to 65W.
· Support HT3.0.
2.2 Memory
·
·
2.3 BIOS
·
·
·
·
2.4 Interfaces for peripherals
·
·
·
·
·
·
·
·
·
2.5 Power management
·
·
2.6 Expansion slot
· 1* MINI-PCIe 1X slot at top side.
2. Features
Supports DDR3 1333/1066MHz memories * 2;
4GB at maximum; (2GB/per slot)
NO Supports PNP, APM and ATAPI;
Supports ACPI and DMI;
Automatic detection and supporting hard disk whose LBA mode is over 160G;
End-users can easily upgrade the motherboard with BIOS.
1* PS/2 Keyboard port
4* SATA3 HDD port (support 6Gb/s);
1* HDMI digital port;
1* DVI port;
8* high-speed transmission ports (max. 480Mb/s) which support USB2.0 and
are compatible with USB1.1;
1* RJ45 network interface (PCIe Gigabit Ethernet);
On-board HD-AUDIO audio adapter;
Interfaces on panels can be compatible with HDD LED, Speaker, etc;
1* CPU FAN socket.
Support APM and ACPI.
Compatible with energy star “Green PC”.
II. Hardware installation
www.giadatech.com
Warning
·
·
·
·
·
The motherboard consists of a great number of ICs and other components.
These ICs might be damaged by the static charge. Therefore, the user must
make the following preparations before installation:
Turn off the power of the computer. It is preferable the power cord be unplugged.
Take care not to contact the metal wires and theirs joints on the motherboard
when handling it.
It is preferable that the operator wear the anti-static wrist strap when handling
the IC components.
Before the ICs are installed, the components of the motherboard should be
placed on the anti-static mat or bag.
When you remove the plug on the ATX power supply of the motherboard, make
sure the switch of the power supply is in OFF state.
Installing the motherboard onto the computer case:
For most of the computer cases, the multiple fixing holes left on their bottoms can
be used for securing the motherboard and preventing short circuit. During your
operation, take care not to allow the screws to contact any circuit or part on PCB.
When circuits on the surface of the motherboard get close to the fixing holes, you
can use the plastic sheet to separate the screws from the board surface so as to
avoid damage or failure of the motherboard.
8
7

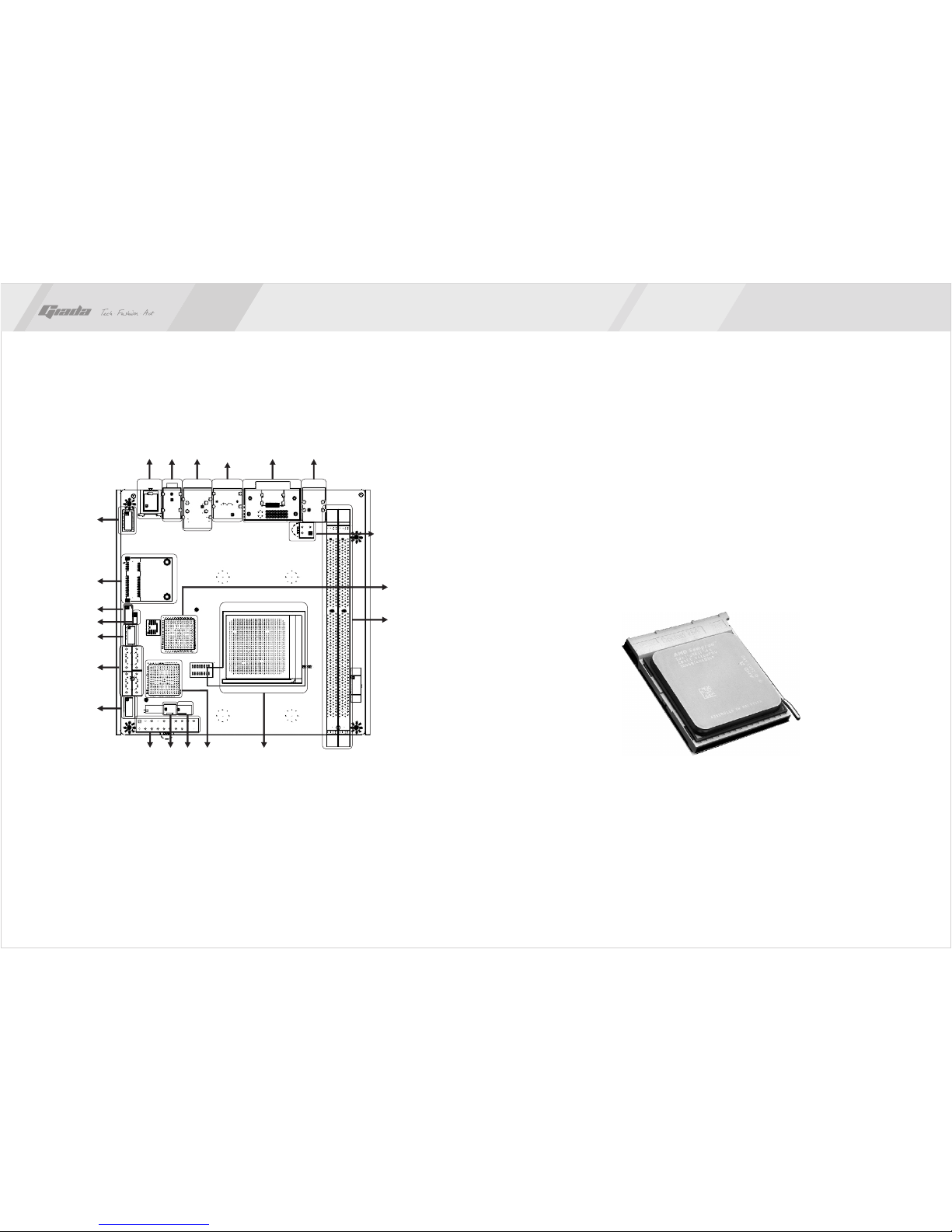

1. Layout of motherboard 2. Install CPU
Please install the APU in accordance with the following procedures:
· Locate the Socket 905 (APU) on motherboard.
· Pull the lever as shown below, beside the socket to 90 degree angle.
· Near the bottom of the socket (“Socket APU” printed) , there is one hole
missing at both left and right side. We use this feature as a direction marking
of APU installation. On the APU, there is also similar triangle mark on its edge
to identify the correct install direction.
· Alignment the processor socket marked with the central processor, put your
APU into the socket slowly, and pull the lever back.
NOTE: Be sure to install the APU follow the right Socket mark direction, otherwise
may cause damage to the central processor.
· After install the central processor, please mount APU fan on the central
processor and clip buckle in both sides of the socket.
· When the APU fan has been installed, please connect the fan power cord
into 4PIN “APU_FAN” socket on board.
www.giadatech.com
12
3
4
5
6
7
8
9
11
13
12
14 15 16 17 18
20
21
1. PS/2 Keyboard port + USB2.0 port
2. DVI + HDMI
3. USB2.0 port + e-SATA port
4. RJ45 NIC + USB2.0 port
5. 3jack audio
6. S/PDIF-out
7. Front audio
8. Mini PCIe slot
9. COM header
10. Clear CMOS
11. Front USB
12. SATA2.0 port
13. Front Panel
14. ATX PWR 20PIN
15. SYS FAN
16. CPU FAN
17. South Bridge
18. CPU socket
19. Memory slot
20. North Bridge
21. ATX PWR 4PIN
10 19
NOTE: This motherboard does not support dual display DVI and HDMI.
VGA display via DVI to VGA adapter can not get the Maximum resolution.
This motherboard does not support some AOC monitor.
10
9
www.giadatech.com

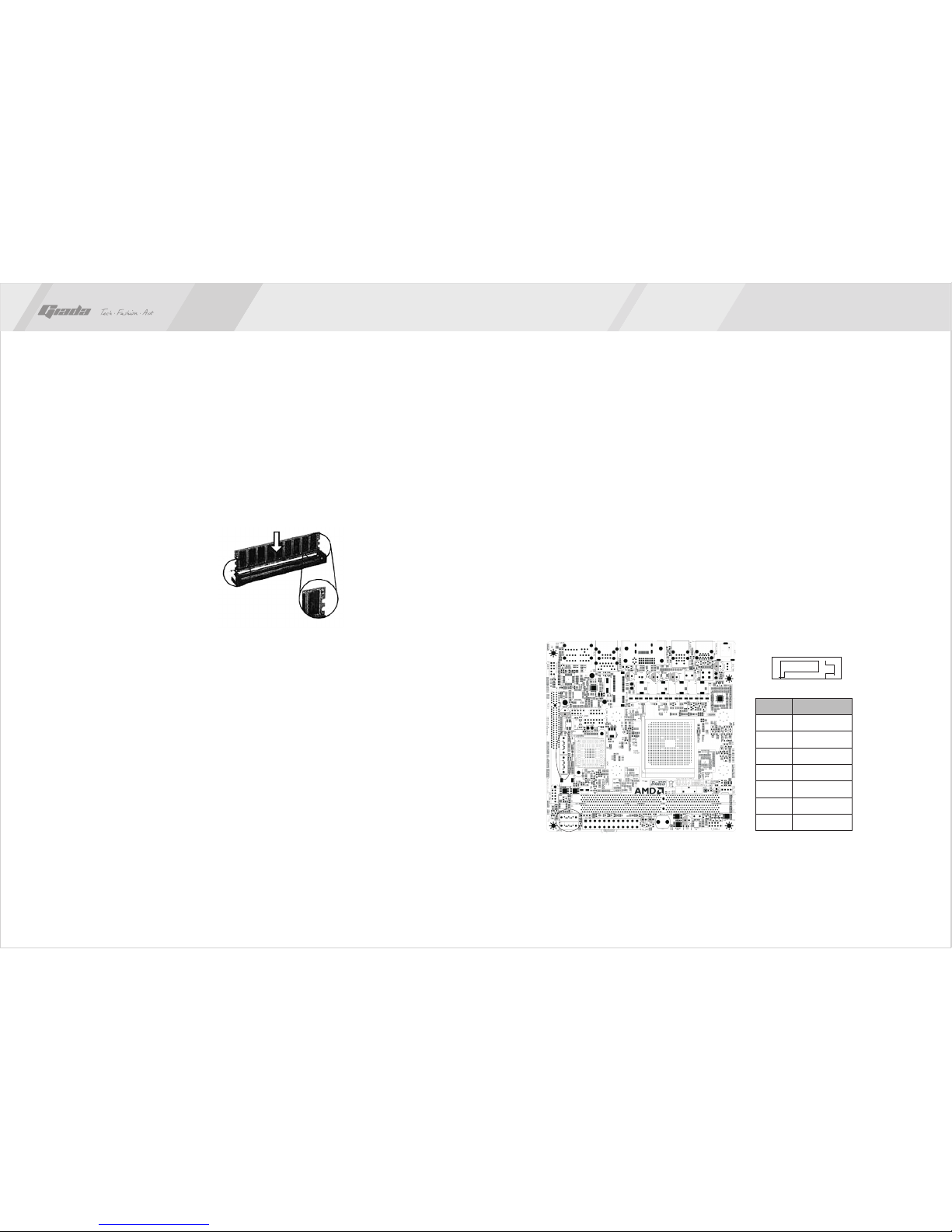

3. Installing memory
Please install the memory in accordance with the following procedures:
· Remove the buckle at the two ends of the interface slot for the memory;
· Align the golden finger of the memory to the groove of the interface slot and
pay attention the concave hole of golden finger should be aligned to the
convex point of the slot.
· Finally, insert the memory into the interface slot gently. If no error occurs at the
moment, insert the card forward in the slot till the white buckle is automatically
engaged in the concave hole at the two sides of the memory.
Note
In order to avoid damages to the motherboard or the components, the user must
make sure the power supply to the computer is turned off before the memory or
other component is installed or removed. As the groove is set at the golden finger
of the DDR DIMM, the memory can only be inserted into the slot with one direction.
During installation, the user only needs to align the golden finger and the
dual-channel groove of the interface slot and insert it gently. To avoid damage,
never apply excessive force in that process.
switch out the white buckle on
both ends of the DIMM
4. Install expansion slot card
Installing Mini-PCIE extended devices
At the top side of motherboard there is a Mini-PCIE extended slots, which user
can connected WIFI module and Bluetooth module etc.
5. Motherboard jumper setting
Note:The user should notice that all sockets are marked with PIN1. The mark “#”
indicates the default values.
5.1. SATA1/SATA2/ SATA3/ SATA4 (Serial ATA flat-cable sockets)
Serial ATA sockets can reach a transmission speed of 300MB/s, and you can
connect your Serial ATA device to this socket.
71
PIN Definition
1
2
3
4
5
6
7
GND
TXP
TXN
GND
RXN
RXP
GND
12
11

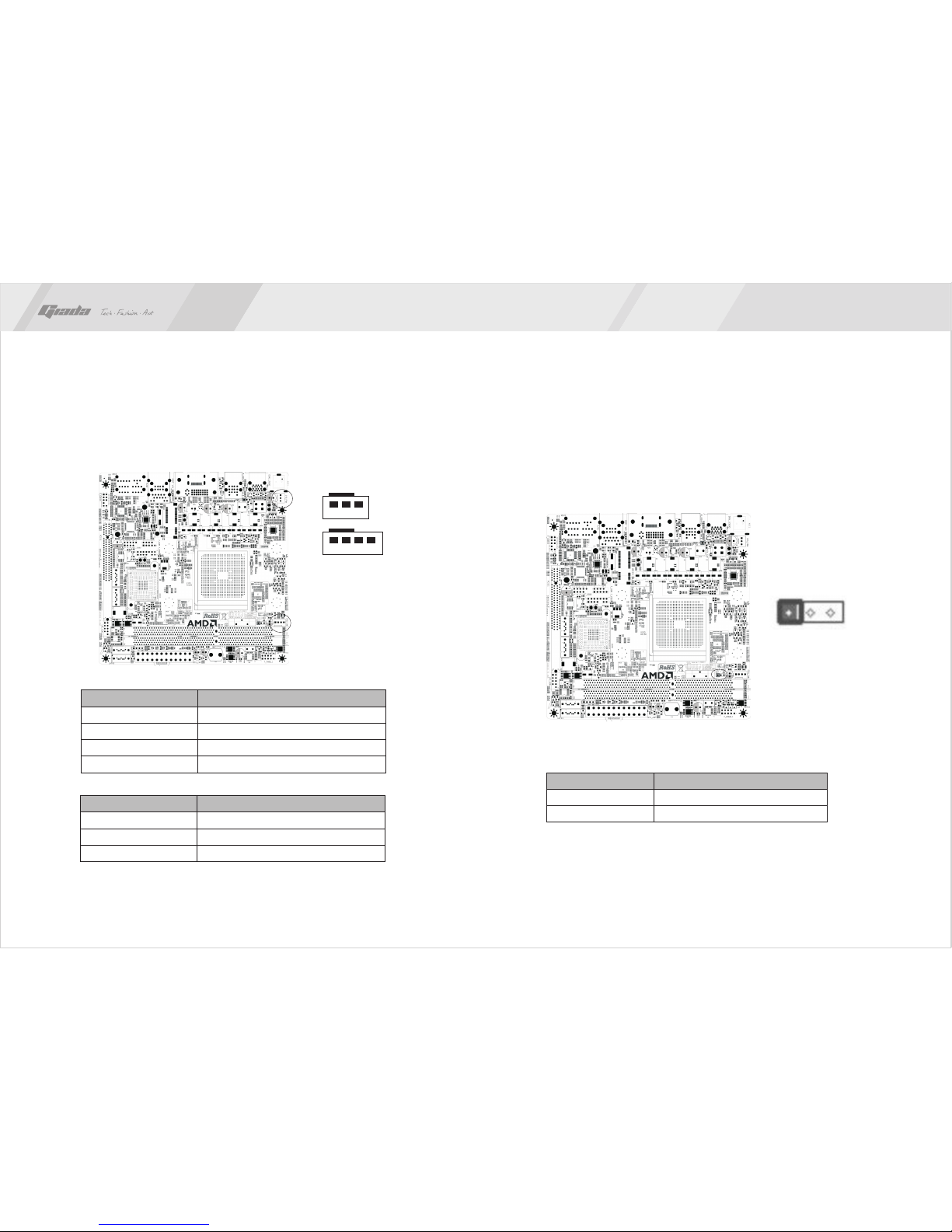

5.2. CPU_FAN/ SYS_FAN (CPU fan /System fan socket)
This receptacle can be used for connecting CPU/system fan. Its pins are
defined below. The user shall make sure the fan is conforming.
CPU PIN Definition
1
2
3
4
GND
12V
SIGNAL
CTRL
SYS PIN Definition
1
2
3
VSS
VDD
TAC
123
1 2 3 4
PIN Definition
1-2#
2-3
Normal
CLR_CMOS
www.giadatech.com
1 2 3
5.3. CLR_CMOS(CMOS pin)
The correct time, system hardware and other information are saved in the
CMOS memory of the motherboard. The interruption the computer's power
won't cause the loss of this information, for the CMOS is powered by the
battery on the motherboard. The port is defined as follows:
14
13
www.giadatech.com

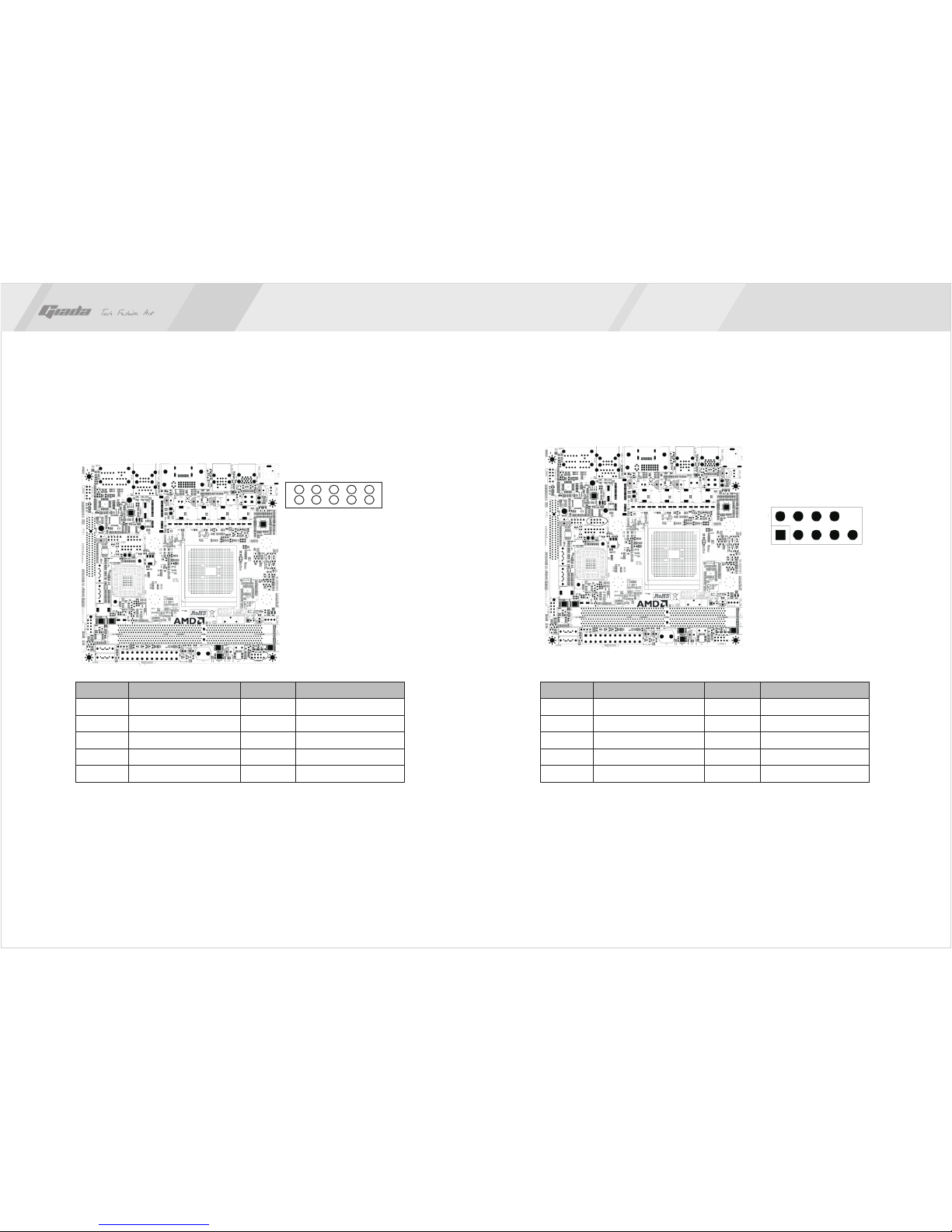

5.4. F_USB1 (frond-end USB pin)
In case the USB ports on the rear panel of the machine case are not enough,
the user can use the extension USB pins provided by this motherboard.
These ports support USB 2.0 devices. The definitions of the ports are
described below:
PIN
1
3
5
7
9
Definition
5V
USB D0-
USB D0+
GND
NULL
PIN
2
4
6
8
10
10
Definition
5V
USB D1-
USB D1+
GND
NULL
1
2

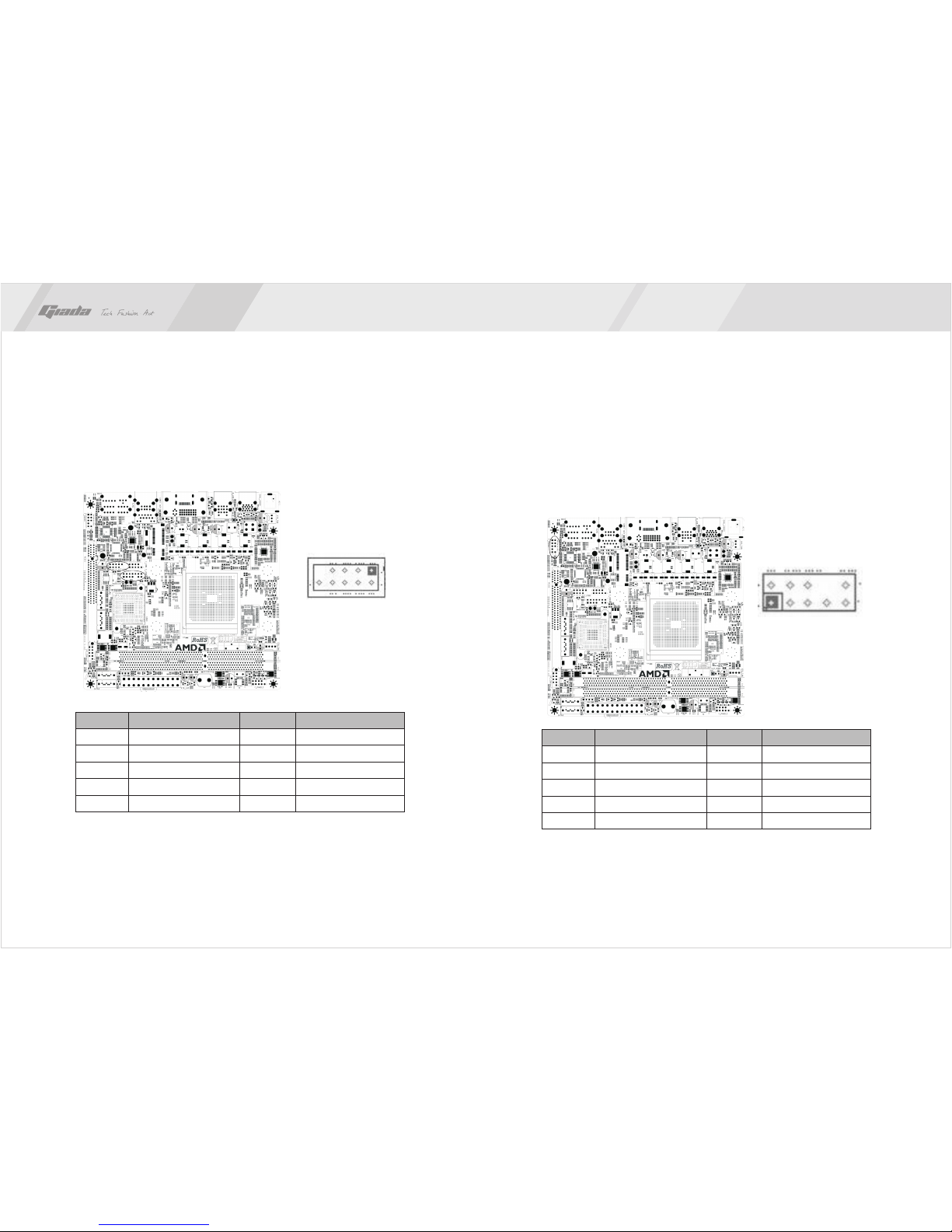

5.5. F_ AUDIO(Pins for front-end audio adapter)
These audio adapter ports allow you to connect to the wire harness of the
audio adapter. After connection, you can easily control the audio
output/microphone through the front panel of the host (Note: Don't connect
the wire to Pin 4).
The definitions of the ports are described below:
10
1
2
Definition
GND
5V
-
NULL
-
PIN
2
4
6
8
10
Definition
MIC
MIC-BIAS
OUT-R
GND
OUT-L
PIN
1
3
5
7
9
9
16
15

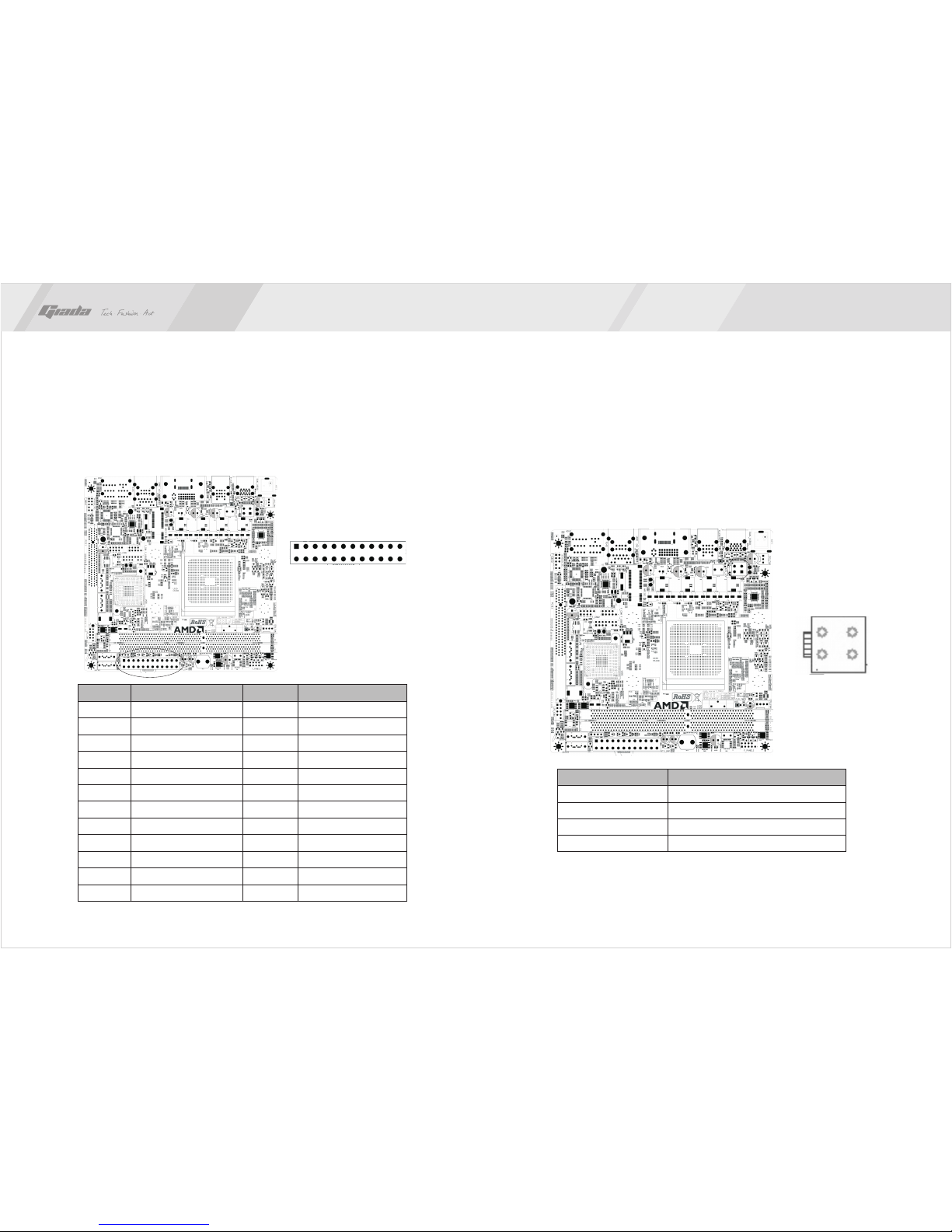

5.7. ATX 12V (12V Power receptacle)
Besides standard 20-pin PWRATX1 power receptacle, this board has a
special 12V power receptacle for CPU. For better and more stable processor
power supply, we suggest keeping the connection on this socket. The
definitions of the pins are described below (when power supply with 20-pin
outlet is used, please make sure the numbers are matched correctly):
www.giadatech.com
1
PIN Definition
1
2
3
4
GND
GND
12V
12V
5.6 ATX 20PIN(Power receptacle )
This socket is for 24PIN standard ATX power. The definitions of the ports are
described below:
Definition
3.3V
5V
5V
PG
12V
3.3V
-12V
PS-ON
GND
-5V
5V
GND
PIN
2
4
6
8
10
12
14
16
18
20
22
24
Definition
3.3V
GND
GND
GND
5VSB
12V
3.3V
GND
GND
GND
5V
5V
PIN
1
3
5
7
9
11
13
15
17
19
21
23
18
17
www.giadatech.com
Definition Definition
PLED+(VCC)
GND
NULL
PWBT
GND
RXD1
DTR1
DSR1
CTS1
NC
PIN PIN
2
4
6
8
10
2
4
6
8
10
Definition Definition
HDLED+
GND
RST+
RST+
NULL
DCD1
TXD1
GND
RTS1
RI1
PIN PIN
1
3
5
7
9
1
3
5
7
9
5.8. F_ PANEL (Front-end control panel)
This socket is used to connect the flat cables on the front-end panel.
NOTE: HDLED+/HDLED- for HDD indicator; PLED+/PLED- for power indicator;
PW+/PW- for power button; RST+/RST for reset button
5.9. F_COM (Front end COM port)
2
1
4
3
6
5
8
7
10
9
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Giada Scheda madre
Giada
Giada MI-D2700G Manuale utente
Giada
Giada MI-E350 Manuale utente
Giada
Giada MI-D2700D Manuale utente
Giada
Giada N21M-MV Manuale utente
Giada
Giada N70E-DR ITX NAS Manuale utente
Giada
Giada N30M-VA Manuale utente
Giada
Giada NI-R3188 Manuale utente
Giada
Giada MI-E350T Manuale utente
Giada
Giada AP23 Manuale utente
Giada
Giada MI-ION2 Manuale utente
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
