EM-2200

Double Standard Electromagnetic Lock

The EM-2200 Series are high quality and safety range

electromagnetic locks that are simply, work well in order to

effectively secure doors. This lock is recommended for

applications which require higher levels of access control and

are suitable for fire doors and emergency exit doors.

The EM-2200 Series are designed for double doors and are

suitable for outswing applications. Installation on inswing

doors, narrow-style frames and frameless glass doors

requires the use of additional brackets. With the accessories

provided, the lock can be used on wooden, and even metal

door. Electromagnetic locks offer optional functions and

accommodate the different needs of users and increase the

lock's value and uniqueness.

High reliability

Holding force up to 1200lbs x2.

For double leaf doors.

Fail- safe( Power to Lock).

Aluminum anodized casing.

MOV provides spike and surge protection.

Adjustable mounting plate for easy installation.

Dual voltage 12 or 24 VDC (selectable).

Anti-Residual magnetism function.

UL Listed Certified for US and Canada

"Positive Pressure Fire Tests of Door Assemblies,"

ANSI/UL UL 10B and 10C,

uniform building code standard UBC 7-2 (1997).

Operating Voltage : 12/24 VDC

Current Draw: 500mA/12VDCx2, 250mA/24VDCx2

(at temperature 20°C)

Operating Temperature: -10~55°C (14~131°F)

Humidity: 0~95% non-condensing.

Holding Force: Up to 1200lbsx2 (545Kgx2)

Dimensions:

Magnet:(L) 533(530), (W) 67, (D) 40 mm

Armature Plate:(L) 185, (W) 62, (D) 16 mm

Mounting Plate:(L) 533(530), (W) 40, (D) 5 mm

Special Finishes for magnet and armature plate: Zinc Plated

Epoxy Potting Compound: E87252 (S), UL94V-0

Net Weight: 9.5 Kg

GIANNI INDUSTRIES, INC.

DM-CA-EM-2200 Ver. D Published on 2011.09.07

Regular Installation

Anti-residual statement

Magnet Armature

(Power Off)

Magnet Armature

(Power On)

Anti-residual statement

Our electromagnet locks feature Anti-Residual Magnetism

(ARM) which ensures the door can be opened without any

resistance from left over magnetism imparted to the armature

plate

The product is warranted against defects in material and

workmanship while used in normal service for a period of 5

years from the date of sale to the original customer. The GEM

policy is one of continual development and improvement;

therefore GEM reserves the right to change specifications

without notice.

Warranty

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2 267 79 86 / Fax: 886-2 2267 9876

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw

EM-2200

Double Standard Electromagnetic Lock

GIANNI INDUSTRIES, INC.

DM-CA-EM-2200 Ver. D Published on 2011.09.07

Operating Features

EM-2200MTD: Relock time delay

Ensure automatic locking after the

door is closed properly. Relock time

delay can be adjusted from 1 to 80

seconds.

EM-2200MBZ: Buzzer Alarm

Door Held Open Alarm is an auditory feedback for

users. The alarm sounds when the door is not

closed and that has exceeded a specified time

limit. VR timer is adjustable from 1 to 20 seconds.

EM-2200M: Bond sensor output

Indicate the locked & unlocked status with visible

LED indicator.

Bond sensor output : SPDT rated: 0.5A/125VAC;1A/24VDC

: Door status EM-2200MDS

Door Status Sensor indicates the door

is in an open or closed status.

Door status output : SPDT rated: 0.2A/12VDC

Timer Adjust

Shorten

Trigger

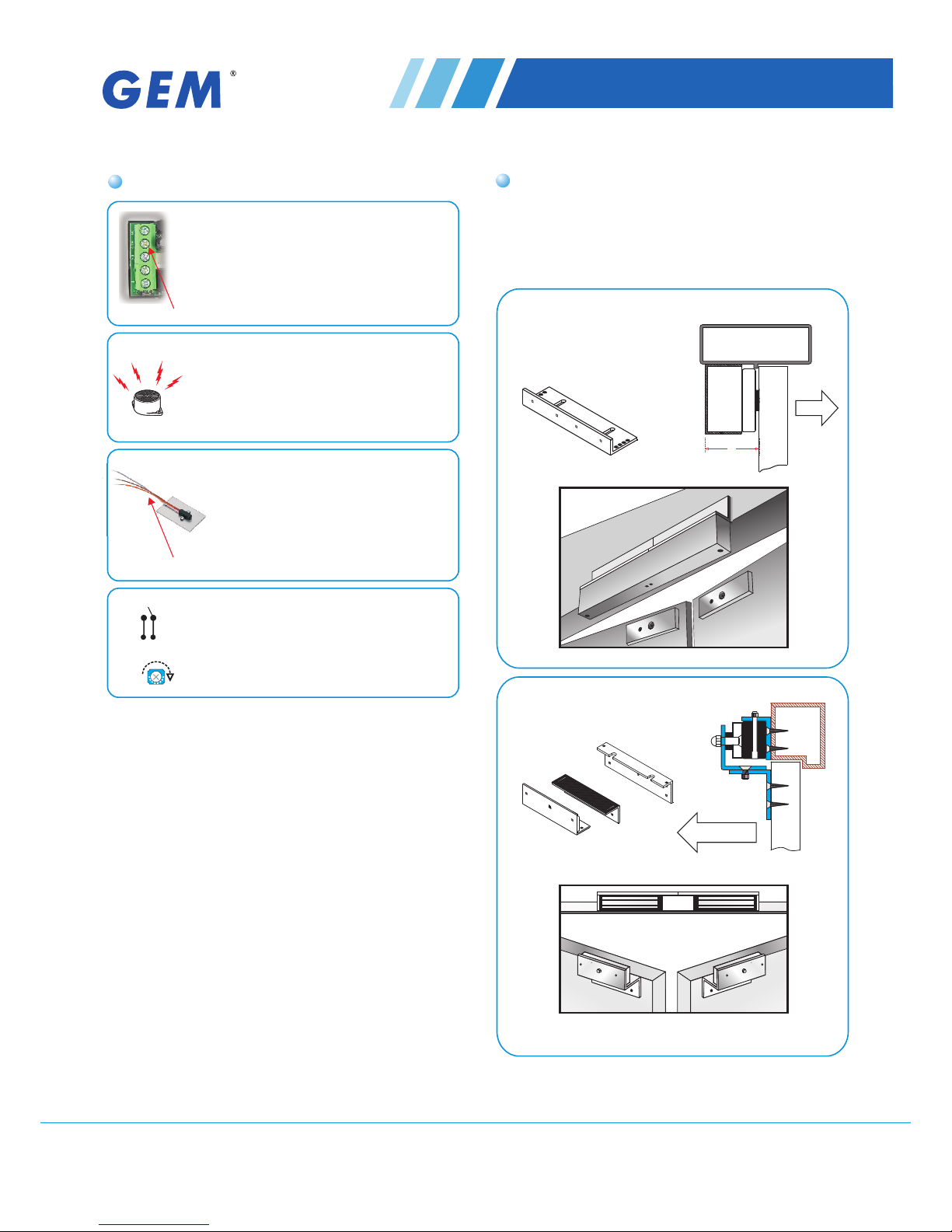

Optional Brackets

With L-bracket for narrow frame doors

When < 60 mm ,must

installed with "L" brackets.

"A"

L-500

LZ-bracket for inswing doors

LZ-500N

Bracket installation is according to door swing

direction and door frame type , e.g. narrow frame

door , frameless glass door , inswing door , etc.

60 mm

Magnet

Armature

Door Frame

Door

Leaf

Outswing

In-Swinging

Frame

Door

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2 267 79 86 / Fax: 886-2 2267 9876

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw
