Gianni Industries Electromechanical Lock Manuale utente

ML-300

ML-300-SW

Operating Voltage» ML-300: 12 or 24VDC

ML-300-SW: 12~24VDC/AC

Voltage Tolerance» ±10%

Current Draw» ML-300: 280mA/12VDC; 140mA/24VDC

ML-300-SW: 210mA/12VDC; 150mA/24VDC

Version Changeable» Fail-safe or Fail-secure

Operating Temperature» -10~45°C

Humidity» 0~95% non-condensing

Lock bolt sensor switch output» SPDT rated 3A/125VAC

Solenoid testing» Tested to 1,000,000!cycles

Net Weight» ML-300: 800g / ML-300-SW: 815g

Just applicable to vertical installation

4-4

62mm cylinder for max •42mm door leaf

72mm cylinder for max •52mm door leaf

ø5.0

150

124 250

5 6 7 8

ø5.0

1 2 3 4

Electromechanical Lock

Installation Instruction

Specification Double Swing Doors

Double swing door Outswing Inswing

Version Changeable:

Take out the Screw 1 , release screw 2 , move the

position and then tighten both screws.

“Fail-Safe”

(Power to Lock) “Fail-Secure”

(Power to Open)

Caution:

Fixing Lug

Allen wrench (1.6mm)

NIB

Lock bolt

Strike Plate

For double swing door For single swing door

Euro profile

key cylinder

Unit:mm

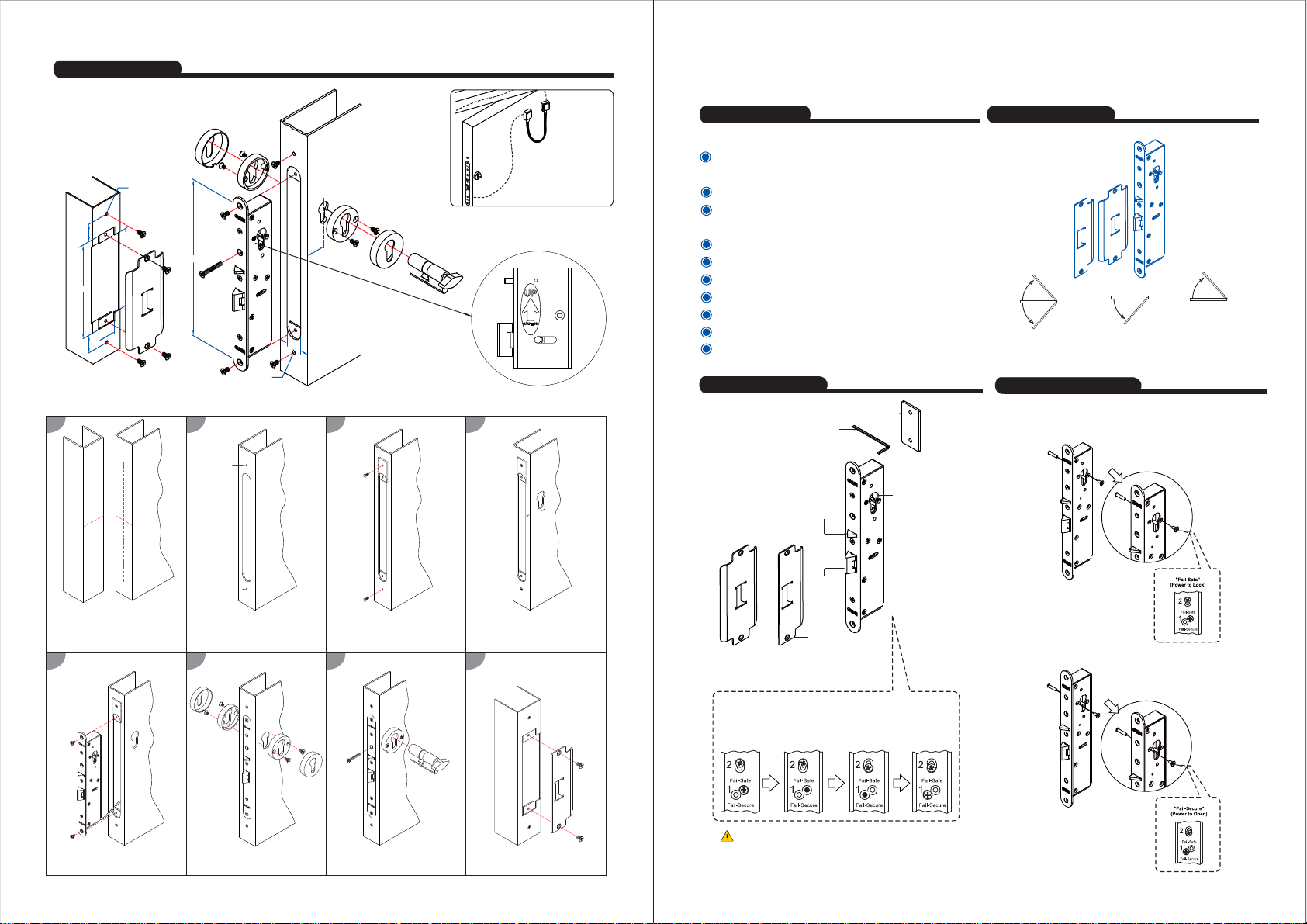

Installation Instructions

or leaf

Door Frame

Door Loop

(Optional)

(

ylin

otincl

uded

)

Align the center line (CL) of the

Alignment CL

orLeaf

r L

Cut out mortise holes for the lock Tighten the fixing lugs with

screws. Drill and cut the hole for the lock

Connect power cable to the lock Attach the cover plates for the Install the cylinder Fix the strike plate.

Stud bolt Position

Packing Contents

Do not completely remove screw 2 (as marked in the figure)

as the interior solenoid might fall off.

The door loop protects the wiring

from damage at the door hinge.

Attention! Please ensure that the

direction of the template is correct

Fram

lock body template with the CL of

the door leaf. Ensure the CL of the

strike plate template matches the lock

body CL as closely as possible. body and strike plate and drill holes

according to the templates. cylinders as shown in the template.

and test before screwing to the

door leaf. cylinder lock

For fail-safe mode

For fail-secure mode

Wiring Diagram

Yellow

ML-300 Voltage Input: 12 or 24VDC Lock bolt sensor status output

For 12VDC operation, the solenoid input wires

should be connected in parallel as shown below.

12VDC Power supply12VDC Power supply

Black

Red

Black

Red Varistor

(Power input is polarity free)

Green

Blue

“Fail-Safe”

(Power to Lock)

Access Control Device

N.C. contact

“Fail-Secure”

(Power to Open)

Yellow

Green

Blue

Varistor

Black

Red

Black

Red (Power input is polarity free)

12VDC Power supply

Access Control Device

N.O. contact

For 24VDC operation, the solenoid input wires

should be connected in series as shown below.

Black

Red

Black

Red Varistor

(Power input is polarity free)

24VDC Power supply

“Fail-Safe”

(Power to Lock)

Yellow

Green

Blue

Access Control Device

N.C. contact

Black

Red

Black

Red Varistor

(Power input is polarity free)

24VDC Power supply

Yellow

Green

Blue

“Fail-Secure”

(Power to Open)

Access Control Device

N.O. contact

Wiring Diagram

For the 12~24VDC/AC operation only

ML-300 Voltage Input: 12~24VDC/AC Lock bolt sensor status output

12~24VDC/AC Power supply

“Fail-Safe”

(Power to Lock)

Red

Red Varistor

(Power input is polarity free)

Yellow

Green

Blue

Access Control Device

N.C. contact

Red

Red Varistor

12~24VDC/AC Power supply

(Power input is polarity free) “Fail-Secure”

(Power to Open)

Yellow

Green

Blue

Access Control Device

N.O. contact

NOTE: The varistor (or diode) must be connected across the terminals as shown above. This protects the electromechanical

lock from spikes and surges.

ø5.0

19.5

86.5

318

275

30 19.5

ø5.0

ø18.0

ø11.0

150

206

Alignment CL

Cut on dotted line

Alignment CL

Door leaf edge

Template Unit:mm Butt Splice (IDC) Connector

Using crimper or pliers and pressing the header of

connector down to evenposition.
