EB190, EB195

ELECTRIC DROPBOLT

Fail-Safe Version (Power to Lock)

Operating Voltage: 12 /24VDC (self-regulating)

Voltage Tolerance: ±10%

Current Draw: Pull in: 0.9A/12VDC; 0.45A/24VDC

Holding: 0.15A/12VDC; 0.1A/24VDC

(at 20°C)

BSS output:Magnetic bolt status output (SPDT rated

3A/30VDC) indicates bolt locked or unlocked status.

DPS output: Indicates door position (open or closed),

Reed rated 0.25A/30VDC.

Operating Temperature: -10~+45°C

Humidity: 0~95% non-condensing.

Tested over 500000 cycles.

Built-in logical circuitry

Auto-relocking Time Delay : 0, 3 ,6 ,9 seconds

Faceplate Material: stainless steel

Net Weight: 0.6 Kg

Unit: mm

149

185

115

210

Sensor

N.O.

N.C.

COM.

N.C.

N.O.

Door Position Status

output: Indicating door

position (open or

closed),Reed rated

0.25A/30VDC.

Bolt Status Switch

sensor output:

Indicating bolt status

(Locked or Unlocked)

SPDT rating:

3A/30VDC

The EB190 electric dropbolt is the upgraded

version of EB180. The 25mm-wide faceplate is

designed for installation on virtually all types of

doors and frames. The bolt status switch sensor

and door position status sensor have been added

to the lock. The rectangular-shaped (EB195) and

arc-shaped (EB190) faceplates are used to suit

the different users' habits of installations.

EB190

EB195

Double Action Doors

EB190 Electric dropbolt is specially designed for use on

double swinging doors. They can also be installed on both

outswing and inswing doors.

GIANNI INDUSTRIES, INC.

DM-CA-EB-190 Ver. F Published on 2011.06.22

The product is warranted against defects in material and

workmanship while used in normal service for a period of 1

year from the date of sale to the original customer. The GEM

policy is one of continual development and improvement;

therefore GEM reserves the right to change specifications

without notice.

Warranty

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw

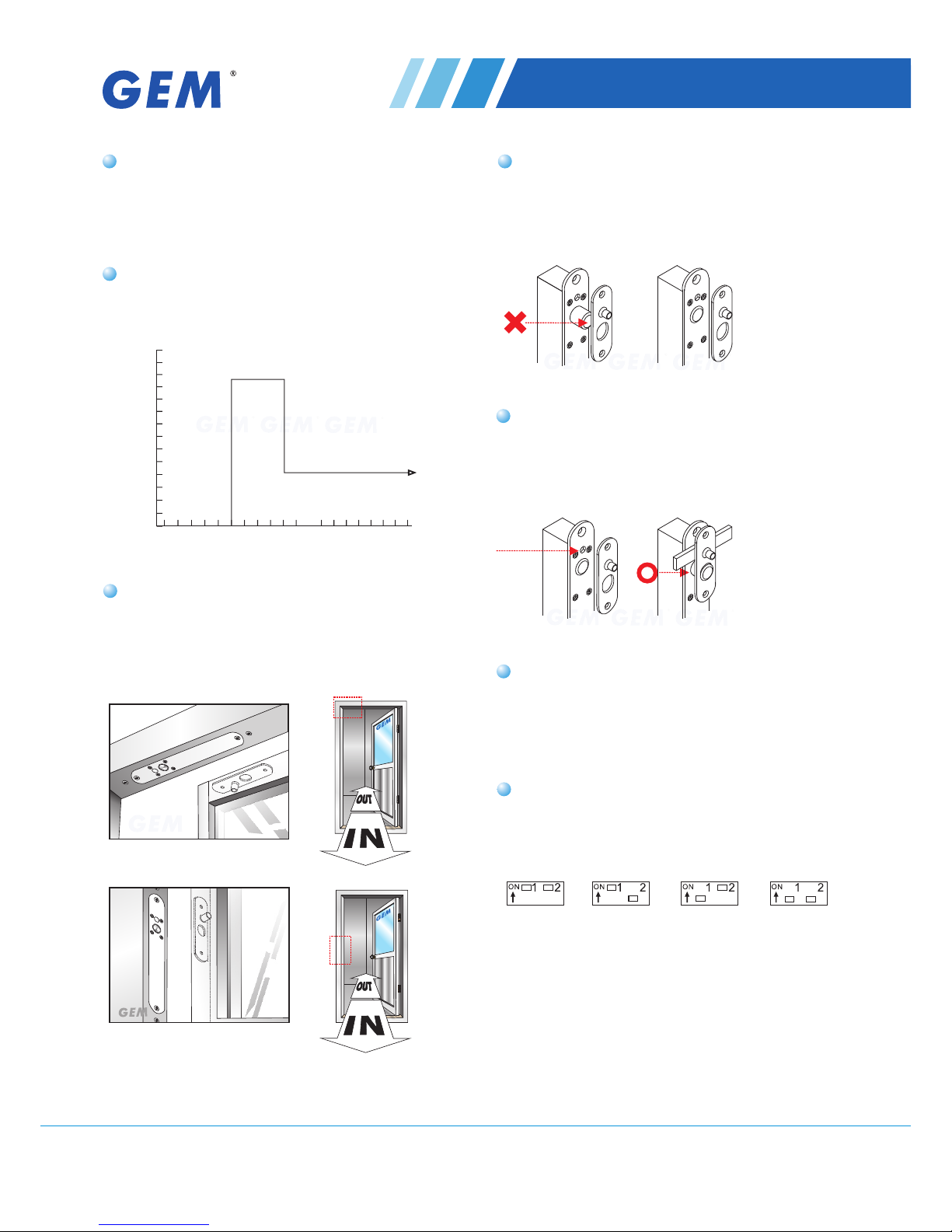

The specially designed solenoid aims for strength and long

life. The solenoid is guaranteed 500,000 times of operations.

Long life solenoids Auto-detective circuitry

Horizontal or vertical installation

Pull in

Holding

Current Draw (mA)

Time (seconds)

Breakthrough in innovation ideas

Unobtrusive and slim design can be flush mounted directly

into metal such as door mullions.

0 seconds 3 seconds 6 seconds 9 seconds

Relock time setting

Auto-detective circuitry

Fig. A

Fig. B

Horizontal Installation

(Frame Header)

Vertical Installation

(Side Jamb)

Vandal resistant

circuit design

Sensor

GEM's electric dropbolts can be installed either horizontally

at the top or bottom of the door frame or vertically on the side

of the door frame.

Vandal Resistant Circuitry

The vandal resistant circuitry means the door sensor can't

be fooled into projecting the electric dropbolt unless the door

is actually closed. The reed sensor automatically disconnects

after the bolt is projected to enhance security of the lock.

The unique intelligent logic circuit in GEM's electric

dropbolts keeps the bolt retracted until the door is properly

closed. This feature ensures the bolt will not extend if the door

is improperly aligned.

Energy Saving Design

After the dropbolt is completely locked , the current draw

changes from 0.9A to 0.15A to prolong its life.

Adjustable Time Delay of 0,3,6,9 seconds with 2 way DIP

switch. (Default Value: 0 sec.)

Relock Time Delay

GIANNI INDUSTRIES, INC.

EB190, EB195

ELECTRIC DROPBOLT

DM-CA-EB-190 Ver. F Published on 2011.06.22 No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw
