Gianni Industries EB-262 Manuale utente

Statement

Dimensions

Vandal Resistant

Auto-detective circuitry

Specification

Double Action Doors

EB262 Electric Dropbolt

EB262 Electric dropbolt is specially designed for use on

double swing doors. They can also be installed on both

outswing and inswing doors.

Double action door Inswing Outswing

The vandal resistant circuitry means the door position

sensor can't be fooled into projecting the electric dropbolt

unless the do or is actually closed. The ree d sen so r

automatically disconnects after the bolt is projected to

enhance security of the lock.

The unique intelligent logic circuit in GEM's electric

dropbolts keeps the bolt retracted until the door is properly

closed. This feature ensures the bolt will not extend if the door

is improperly aligned.

166

262

140

121

25.5

Unit: mm

Fail-Safe Version (Power to Lock)

Power Input: 12 VDC

Voltage Tolerance: ±10%

Current Draw: Pull in: 0.9A, Holding: 0.3A/12VDC

(at 20°C)

Magnetic bolt status output (SPDT rated 3A/30VDC)

indicates bolt is in a locked or unlocked status.

Operating Temperature: -10~+45°C

Humidity: 0~95% non-condensing.

Tested over 500000 cycles.

Built-in logical circuitry

Auto-relocking Time Delay : 0, 3 ,6 ,9 seconds

Faceplate Material: stainless steel

Net Weight: 1.2 Kg

The EB262 electric dropbolt has a logic circuitry. The

positioning ball above the dropbolt keeps the bolt retracted

while the door is not locked on strike plate until the door closed

properly. This design is for security purpose, which solves the

problem of improper door positioning.

GIANNI INDUSTRIES, INC.

DM-CA-EB-262 Ver. G Published on 2011.06.22

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw

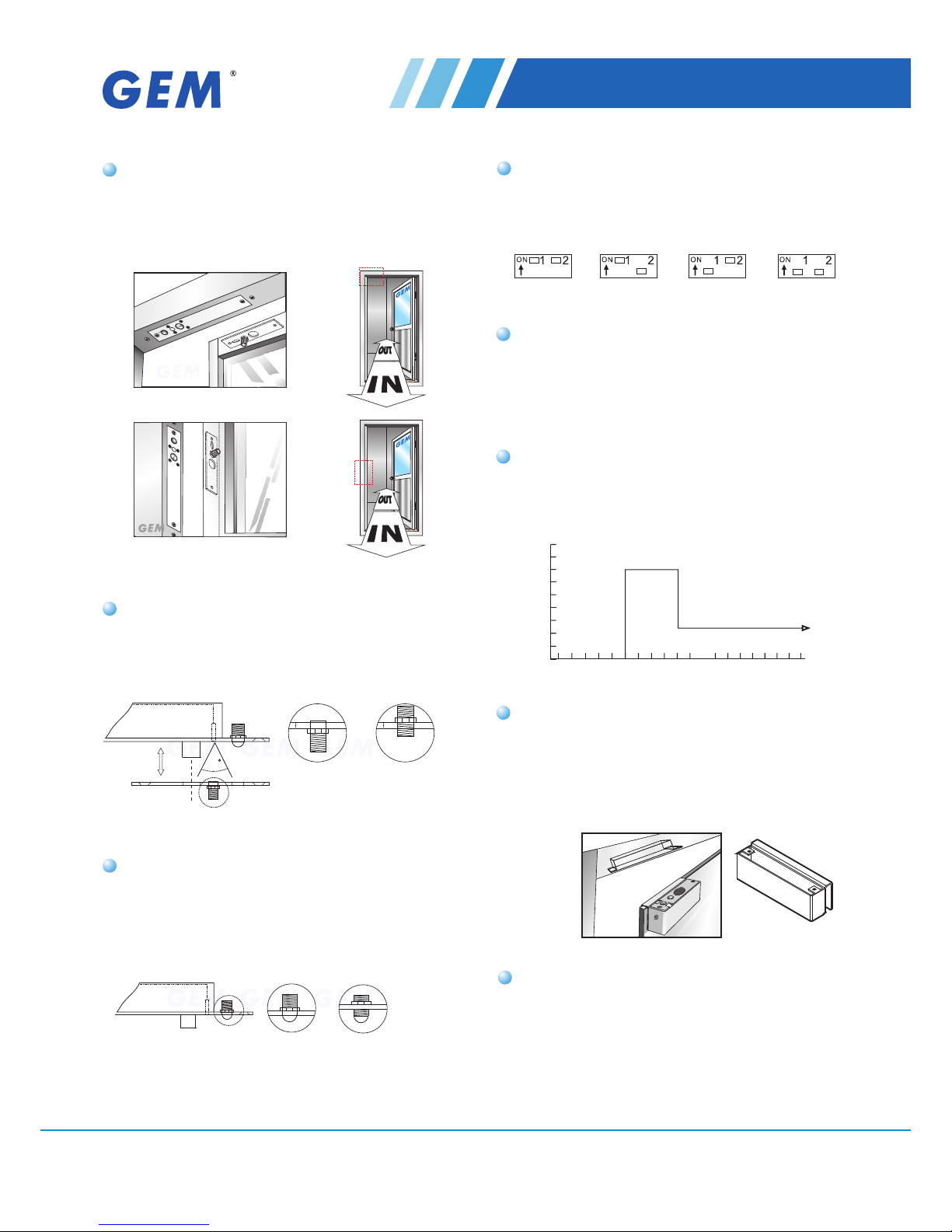

GEM's electric dropbolts can be installed either horizontally

at the top or bottom of the door frame or vertically on the side

of the door frame.

Fig. A Horizontal Installation (Frame Header)

Fig. B Vertical Installation (Side Jamb)

0 seconds 3 seconds 6 seconds 9 seconds

Relock time setting

The door position sensor can detect within a range of

5mm. If the door gap is too wide, a magnet within the strike

plate of the door can be adjusted to improve detection

accuracy.

5 mm maxi

Reed

The brackets UBK-262 are compatible with frameless glass

doors(Fig. C).

Fig. C

UBK-262 Bracket

For 10 or 12 mm thickness of glass

The product is warranted against defects in material and

workmanship while used in normal service for a period of 1

year from the date of sale to the original customer. The GEM

policy is one of continual development and improvement;

therefore GEM reserves the right to change specifications

without notice.

Warranty

Horizontal or vertical installation

Long life solenoids

Adjustable Sensor

Positioning Ball

Optional Accessory

The special designed solenoid aims for strength and long

life. The solenoid is guaranteed 500,000 times of operations.

Pull in

Holding

Current Draw (mA)

Time (seconds)

Positioning Ball is installed to prevent the chance of

locking damage caused by the improper door positioning. It

also helps the door align with the drop bolt and reduce the

automatic relock time of dropbolt when the door is closed.

Adjustable Time Delay of 0,3,6,9 seconds with 2 way DIP

switch. (Default Value: 0 sec.)

Relock Time Delay

Energy Saving Design

After the dropbolt is completely locked, the current draw

changes from 0.9A to 0.3A to prolong its life.

GIANNI INDUSTRIES, INC.

EB262 Electric Dropbolt

DM-CA-EB-262 Ver. G Published on 2011.06.22

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw
