Gianni Industries EM-1200 Manuale utente

EM-1200 series

Standard Electromagnetic Lock

DM-CA-EM-1200 Ver. D Published on 2011.09.07

GIANNI INDUSTRIES, INC.

Features

High reliability

Holding force up to 1200 lbs

Anodized aluminum casing

MOV provides spike and surge protection

Dual voltage 12 or 24 VDC (selectable)

Anti-Residual magnetism function

Statement

Specification

Operating Voltage: 12/24 VDC

Current Draw: 500mA/12VDC, 250mA/24VDC

(at 20°C)

Operating Temperature: -10~55°C ( 14~131°F)

Humidity: 0~95% non-condensing.

Holding Force: Up to 1200 lbs (545 Kg)

Dimensions:

Magnet:(L) 267(265), (W) 68, (D) 40 mm

Armature Plate:(L) 185, (W) 61, (D) 16 mm

Mounting Plate:(L) 267(265), (W) 40, (D) 5 mm

Special Finishes for magnet and armature plate: Zinc plated

Epoxy Potting Compound: E87252 (S), UL94V-0

Net Weight : 4.8 Kg

Regular Installation

Anti-residual statement

Magnet Armature

(Power Off)

Magnet Armature

(Power On)

Anti-residual statement

Our electromagnet locks feature Anti-Residual Magnetism

(ARM) which ensures the door can be opened without any

resistance from left over magnetism imparted to the armature

plate

The product is warranted against defects in material and

workmanship while used in normal service for a period of 5

years from the date of sale to the original customer. The GEM

policy is one of continual development and improvement;

therefore GEM reserves the right to change specifications

without notice.

Warranty

UL Listed Certified for US and Canada

"Positive Pressure Fire Tests of Door Assemblies,"

ANSI/UL UL 10B and 10C,

uniform building code standard UBC 7-2 (1997).

The EM-1200 Series are a high quality and safety range

electromagnet locks that are simply and work well in order to

effectively secure doors. These locks are recommended for

applications which require higher levels of access control and

are suitable for fire doors and emergency exit doors.

The locks are designed for single doors and are suitable for

out-swing applications. Installation on in-swing doors and

narrow-style frames requires the use of additional brackets.

With the accessories provided the series can be installed on

metal and wooden doors.

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 987 6

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw

EM-1200 series

Standard Electromagnetic Lock

DM-CA-EM-1200 Ver. D Published on 2011.09.07

GIANNI INDUSTRIES, INC.

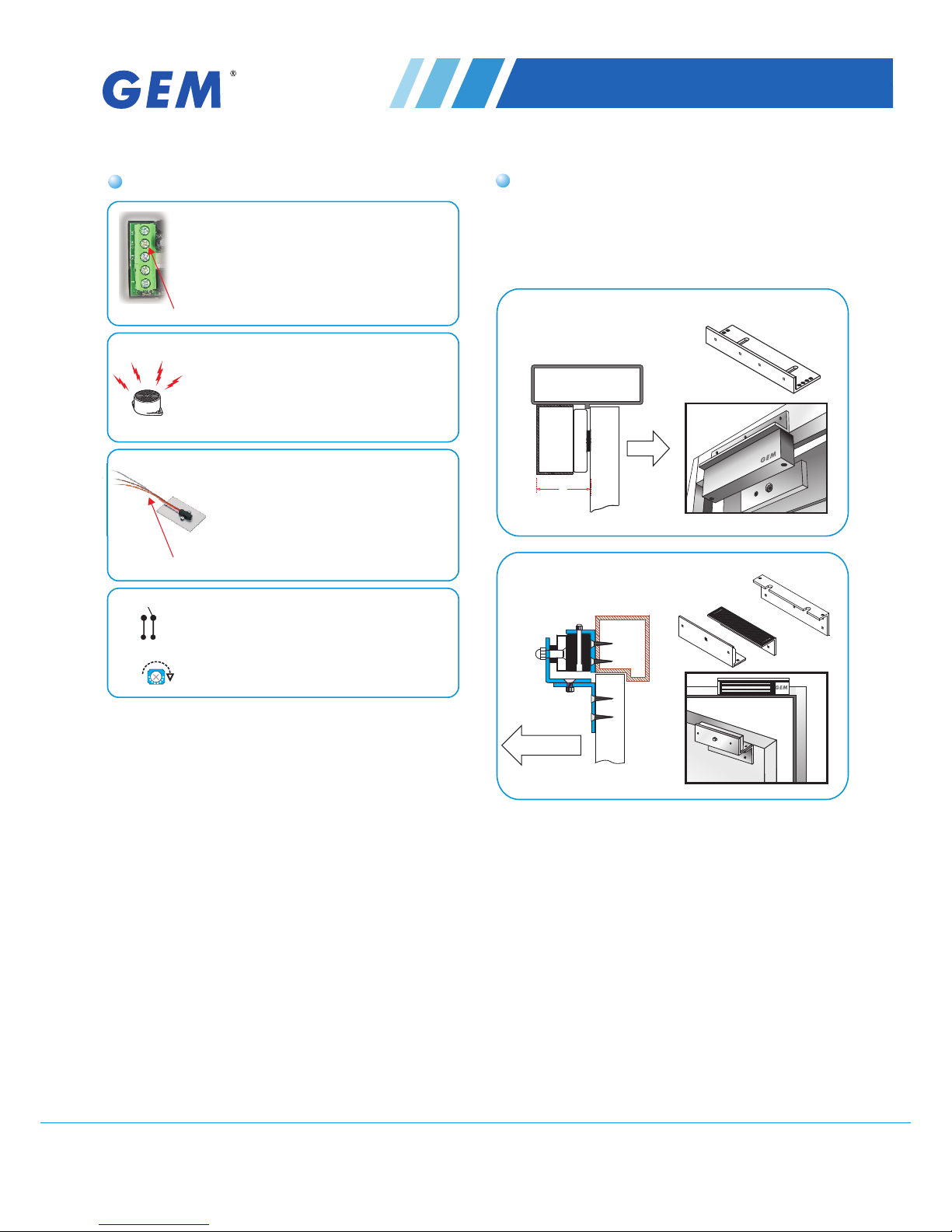

Operating Features

EM-1200MTD: Relock time delay

Ensure automatic locking after the

door is closed properly. Relock time

delay can be adjusted from 1 to 80

seconds.

EM-1200MBZ: Buzzer Alarm

Door Held Open Alarm is an auditory feedback for

users. The alarm sounds when the door is not

closed and that has exceeded a specified time

limit. VR timer is adjustable from 1 to 20 seconds.

EM-1200M: Bond sensor output

Indicate the locked & unlocked status with visible

LED indicator.

Bond sensor output : SPDT rated: 0.5A/125VAC;1A/24VDC

: Door status EM-1200MDS

Door Status Sensor indicates the door

is in an open or closed status.

Door status output : SPDT rated: 0.2A/12VDC

Timer Adjust

Shorten

Trigger

Optional Brackets

With L-bracket for narrow frame doors

When < 60 mm ,must

installed with "L" brackets.

"A"

L-500

LZ-bracket for inswing doors LZ-500N

Bracket installation is according to door swing

direction and door frame type , e.g. narrow frame

door , frameless glass door , inswing door , etc.

60 mm

Magnet

Armature

Door Frame

Door

Leaf

Outswing

In-Swinging

Frame

Door

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 987 6

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw
