Gianni Industries EB-180 Manuale utente

Statement

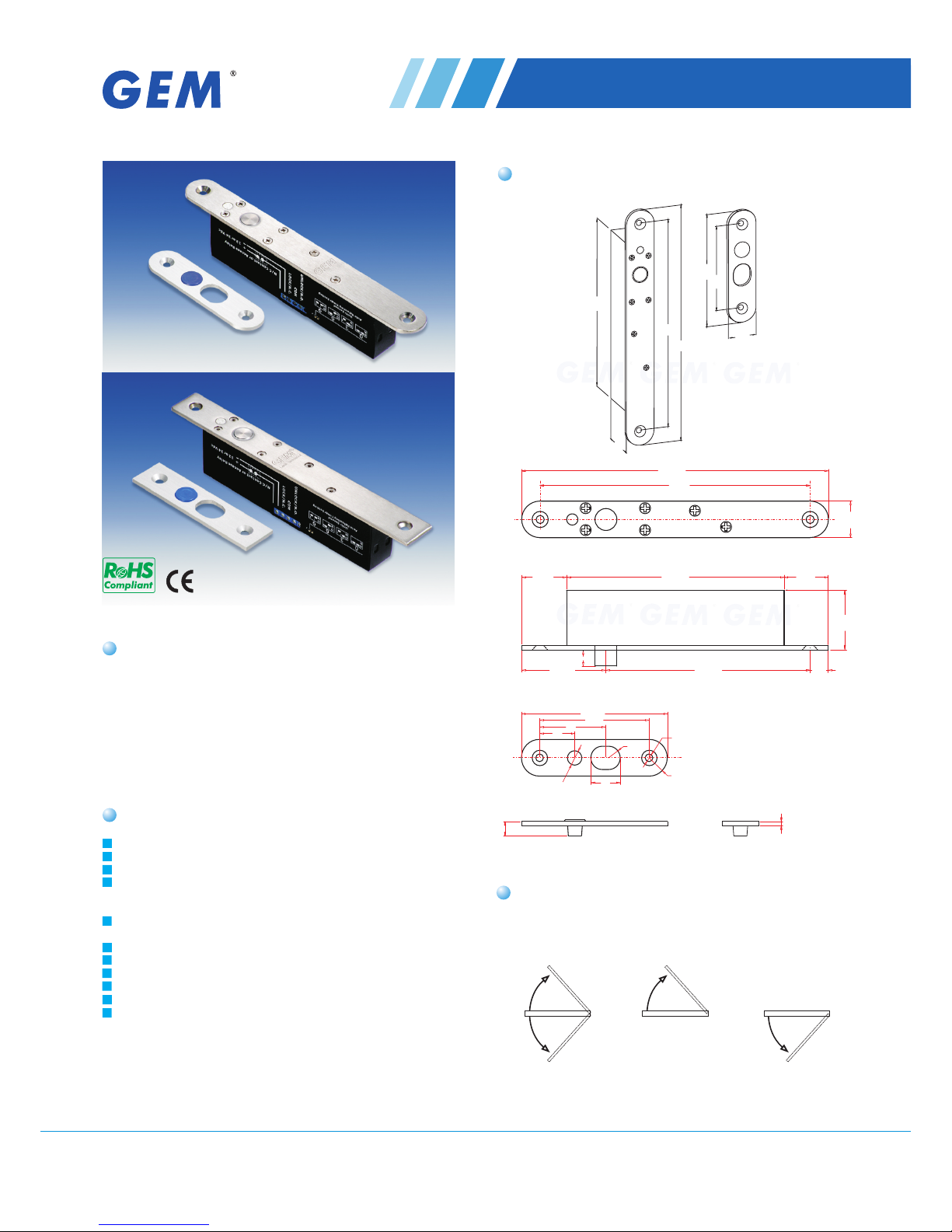

Dimensions

Specification

EB180, EB185

ELECTRIC DROPBOLT

EB180

Fail-Safe(Power to Lock)

Operating Voltage: 12/24VDC

Voltage tolerance: ±10%

Current Draw: Pull in: 0.9A/12VDC; 0.4A/24VDC

Holding: 0.15A/12VDC; 0.1A/24VDC

(at 20°C)

Magnetic bolt status output:

(SPDT rated 3A/12VAC,1.5A/250VAC)

Operating Temperature: -10~+45°C

Humidity: 0~95% non-condensing.

Relock Time Delay : 1, 3 ,6 ,9 seconds

Tested over 500000 cycles.

Faceplate Material: stainless steel

Net Weight : 0.6 Kg

Unit: mm

149

185

100

21025

30.8 149

140

30.2

12.5

16.5

57.5

100

9.9

R12.5

Ø5.3 x 10.5-2 PlacesØ

210

185

The EB180 electric dropbolt is very lightweight.

The 25 mm-wide faceplate is designed for

installation virtually on all types of doors and

frames. The rectangular-shaped (EB185) and

arc-shaped (EB180) faceplates are used to meet

the different needs.

EB185

Double Action Doors

EB180 Electric dropbolt is specially designed for use on

double swinging doors. They can also be installed on both

outswing and inswing doors.

GIANNI INDUSTRIES, INC.

DM-CA-EB-180 Ver. G Published on 2011.06.22

Double swing doors Outswing doors Inswing doors

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw

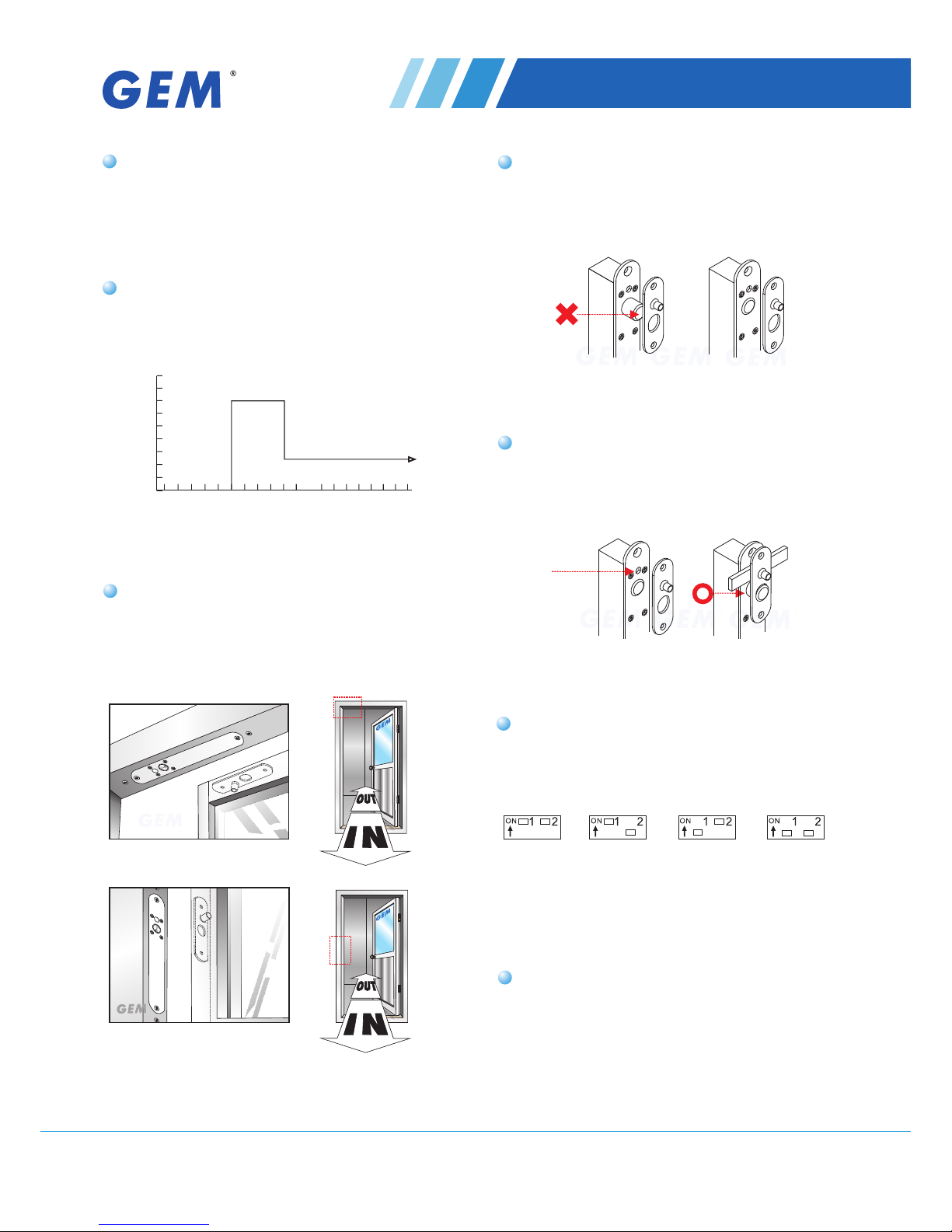

The special designed solenoid aims for strength and long

life. The solenoid is guaranteed 500,000 times of operation.

The product is warranted against defects in material and

workmanship while used in normal service for a period of 1

year from the date of sale to the original customer. The GEM

policy is one of continual development and improvement;

therefore GEM reserves the right to change specifications

without notice.

Warranty

Long life solenoids

Horizontal or vertical installation

1 second 3 seconds 6 seconds 9 seconds

Relock time setting

Fig. A

Fig. B

Horizontal Installation

(Frame Header)

Vertical Installation

(Side Jamb)

Sensor

Energy Saving Design

After the dropbolt is completely locked , the current draw

changes from 0.9A to 0.15A to prolong its life.

Pull in

Holding

Current Draw (mA)

Time (seconds)

GEM's electric dropbolts can be installed either horizontally

at the top or bottom of the door frame or vertically on the side

of the door frame.

Auto-detective circuitry

Unique self-detective logical circuitry is designed to retract

the bolt until the door is properly closed.

Vandal Resistant Circuitry

Once the bolt is completely locked, the reed sensor

automatically disconnects from the bolt to avoid unauthorized

access attempts.

Adjustable Time Delay of 1,3,6,9 seconds with 2 way DIP

switch. (Default Value: 1 sec.)

Relock Time Delay

EB180, EB185

ELECTRIC DROPBOLT

GIANNI INDUSTRIES, INC.

DM-CA-EB-180 Ver. G Published on 2011.06.22 No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw
