Gianni Industries EB-300 Manuale utente

Statement

Dimension

Specifications

GIANNI INDUSTRIES, INC.

DM-CA-EB-300 Ver. E Published on 2008.10.20

The products are manufactured under an ISO

9001 QC 080000 Certified Quality

Management Program environment back its

product quality, performance and commitment

to customer satisfaction.

Unit: mm

EB-300

Surface Mount Electric Dropbolt

EB-300

EB-300VGL

Fail-Safe Version (Power to Lock)

Power Input: 12 V DC

Voltage Tolerance: ±10%

Current Draw:

Pull in: 0.9A, Holding: 0.3A@12V DC

at temperature 20

Door Position status output (Reed rated 0.25A@30VDC)

indicates door opened or closed status.

Operating Temperature: -10~+45

Humidity: 0~95% non-condensing.

Lock's surface Temperature (when the power is on):

<current temperature +20

Tested to 500000 cycles.

Auto-relocking Time Delay : 0, 3 ,6 ,9seconds

Weight (Approx.):

EB-300: 1.1 Kg

EB-300VGL: 1.7 Kg

362

166

The EB-300 electric dropbolt is designed for

surfacemount application and the EB-300VGL is

designed for frameless glass door and glass wall

applications.

Special designed solenoid for strength and long life

operating lifetime with guaranteed 500,000 operations.

Long life solenoids

Solid bolt for superior strength

Greater security is provided by the 13.5mm diameter (

solid stainless steel bolt with hardened magnet

core, which has resistant to metal cutting saws. The bolt also

rotates freely, making attempts to tamper or cut extremely

difficult.

16mm

bolt throw)

The door locking delay is the time between the door being

closed and the bolt engaging . This can be set to up to 9

seconds at 3 second intervals by adjusting the jumpers.

Lock Delay Settings

0 seconds 3 seconds 6 seconds 9 seconds

Auto Relocking Timer Setting

Clamp Design

When the bolt is extended to keep the door locked, it draws

only 0.3A in a holding mode down from 0.9A while the bolt is

retracted. This design both protects the power supply and

extends the life of the electric dropbolt.

Pull in

Holding

Current Draw (mA)

Time (seconds)

Smart Circuitry

The vandal resistant circuitry means the door close sensor

can't be fooled into projecting the electric dropbolt unless the

door is actually closed. The reed sensor automatically

disconnects after the bolt is projected to enhance security of

the lock.

Sensor

Vandal resistant

circuit design

No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,

Tu-Cheng City, Taipei, Taiwan 23678

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: [email protected]

Website: gianni.tw

GIANNI INDUSTRIES, INC.

The products are manufactured under an ISO

9001 QC 080000 Certified Quality

Management Program environment back its

product quality, performance and commitment

to customer satisfaction.

The product is warranted against defects in material and

workmanship while used in normal service for a period of 1

year from the date of sale to the original customer. The GEM

policy is one of continual development and improvement;

therefore GEM reserves the right to change specifications

without notice.

Warranty

EB-300

Surface Mount Electric Dropbolt

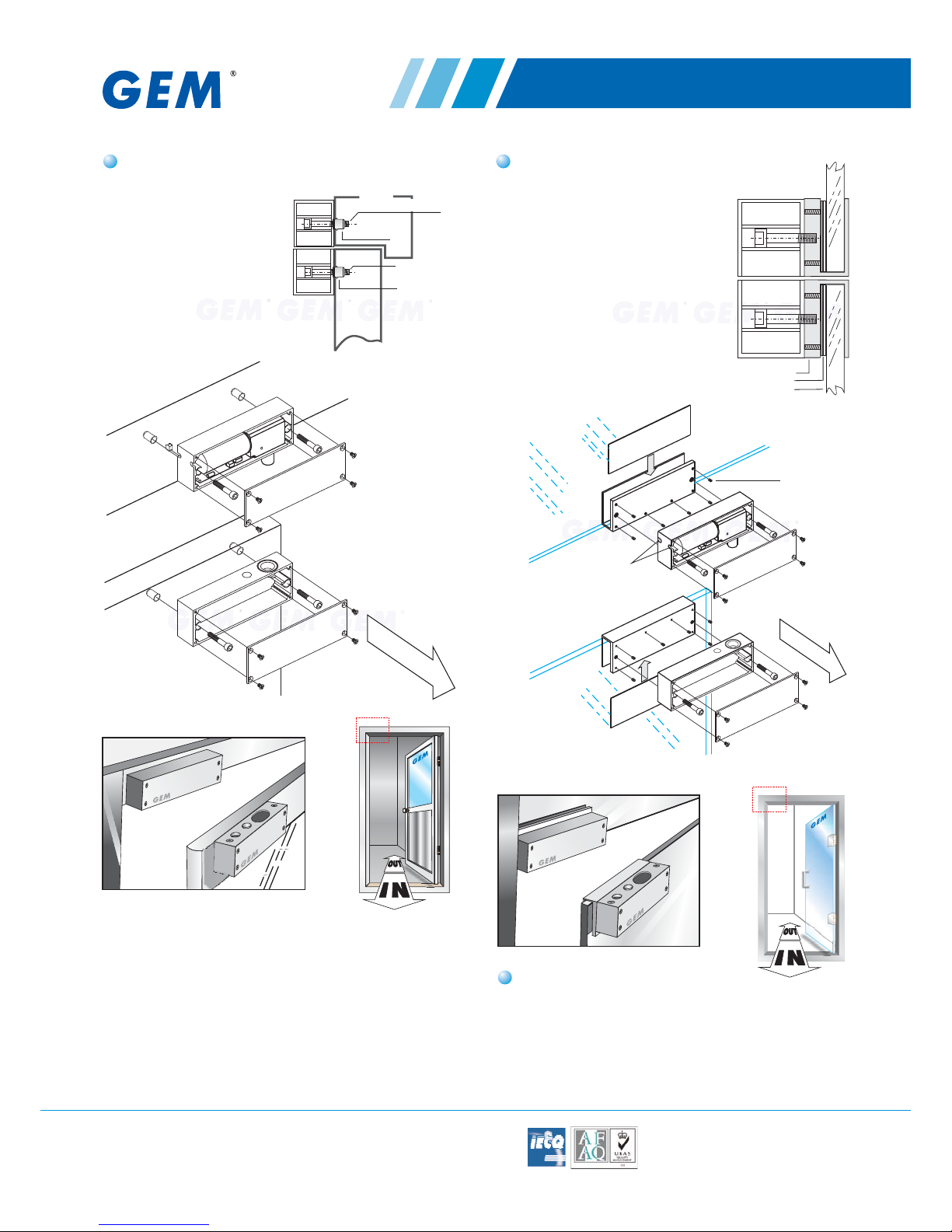

Surface Mount for Narrow Frame For Full Frameless Glass doors

The EB-300 dropbolt and

strike plate with complete

housings are specially

designed for narrow door

frames.

M6 x45 Screw

Blind Nut

Lock Body

Strike Body

Door

Header

M6 x45 Screw

Cable Access Holes

Thethicknessofglass

is 14 mm maximum.

Frameless

Glass Door

Frameless

Glass Wall

Spacer

Sunken screw

In-swinging

Blind Nut

Door

Header

In-swinging

The EB-300VGL Dropbolt and

strike plate with complete housings

and u-bracketsare specially

designed for full frameless glass

doors/wall. The thickness of glass

are 14 mm maximum.

Dropbolt

Assembly

Strike plate

Assembly

Frameless Glass Door

Spacer

U-channel Bracket

DM-CA-EB-262 Ver. E Published on 2008.10.20

No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,

Tu-Cheng City, Taipei, Taiwan 23678

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: [email protected]

Website: gianni.tw
