Gigabyte 6BXC Manuale utente

R-20-01-090429

6BXC

USER'S MANUAL

1. System power on by PS/2 Mouse: First, enable this function

in CMOS Setup, then you can power on the system by

double clicking the right or left button of your PS/2 Mouse.

2. System power on by Keyboard: If your ATX power supply

supports larger than 300 mA 5V Stand-By current

(dependent on the specification of keyboards), you can

power on your system by entering password from the

keyboard after setting the “Keyboard power on”password in

CMOS Setup.

3. Supports 3 steps ACPI LED.

4. Modem Ring-On. (COM A , B).

5. Wake-Up on LAN. (on JP7) (The ATX power supply supports

larger than 720 mA 5V Stand-By current)

For Intel Pentium



II / III / CeleronProcessor MAINBOARD

REV. 2.0 First Edition

6BXC

The author assumes no responsibility for any errors or omissions which may

appear in this document nor does it make a commitment to update the

information contained herein.

Third-party brands and names are the property of their respective

owners.

Sound Blaster is a registered trademark of Creative Technology Ltd in the

United States and certain other countries. Sound Blaster-LINK and SB-LINK

are trademarks of Creative Technology Ltd.

Apr. 29, 1999 Taipei, Taiwan

Quick Installation Guide

I. Quick Installation Guide :

CPU SPEED SETUP

The system bus speed is selectable between 66 / 100 MHz. The user can

select the system bus speed (SW1) and change the DIP SWITCH (SW2)

selection to set up the CPU speed for 233 - 633MHz processor.

Set System Bus Speed

SW1:

CPU AGP 1 23 4

100 MHz 66 MHz OFF OFF OFF OFF

133 MHz 89 MHz OFF OFF ON OFF

112 MHz 75 MHz OFF ON OFF OFF

66 MHz 66 MHz ON OFF OFF ON

75 MHz 75 MHz ON ON OFF ON

83 MHz 83 MHz ON OFF ON ON

The CPU speed MUST match with the frequency RATIO. It will cause

system hanging up if the frequency RATIO is higher than that of CPU.

SW2:

CLK RATIO 1 23 4

X3 ON OFF ON ON

X3.5 OFF OFF ON ON

X4 ON ON OFF ON

X4.5 OFF ON OFF ON

X5 ON OFF OFF ON

X5.5 OFF OFF OFF ON

X6 ON ON ON OFF

X6.5 OFF ON ON OFF

X 7 ON OFF ON OFF

X 7.5 OFF OFF ON OFF

X 8 ON ON OFF OFF

X 8.5 OFF ON OFF OFF

X 9 ON OFF OFF OFF

X 9.5 OFF OFF OFF OFF

♦Note: It’s strongly recommended that set the system speed according to

your hardware configuration: CPU, SDRAM, Cards, etc.

6BXC

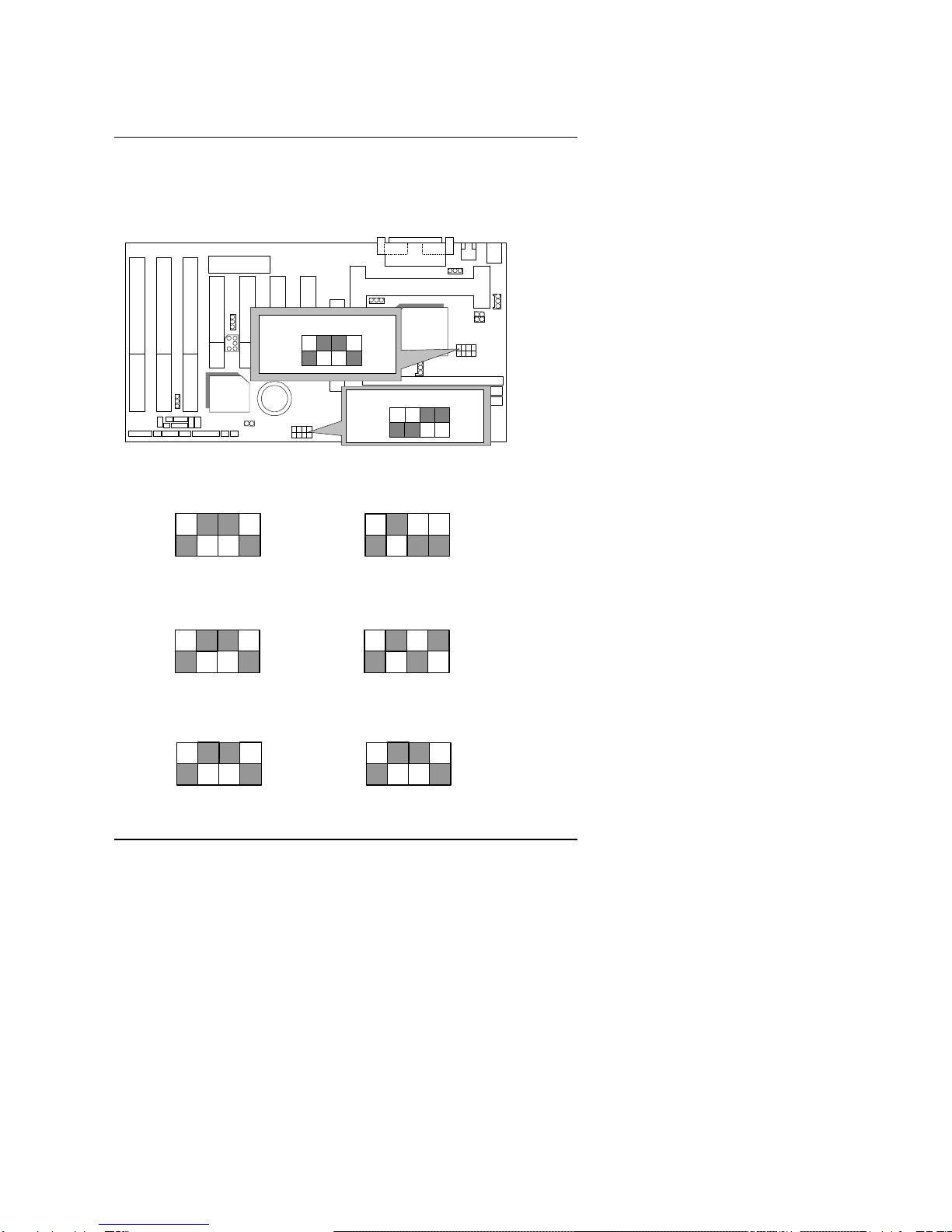

+The black part in the picture is the white extruding piece of the

DIP switch.

1. PentiumII /Celeron233 / 66 MHz FSB

CPU

Intel

440BX

PIIX4

6BXC

OFF

SW2

123

OFF

SW1 1

2. PentiumII /Celeron266 / 66 MHz FSB

3. PentiumII /Celeron300/Celeron300A / 66 MHz FSB

4. PentiumII /Celeron333 / 66 MHz FSB

SW2 ON

4 3 2 1

OFF

SW1 ON

4 3 2 1

OFF

SW2 ON

4 3 2 1

OFF

SW1 ON

4 3 2 1

OFF

SW2 ON

4 3 2 1

OFF

SW1 ON

4 3 2 1

OFF

Quick Installation Guide

5. PentiumII /Celeron366 / 66MHz FSB

6. PentiumII /Celeron400 / 66MHz FSB

7. PentiumII /Celeron433 / 66MHz FSB

8. PentiumII 350 / 100 MHz FSB

9. PentiumII 400 / 100 MHz FSB

10. PentiumIII 450 / 100 MHz FSB

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1

OFF

SW1 ON

4 3 2 1

OFF

SW2 ON

4 3 2 1

OFF

SW1 ON

4 3 2 1

OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

6BXC

11. PentiumIII 500 / 100 MHz FSB

12. PentiumIII 550 / 100 MHz FSB

13. PentiumIII 600 / 100 MHz FSB

14. PentiumIII 650 / 100 MHz FSB

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1

OFF

SW2 ON

4 3 2 1

OFF

SW1 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

Quick Installation Guide

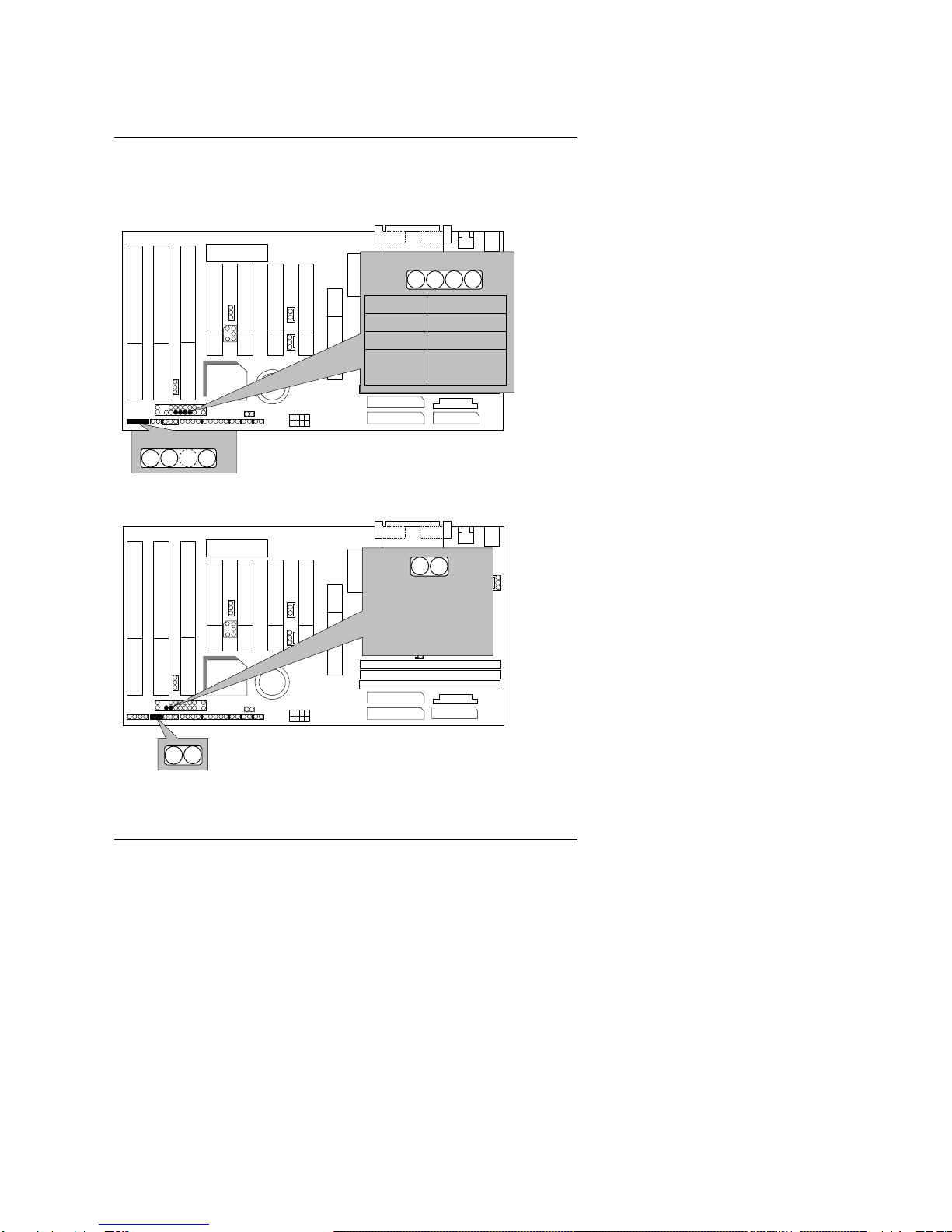

II. Jumper setting :

SPK : Speaker Connector

CPU

Intel

440BX

PIIX4

6BXC

Pin Function

1VCC

2NC

3NC

4Data

RE : Reset Switch

CPU

Intel

440BX

PIIX4

6BXC

Open:

Normal operation

Short:

Reset system

6BXC

PW LED : Power LED Connector

CPU

Intel

440BX

PIIX4

6BXC

Pin Function

1LED anode(+)

2LED cathode(−)

3LED cathode(−)

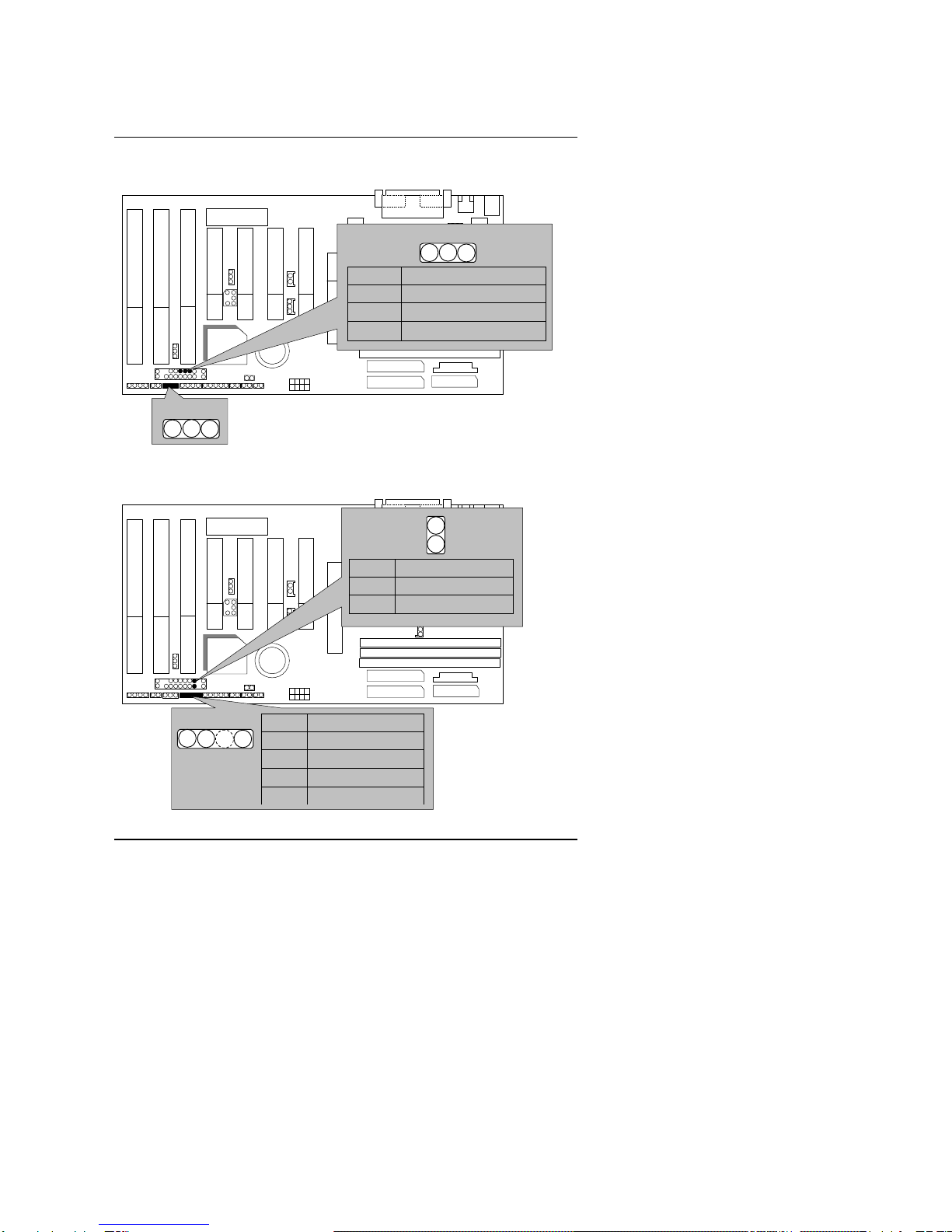

HD : IDE Hard Disk Active LED

CPU

Intel

440BX

PIIX4

6BXC

Pin Function

1LED anode(+)

2LED cathode(−)

Pin Function

1LED anode(+)

2LED cathode(−)

3LED cathode(−)

4LED anode(+)

Quick Installation Guide

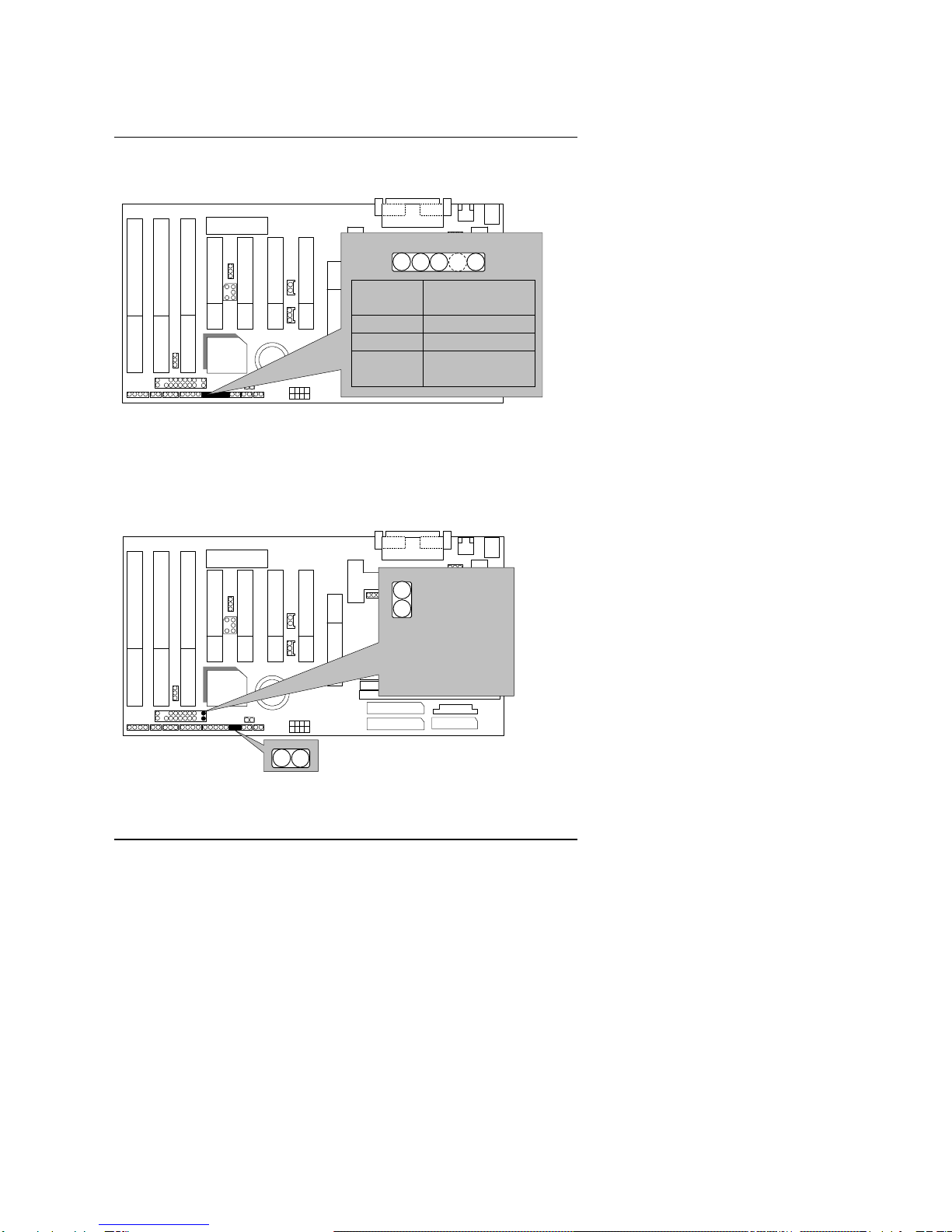

IR : Infrared Connector (Optional)

CPU

Intel

440BX

PIIX4

6BXC

Pin Function

IR Data Output

2GND

3IR Data Input

4NC

5POWER (+)

GN : Green Function Switch

CPU

Intel

440BX

PIIX4

6BXC

Open:

Normal

operation

Short:

Entering

Green mode
